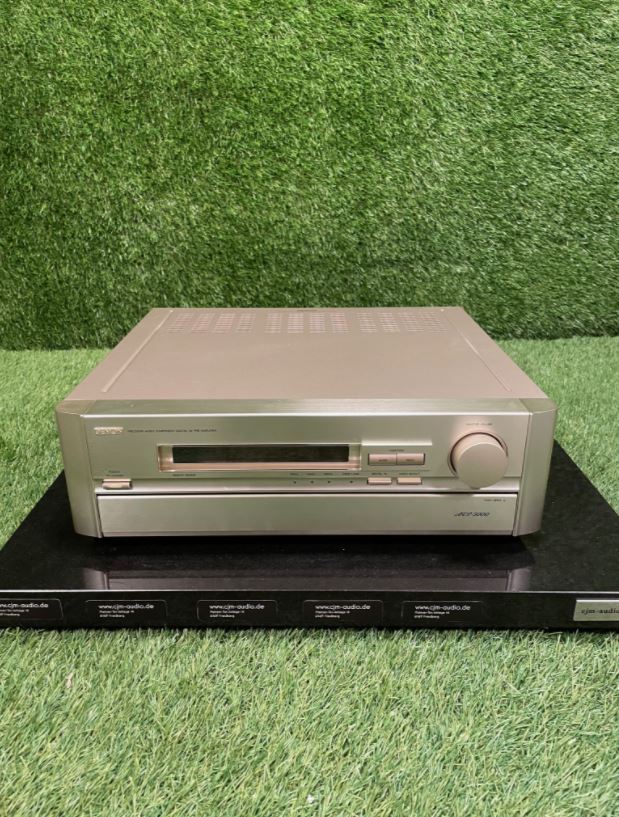

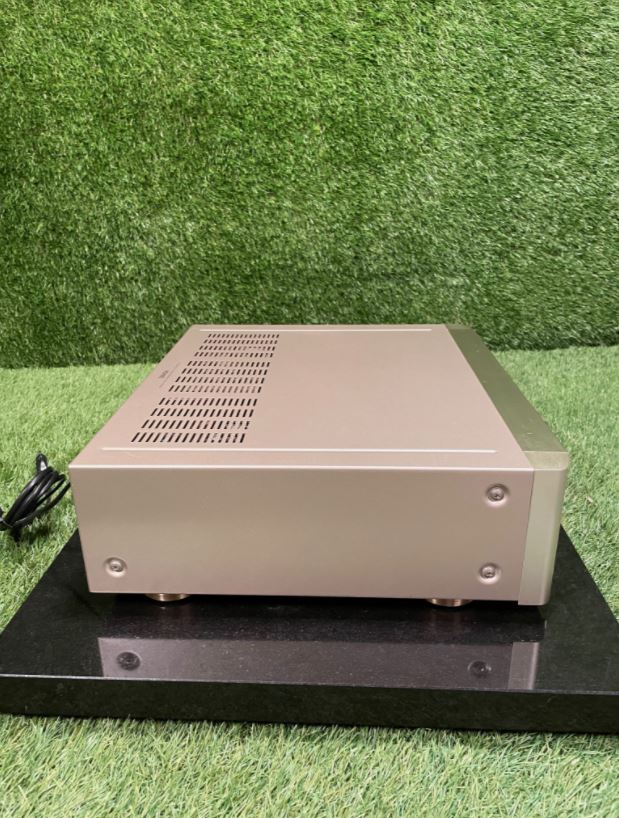

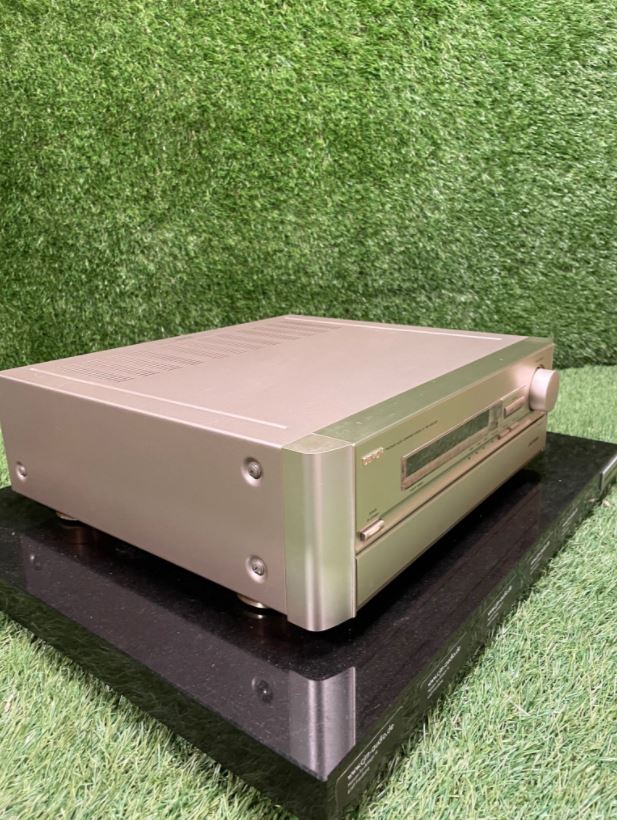

Sehr gut erhaltener Vorverstärker  Denon AVP-5000.

Damaliger Neupreis der Vorstufe 5000,00 DM.

Weiterführende Informationen:

Form AV preamplifier

<Analog part>

Analog input CD, AUX, Tuner, Tape1, 2, DBS/BS, TV, VDP,

VCR 1 and 2, V-AUX (Hi-Vision Center/Rear)

Analog output Pre Out(eight lines): Front L/R, Center L/R, Rear L/R, Mono1, 2

Rec Out(four lines): VCR-1, 2, Tape1, 2

Frequency response 10Hz-100kHz+0 -3dB (Direct Mode)

THD 0.005% (20Hz - 20kHz, Direct Mode)

Signal to noise ratio 105dB(Direct Mode)

<Digital part>

Digital input Optical(four lines): DBS/BS, VDP, CD, DAT

Coaxial(two lines): DBS/BS, CD

Digital output Optical(one line): DAT

Sampling frequency 32kHz, 44kHz, 48kHz

Frequency response 20Hz-20kHz�}0.5dB

<Video part>

Video input Composite (six lines): DBS/BS, TV, VDP, VCR 1 and 2, V-AUX

S terminal (six lines): DBS/BS, TV, VDP, VCR 1 and 2, V-AUX

Video output

Composite Monitor(two lines): Monitor Out1, 2

Rec Out(two lines): VCR 1 and 2

S terminal Monito(two lines): Monitor Out1, 2

Rec Out(two lines): VCR 1 and 2

Frequency response Composite: 0.5Hz-20MHz+0 -3dB (1 Vp-p/75o ohms, Monitor Out1)

S terminal: 0.5Hz-20MHz+0 -3dB (1 Vp-p/75 ohms, Monitor Out1)

<Synthesis>

Power supply voltage AC100V, 50Hz/60Hz

Power consumption 50W

Dimensions Width 434x height 140x depth of 408mm

Weight About 14.0kg

Attachment Remote control

Sehr gut erhaltener Vorverstärker  Denon AVP-5000.

Damaliger Neupreis der Vorstufe 5000,00 DM.

Weiterführende Informationen:

Form AV preamplifier

<Analog part>

Analog input CD, AUX, Tuner, Tape1, 2, DBS/BS, TV, VDP,

VCR 1 and 2, V-AUX (Hi-Vision Center/Rear)

Analog output Pre Out(eight lines): Front L/R, Center L/R, Rear L/R, Mono1, 2

Rec Out(four lines): VCR-1, 2, Tape1, 2

Frequency response 10Hz-100kHz+0 -3dB (Direct Mode)

THD 0.005% (20Hz - 20kHz, Direct Mode)

Signal to noise ratio 105dB(Direct Mode)

<Digital part>

Digital input Optical(four lines): DBS/BS, VDP, CD, DAT

Coaxial(two lines): DBS/BS, CD

Digital output Optical(one line): DAT

Sampling frequency 32kHz, 44kHz, 48kHz

Frequency response 20Hz-20kHz�}0.5dB

<Video part>

Video input Composite (six lines): DBS/BS, TV, VDP, VCR 1 and 2, V-AUX

S terminal (six lines): DBS/BS, TV, VDP, VCR 1 and 2, V-AUX

Video output

Composite Monitor(two lines): Monitor Out1, 2

Rec Out(two lines): VCR 1 and 2

S terminal Monito(two lines): Monitor Out1, 2

Rec Out(two lines): VCR 1 and 2

Frequency response Composite: 0.5Hz-20MHz+0 -3dB (1 Vp-p/75 ohms, Monitor Out1)

S terminal: 0.5Hz-20MHz+0 -3dB (1 Vp-p/75 ohms, Monitor Out1)

<Synthesis>

Power supply voltage AC100V, 50Hz/60Hz

Power consumption 50W

Dimensions Width 434x height 140x depth of 408mm

Weight About 14.0kg

Attachment Remote control

Sehr gut erhaltener Vorverstärker Denon AVP-5000.

Damaliger Neupreis der Vorstufe 5000,00 DM.

Weiterführende Bilgi:

Form AV ön yükselticisi

<Analog parça>

Analog giriş CD, AUX, Tuner, Teyp1, 2, DBS/BS, TV, VDP,

VCR 1 ve 2, V-AUX (Hi-Vision Merkez/Arka)

Analog çıkış Ön Çıkış (sekiz satır): Ön Sol/Sağ, Merkez Sol/Sağ, Arka Sol/Sağ, Mono1, 2

Kayıt Çıkışı(dört satır): VCR-1, 2, Teyp1, 2

Frekans yanıtı 10Hz-100kHz+0 -3dB (Doğrudan Mod)

THD %0,005 (20Hz - 20kHz, Doğrudan Mod)

Sinyal gürültü oranı 105dB(Doğrudan Mod)

<Dijital parça>

Dijital giriş Optik(dört satır): DBS/BS, VDP, CD, DAT

Koaksiyel (iki satır): DBS/BS, CD

Dijital çıkış Optik(tek hat): DAT

Örnekleme frekansı 32kHz, 44kHz, 48kHz

Frekans yanıtı 20Hz-20kHz�}0.5dB

<Video bölümü>

Video girişi Kompozit (altı satır): DBS/BS, TV, VDP, VCR 1 ve 2, V-AUX

S terminali (altı hat): DBS/BS, TV, VDP, VCR 1 ve 2, V-AUX

Video çıkışı

Kompozit Monitör (iki satır): Monitör Çıkışı1, 2

Kayıt Çıkışı(iki satır): VCR 1 ve 2

S terminali Monito(iki hat): Monitör Çıkışı1, 2

Kayıt Çıkışı(iki satır): VCR 1 ve 2

Frekans yanıtı Bileşik: 0,5Hz-20MHz+0 -3dB (1 Vp-p/75o ohm, Monitör Çıkışı1)

S terminali: 0,5Hz-20MHz+0 -3dB (1 Vp-p/75 ohm, Monitör Çıkışı1)

<Sentez>

Güç kaynağı voltajı AC100V, 50Hz/60Hz

Güç tüketimi 50W

Boyutlar Genişlik 434x yükseklik 140x 408 mm derinlik

Ağırlık Yaklaşık 14.0kg

Eklenti Uzaktan kumanda
