At Nagra, we know that exceptional sound begins with exceptional power. For decades, our legendary recorders set the standard thanks to their silent, high-performance power supplies, delivering unmatched reliability and autonomy.

Carrying this heritage into the Hi-Fi world, we designed external power supplies for our HD and Reference lines that pushed the boundaries of sonic purity. The Compact PSU proudly continues this tradition—delivering reference-grade performance in a refined, space-efficient design.

From the very first sketch, the Compact PSU was imagined as more than a power supply — it was designed as the silent foundation of your musical journey. Every element, inside and out, was crafted to deliver not just performance, but an experience.

• Pure, Linear Power Flow – Hear your music exactly as it was intended, free from distortion or compromise.

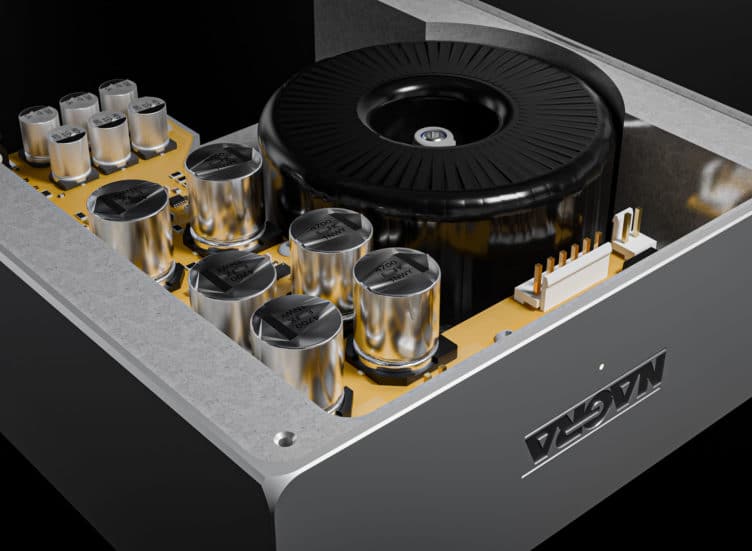

• A Transformer with Soul – Custom-built for Nagra, our toroidal transformer delivers power with precision and warmth, giving life to every note.
• Multi-Stage Silent Filtering – Eliminates interference and guarantees a clean, silent energy flow to your components.

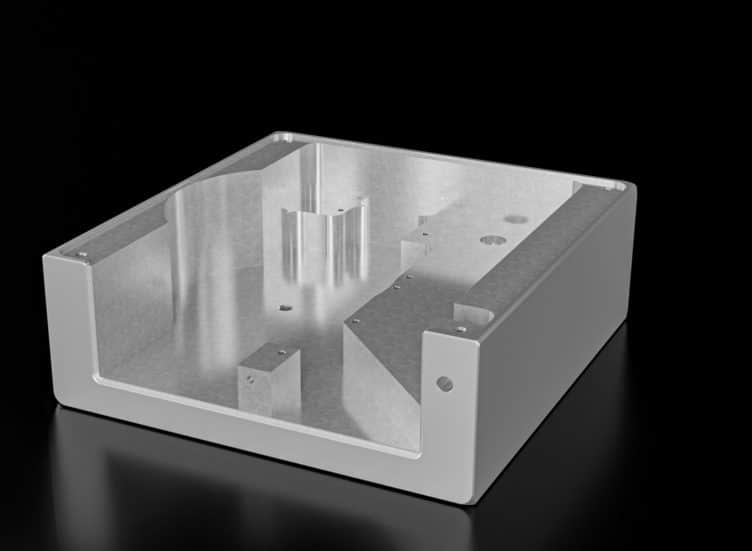

Precision-Machined Aluminum Chassis – Provides resonance control and vibration resistance, combining durability with elegance.

Region-Specific Transformer Options – Dedicated versions for European and US mains voltage for optimal performance everywhere.

Generous 2 A Output Power – Plenty of headroom to unleash the full potential of your system.

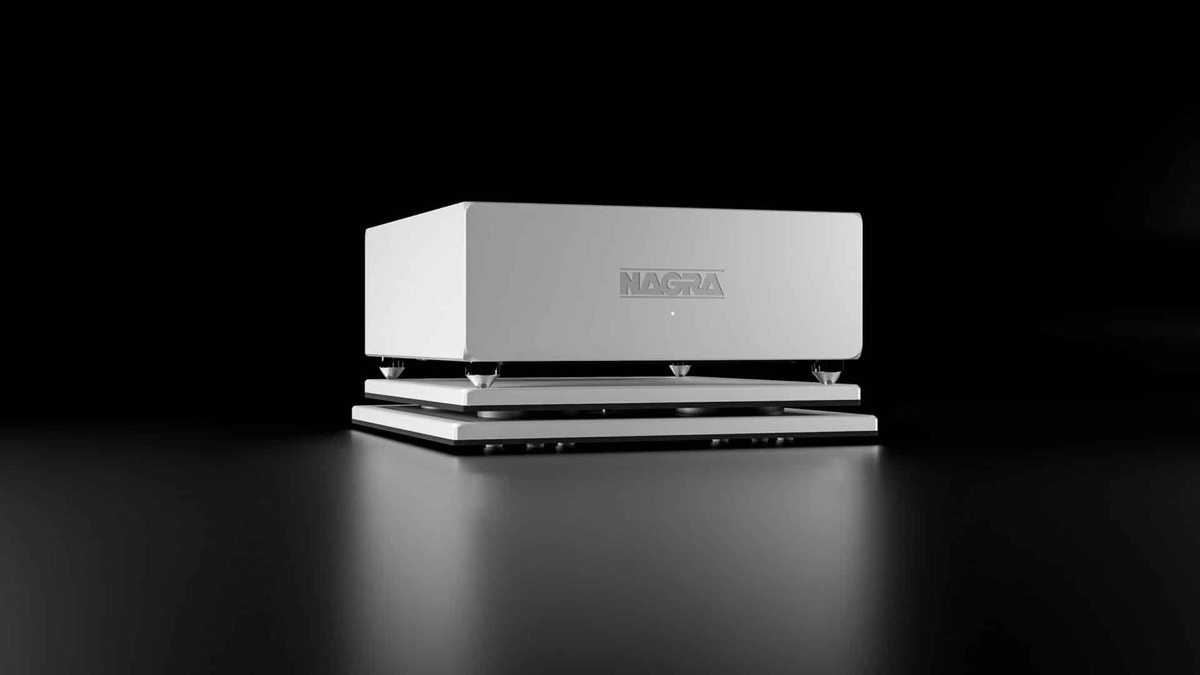

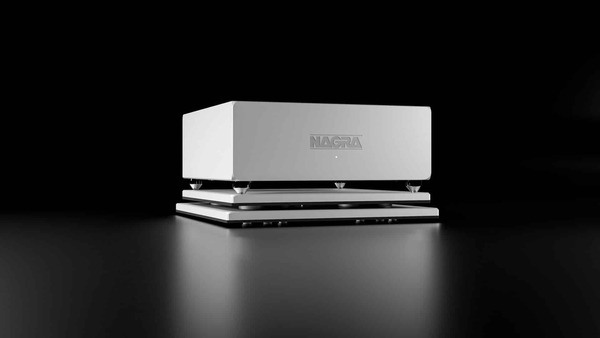

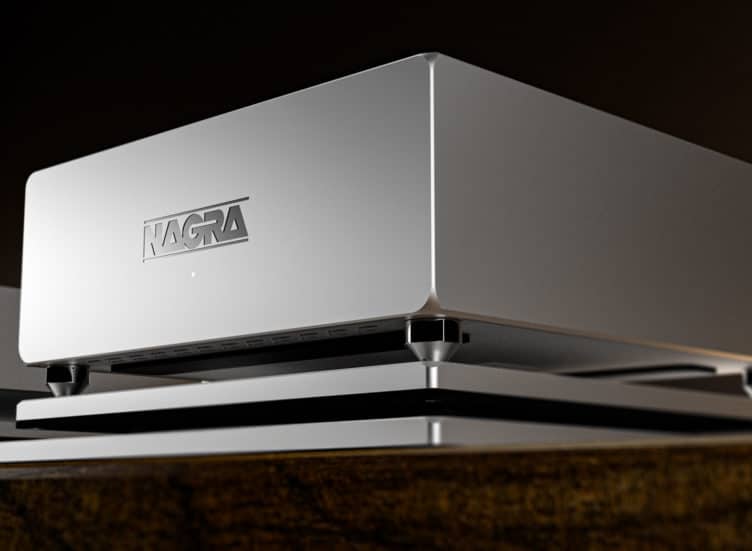

Optional Compact VFS Upgrade – Add Nagra’s vibration isolation platform for even greater clarity, focus, and musical immersion.

This meticulous engineering allows your Nagra system to reveal its full musicality—unlocking a more natural, lifelike, and immersive listening experience.

Technical specifications

GENERAL

Compatibility: VPS, Jazz & Melody preamplifiers; Classic DAC, DAC II, HD DAC,Tube DAC; Classic PREAMP, Classic PHONO; Nagra CD players; Compact Phono, Compact Streamer
Output: 1× 12.75 V DC / 2 A
Connector: DC Jack 2.5 mm
Noise: ≤ 10 μV (10 Hz – 100 kHz, full load) Equivalent to below –110 dBV across the audio and ultrasonic range
Mains power: 100, 115, 120, 230, 240 V~ device versions ±10% / 50-60 Hz
Mains fuse: T 1.6A L for 100-127 V~T 800mA L for 230-240 V~ FST 5×20 mm 250 V
Power consumption: Maximum 60 W (AC line input)
Operating temperature: +15°C to +35°C / +59°F to +95°F Moderate climate
Operating environment: Indoor only  /  IP30
Dimensions (L × W × H): 160 × 191 × 61 mm (6.3 × 7.5 × 2.4 in)
Weight: 3.5 kg (7.7 lb)
