The new Bella Sound preamplifier gets its name, Kalalau – Road to Paradise, from the amplification path that takes input signals and sets them on a path to amplification paradise.
• Noise and linearity must be the chief concerns going into a truly high-end preamplifier design. For these concerns, low noise and high linearity are simultaneously achieved with a J-FET design.
• The inherent neutrality of a properly executed J-FET design does not benefit from the “voice” of any signal path capacitors, hence, none are used. Instead, high quality film capacitors bypass all four power supplies.
• The noise and linearity goals are furthered by the implementation of bulk foil naked resistors throughout the signal path.
• Multi-layered power supply filtration is lavished on the amplifier path to keep the signal in absolute pristine condition.
• Further care is taken by placing each of the amplifier channels and the power supply in separate faraday cages.
• The architecture is fully balanced from head to tail, including balanced attenuators and a full complement of XLR and RCA connectors at all 14 I/O’s.
Listening tests have confirmed the achievement of the desired goals: absolute tonal neutrality, fast and accurate dynamics, and the ability to hear deeply into the recording to the retrieval of astonishingly minute details.
Specifications
- Gain: 10.3dB SE, 16.3dB Bal, attenuator maximum
- Frequency Response: 1Hz – 400KHz, at 30dB reference attenuator setting
- THD: 0.008% typ, 1Vrms, 1KHz
- Output Noise: 50nV/root Hz typ, 1KHz
- Signal/Noise Ratio: 103dB, 1Vrms output, 20KHz noise bandwidth, unweighted
- Attenuation: 63 levels, 1dB steps
- Input Impedance: 50k Ohms
- Absolute Max Output Voltage: 10Vp
- Power Consumption:
Standby: 3.6W
Active, all features invoked: 34W
120/240 VAC, 50-60Hz

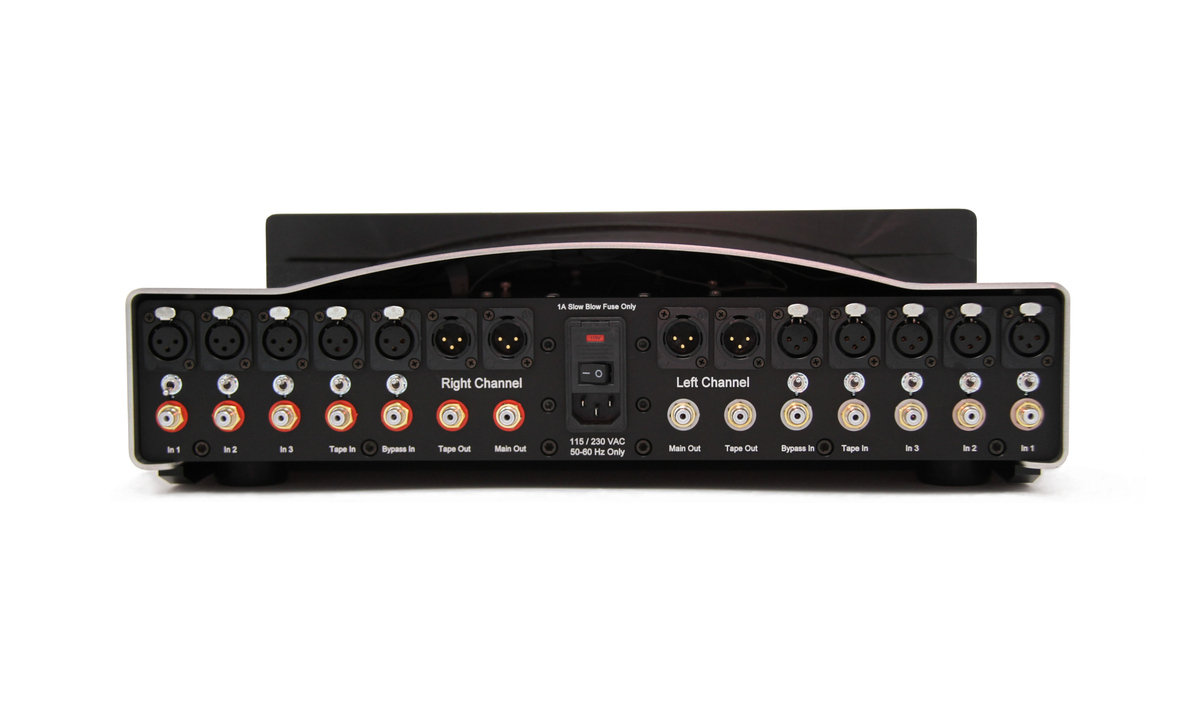

- Inputs:
In 1, In 2, In 3
Tape In
Home Theater Bypass In
All SE (Cardas RCA) and Fully Balanced (XLR)
- Outputs:
Main Out
Tape Out
All SE (Cardas RCA) and Fully Balanced (XLR)
- Dimensions: 19.3” W x 5.5” H x 16.9” D
- Weight: 47 lbs
