Silent Power. Pure Performance.
At Nagra, we know that exceptional sound begins with exceptional power. For decades, our legendary recorders set the standard thanks to their silent, high-performance power supplies, delivering unmatched reliability and autonomy.
Carrying this heritage into the Hi-Fi world, we designed external power supplies for our HD and Reference lines that pushed the boundaries of sonic purity. The Compact PSU proudly continues this tradition—delivering reference-grade performance in a refined, space-efficient design.
Engineered Without Compromise
- From its first sketches, the Compact PSU was conceived as a no-compromise solution. Every detail—technical and aesthetic—was considered to ensure optimal performance:

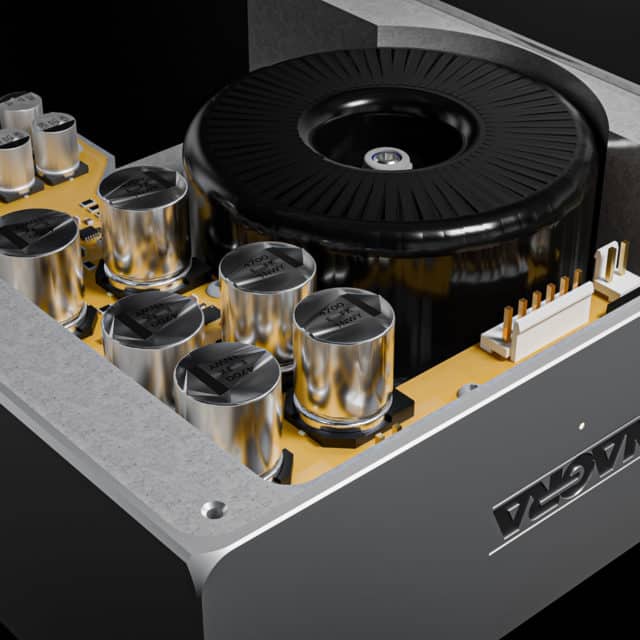

- True linear power supply with custom-made toroidal transformer
- Multi-stage silent filtering for clean, stable energy delivery
- Precision-machined aluminum chassis with resonance control
- Dedicated transformer for Europe or US mains voltage
- Generous 2 A output power

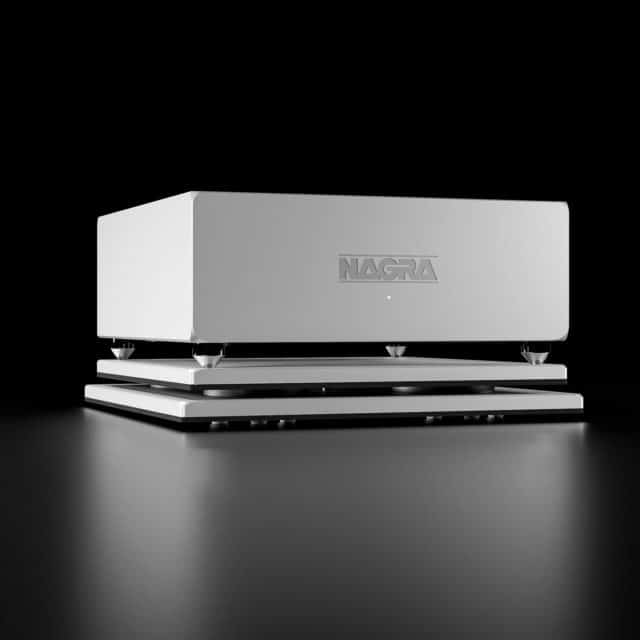

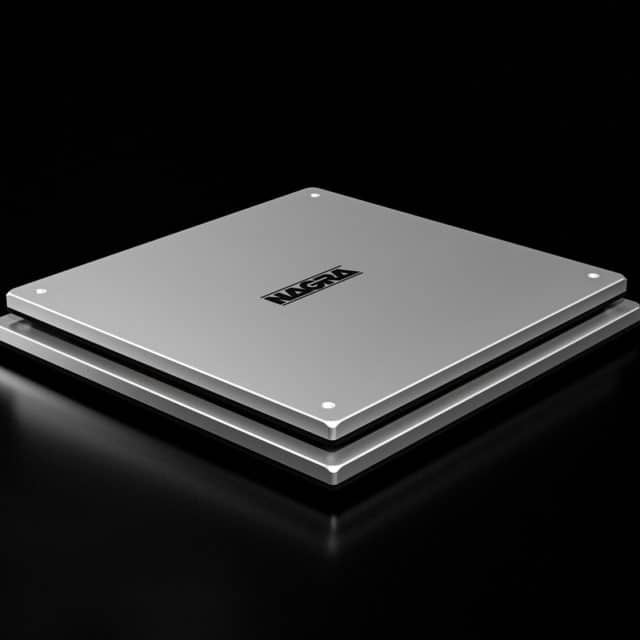

- Optional upgrade with the Nagra Compact VFS for enhanced vibration isolation
This meticulous engineering allows your Nagra system to reveal its full musicality, delivering a more natural, immersive listening experience.
Technical specifications
GENERAL
Compatibility: VPS, Jazz & Melody preamplifiers; Classic DAC, DAC II, HD DAC,
Tube DAC; Classic PREAMP, Classic PHONO; Nagra CD players; Compact Phono,
Compact Streamer

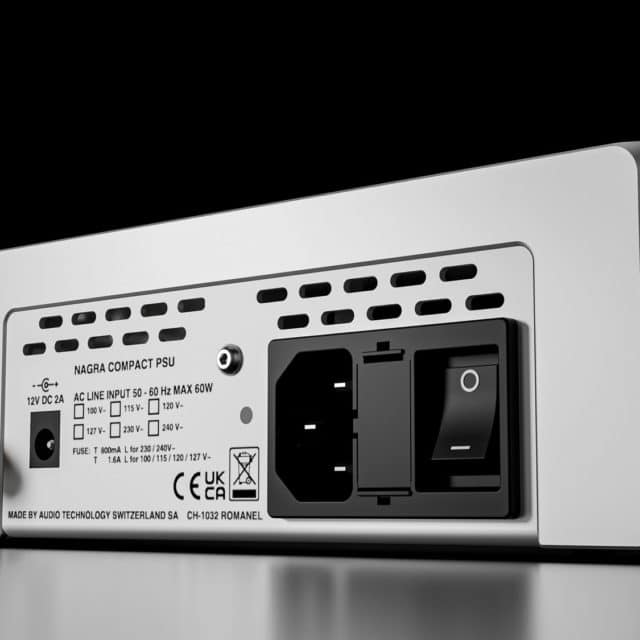

Output: 1× 12.75 V DC / 2 A
Connector: DC Jack 2.5 mm
Noise: ≤ 10 μV (10 Hz – 100 kHz, full load)
Equivalent to below –110 dBV across the
audio and ultrasonic range
Mains power: 100, 115, 120, 230, 240 V~ device versions ±10% / 50-60 Hz
Mains fuse: T 1.6A L for 100-127 V~ T 800mA L for 230-240 V~ FST 5×20 mm 250 V
Power consumption: Maximum 60 W (AC line input)
Operating temperature: +15°C to +35°C / +59°F to +95°F Moderate climate
Operating environment: Indoor only / IP30
Dimensions (L × W × H): 160 × 191 × 61 mm (6.3 × 7.5 × 2.4 in)
Weight: 3.5 kg (7.7 lb)
