The headphone amplifier you’ve been waiting for

The HP-5.2 is our latest high-end headphone amplifier, engineered for the most demanding audiophiles. It features a balanced Dual-Mono Class A design that ensures signal purity and delivers exceptional audio fidelity. With four headphone outputs and abundant power, it effortlessly handles any headphone on the market.

The audio path is constructed with premium components, and all settings are applied in real-time within the analog domain. Combining high sound quality, versatility, and unique features, the HP-5.2 offers extraordinary performance at an unbeatable price.

A touchscreen display ensures quick adjustments and an intuitive user experience. Perfect for all high-end systems, the HP-5.2 boasts advanced tools such as Crossfeed (for soundstage reconstruction), Harman option (to optimize headphone listening), variable gain and damping factor, and mono/stereo selection.
It functions as a traditional amplifier with analog inputs/outputs while integrating Bluetooth 5.2 HD aptX, USB-C, and a SABRE ES9023 DAC.

REMOTE AND TOUCHSCREEN DISPLAY

The HP-5.2 offers flexible control via the included remote and the touchscreen display, ensuring a superior user experience. With the remote, you can adjust any setting from the comfort of your listening position without interruption.

BYPASS

Designed for systems that include a preamplifier, the bypass function allows you to integrate the HP-5.2 without altering your existing wiring. This lets you seamlessly switch between the HP-5.2 and your preamp for loudspeaker listening.

Bypass mode is automatically activated by selecting one of the four headphone outputs (excluding the REAR output) and placing the unit into standby (indicated by the red LED). You can enter standby by pressing the power button on the remote or holding the display for three seconds.

Please note: For the bypass to function correctly, the source and preamplifier connected to the HP-5.2 must utilize the same connection type (RCA or XLR).

EXPLORING THE FEATURES

Studio is an innovative suite of features designed to elevate the headphone listening experience, implemented entirely in the analog domain:

• Crossfeed: Blends L/R channels to recreate a soundstage similar to listening through loudspeakers.
• Harman: Optimizes equalization specifically for headphone acoustics.
• Superflat: Linearizes the frequency response in the high range.
• DF (Damping Factor): Adjusts the damping factor to perfectly match the impedance of your headphones.

The Balance function offers precise volume control over Left/Right channels, allowing you to manage output according to your hearing needs or specific driver characteristics.

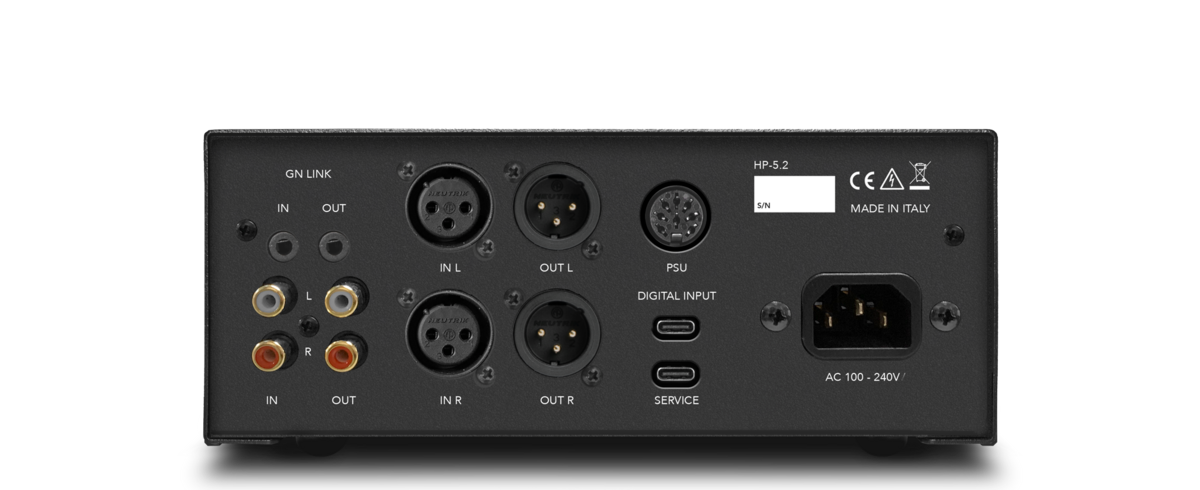

The HP-5.2 is equipped with balanced (XLR) and unbalanced (RCA) inputs, plus Bluetooth 5.2 HD aptX and a USB-C digital input. These digital connections allow for direct streaming from smartphones, tablets, or computers.

A wide array of outputs ensures compatibility with your favorite headphones. The front panel features unbalanced (3.5mm, 6.3mm) and balanced (4.4mm, XLR) connectors. You can also connect Bluetooth headphones seamlessly via the touchscreen display.

Furthermore, by selecting the RCA/XLR line outputs, the HP-5.2 functions as a line preamplifier, retaining the ability to apply all Studio settings to your main system. Finally, for maximum flexibility, both stereo and mono playback modes are supported.

MAIN FEATURES

HEADPHONE AMPLIFIER
Class-A Dual/Mono

FREQUENCY RESPONSE
20Hz-20kHz ± 0dB

THD (Total Harmonic Distortion) + N
0,015% @ 1kHz

SNR (Signal to Noise Ratio)
105dB

D/A CONVERTER
SABRE ES9023

BLUETOOTH
5.2 HD aptX 24-bit

CROSSFEED
Adjustable(full spectrum or highs / mids / lows)

ANALOGUE EQ
Harman options, Superflat

DAMPING FACTOR
Adjustable (High/Low)

GAIN
low /mid / high

IR RECEIVER
For multifunctional remote control

INPUTS AND OUTPUTS

HEADPHONE OUTPUTS
3,5mm jack (unbalanced)
6,3mm jack (unbalanced)
4,4mm jack (balanced)
4-pin XLR (balanced)

LINE OUTPUTS
1x unbalanced RCA
1x balanced XLR

ANALOGUE INPUTS
1x unbalanced RCA (5 Vrms max)
1x balanced XLR (8 Vrms max)

DIGITAL INPUTS
1x USB-C PCM 48kHz
Bluetooth 5.2 HD aptX 24-bit

HEADPHONE POWER OUTPUT
5W Max

POWER

POWER SUPPLY
100-240V, 50/60Hz

POWER CONSUMPTION
Max 25W

FUSE
2 A T

DIMENSIONS AND WEIGHT

DIMENSIONS
200mm W | 80mm H | 260mm D

WEIGHT
Kg. 3 – netKg. 4 – boxed
