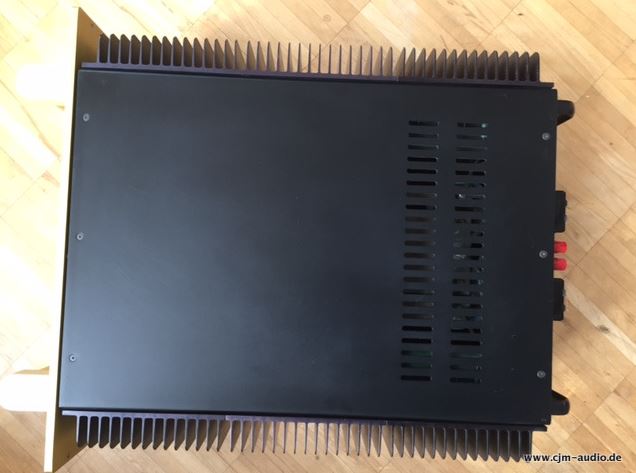

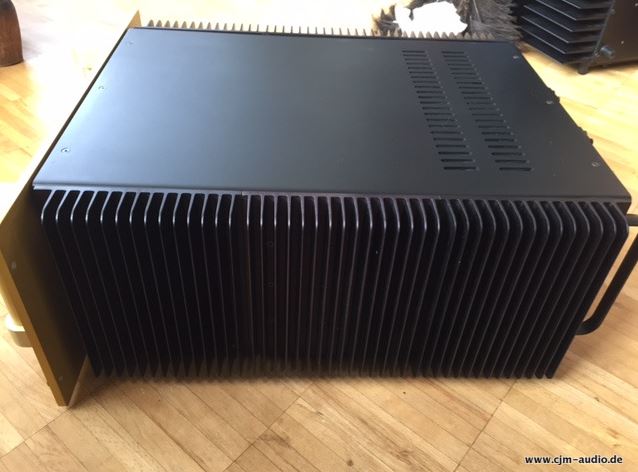

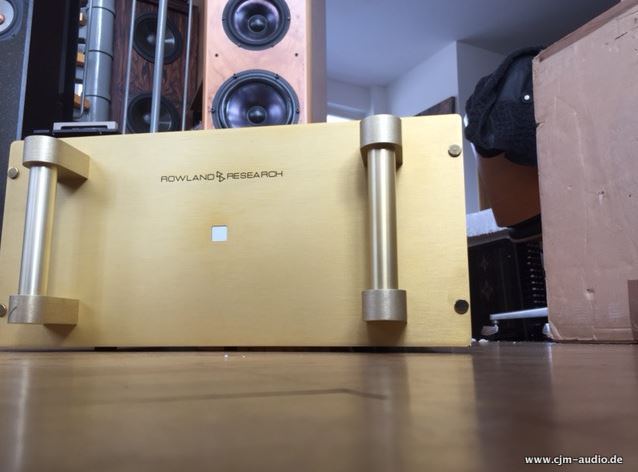

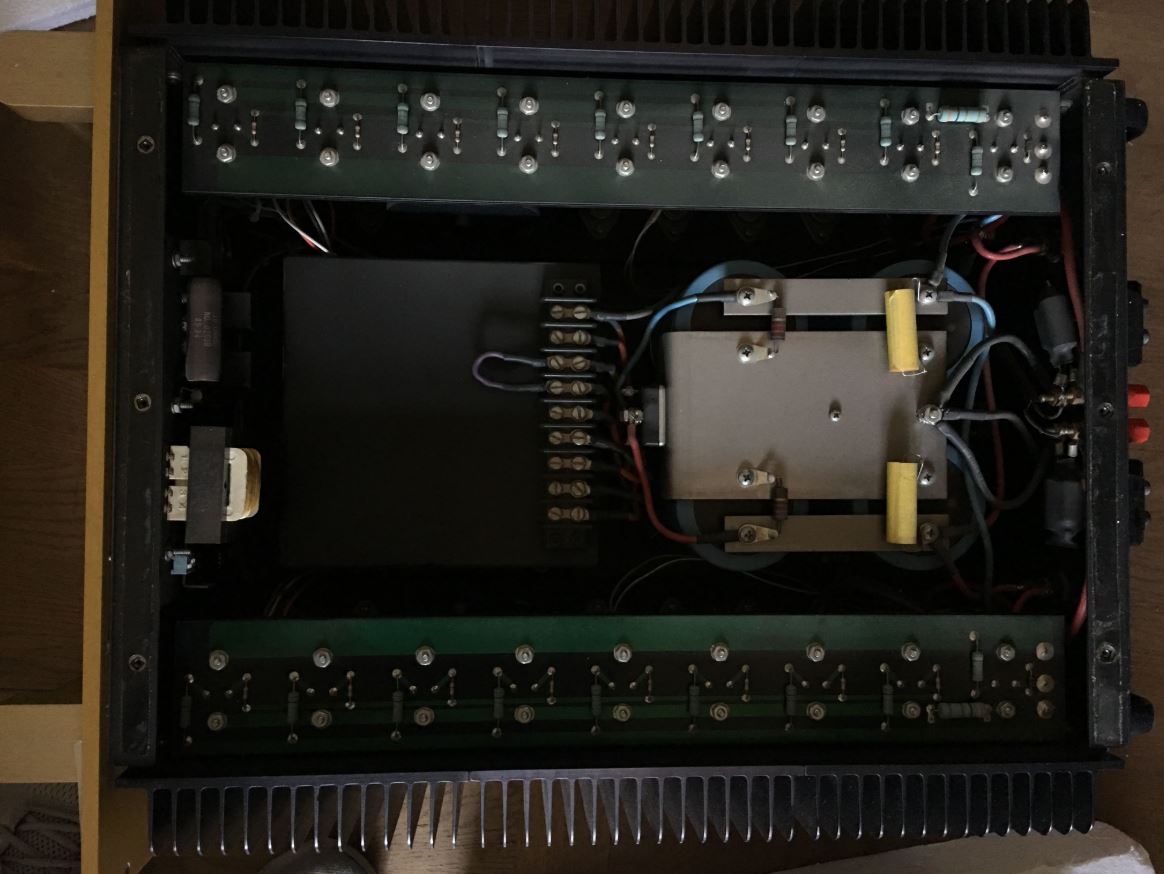

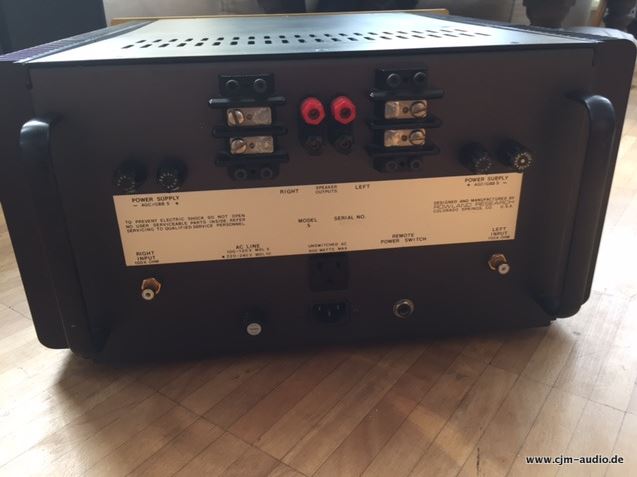

Rowland Research Model 5 Rowland Research Model 5 Listed On 15.01.2020
Last Update On 15.01.2020
Description Original Description is in English, other language texts are translations and can contain errors. EnglishDeutschTurkish

Potente amerikanische Endstufe des Herstellers Rowland Research. Guter optischer Zustand mit kleineren Gebrauchsspuren. Technisch einwandfreier Zustand.


Technische Daten:


Output power

150 watts RMS continuous, 8 ohms

300 watts RMS continuous, 4 ohms

475 watts RMS continuous, 2 ohms

Power Bandwidth 0.15 Hz to 250 kHz, -3 dB

Slew Rate 75 volts per microsecond

THD and Noise Less than .03%, 1 kHz, 8 ohms, 20 watts

Less than .075%, 1 kHz, 8 ohms, 60 watts

Damping Factor Greater than 175, 20 Hz to 20 kHz, 8 ohms

Greater than 60, 100 kHz, 8 ohms

Output Current 40 amps peak, continuous

90 amps peak, 0.1 ohm, 20 msec, 1 kHz

Overall Gain Selectable: 20, 26, 29.5, 32 dB

Sensitivity 36 mV, 1 watt, 8 ohms

Input Impedance Selectable: 100k, 20k, 600 ohms

Common Mode Rejection

Ratio Greater than 90 dB

Bridged Mono Output

Power

550 watts RMS continuous, 8 ohms

800 watts RMS continuous, 4 ohms

1000 watts RMS continuous, 2 ohms

Power Requirements 100V-240V
