Ayre QB-9 DSDS USB DAC Ayre Acoustics QB-9 DSDS USB DAC Listed On 27.02.2020
Last Update On 27.02.2020
Ayre Acoustics QB-9 DSDS USB DAC Ayre Acoustics QB-9 DSDS USB DAC Ayre Acoustics QB-9 DSDS USB DAC Ayre Acoustics QB-9 DSDS USB DAC
Description Original Description is in English, other language texts are translations and can contain errors. EnglishDeutschTurkish
4.00 KGS
Minimum Purchase:
1 unit
Maximum Purchase:
1 unit
Calculated at Checkout

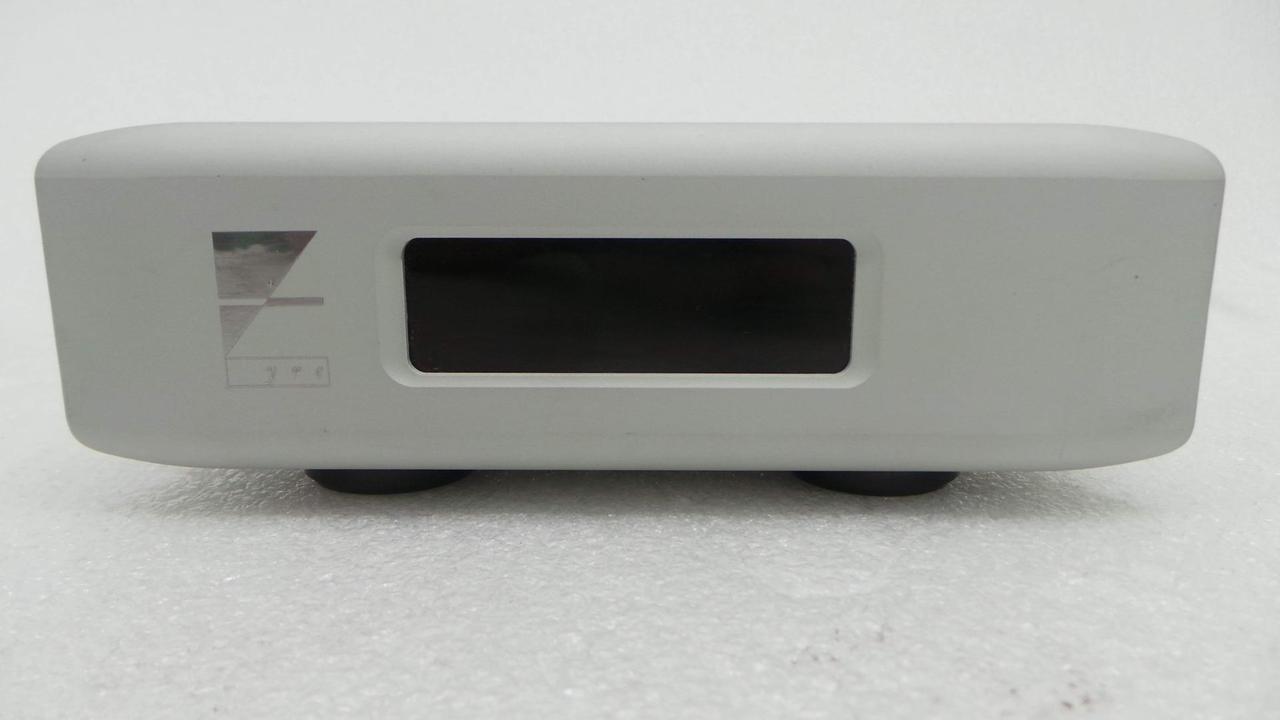

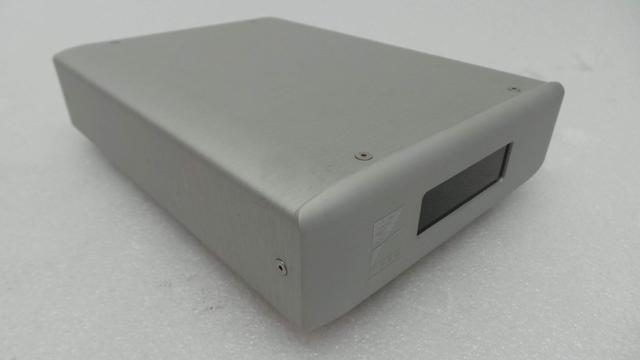

A few marks but very presentable

To achieve the maximum resolution, a D/A converter must use a high-precision clock circuit running at a fixed frequency to control the timing of the conversion of each digital sample to an analog voltage. By contrast, almost all USB DACs operate in what's called adaptive USB mode, which means having to use a variable-frequency clock rather than a fixed-frequency master clock. For various reasons, a computer cannot maintain perfect timing of the data packets it sends a DAC via USB. Most adaptive USB DACs are based on one of Burr-Brown's PCM270x family of chips. The BB chip typically changes the master-clock frequency to match the average sampling frequency of the data it receives—hence the "adaptive." The drawback to this, says Ayre (and which John Atkinson's measurements of other USB DACs seem to confirm), is that adaptive USB DACs tend to have high levels of jitter. Also, the BB receiver chip maxes out at a resolution of 16 bits and a 48kHz sample rate.

The USB standards documents also list a mode of operation called "asynchronous." This is not to be confused with Asynchronous Sample Rate Converters; asynchronous USB operation is called that because the DAC's master clock isn't synchronized to any clocks within the computer. Instead, the DAC is controlled by a high-precision fixed-frequency clock, and, to match this clock, the DAC controls the flow of data packets from the computer to a buffer upstream of the D/A converter chips. The BB 270x chips can be run only in adaptive mode, but Texas Instruments' TAS1020B USB interface chip, which incorporates an onboard microcontroller and a memory buffer, can operate in asynchronous mode, and will also accommodate sample rates up to 96kHz and word lengths of 24 bits.

For the QB-9, Ayre has licensed the asynchronous technology developed by Wavelength's Gordon Rankin for the TAS1020B chip. In his life B.A. (Before Audio), Rankin was chief engineer at what he coyly refers to as "the sixth largest manufacturer of PCs in the world." He spent nearly two years developing the software for the microcontroller that allows the TAS1020B to work in "asynchronous" mode with both PCs and Macs, using only the native drivers included in their operating systems. Rankin's software for the TI chip is marketed as Streamlength; Ayre is the first company to license it.

The QB-9 marries Streamlength to the Ayre ethos of zero feedback and fully balanced operation, not to mention Ayre's new minimum-phase digital reconstruction filter, implemented in a Field-Programmable Gate Array (see my Follow-Up on the Ayre C-5xeMP, July 2009, p.98). Ayre also isolates the USB receiver section from the rest of the audio circuitry with opto-isolators, to prevent any noise generated by the source computer and its host of clocks from polluting the audio signal.

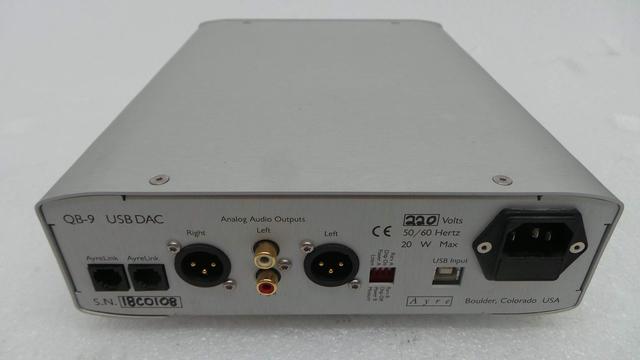

Basically, the QB-9 has a single input—USB, duh—and analog outputs: one set each, balanced and single-ended. A small set of switches on the rear panel offer a choice of four operating configurations. The first is Ayre's usual Measure/Listen digital filter option (I tend to prefer Listen). The second is Power Mode, which lets you choose between the QB-9 powering on when it detects the computer powering on, or powering up only when it detects incoming data. Another switch lets you turn off the front panel's display. The fourth switch has no function as yet, but is there in case Ayre thinks up something else for the QB-9 to do.

My soul has been psychedelicized
Setting up the QB-9 in my main system wasn't as plug'n'play as I'd envisioned. Details mattered—maxing out the RAM on my G4 iBook made a huge difference to the sound, as did matching the sample rates on the computer and DAC. I'd hoped the QB-9 would sort through my 44.1, 48, 88.2, and 96kHz music files and just play each at its native sample rate. Well, it did—but my iBook wasn't so versatile. I could change the sample rate in the latter's Audio MIDI setup, but it wouldn't "take" unless I closed and reopened iTunes. Also, iTunes doesn't support FLAC, so I had to convert FLAC files to AIF with a bit of freeware called Max.

Technically speaking, none of these are the QB-9's "shortcomings"; they're native to the current state of iTunes. Windows-optimized music streaming programs are apparently more forgiving. Ayre offers on its website pages dedicated to tweaking different operating systems from Apple and Microsoft.
I've downloaded files from Linn, Naim, and HDtracks that sound better than any CD I own—and Gordon Rankin, God love 'im, sent me an external Western Digital Passport 320GB hard drive packed with hi-rez offerings to use for this review. John Atkinson had added the 24-bit, 88.2kHz master files for his recent Cantus, Robert Silverman, and Attention Screen recordings, but also on the drive was a 24-bit/44.1kHz version of Rhapsody, John Atkinson's recording of pianist Hyperion Knight playing the music of Gershwin (CD, Stereophile STPH010-2)—a significant recording in my digital education. JA had recorded those 1997 sessions at 24 bits, but the CD master, of course, had to be dithered down to 16 bits. Now, hearing those recordings at their 24-bit resolution through the Ayre QB-9 was wonderful. The difference made by those extra eight bits wasn't tonal or timbral—what had changed was the presence of the music: 24 bits put me there—16 bits simply didn't.

Also on Rankin's hard drive was a 24/96 version of the title track of Olu Dara's Neighborhoods (CD, Atlantic 83391-2). It sets up a lazy groove that just ambles along, and through the QB-9 it popped with life—the congas had more snap, and the shimmering overtones of Dara's guitar lingered longer in the air. Most of all, that slow groove was more solid—analog lovers like to extol the "flow" of their preferred format, and hi-rez digital seems to do much the same thing. I've listened to the CD of Neighborhoods many times since its release in 2001, so I wasn't reacting to the novelty of the music; instead, I was marveling at how good this old friend sounded at 24/96.

Rankin also included 24/96 files of John Gorka's The Gypsy Life (DVD-Audio, AIX 83053). I'm a big fan of AIX's hi-rez releases, and of Gorka, so I cued "I Saw a Stranger with Your Hair." Wowsers. Lots of big room acoustic and big, big bass sound from Michael Manring, but what floored me was the realism of Gorka's voice, especially his harmonies with Susan Werner and Amelia Spicer. Those people were in my room—and my room had gotten so big!

Then I discovered that Rankin's magic box also included David Crosby's If I Could Only Remember My Name... (Atlantic SD-7203) as 24/96 files. I had to hear "Cowboy Movie." Holy cow—even when downsampled to 96kGHz by iTunes' QuickTime engine, it had never sounded like that, not even with pharmaceutical enhancements. The sound was huge, and the crackling guitar exchanges between Crosby, Jerry Garcia, and Jorma Kaukonen were practically physical in their impact. And at the end, when everything just grinds to a halt, I could hear a few seconds of studio ambience to an extent I'd never before experienced.

Producer's Cut (DVD-A, Rhino 78174) comprises 24/96 files of 14 of Emmylou Harris's finest recordings. I've been listening to that woman since before she met Gram Parsons—I can't tell you how many times I sat in the Prism coffee house in Charlottesville, Virginia, listening to her within touching distance—so I've got a pretty good handle on what her voice sounds like. Producer's Cut completely nails it—I have never heard "Boulder to Birmingham" sound better. Harris's voice had a truly physical body supporting it, and her silvery topmost register was burnished even brighter than usual. And, oh yes, in 24/96 I had a deeper emotional connection to her music than ever, if such a thing is possible.

Good work, QB-9.

One thing I've almost overlooked is how well the QB-9 performed with non–hi-rez files. Aguston Barrios Mangoré's "Cueca," from guitarist David Russell's The Music of Barrios (CD, Telarc CD-80373), which I'd ripped to my own hard drive as an AIF file, sounded great! Again, I noted an admirable amount of acoustic support for the guitar's tone, especially when Russell rapped on his soundboard while playing a countermelody high on the frets—ha! made me jump! The absence of artificial texture, and my ability to hear deep into the soundstage, made me suspect that the QB-9 indeed does have low levels of noise and jitter.
Ayre QB-9 isn't perzackly cheap, but it doesn't seem as if Ayre has gotten greedy. In fact, I'd wager the company's profit margin on the QB-9 is tighter than usual. It's well built and seems to live up to its performance claims. JA's jitter tests will tell us if it does have the lowest jitter of the USB DACs we've tested to date, but my listening impression is that if it's not the lowest, it's pretty darn close.

And while computer audio isn't as boneheaded simple as we'd like it to be, the QB-9 doesn't add to the complexity. In one respect, it made computer life easier in that it could play all of my hi-rez digital files—and it ignited a mighty lust in me to obtain more. I do not want to go back to 16-bit/44.1kHz CDs. I want long words and high bit rates!

It is a given in the High End that components approach their highest possible peak of performance after they've been made obsolete. Perhaps, this one time, we can get it right early in the game. Wouldn't it be pretty to think so?

Description: Asynchronous transfer mode, USB-input, oversampling (16x) digital-to-analog converter with minimum-phase digital filter. Input: USB 1.1–compliant. Sample rates supported: 44.1, 48, 88.2, 96kHz. Word lengths supported: up to 24 bits. Maximum output levels: 2.05V RMS (unbalanced outputs), 4.10V RMS (balanced outputs). Frequency ranges: DC–20kHz (at 44.1kHz), DC–22kHz (at 48kHz), DC–40kHz (at 88.2kHz), DC–44kHz (at 96kHz). Signal/noise: 110dB (unweighted, no reference level given).
Dimensions: 8.5" (216mm) W by 3" (76mm) H by 11.5" (290mm) D. Weight: 5 lbs (2.25kg).
