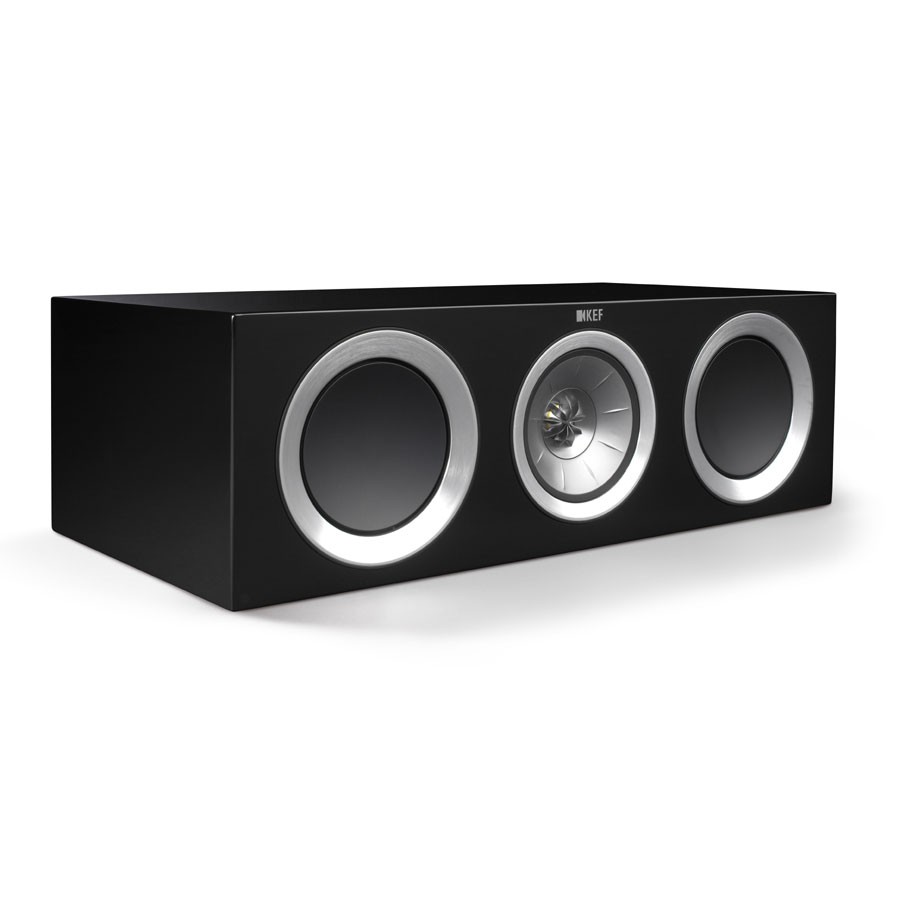

Three-way bass reflex
Uni-Q driver array: HF: 25mm (1in.) vented aluminium dome MF: 125mm
(5in.) aluminium Bass units: LF: 2 x 130mm (5.25in.) aluminium
Frequency range (-6dB) 52Hz - 45kHz
Frequency response (±3dB) 65Hz - 28kHz
Crossover frequency 500Hz, 2.8kHz
Amplifier requirements 25 - 150 W
Nominal impedance 8Ω (min. 3.2Ω )
Dimension (H x W x D) 170 x 530 x 305 mm

Drei-Wege-Bassreflex Uni-Q Treiber-Array: HF: 25mm (1in.) entlüftete Aluminiumkuppel MF: 125mm (5in.) Aluminium Bass-Einheiten: LF: 2 x 130mm (5.25in.) Aluminium Frequenzbereich (-6dB) 52Hz - 45kHz Frequenzgang (±3dB) 65Hz - 28kHz Frequenz 500Hz, 2,8 kHz Verstärker-Anforderungen 25 - 150 W Nominale Impedanz 8Ω (min. 3.2Ω )./ Dimension (H x B x T) 170 x 530 x 305 mm

üç yönlü bas refleks < br/> Uni-Q sürücü dizisi: HF: 25mm (1 ın.) Bacalı alüminyum kubbe MF: 125mm < br/> (5in.) alüminyum bas üniteleri: LF: 2 x 130mm (5,25 inç) alüminyum < br/> Frekans aralığı (-6dB) 52Hz-45kHz < br/> Frekans tepkisi (± 3dB) 65Hz-28kHz < br/> Crossover frekansı 500Hz, 2.8 kHz < br/> Amplifikatör gereksinimleri 25-150 W < br/> Nominal empedans 8 Ω (min. 3.2 Ω) < br/> Boyut (y x g x D) 170 x 530 x 305 mm
