Fyne Audio F501
Fyne Audio f501
Posted On
10.06.2024Last Update On
10.06.2024
Description
Original Description is in
Turkish, other language texts are translations and can contain errors.
EnglishDeutschSpanishTurkish
Perfectly conditioned box foam full content
Features
System Type - 2 1/2-way, downward firing port with BassTrax TM Tractrix diffuser. Twin-cavity combined reflex
Recommended amplifier power (Watt RMS) - 35- 150Continuous power usage (Watt RMS) - 75
Sensitivity (2.83 Volts @ 1m) - 90dB
Nominal impedance - 8 Ohm
Frequency response (in-room typically -6dB) - 36Hz- 34kHz

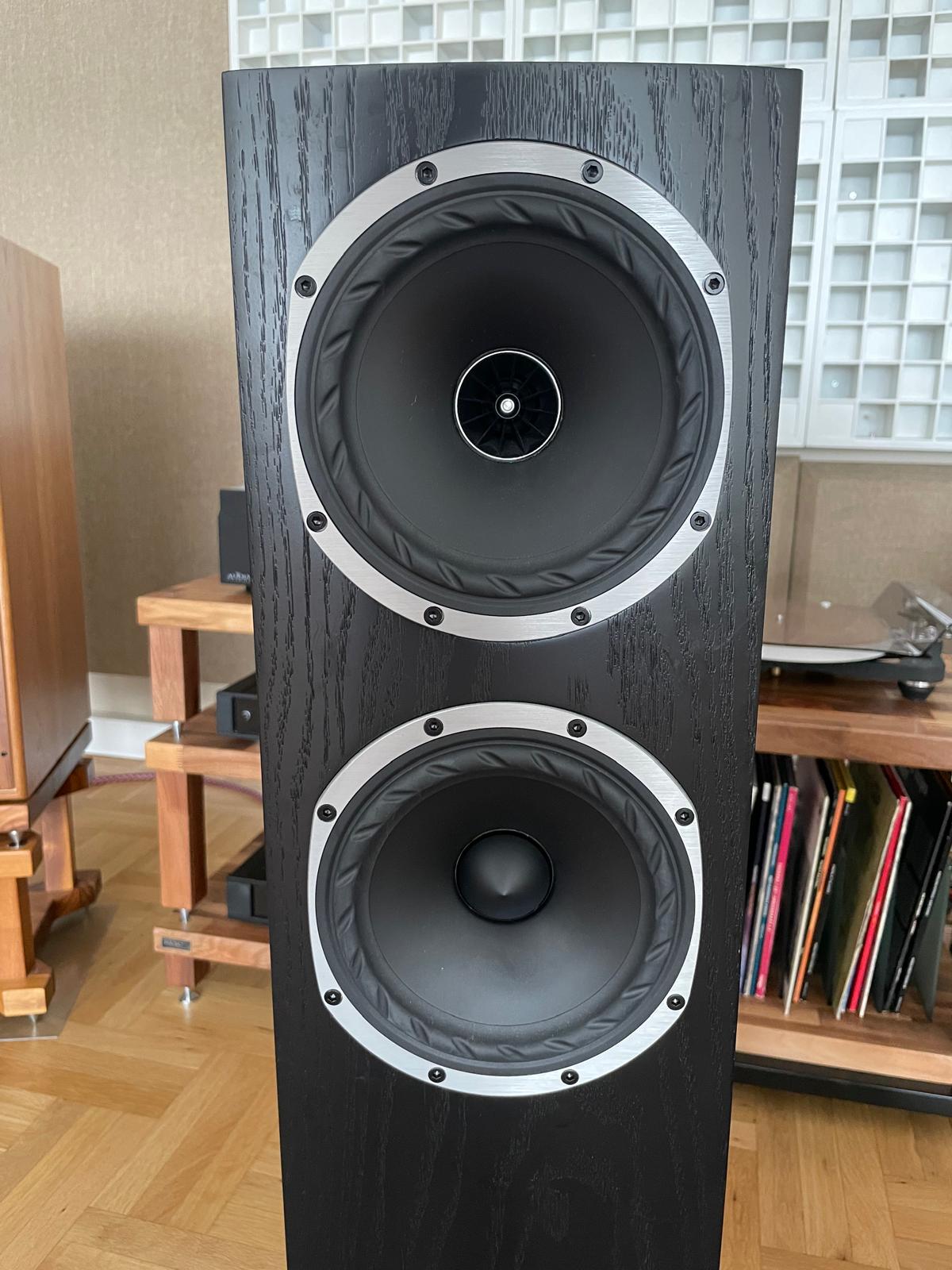

Drive unit complement - 1 x 150 mm IsoFlare TM , multi-fiber bass / medium with 25 mm titanium dome compression tweeter 1 x 150 mm multi-fiber bass
Crossover frequency - 250Hz and 1.7kHz
Pass type - 2nd order pass, 1st order high pass
Dimensions - HxWxD - 984 x 270 x 318 mm (38.7 x 10.6 x 12.5")
Weight - each - 18.9 kg (41.7 lb)
