Rega Aura Reference MC Phono Pre
Rega Aura Reference MC Phono Pre
Posted On
4.06.2020Last Update On
4.06.2020
Description
Original Description is in
Turkish, other language texts are translations and can contain errors.
EnglishDeutschTurkish
4-month warranty with box-free box continues
Aura Reference MC phono preamp is a product of Rega's decades of electronic device design. Fully adjustable, fully symmetrical, three-stage phono stage is designed to get the highest performance from your pickup's MC head.
Featuring a refurbished chassis, Aura is designed exclusively for MC heads for the sake of no compromise in any area. By eliminating all the functions we do not consider necessary, we prevented it from creating or disrupting the audio signal. The Aura phono pre floor features extraordinary and groundbreaking design features. If you are a record-friendly music lover, we strongly recommend you try the Aura MC phono coat.
Aura is a true high-end MC phono solid with a very high performance, combining unmatched engineering with manufacturing quality. The feature that distinguishes it from its qualified competitors on the market is that it is able to combine unprecedented accuracy and realism with an undisclosed musicality. I haven't had the chance to write a long article about such an attractive product. One of the best phono floors I've had the opportunity to listen so far. - Ed Selley Hi-Fi Choice? February 2019.
Technicial Specifications:
General conditions:
Generator Source Resistance: 20 Ω
For Apheta and Aphelion heads:
Load is set to 100 Ω, capacitance is 1000 pF and output load resistance is set to 100 kΩ
Input sensitivity for 200 mV Unbalanced Output:
67 μV - 69.5 dB Gain Setting I
131 μV - 63.5 dB Gain Setting II
Gain Input to Unbalanced Output:
63.5 dB Minimum
69.5 dB Maximum
Input Load:
50, 100, 150, 300 & 400 Ω
Capacitive Load:
1000, 2000, 3200, 4300, 5700 pF
Input Overload @ 1 kHz:
9.6 mV - 63.5 dB Gain Setting
4.9 mV - 69.5 dB Gain Adjustment
Nominal Output Level:
Unbalanced: 200 mV
Balanced: 400 mV
Maximum Output Level:
Unbalanced: 14.5 V RMS
Balanced: 29 V RMS

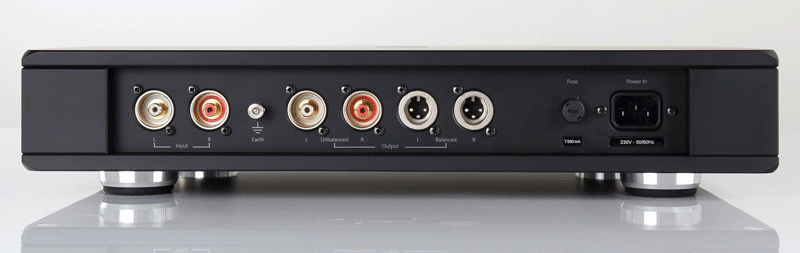

Balanced Output Connection:
In balanced XLR connectors, pin2 positive and pin3 negative.
The positive pin2 connection on the balanced output is the same connection as the unbalanced output.
Output Resistance:
Unbalanced: 100 Ω
Balanced: 200 Ω
Absolute Minimum Output Load Resistance (–3 dB drop slope @ 20 Hz):
500 Ω Unbalanced
1000 Ω Unbalanced
RIAA Sensitivity: better than 0.2 dB, 100 Hz to 50 kHz
Frequency range:
13.5 Hz (–3 dB) - 100 kHz (–0.2 dB)
THD (Total Harmonic Distortion):
Typically 0.03% @ 1 V 20 Hz 20 kHz (100 Hz - 22 kHz)
Output Noise Level (With Unbalanced Output, A-Weighted and 15 Ω Input Load):
-77 dB V (69.5 dB Gain Setting I)
-82 dB V (63.5 dB Gain Setting II)
Input Voltage:
230 V & 115 V Nominal +/- 10%
Power consumption:
15.3 W
Weight:
13kg
Dimensions (H x W x D):
435mm x 350mm x 88mm
Die 4-monatige Garantie mit boxfreier Box bleibt bestehen
Der Aura Reference MC Phono-Vorverstärker ist ein Produkt von Regas jahrzehntelangem Design elektronischer Geräte. Die voll einstellbare, voll symmetrische dreistufige Phono-Stufe wurde entwickelt, um die höchste Leistung des MC-Kopfes Ihres Tonabnehmers zu erzielen.
Mit einem überholten Chassis wurde Aura exklusiv für MC-Köpfe entwickelt, um in keinem Bereich Kompromisse einzugehen. Durch das Eliminieren aller Funktionen, die wir nicht für notwendig halten, haben wir verhindert, dass das Audiosignal erzeugt oder gestört wird. Der Aura Phono Pre Floor verfügt über außergewöhnliche und bahnbrechende Designmerkmale. Wenn Sie ein rekordfreundlicher Musikliebhaber sind, empfehlen wir Ihnen dringend, den Aura MC Phono Coat zu probieren.
Aura ist ein echter High-End-MC-Phono-Solid mit einer sehr hohen Leistung, der unübertroffene Technik mit Fertigungsqualität kombiniert. Das Merkmal, das es von seinen qualifizierten Wettbewerbern auf dem Markt unterscheidet, ist, dass es in der Lage ist, beispiellose Genauigkeit und Realismus mit einer unbekannten Musikalität zu kombinieren. Ich hatte noch keine Gelegenheit, einen langen Artikel über ein so attraktives Produkt zu schreiben. Eine der besten Phono-Etagen, die ich bisher hören konnte. - Ed Selley Hi-Fi-Wahl? Februar 2019.
Technische Spezifikationen:
Allgemeine Bedingungen:
Generatorquellenwiderstand: 20 Ω
Für Apheta- und Aphelion-Köpfe:
Die Last ist auf 100 Ω eingestellt, die Kapazität beträgt 1000 pF und der Ausgangslastwiderstand ist auf 100 kΩ eingestellt
Eingangsempfindlichkeit für 200 mV Unsymmetrischer Ausgang:
67 μV - 69,5 dB Verstärkungseinstellung I.
131 μV - 63,5 dB Verstärkungseinstellung II
Gain Input zu unsymmetrischem Output:
63,5 dB Minimum
Maximal 69,5 dB
Eingangslast:
50, 100, 150, 300 und 400 Ω
Kapazitive Last:
1000, 2000, 3200, 4300, 5700 pF
Eingangsüberlastung bei 1 kHz:
9,6 mV - 63,5 dB Verstärkungseinstellung
4,9 mV - 69,5 dB Verstärkungseinstellung
Nennausgangspegel:
Unsymmetrisch: 200 mV
Ausgeglichen: 400 mV
Maximaler Ausgangspegel:
Unsymmetrisch: 14,5 V RMS
Ausgeglichen: 29 V RMS
Symmetrische Ausgangsverbindung:
Bei symmetrischen XLR-Anschlüssen Pin2 positiv und Pin3 negativ.
Der positive Pin2-Anschluss am symmetrischen Ausgang entspricht dem unsymmetrischen Ausgang.
Ausgangswiderstand:
Unsymmetrisch: 100 Ω
Ausgeglichen: 200 Ω
Absoluter minimaler Ausgangslastwiderstand (–3 dB Abfallsteigung bei 20 Hz):
500 Ω unsymmetrisch
1000 Ω unsymmetrisch
RIAA-Empfindlichkeit: besser als 0,2 dB, 100 Hz bis 50 kHz
Frequenzbereich:
13,5 Hz (–3 dB) - 100 kHz (–0,2 dB)
THD (Total Harmonic Distortion):
Typischerweise 0,03% bei 1 V 20 Hz 20 kHz (100 Hz - 22 kHz)
Ausgangsrauschpegel (mit unsymmetrischem Ausgang, A-gewichtet und 15 Ω Eingangslast):
-77 dB V (69,5 dB Verstärkungseinstellung I)
-82 dB V (63,5 dB Verstärkungseinstellung II)
Eingangsspannung:
230 V & 115 V nominal +/- 10%
Energieverbrauch:
15,3 W.
Gewicht:
13 kg
Abmessungen (H x B x T):
435 mm x 350 mm x 88 mm
Sıfırdan farksız kutulu , 4 aylık garantisi devam ediyor
Aura Referans MC phono preampli, Rega’nın elektronik cihaz tasarımı konusunda on yıllara dayanan birikimin sonucunda oluşmuş bir üründür. Tümüyle ayarlanabilir, tümüyle simetrik, üç kademeli phono katı, pikabınızın MC kafasından en üst düzey performansı elde etmeniz için tasarlandı.
Yenilenmiş bir kasaya sahip olan Aura, hiçbir alanda taviz vermemek uğruna, yalnızca MC kafalar için tasarlanmıştır. Gerekli görmediğimiz tüm fonksiyonları eleyerek ses sinyaline engel oluşturmasını ve bozmasını engelledik. Aura phono pre katı sıra dışı ve çığır açıcı tasarım özellikleri barındırıyor. Eğer plak dostu bir müzikseverseniz, Aura MC phono katını denemenizi kesinlikle öneriyoruz.
Aura, eşsiz mühendislikle imalat kalitesini bir araya getiren, çok üst düzey bir performansa sahip, gerçek bir high-end MC phono katı. Onu piyasada mevcut nitelikli rakiplerinden ayıran özelliği, emsalsiz bir doğruluk ile realizmi gem vurulmamış bir müzikaliteyle bir araya getirebilmiş olması. Bu derece cazip bir ürün hakkında uzun süredir bir yazı yazma şansı bulamamıştım. Şu ana kadar dinleme fırsatı bulduğum en iyi phono katlarından biri. - Ed Selley Hi-Fi Choice? Şubat 2019.
Teknik Özellikler:
Genel Şartlar:
Jeneratör Kaynak Direnci: 20 Ω
Apheta ve Aphelion kafalar için:
Yük 100 Ω, kapasitans 1000 pF ve çıkış yük direnci 100 kΩ’a ayarlı
200 mV Unbalanced Çıkış için giriş duyarlılığı:
67 μV - 69.5 dB Gain Ayarı I
131 μV - 63.5 dB Gain Ayarı II
Unbalanced Çıkışa Gain Girişi:
63.5 dB Minimum
69.5 dB Maksimum
Giriş Yükü:
50, 100, 150, 300 & 400 Ω
Kapasitif Yük:
1000, 2000, 3200, 4300, 5700 pF
Giriş Overload (aşırı yükleme) @ 1 kHz:
9.6 mV - 63.5 dB Gain Ayarı
4.9 mV - 69.5 dB Gain Ayarı
Nominal Çıkış Seviyesi:
Unbalanced: 200 mV
Balanced: 400 mV
Maksimum Çıkış Seviyesi:
Unbalanced: 14.5 V RMS
Balanced: 29 V RMS
Balanced Çıkış Bağlantısı:
Balanced XLR konektörlerde, pin2 pozitif ve pin3 negatif.
Balanced çıkıştaki pozitif pin2 bağlantısı unbalanced çıkışla aynı bağlantıdır.
Çıkış Direnci:
Unbalanced: 100 Ω
Balanced: 200 Ω
Mutlak Minimum Çıkış Yük Direnci (–3 dB düşüş eğimi @ 20 Hz):
500 Ω Unbalanced
1000 Ω Unbalanced
RIAA Hassasiyeti: 0.2 dB’den daha iyi, 100 Hz - 50 kHz arası
Frekans Aralığı:
13.5 Hz (–3 dB) - 100 kHz (–0.2 dB)
THD (Toplam Harmonik Distorsiyon):
Tipik olarak 0.03 % @ 1 V 20 Hz 20 kHz (100 Hz - 22 kHz arası)
Çıkış Gürültü Seviyesi (Unbalanced Çıkış, A-Ağırlıklı ve 15 Ω Giriş Yüküyle):
-77 dB V (69.5 dB Gain Ayarı I)
-82 dB V (63.5 dB Gain Ayarı II)
Giriş Voltajı:
230 V & 115 V Nominal +/- 10 %
Güç sarfiyatı:
15.3 W
Ağırlık:
13Kg
Ebatlar (Y x E x D):
435mm x 350mm x 88mm
