Home
>
Bookshelf Speakers
>
Braun AG
>
Braun L8070HE Lautsprecher
Braun AG L8070HE
48
views this month
Posted On
6.05.2025
Last Update On
6.05.2025
Description
Original Description is in
German
, other language texts are translations and can contain errors.
English
Deutsch
Spanish
Turkish

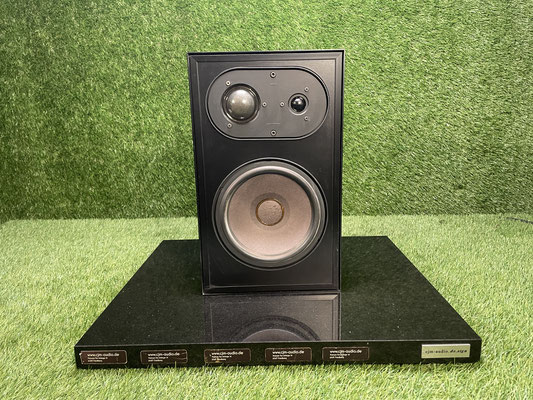

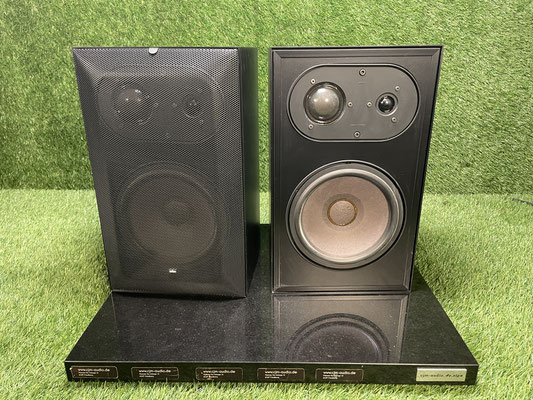

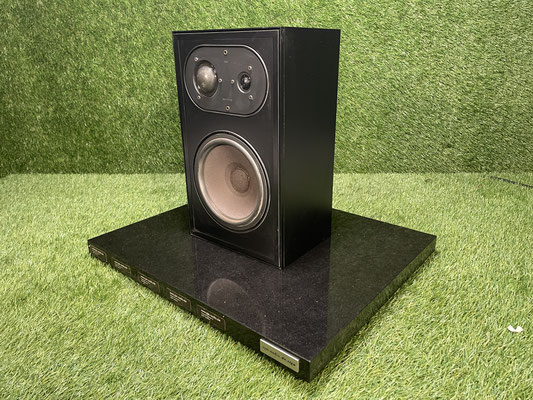

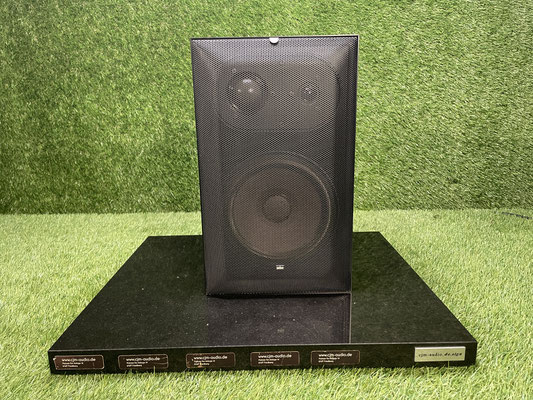

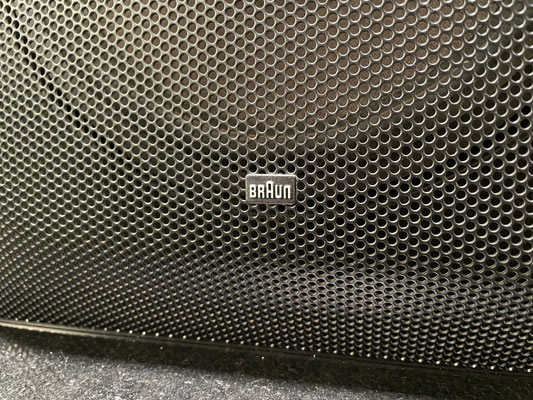

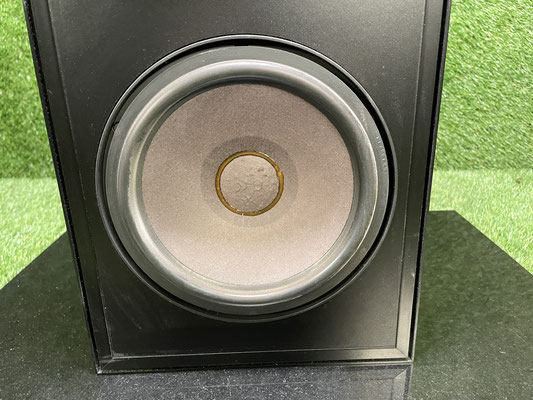

Braun L8070HE loudspeakers from collector's stock without any significant signs of use. Further information (without guarantee): The Braun L 8070 HE is a compact 3-way loudspeaker that was designed for wall or shelf installation. The abbreviation "HE" stands for "High Efficiency", which indicates the high efficiency of the speaker. The case is made of wood and is available in black with black grille or walnut with brown grille. The front is protected by a removable, cushioned perforated steel plate. The dimensions are 43 cm in height, 26 cm in width and 19 cm in depth. The weight is 11 kg. The speaker features a 190mm dynamic cone woofer, a 50mm dynamic dome midrange driver and a 19mm dynamic dome tweeter. The domes for the midrange and treble are mounted on a die-cast integral plate measuring 210 x 120 mm. The crossover operates with a slope of 12 dB per octave and separates the frequencies at 500 Hz and 3,000 Hz. The nominal power handling capacity of the L 8070 HE is 70 watts, the music power handling is 120 watts. The frequency range is from 32 Hz to 30,000 Hz, and the efficiency is 88.5 dB at 1 watt at 1 meter away. The nominal certificate resistance is 8 ohms. The connection is made via pressure clamps, and a 5 meter long cable with DIN standard plug is included. Overall, the Braun L 8070 HE is characterized by its high-quality workmanship, well-thought-out design and balanced sound reproduction, which makes it a valued component in classic hi-fi systems.
Braun L8070HE Lautsprecher aus Sammlerbestand ohne nennenswerte Gebrauchsspuren. Weiterführende Informationen (ohne Gewähr): Der Braun L 8070 HE ist ein kompakter 3-Wege-Lautsprecher, der für die Wand- oder Regalaufstellung konzipiert wurde. Das Kürzel "HE" steht für "High Efficiency", was auf den hohen Wirkungsgrad des Lautsprechers hinweist. Das Gehäuse besteht aus Holz und ist in den Ausführungen Schwarz mit schwarzem Gitter oder Nussbaum mit braunem Gitter erhältlich. Die Front wird durch ein abnehmbares, gedämpft gelagertes Stahl-Lochblech geschützt. Die Abmessungen betragen 43 cm in der Höhe, 26 cm in der Breite und 19 cm in der Tiefe. Das Gewicht liegt bei 11 kg. Der Lautsprecher verfügt über einen 190 mm dynamischen Konus-Tieftöner, einen 50 mm dynamischen Kalotten-Mitteltöner und einen 19 mm dynamischen Kalotten-Hochtöner. Die Kalotten für Mittel- und Hochton sind auf einem Druckguss-Integralschild mit den Maßen 210 x 120 mm montiert. Die Frequenzweiche arbeitet mit einer Flankensteilheit von 12 dB pro Oktave und trennt die Frequenzen bei 500 Hz und 3.000 Hz. Die Nennbelastbarkeit des L 8070 HE beträgt 70 Watt, die Musikbelastbarkeit liegt bei 120 Watt. Der Übertragungsbereich erstreckt sich von 32 Hz bis 30.000 Hz, und der Wirkungsgrad beträgt 88,5 dB bei 1 Watt in 1 Meter Entfernung. Der Nennscheinwiderstand beträgt 8 Ohm. Der Anschluss erfolgt über Druckklemmen, und ein 5 Meter langes Kabel mit DIN-Normstecker ist im Lieferumfang enthalten. Insgesamt zeichnet sich der Braun L 8070 HE durch seine hochwertige Verarbeitung, das durchdachte Design und die ausgewogene Klangwiedergabe aus, die ihn zu einer geschätzten Komponente in klassischen Hi-Fi-Systemen macht.
Braun L8070HE altavoces de colección sin signos significativos de uso. Más información (sin garantía): El Braun L 8070 HE es un altavoz compacto de 3 vías diseñado para su instalación en la pared o en una estantería. La abreviatura "HE" significa "Alta Eficiencia", lo que indica la alta eficiencia del altavoz. La caja es de madera y está disponible en negro con rejilla negra o nogal con rejilla marrón. La parte delantera está protegida por una placa de acero perforada desmontable y acolchada. Las dimensiones son 43 cm de alto, 26 cm de ancho y 19 cm de profundidad. El peso es de 11 kg. El altavoz cuenta con un woofer de cono dinámico de 190 mm, un controlador de rango medio de cúpula dinámica de 50 mm y un tweeter de cúpula dinámica de 19 mm. Las cúpulas para los medios y agudos están montadas sobre una placa integral de fundición a presión de 210 x 120 mm. El crossover funciona con una pendiente de 12 dB por octava y separa las frecuencias a 500 Hz y 3.000 Hz. La capacidad de manejo de potencia nominal del L 8070 HE es de 70 vatios, el manejo de potencia musical es de 120 vatios. El rango de frecuencia es de 32 Hz a 30.000 Hz, y la eficiencia es de 88,5 dB a 1 vatio a 1 metro de distancia. La resistencia nominal del certificado es de 8 ohmios. La conexión se realiza mediante pinzas de presión, y se incluye un cable de 5 metros de largo con enchufe estándar DIN. En general, la Braun L 8070 HE se caracteriza por su fabricación de alta calidad, su diseño bien pensado y su reproducción de sonido equilibrada, lo que la convierte en un componente valioso en los sistemas de alta fidelidad clásicos.
Braun L8070HE önemli bir kullanım belirtisi olmadan koleksiyoncu stokundan hoparlörler çıkarır. Daha fazla bilgi (garanti olmadan): Braun L 8070 HE, duvara veya rafa monte edilmek üzere tasarlanmış kompakt bir 3 hoparlördür. "HE" kısaltması, hoparlörün yüksek verimliliğini gösteren "Yüksek Verimlilik" anlamına gelir. Kasa ahşaptan yapılmıştır ve siyah ızgaralı siyah veya kahverengi ızgaralı ceviz renklerinde mevcuttur. Ön kısım, çıkarılabilir, yastıklı delikli bir çelik plaka ile korunmaktadır. Boyutları 43 cm yüksekliğinde, 26 cm genişliğinde ve 19 cm derinliğindedir. Ağırlık 11 kg'dır. Hoparlörde 190 mm dinamik konik woofer, 50 mm dinamik dome orta kademe sürücü ve 19 mm dinamik dome tweeter bulunur. Orta kademe ve tiz kubbeler, 210 x 120 mm ölçülerinde bir döküm entegre plaka üzerine monte edilmiştir. Geçiş, oktav başına 12 dB'lik bir eğimle çalışır ve frekansları 500 Hz ve 3.000 Hz'de ayırır. L 8070 HE'nin nominal güç işleme kapasitesi 70 watt, müzik güç işleme kapasitesi 120 watt'tır. Frekans aralığı 32 Hz ila 30.000 Hz arasındadır ve verimlilik 1 metre uzaklıkta 1 watt'ta 88,5 dB'dir. Nominal sertifika direnci 8 ohm'dur. Bağlantı basınç kelepçeleri ile yapılır ve DIN standart fişli 5 metre uzunluğunda bir kablo dahildir. Genel olarak, Braun L 8070 HE, yüksek kaliteli işçiliği, iyi düşünülmüş tasarımı ve dengeli ses üretimi ile karakterize edilir ve bu da onu klasik hi-fi sistemlerinde değerli bir bileşen haline getirir.
Add to Favorites
CJM Audio
Member Since
June 2019
Verify This Member!
4
other(s) verified this member.
Seller Verification by audioG
replies email, confirmed by audioG
has a website, confirmed by audioG
Items from this Seller
214
Active Listings
1271
Listings All Time
Message Activity
127
Messages (All Time)
Messages (Last 6 months)
Asking Price: 279 EUR
Price History >
Seller Accepts
Package
Shipment
Buyer Pays
Shipping Cost (Estimated)
Please contact seller.
Shipping From
- Germany
Shipping To
Worldwide
Return Policy
Returns are not accepted for this item.
