Monacor Number SAM-2 Subwoofer-Aktivmodul
Monacor Number SAM-2
17
views this month
Posted On
30.10.2025
Last Update On
30.10.2025
Description
Original Description is in
German
, other language texts are translations and can contain errors.
English
Deutsch
Spanish
Turkish

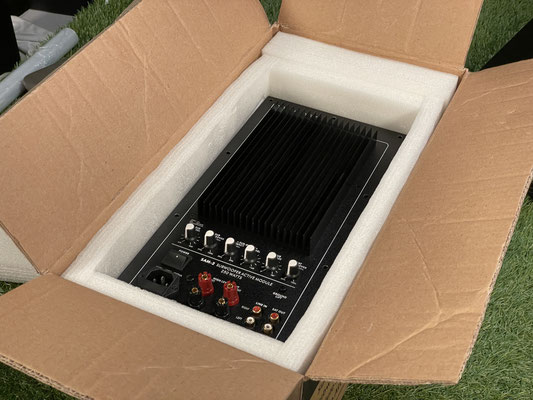

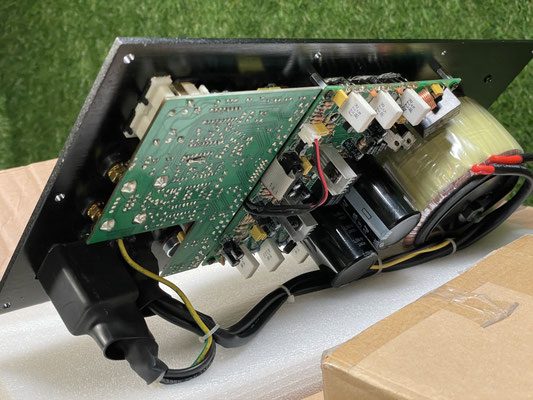

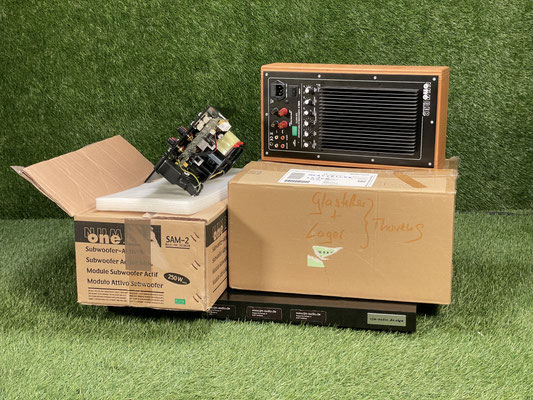

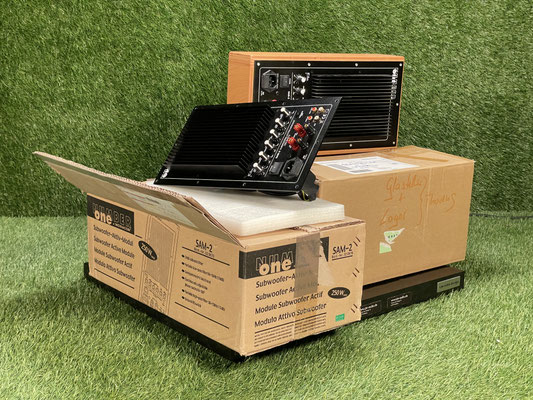

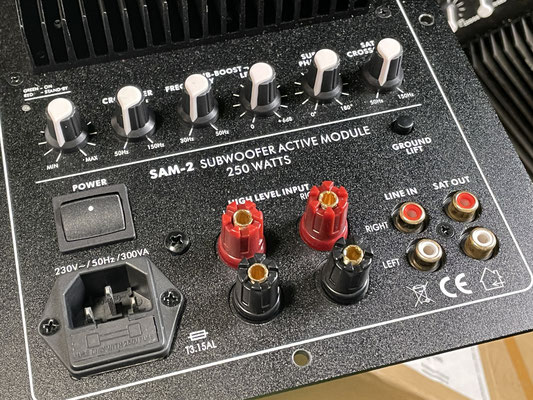

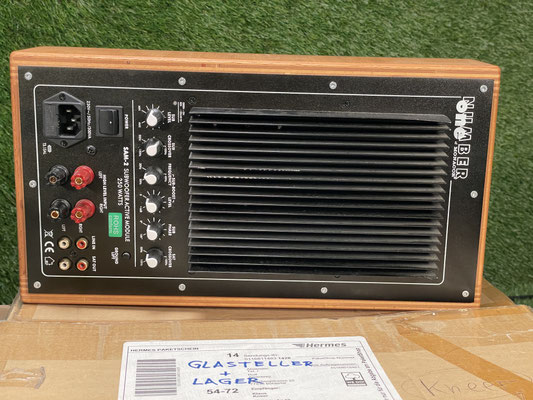

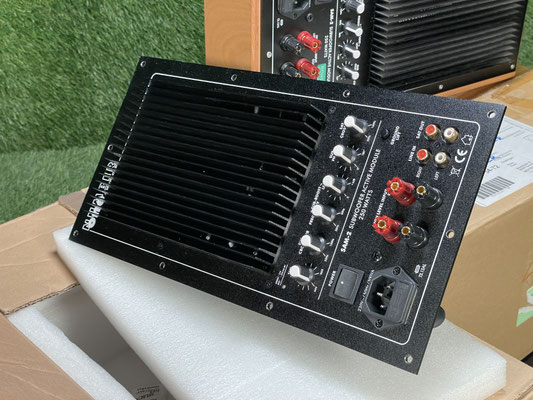

The Monacor Number SAM-2 is a powerful 200W rated subwoofer active module that is ideal for building high-quality active subwoofers. Thanks to the proven transistor technology, it offers precise control with a high output reserve. The equipment includes a variable low-pass crossover from 50 Hz to 150 Hz (18 dB), an adjustable high-pass for satellites, a semiparametric bass boost between 30 Hz and 50 Hz and an infinitely variable phase shifter from 0° to 180°. An integrated ground-lift switch ensures zero hum for unbalanced connections. Protection circuits against overheating, short circuits and DC voltage ensure safe operation even under high loads. The module delivers 200 W into 4 ohms and 125 W into 8 ohms, with a frequency range of 20 Hz to 20 kHz and a signal-to-noise ratio of over 70 dB. It is suitable for subwoofers with diaphragm diameters up to 46 cm. The power supply is via 230 V / 50 Hz at 300 VA power consumption. The connection is either via RCA (Line In / Sat Out) or speaker terminals (High Power In). The SAM-2 enables convenient integration into existing hi-fi systems with a preamplifier output (pre-out) or when using pre/power amplifier combinations. Case dimensions 185 mm × 370 mm × 90 mm, weight approx. 4.9 kg. Delivered in the original box with protective packaging. Technical data and information (without guarantee): ManufacturerMonacor / NumberModelSAM-2Output power200 W into 4 Ω / 125 W into 8 Ωfrequency range20 Hz – 20 kHz (variable 50 – 150 Hz)Subsonic filter24 dB Low-passvariable 50 – 150 Hz (18 dB)Bass boost30 – 50 Hz / adjustable up to 6 dBPhase shifter0° – 180° steplesshigh-pass50 – 150 Hz (12 dB)Signal-to-noise ratio> 70 dBTHD< 0.1 %Dimensions (W × H × D)185 × 370 × 90 mmWeight4.9 kgPower supply230 V / 50 Hz / 300 VAConnectionsRCA (Line In/Sat Out), LS terminals (High Power In) Frequently asked: What is the SAM-2 module suitable for?It is ideal for building your own active subwoofers and for systems where separate bass control via pre-out/main-in connections is provided.Can the module be connected directly to an amplifier?Yes, either via high-level inputs (speaker terminals) or RCA inputs (line in).How silently does the module work in idle mode?Due to the solid power supply and filter design, the SAM-2 works practically silently in standby and operation. All offered devices are technically tested and are in perfect condition. Each product is covered by a 12-month warranty. Z099/172Z099/173 Our Monacor / Number History shows numerous devices that have already been sold with high-resolution images and detailed technical data – a valuable reference for collectors and interested parties.
Das Monacor Number SAM-2 ist ein leistungsstarkes Subwoofer-Aktivmodul mit 200 W Nennleistung, das sich ideal für den Aufbau hochwertiger aktiver Subwoofer eignet. Durch die bewährte Transistortechnik bietet es eine präzise Ansteuerung mit hoher Ausgangsreserve. Die Ausstattung umfasst eine variable Tiefpassweiche von 50 Hz bis 150 Hz (18 dB), einen regelbaren Hochpass für Satelliten, einen semiparametrischen Bass-Boost zwischen 30 Hz und 50 Hz sowie einen stufenlos regelbaren Phasenschieber von 0° bis 180°. Ein integrierter Ground-Lift-Schalter sorgt für Brummfreiheit bei unsymmetrischen Verbindungen. Schutzschaltungen gegen Überhitzung, Kurzschluss und Gleichspannung gewährleisten einen sicheren Betrieb auch unter hoher Belastung. Das Modul liefert 200 W an 4 Ohm und 125 W an 8 Ohm, mit einem Frequenzbereich von 20 Hz bis 20 kHz und einem Störabstand von über 70 dB. Es eignet sich für Subwoofer mit Membrandurchmessern bis zu 46 cm. Die Stromversorgung erfolgt über 230 V / 50 Hz bei 300 VA Leistungsaufnahme. Der Anschluss erfolgt wahlweise über Cinch (Line In / Sat Out) oder Lautsprecher-Terminals (High Power In). Das SAM-2 ermöglicht eine komfortable Integration in bestehende HiFi-Anlagen mit Vorverstärker-Ausgang (Pre-Out) oder bei Verwendung von Vor-/Endstufen-Kombinationen. Gehäusemaße 185 mm × 370 mm × 90 mm, Gewicht ca. 4,9 kg. Geliefert im Originalkarton mit Schutzverpackung. Technische Daten und Informationen (ohne Gewähr): HerstellerMonacor / NumberModellSAM-2Ausgangsleistung200 W an 4 Ω / 125 W an 8 ΩFrequenzbereich20 Hz – 20 kHz (variabel 50 – 150 Hz)Subsonic-Filter24 dBTiefpassvariabel 50 – 150 Hz (18 dB)Bassanhebung30 – 50 Hz / bis 6 dB regelbarPhasenschieber0° – 180° stufenlosHochpass50 – 150 Hz (12 dB)Störabstand> 70 dBKlirrfaktor< 0,1 %Abmessungen (B × H × T)185 × 370 × 90 mmGewicht4,9 kgStromversorgung230 V / 50 Hz / 300 VAAnschlüsseCinch (Line In/Sat Out), LS-Terminals (High Power In) Häufig gefragt: Wofür eignet sich das SAM-2 Modul?Es ist ideal für den Selbstbau aktiver Subwoofer und für Systeme, bei denen eine getrennte Bassansteuerung über Pre-Out/Main-In-Verbindungen vorgesehen ist.Kann das Modul direkt an einen Verstärker angeschlossen werden?Ja, wahlweise über Hochpegel-Eingänge (Lautsprecherterminals) oder Cinch-Eingänge (Line In).Wie lautlos arbeitet das Modul im Ruhezustand?Durch die solide Netzteil- und Filterauslegung arbeitet das SAM-2 praktisch geräuschfrei im Standby- und Betrieb. Alle angebotenen Geräte werden technisch geprüft und befinden sich in einwandfreiem Zustand. Für jedes Produkt gilt eine Gewährleistung von 12 Monaten. Z099/172Z099/173 Unsere Monacor / Number History zeigt zahlreiche bereits verkaufte Geräte mit hochauflösenden Bildern und ausführlichen technischen Daten – eine wertvolle Referenz für Sammler und Interessierte.
El Monacor Number SAM-2 es un potente módulo activo de subwoofer de 200 W que es ideal para construir subwoofers activos de alta calidad. Gracias a la probada tecnología de transistores, ofrece un control preciso con una alta reserva de salida. El equipo incluye un crossover de paso bajo variable de 50 Hz a 150 Hz (18 dB), un paso alto ajustable para satélites, un refuerzo de graves semiparamétrico entre 30 Hz y 50 Hz y un desfasador infinitamente variable de 0° a 180°. Un interruptor de elevación de tierra integrado garantiza cero zumbidos para conexiones desequilibradas. Los circuitos de protección contra sobrecalentamiento, cortocircuitos y tensión continua garantizan un funcionamiento seguro incluso bajo cargas elevadas. El módulo entrega 200 W en 4 ohmios y 125 W en 8 ohmios, con un rango de frecuencia de 20 Hz a 20 kHz y una relación señal/ruido de más de 70 dB. Es adecuado para subwoofers con diámetros de diafragma de hasta 46 cm. La fuente de alimentación es a través de 230 V / 50 Hz con un consumo de energía de 300 VA. La conexión se realiza a través de RCA (entrada de línea / salida por satélite) o terminales de altavoz (entrada de alta potencia). El SAM-2 permite una integración conveniente en sistemas de alta fidelidad existentes con una salida de preamplificador (pre-out) o cuando se utilizan combinaciones de preamplificador / amplificador de potencia. Dimensiones de la caja 185 mm × 370 mm × 90 mm, peso aprox. 4,9 kg. Se entrega en la caja original con embalaje protector. Datos técnicos e información (sin garantía): FabricanteMonacor / NúmeroModeloSAM-2 Potencia desalida200 W en 4 Ω / 125 W en 8 Ωrango de frecuencia20 Hz – 20 kHz (variable 50 – 150 Hz)Filtro subsónico24 dB Paso bajovariable 50 – 150 Hz (18 dB)Refuerzo de graves30 – 50 Hz / ajustable hasta 6 dBDesfasador0° – 180°paso alto continuo50 – 150 Hz (12 dB)Relación señal/ruido> 70 dBTHD< 0,1 %Dimensiones (W × H × D)185 × 370 × 90 mmPeso4,9 kgFuente de alimentación230 V / 50 Hz / 300 VAConexionesRCA (Line In/Sat Out), terminales LS (High Power In) Preguntas frecuentes: ¿Para qué es adecuado el módulo SAM-2?Es ideal para construir sus propios subwoofers activos y para sistemas en los que se proporciona un control de graves separado a través de conexiones de salida de pre-salida/entrada principal.¿Se puede conectar el módulo directamente a un amplificador?Sí, ya sea a través de entradas de alto nivel (terminales de altavoz) o entradas RCA (entrada de línea).¿Qué tan silenciosamente funciona el módulo en modo inactivo?Debido a la sólida fuente de alimentación y al diseño del filtro, el SAM-2 funciona prácticamente en silencio en modo de espera y funcionamiento. Todos los dispositivos ofrecidos están técnicamente probados y están en perfectas condiciones. Cada producto está cubierto por una garantía de 12 meses. Z099/172Z099/173 Nuestro Monacor / Number History muestra numerosos dispositivos que ya se han vendido con imágenes de alta resolución y datos técnicos detallados, una valiosa referencia para coleccionistas e interesados.
Monacor Number SAM-2, yüksek kaliteli aktif subwoofer'lar oluşturmak için ideal olan güçlü bir 200W dereceli subwoofer aktif modülüdür. Kanıtlanmış transistör teknolojisi sayesinde yüksek çıkış rezervi ile hassas kontrol sunar. Ekipman, 50 Hz ila 150 Hz (18 dB) arasında değişken bir alçak geçişli geçiş, uydular için ayarlanabilir bir yüksek geçiş, 30 Hz ile 50 Hz arasında yarı parametrik bir bas güçlendirme ve 0° ila 180° arasında sonsuz değişken bir faz kaydırıcı içerir. Entegre bir yer kaldırma anahtarı, dengesiz bağlantılar için sıfır uğultu sağlar. Aşırı ısınmaya, kısa devrelere ve DC gerilime karşı koruma devreleri, yüksek yükler altında bile güvenli çalışma sağlar. Modül, 200 Hz ila 4 kHz frekans aralığı ve 125 dB'nin üzerinde sinyal-gürültü oranıyla 8 W'ı 20 ohm'a ve 20 W'ı 70 ohm'a sağlar. Diyafram çapı 46 cm'ye kadar olan subwoofer'lar için uygundur. Güç kaynağı, 230 VA güç tüketiminde 50 V / 300 Hz üzerindendir. Bağlantı, RCA (Hat Girişi / Uydu Çıkışı) veya hoparlör terminalleri (Yüksek Güç Girişi) aracılığıyla yapılır. SAM-2, bir ön amplifikatör çıkışı (ön çıkış) ile veya ön / güç amplifikatör kombinasyonları kullanıldığında mevcut hi-fi sistemlerine uygun entegrasyon sağlar. Kasa boyutları 185 mm × 370 mm × 90 mm, ağırlık yaklaşık 4,9 kg. Orijinal kutusunda, koruyucu ambalajı ile birlikte teslim edilir. Teknik veriler ve bilgiler (garantisiz): ÜreticiMonacor / NumaraModelSAM-2Çıkış gücü200 W - 4 Ω / 125 W - 8 Ωfrekans aralığı20 Hz - 20 kHz (değişken 50 - 150 Hz)Ses altı filtre24 dB Düşük geçişlideğişken 50 - 150 Hz (18 dB)Bas kuvvetlendirme30 - 50 Hz / 6 dB'ye kadar ayarlanabilirFaz kaydırıcı0° - 180° kademesizyüksek geçiş50 - 150 Hz (12 dB)Sinyal-gürültü oranı> 70 dBTHD< %0,1 Boyutlar (G × Y × D)185 × 370 × 90 mmAğırlık4,9 kgGüç kaynağı230 V / 50 Hz / 300 VABağlantılarRCA (Hat Girişi/Uydu Çıkışı), LS terminalleri (Yüksek Güç Girişi) Sık sorulan sorular: SAM-2 modülü ne için uygundur?Kendi aktif subwoofer'larınızı oluşturmak ve ön çıkış/ana giriş bağlantıları aracılığıyla ayrı bas kontrolünün sağlandığı sistemler için idealdir.Modül doğrudan bir amplifikatöre bağlanabilir mi?Evet, yüksek seviyeli girişler (hoparlör terminalleri) veya RCA girişleri (hat girişi) aracılığıyla.Modül boş modda ne kadar sessiz çalışıyor?Sağlam güç kaynağı ve filtre tasarımı sayesinde SAM-2, bekleme ve çalışma sırasında pratik olarak sessiz çalışır. Sunulan tüm cihazlar teknik olarak test edilmiştir ve mükemmel durumdadır. Her ürün 12 ay garanti kapsamındadır. Z099/172Z099/173 Monacor / Numara Geçmişimiz, halihazırda satılmış olan çok sayıda cihazı yüksek çözünürlüklü görüntüler ve ayrıntılı teknik verilerle göstermektedir - koleksiyoncular ve ilgili taraflar için değerli bir referans.
Add to Favorites
CJM Audio
Member Since
June 2019
Verify This Member!
4
other(s) verified this member.
Seller Verification by audioG
replies email, confirmed by audioG
has a website, confirmed by audioG
Items from this Seller
328
Active Listings
1386
Listings All Time
Message Activity
128
Messages (All Time)
Messages (Last 6 months)
Asking Price: 189 EUR
Price History >
Seller Accepts
Package
Shipment
Buyer Pays
Shipping Cost (Estimated)
Please contact seller.
Shipping From
- Germany
Shipping To
Worldwide
Return Policy
Returns are not accepted for this item.
