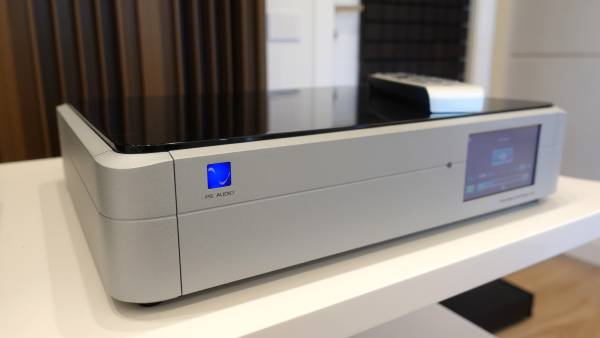

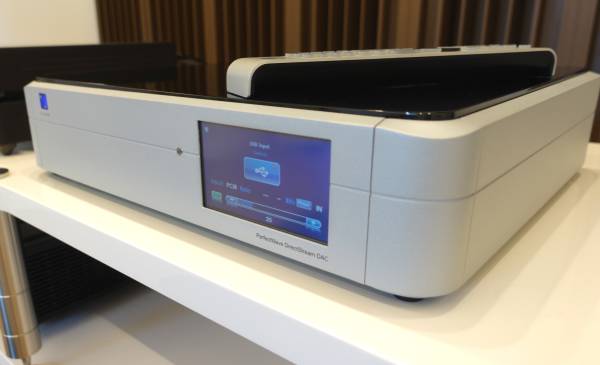

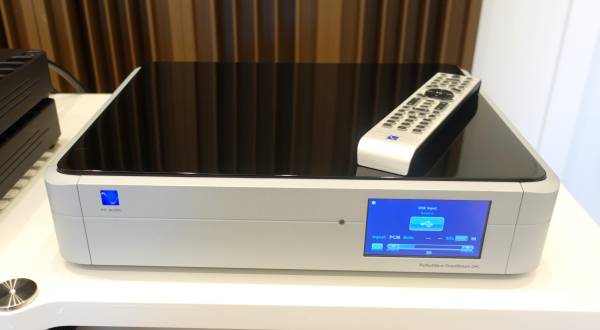

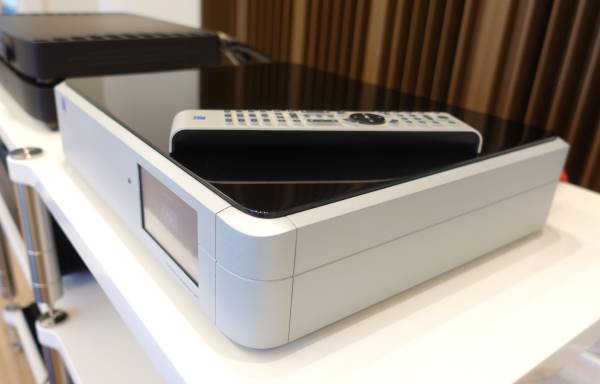

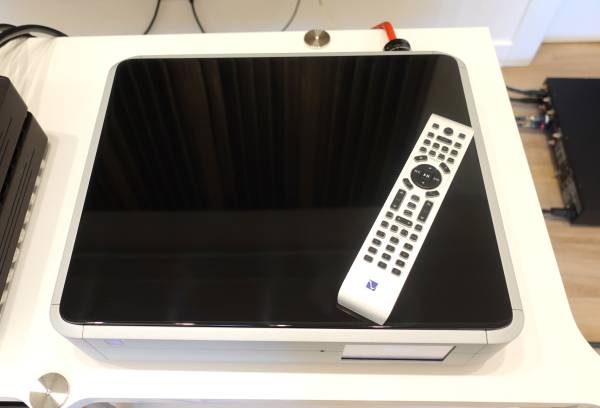

PS Audio DirectStream DAC MK1
PS Audio DirectStream DAC MK1
13
views this month
Posted On
3.02.2026
Last Update On
3.02.2026
Description
Original Description is in
English
, other language texts are translations and can contain errors.
English
Deutsch
Spanish
Turkish

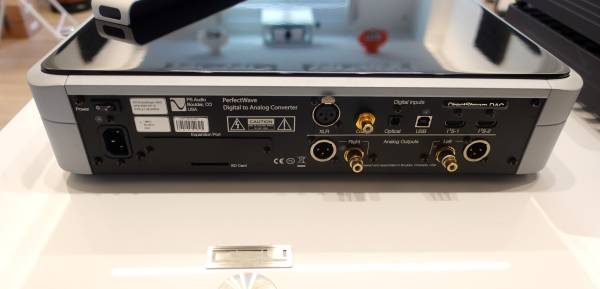

PS Audio DirectStream DAC MK1 DAC, perfect, remote control.The PS Audio DirectStream DAC MK1 is a device that marked a turning point in the digital world; it radically departs from traditional DACs based on "off-the-shelf" chips (such as the ESS Sabre or AKM) using a custom-programmed FPGA (Field Programmable Gate Array).Architecture and ConversionConversion Method: Proprietary single-bit Delta-Sigma (DSD), FPGA-based.Upsampling: All inputs (PCM and DSD) are synchronously upsampled to 28.224 MHz (10x the standard DSD rate).Final Processing: The signal is reduced to Double Rate DSD (5.6 MHz) before analog conversion.Output Stage: Passive transformer (Jensen), driven by high-current analog amplifiers.S/N Ratio (Digital): >146 dB.Volume Control: Precision "zero-loss" digital (50-bit).Digital Inputs and ResolutionsI2S (via HDMI) x2 PCM 352.8 kHz / 24-bit DSD128USB (Type B) PCM 352.8 kHz / 24-bit DSD128 (DoP)XLR (AES/EBU) PCM 192 kHz / 24-bit DSD64 (DoP)Coaxial (RCA) PCM 192 kHz / 24-bit DSD64 (DoP)Optical (Toslink) PCM 96 kHz / 24-bitNetwork (Bridge II), not installedAnalog OutputsConnectors: 1 pair XLR (balanced), 1 pair RCA (unbalanced).Output Level (High): 2.81 Vrms (XLR) / 1.41 Vrms (RCA).Output Level (Low): 0.28 Vrms (XLR) / 0.14 Vrms (RCA). Useful for interfacing with high-gain preamplifiers.Dimensions: 430 mm (W) x 100 mm (H) x 360 mm (D)Weight: 13.5 kg (net unit).
PS Audio DirectStream DAC MK1 DAC, perfekt, Fernbedienung.Der PS Audio DirectStream DAC MK1 ist ein Gerät, das einen Wendepunkt in der digitalen Welt markierte; er weicht radikal von traditionellen DACs ab, die auf "Off-the-shelf"-Chips (wie dem ESS Sabre oder AKM) basieren, indem sie eine speziell programmierte FPGA (Field Programmable Gate Array) verwenden.Architektur und Umwandlungsmethode: Proprietäres Single-Bit-Delta-Sigma (DSD), FPGA-basiert.Upsampling: Alle Eingänge (PCM und DSD) werden synchron auf 28,224 MHz hochgesampelt (10-fache der Standard-DSD-Rate).Endverarbeitung: Das Signal wird vor der analogen Umwandlung auf Double Rate DSD (5,6 MHz) reduziert.Ausgangsstufe: Passiver Transformator (Jensen), angetrieben von Hochstrom-Analogverstärkern.S/N-Verhältnis (Digital): >146 dB.Lautstärkeregelung: Präzise "Zero-Loss"-Digital (50-Bit).Digitale Eingänge und AuflösungenI2S (über HDMI) x2 PCM 352,8 kHz / 24-Bit DSD128USB (Typ B) PCM 352,8 kHz / 24-Bit DSD128 (DoP) XLR (AES/EBU) PCM 192 kHz / 24-Bit DSD64 (DoP) Koaxial (RCA) PCM 192 kHz / 24-Bit DSD64 (DoP) Optisch (Toslink) PCM 96 kHz / 24-Bit-Netzwerk(Bridge II), nicht installiertAnaloge Ausgangsstecker: 1 Paar XLR (balanciert), 1 Paar RCA (unsymmetrisch).Ausgangspegel (Hoch): 2,81 Vrms (XLR) / 1,41 Vrms (RCA).Ausgangspegel (niedrig): 0,28 Vrms (XLR) / 0,14 Vrms (RCA). Nützlich zur Schnittstelle mit Hochverstärkungs-Vorverstärkern.Abmessungen: 430 mm (W) x 100 mm (H) x 360 mm (D) Gewicht: 13,5 kg (Nettoeinheit).
PD Audio DirectStream DAC MK1, perfecto, mando a distancia.El PS Audio DirectStream DAC MK1 es un dispositivo que marcó un punto de inflexión en el mundo digital; se diferencia radicalmente de los DAC tradicionales basados en chips "listos para usar" (como el ESS Sabre o AKM) que utilizan un FPGA (Field Programmable Gate Array) programado a medida.Arquitectura ymétodo de conversión de conversión: Delta-Sigma (DSD) de un solo bit, propietario, basado en FPGA.Muestreo adicional: Todas las entradas (PCM y DSD) se sobremuestrean síncronamente a 28,224 MHz (10 veces la tasa estándar de DSD).Procesamiento final: La señal se reduce a DSD de doble tasa (5,6 MHz) antes de la conversión analógica.Etapa de salida: Transformador pasivo (Jensen), accionado por amplificadores analógicos de alta corriente.Relación S/N (Digital): >146 dB.Control de volumen: Digital de precisión "pérdida cero" (50 bits).Entradas y resoluciones digitalesI2S (vía HDMI) x2 PCM 352,8 kHz / 24 bits DSD128USB (Tipo B) PCM 352,8 kHz / 24 bits DSD128 (DoP) XLR (AES/EBU) PCM 192 kHz / 24 bits DSD64 (DoP) Coaxial (RCA) PCM 192 kHz / 24 bits DSD64 (DoP) Óptico (Toslink) PCM 96 kHz / Red de 24 bits(Puente II), no instaladosConectores de salidas analógicas: 1 par XLR (balanceado), 1 par RCA (no balanceado).Nivel de salida (alto): 2,81 vrms (XLR) / 1,41 vrms (RCA).Nivel de salida (bajo): 0,28 vrms (XLR) / 0,14 vrms (RCA). Útil para interactuar con preamplificadores de alta ganancia.Dimensiones: 430 mm (Ancho) x 100 mm (Alto) x 360 mm (D) Peso: 13,5 kg (unidad neta).
PS Audio DirectStream DAC MK1 DAC, mükemmel, uzaktan kumanda.PS Audio DirectStream DAC MK1, dijital dünyada bir dönüm noktası olan bir cihazdır; geleneksel DAC'lerden radikal şekilde "hazır olan" çiplere (örneğin ESS Sabre veya AKM) dayalı ve özel programlanmış FPGA (Alan Programlanabilir Kapı Dizisi) kullanır.Mimari ve DönüşümDönüşüm Yöntemi: Tescilli tek bitli Delta-Sigma (DSD), FPGA tabanlı.Upsampling: Tüm girişler (PCM ve DSD) 28.224 MHz'e (standart DSD hızının 10 katı) senkronize olarak yükseltilir.Son İşleme: Sinyal, analog dönüşümden önce Çift Hızlı DSD (5.6 MHz) olarak düşürülür.Çıkış Aşaması: Pasif transformatör (Jensen), yüksek akımlı analog amplifikatörler tarafından çalıştırılır.S/N Oranı (Dijital): >146 dB.Ses Kontrolü: Hassas "sıfır kayıp" dijital (50-bit).Dijital Girişler ve ÇözümlerI2S (HDMI üzerinden) x2 PCM 352.8 kHz / 24-bit DSD128USB (Tip B) PCM 352.8 kHz / 24-bit DSD128 (DoP)XLR (AES/EBU) PCM 192 kHz / 24-bit DSD64 (DoP)Koaksiyel (RCA) PCM 192 kHz / 24-bit DSD64 (DoP)Optik (Toslink) PCM 96 kHz / 24-bitağ (Bridge II), takılmadıAnalog ÇıkışKonnektörleri: 1 çift XLR (dengeli), 1 çift RCA (dengesiz).Çıkış seviyesi (yüksek): 2.81 vrms (XLR) / 1.41 vrms (RCA).Çıkış seviyesi (düşük): 0.28 vrms (XLR) / 0.14 vrms (RCA). Yüksek kazançlı ön amplifikatörlerle arayüz için faydalıdır.Boyutlar: 430 mm (K) x 100 mm (H) x 360 mm (D)Ağırlık: 13,5 kg (net birim).
Add to Favorites
Mondo Audio
Member Since
July 2019
Verify This Member!
2
other(s) verified this member.
Seller Verification by audioG
replies email, confirmed by audioG
has a website, confirmed by audioG
replies calls, confirmed by audioG
Items from this Seller
64
Active Listings
326
Listings All Time
Message Activity
75
Messages (All Time)
Messages (Last 6 months)
Asking Price: 2,250 EUR
Price History >
Seller Accepts
Package
Shipment
Buyer Pays
Shipping Cost (Estimated)
Please contact seller.
Shipping From
Cenate Sopra - Italy
Shipping To
Worldwide
Return Policy
Returns are not accepted for this item.
