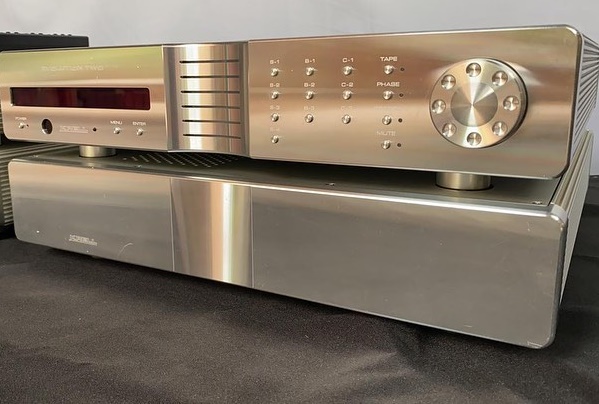

Krell Evo 2
17 views this month
Last Update On
21.04.2026
Description
Original Description is in
English, other language texts are translations and can contain errors.
EnglishDeutschSpanishTurkish
SPECIFICATIONS:Frequency responses: 20Hz–20kHz, ±0.02dB; 0.01Hz–1.5MHz, +0/–3dB. THD: <0.004%, 20Hz–20kHz at 4V or 4mA RMS.Signal/noise: >100dB wideband, unweighted; >109dB A-weighted (both at 4V or 4mA RMS).Input impedance: 45 ohmsCAST (current mode operation), 95k ohms balanced, 47.5k ohms single-ended.Output impedance: >1M ohm CAST, 50 ohms balanced, 25 ohms single-ended.Input overload: 14mA RMS CAST, 14V RMS balanced, 7V RMS single-ended.Output overload: 16mA RMS CAST, 16V RMS balanced, 8V RMS single-ended.Gain: 12dB CAST or balanced, 6dB single-ended.Power consumption: 45W standby, 70W power on.Dimensions: 17.25″ (438mm) W by 3.8″ (96mm) H by 18.25″
SPEZIFIKATIONEN: Frequenzgange: 20Hz–20kHz, ±0,02 dB; 0,01Hz–1,5 MHz, +0/–3 dB. THD: Signal/Rauschen: >100 dB Breitband, ungewichtet; >109 dB A-gewichtet (beide mit 4V oder 4 mA RMS). Eingangsimpedanz: 45 Ohm CAST (Current Mode Betrieb), 95k Ohm balanciert, 47,5k Ohm Single-Ending. Ausgangsimpedanz: >1M ohm CAST, 50 Ohm symmetrisch, 25 Ohm einseitig. Eingangsüberlastung: 14 mA RMS CAST, 14V RMS symmetrisch, 7V RMS einseitig. Ausgangsüberlastung: 16mA RMS CAST, 16V RMS symmetrisch, 8V RMS einseitig. Gewinn: 12 dB CAST oder balanciert, 6 dB single-ended. Stromverbrauch: 45 W Standby, 70 W eingeschaltet. Abmessungen: 17,25" (438 mm) B mal 3,8" (96 mm) H mal 18,25"
ESPECIFICACIONES: Respuestas en frecuencia: 20Hz–20kHz, ±0,02dB; 0,01Hz–1,5MHz, +0/–3dB. THD: Señal/ruido: >100dB banda ancha, sin peso; >109 dB ponderados en A (ambos a 4V o 4mA RMS). Impedancia de entrada: 45 ohmios CAST (funcionamiento en modo actual), 95k ohmios equilibrados, 47,5k ohmios en un solo extremo. Impedancia de salida: >1M ohm CAST, 50 ohmios balanceados, 25 ohmios en un solo extremo. Sobrecarga de entrada: 14mA RMS CAST, 14V RMS balanceado, 7V RMS single-end. Sobrecarga de salida: 16mA RMS FUNDIDO, 16V RMS balanceado, 8V RMS en un solo extremo. Ganancia: 12dB CAST o balanceado, 6dB single-end. Consumo de energía: 45W en espera, 70W encendido. Dimensiones: 17,25" (438 mm) de ancho por 3,8" (96 mm) de alta por 18,25"
ÖZELLIKLER: Frekans yanıtları: 20Hz–20kHz, ±0.02dB; 0.01Hz–1.5MHz, +0/–3dB. THD: Sinyal/gürültü: >100dB geniş bantlı, ağırlıksız; >109dB A ağırlıklı (hem 4V hem de 4mA RMS). Giriş empedansı: 45 ohmCAST (akım mod çalışması), 95k ohm dengeli, 47.5k ohm tek uçlu. Çıkış empedansı: >1M ohm CAST, 50 ohm dengeli, 25 ohm tek uçlu. Giriş aşırı yükü: 14MA RMS DÖKÜM, 14V RMS DENGELI, 7V RMS tek uçlu. Çıkış aşırı yükü: 16mA RMS DÖKÜM, 16V RMS DENGELI, 8V RMS tek uçlu. Kazanç: 12dB CAST veya dengeli, 6dB tek uçlu. Güç tüketimi: 45W beklemek, 70W güç açık. Boyutlar: 17.25" (438mm) B x 3.8" (96mm) H x 18.25"
