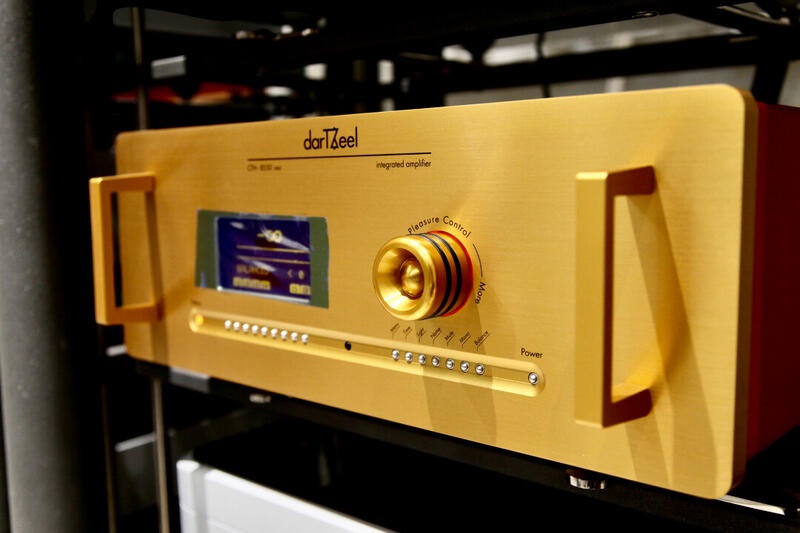

DarTZeel CTH-8550
darTZeel CTH-8550
4 views this month
Last Update On
13.05.2026
Description
Original Description is in
English, other language texts are translations and can contain errors.
EnglishDeutschSpanishTurkish
SPECIFICATIONS:
Inputs: 4 pairs line (RCA), 1 pair balanced (XLR), 2 pairs Zeel (BNC), 1 pair MC phono (RCA). 1 pair MM phono (RCA, optional).
Outputs: preamplifier (RCA), Record (RCA), darT (BNC), speaker (4mm binding posts).
Maximum output power: 200W into 8 ohms (23dBW), 330W into 4 ohms (22.2dBW), 330W into 2 ohms (19.2dBW), “limited by software.”
Output impedance: 75 ohms (Preamp), 50 ohms (darT), <0.33 ohms, 20Hz–20kHz (speaker).
Frequency response: 3Hz–300kHz, +0, –6dB, 20Hz–50kHz, ±0.5dB.
Risetime: <0.8µs. Slew rate: >88V/µs peak–peak.
Power consumption: 1kW maximum, 40W idle, 3W standby.
Dimensions: 17.2″ (440mm) W by 6.6″ (170mm) H by 13.1″ (335mm) D; 16.2″ (415mm) D, including handles.
Weight: 62 lbs (28kg). Shipping
SPEZIFIKATIONEN:
Eingänge: 4 Paare Line (RCA), 1 Paar symmetrisch (XLR), 2 Paare Zeel (BNC), 1 Paar MC Phono (RCA). 1 Paar MM Phono (RCA, optional).
Ausgänge: Vorverstärker (RCA), Aufnahme (RCA), darT (BNC), Lautsprecher (4mm-Bindestifte).
Maximale Ausgangsleistung: 200W auf 8 Ohm (23 dBW), 330 W auf 4 Ohm (22,2 dBW), 330 W auf 2 Ohm (19,2 dBW), "durch Software begrenzt".
Ausgangsimpedanz: 75 Ohm (Vorverstärker), 50 Ohm (darT), <0,33 Ohm, 20 Hz–20 kHz (Lautsprecher).
Frequenzgang: 3 Hz–300 kHz, +0, –6 dB, 20 Hz–50 kHz, ±0,5 dB.
Aufwärtszeit: <0,8 μs. Slewrate: >88 V/μs Peak–Peak.
Stromverbrauch: maximal 1 kW, 40W Leerlauf, 3W Standby.
Abmessungen: 17,2" (440 mm) B mal 6,6" (170 mm) H mal 13,1" (335 mm) D; 16,2" (415 mm) D, einschließlich Griffen.
Gewicht: 62 lbs (28 kg). Schifffahrt
ESPECIFICACIONES:
Entradas: 4 pares de línea (RCA), 1 par balanceado (XLR), 2 pares Zeel (BNC), 1 par de phono MC (RCA). 1 par de phono MM (RCA, opcional).
Salidas: preamplificador (RCA), Record (RCA), darT (BNC), altavoz (postes de encuadernación de 4mm).
Potencia máxima de salida: 200W en 8 ohmios (23dBW), 330W en 4 ohmios (22,2dBW), 330W en 2 ohmios (19,2dBW), "limitado por software."
Impedancia de salida: 75 ohmios (preamplificador), 50 ohmios (darT), <0,33 ohmios, 20Hz–20kHz (altavoz).
Respuesta en frecuencia: 3Hz–300kHz, +0, –6dB, 20Hz–50kHz, ±0,5dB.
Tiempo de ascenso: <0,8μs. Tasa de aumento: >88V/μs pico–pico.
Consumo de energía: máximo 1kW, 40W en ralentí, 3W en espera.
Dimensiones: 17,2" (440 mm) de ancho por 6,6" (170 mm) de alta por 13,1" (335 mm) de profundidad; 16,2" (415 mm) de diámetro, incluyendo asas.
Peso: 62 lbs (28 kg). Transporte
marítimo
ÖZELLIKLER:
Girişler: 4 çift hat (RCA), 1 çift dengeli (XLR), 2 çift Zeel (BNC), 1 çift MC phono (RCA). 1 çift MM phono (RCA, isteğe bağlı).
Çıkışlar: ön amplifikatör (RCA), Plak (RCA), darT (BNC), hoparlör (4mm bağlama postları).
Maksimum çıkış gücü: 8 ohma 200W (23dBW), 330W 4 ohm (22.2dBW), 330W 2 ohm (19.2dBW), "yazılım tarafından sınırlı."
Çıkış empedansı: 75 ohm (Preamp), 50 ohm (darT), <0.33 ohm, 20Hz–20kHz (hoparlör).
Frekans tepkisi: 3Hz–300kHz, +0, –6dB, 20Hz–50kHz, ±0.5dB.
Yükselme süresi: <0.8μs. Slav hızı: >88V/μs zirve–tepe.
Güç tüketimi: Maksimum 1kW, rölanti 40W, 3W bekleme.
Boyutlar: 17.2" (440mm) B x 6.6" (170mm) H x 13.1" (335mm) D; 16.2" (415mm) D, saplar dahil.
Ağırlık: 62 lbs (28kg). Denizcilik
