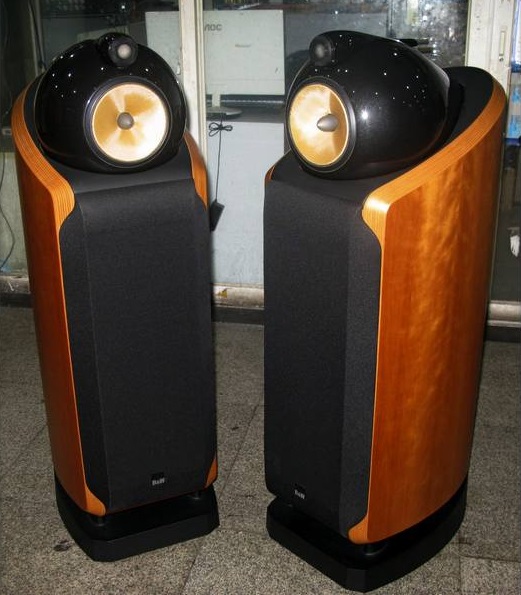

B&W 802 Diamond
145 views last month, 63 views this month
Last Update On
12.06.2026
Description
Original Description is in
English, other language texts are translations and can contain errors.
EnglishDeutschSpanishTurkish
SPECIFICATIONS:
Description: Three-way, floorstanding, reflex-loaded loudspeaker. Drive-units: 1″ diamond-dome tweeter, 6″ Kevlar FST-cone midrange unit, two 8″ Rohacell-cone woofers. Crossover frequencies: 350Hz, 4kHz. Frequency response: 34Hz–28kHz, ±3dB, on axis (–6dB at 27Hz and 33kHz). Dispersion within 2dB of reference response: ±60° horizontal, ±10° vertical. Impedance: 8 ohms nominal, 3.5 ohms minimum. Sensitivity: 90dB/2.83V/m. Harmonic distortion (second and third harmonics, 90dB/m): <1% (40Hz–100kHz), <0.5% (70Hz–100kHz). Recommended amplification: 50–500W.
Dimensions: 44.7″ (1138mm) H by 14.5″ (363mm) W by 22.2″ (565mm) D.
Weight, each: 176 lbs (80kg) net, 196 lbs (89kg) shipping.
TECHNISCHE SPEZIFIKATION:
Beschreibung: Dreifach-Standlautsprecher mit Bodenstand, reflexbelasteter Lautsprecher. Antriebseinheiten: 1" Diamantkuppel-Hochtöner, 6" Kevlar-FST-Kegel-Mittelton, zwei 8" Rohacell-Kegel-Woofer. Crossover-Frequenzen: 350 Hz, 4 kHz. Frequenzgang: 34 Hz–28 kHz, ±3 dB, auf der Achse (–6 dB bei 27 Hz und 33 kHz). Dispersion innerhalb von 2 dB der Referenzantwort: ±60° horizontal, ±10° vertikal. Impedanz: 8 Ohm nominal, mindestens 3,5 Ohm. Empfindlichkeit: 90 dB/2,83 V/m. Harmonische Verzerrung (zweite und dritte Oberschwing, 90 dB/m): <1 % (40 Hz–100 kHz), <0,5 % (70 Hz–100 kHz). Empfohlene Verstärkung: 50–500W.
Abmessungen: 44,7" (1138 mm) H mal 14,5" (363 mm) B mal 22,2" (565 mm) D.
Gewicht pro Person: 176 lbs (80 kg) Netto, 196 lbs (89 kg) Versand.
ESPECIFICACIONES:
Descripción: Altavoz de tres vías, de pie en el suelo, con carga reflex. Unidades de accionamiento: tweeter de cúpula de diamante de 1", unidad de cono FST de Kevlar de 6" en gama media, dos woofers Rohacell-cono de 8". Frecuencias de cruce: 350Hz, 4kHz. Respuesta en frecuencia: 34Hz–28kHz, ±3dB, en el eje (–6dB a 27Hz y 33kHz). Dispersión dentro de 2dB de la respuesta de referencia: ±60° horizontal, ±10° vertical. Impedancia: 8 ohmios nominales, 3,5 ohmios mínimo. Sensibilidad: 90dB/2,83V/m. Distorsión armónica (segundo y tercer armónico, 90dB/m): <1% (40Hz–100kHz) <0,5% (70Hz–100kHz). Amplificación recomendada: 50–500W.
Dimensiones: 44,7" (1138mm) de altura por 14,5" (363 mm) de ancho por 22,2" (565 mm) de diámetro.
Peso de cada uno: 176 lbs (80 kg) neto, 196 lbs (89 kg) de transporte.
ÖZELLIKLER:
Tanım: Üç yollu, yere oturan, refleks yüklü hoparlör. Sürücü üniteleri: 1" elmas kubbe bozucu, 6" Kevlar FST-konili orta frekans ünitesi, iki adet 8" Rohacell-konili woofer. Çapraz frekanslar: 350Hz, 4kHz. Frekans tepkisi: eksen üzerinde 34Hz–28kHz, ±3dB, (27Hz ve 33kHz'de –6dB). Referans yanıtının 2dB içinde dağılım: ±60° yatay, ±10° diken. Empedans: 8 ohm normal, minimum 3.5 ohm. Hassasiyet: 90dB/2.83V/m. Harmonik bozulma (ikinci ve üçüncü harmonikler, 90dB/m): %<1 (40Hz–100kHz), <0,5% (70Hz–100kHz). Önerilen amplifikasyon: 50–500W.
Boyutlar: 44.7" (1138mm) H x 14.5" (363mm) W x 22.2" (565mm) D.
Her birinin ağırlığı: 176 lbs (80kg) net, 196 lbs (89kg) nakliye ağırlığı.
