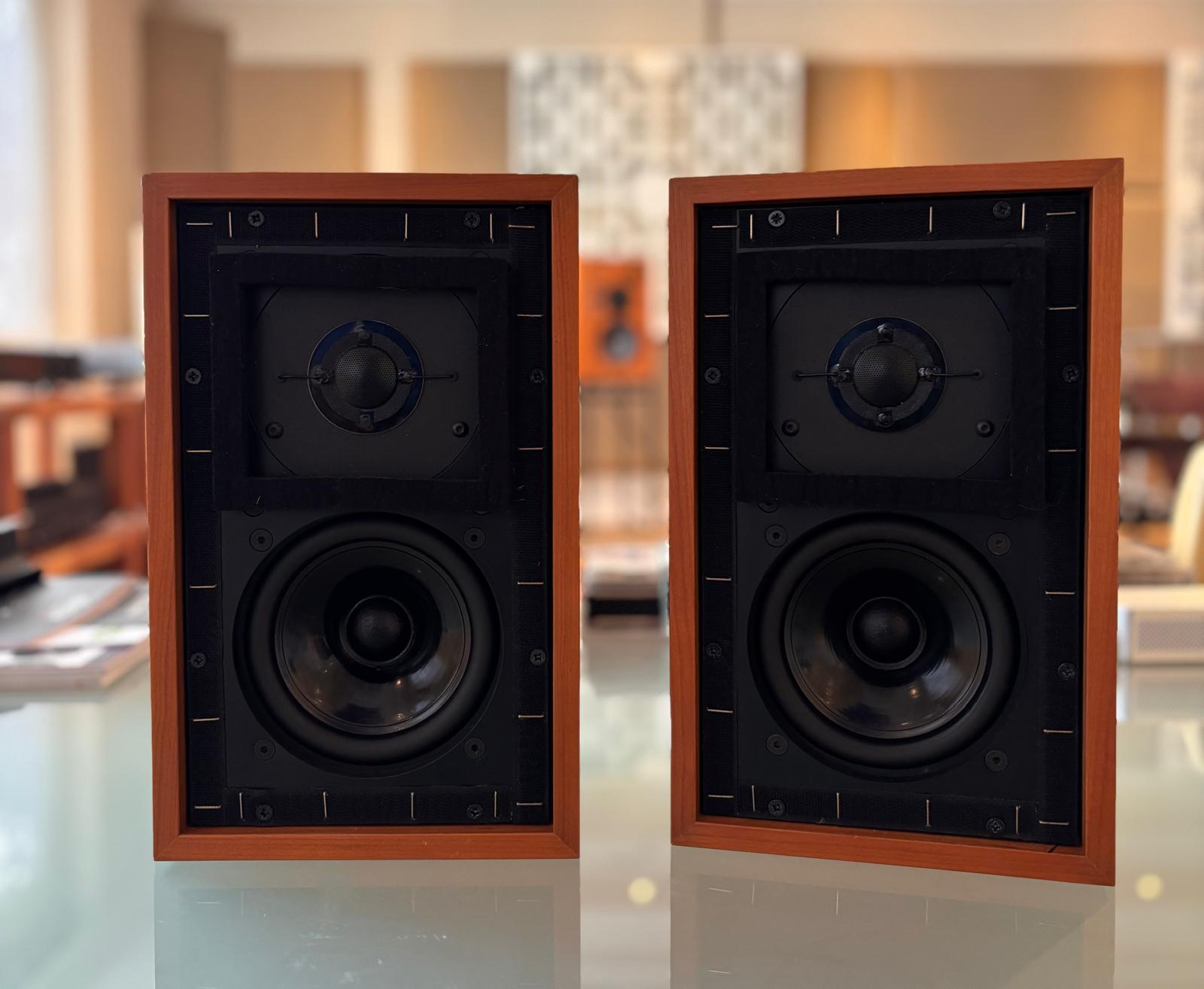

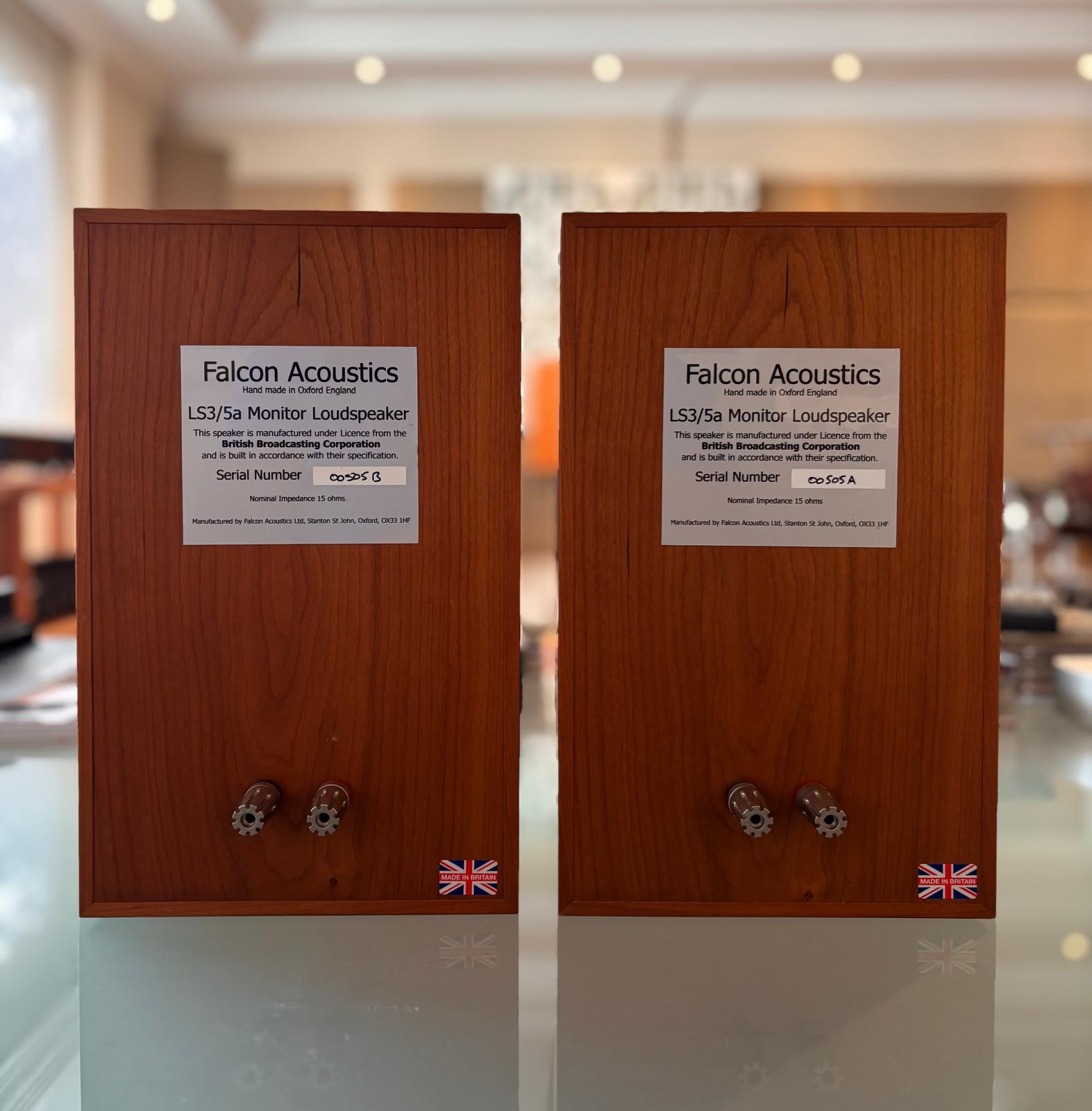

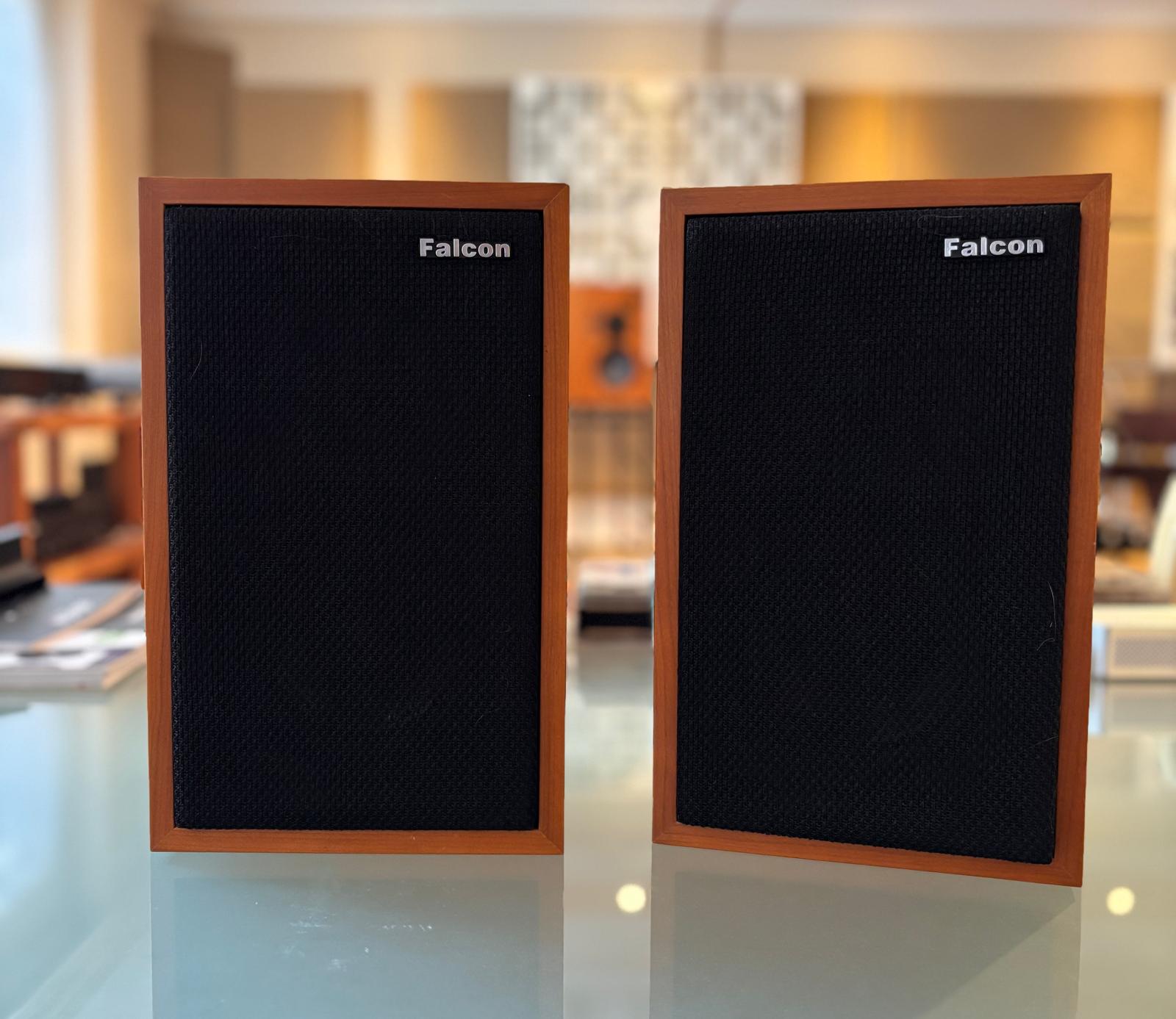

Falcon Acoustics LS3/5a Gold Badge
Falcon Acoustics LS3/5a
8 views this month
Last Update On
14.10.2026
Description
Original Description is in
Turkish, other language texts are translations and can contain errors.
EnglishDeutschSpanishTurkish

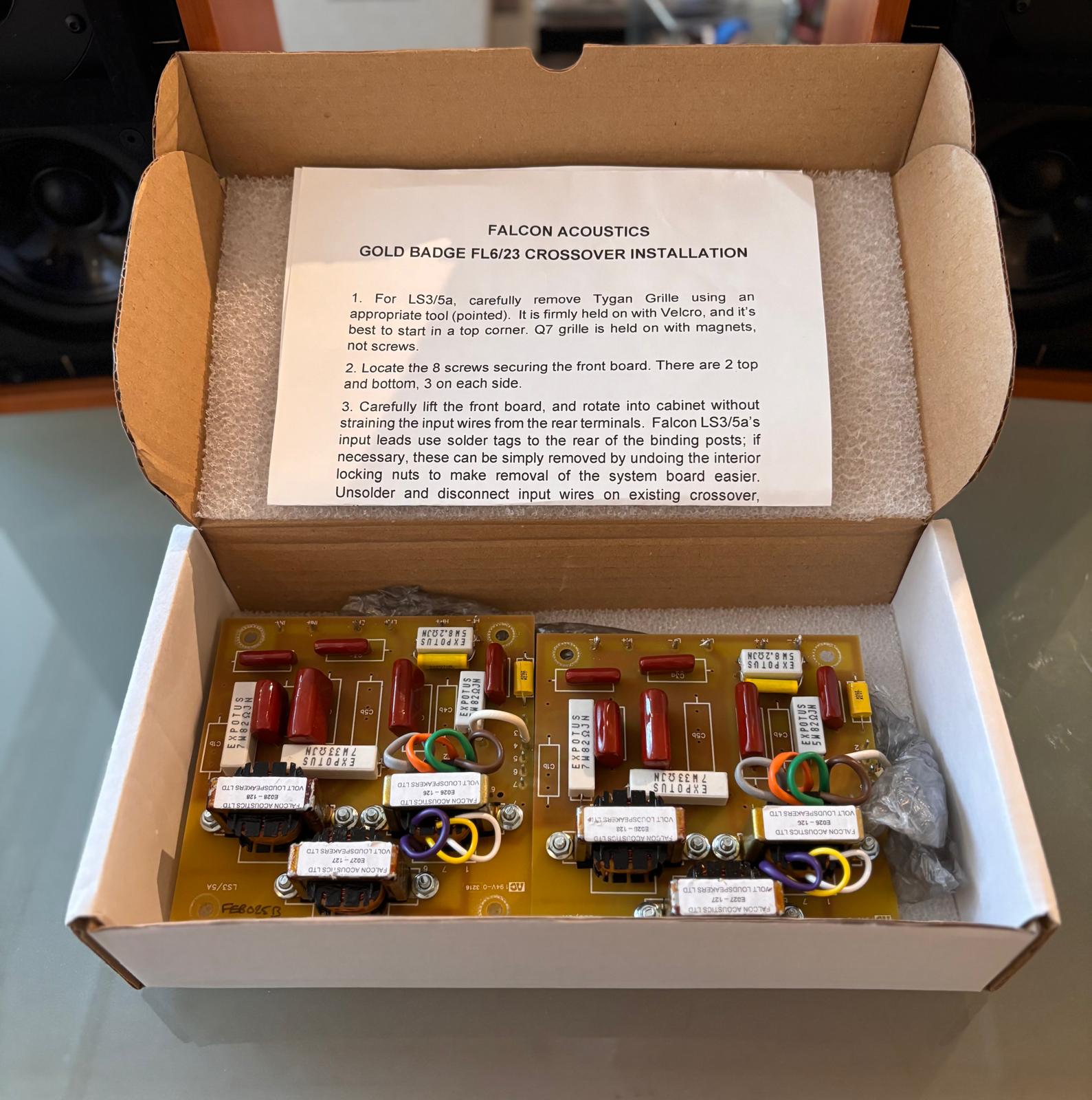

It is technically and cosmetically problem-free.(Gold badge crossover upgrade has been made.)Specifications:Type: Two-way infinite chamber (closed box)Frequency response: 70Hz – 20kHz ± 3dB
Sensitivity: 2.83dB for 1V © 83m
Nominal impedance: 15 ohms

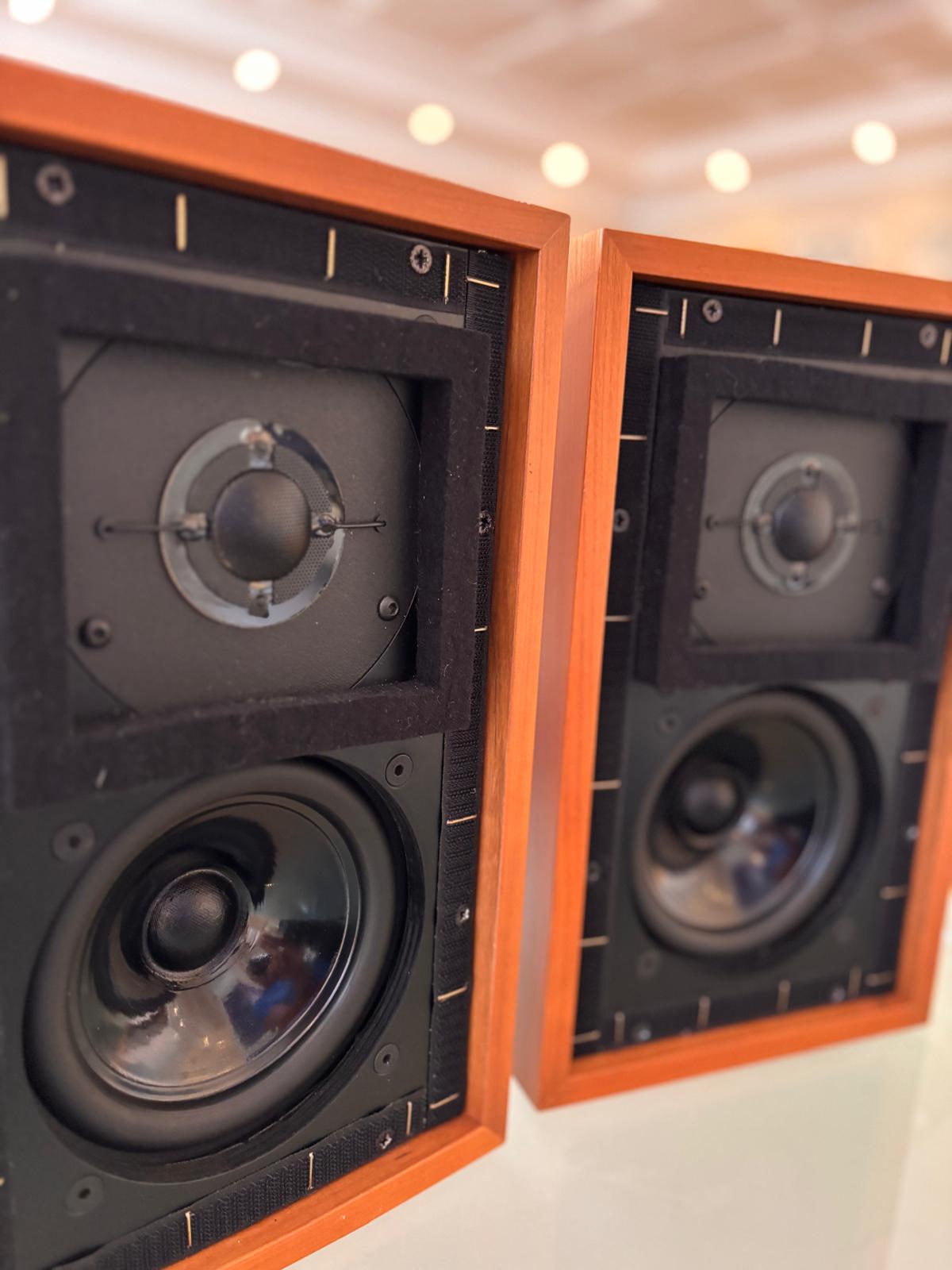

Bass/mid-frequency driver: 138mm Falcon Acoustics B110 – rated and computer-paired
Tweeter: 19mm Falcon Acoustics T27 – rated and computer-paired
Crossover: Falcon Acoustics FL6/23 (BBC design) rated and dual-paired components
Crossover frequency: 3kHz
Cabin: Selected grade Baltic birch plywood, beech slats, internally damped
Natural wood veneer options: cherry, walnut, rosewood, root walnut, yew
Dimensions HxWxD: 305 x 190 x 165mm
Weight 5.35kg
Technisch und kosmetisch ist es problemlos.(Das Gold-Badge-Crossover-Upgrade wurde vorgenommen.)Technische Daten: Typ: Zweiweg-unendliche Kammer (geschlossene Box)Frequenzgang: 70Hz – 20kHz ± 3 dB
Empfindlichkeit: 2,83 dB für 1V © 83m
Nominalimpedanz: 15
Ohm Bass-/Mittelfrequenztreiber: 138mm Falcon Acoustics B110 – bewertet und computergekoppelt
Hochtöner: 19mm Falcon Acoustics T27 – bewertet und computergepaart
Crossover: Falcon Acoustics FL6/23 (BBC-Design) bewertete und doppelgepaarte Komponenten
Weichfrequenz: 3 kHz
Kabine: Ausgewählte Sorte Baltesche Birkensperrholz, Buchenlatten, intern gedämpfte
Natürliche Holzfurnier Optionen: Kirsche, Walnuss, Palisander, Wurzel Walnuss, Eibe
Maße HxWxD: 305 x 190 x 165 mm
Gewicht 5,35 kg
Es técnica y cosméticamente libre de problemas.(Se ha realizado la mejora del crossover con insignia dorada.)Especificaciones: Tipo: Cámara infinita bidireccional (caja cerrada) Respuesta en frecuencia: 70Hz – 20kHz ±
3dB Sensibilidad: 2,83dB para 1V © 83m
Impedancia nominal: 15 ohmios
Trastornador de graves/frecuencias medias: 138mm Falcon Acoustics B110 – homologado y emparejado
por ordenador Tweeter: 19mm Falcon Acoustics T27 – homologado y emparejado con
ordenador Crossover: Falcon Acoustics FL6/23 (diseño BBC) componentes
homologados y dualmente emparejadosFrecuencia de cruce: 3kHz
Cabina: Contrachapado de abedul báltico de grado seleccionado, listones de haya, interior amortiguado
Opciones de chapa natural de madera: cerezo, nogal, palisandro, raíz de nogal, tejo
Dimensiones HxD: 305 x 190 x 165mm
Peso 5,35kg
Teknik ve kozmetik olarak sorunsuzdur.(Gold badge crossover upgrade yapılmıştır.)Özellikler:Tip: İki yollu sonsuz bölmeli (kapalı kutu)Frekans tepkisi: 70Hz – 20kHz ± 3dB
Hassasiyet: 2,83V © 1m için 83dB
Nominal empedans: 15 ohm
Bas/orta frekans sürücüsü: 138mm Falcon Acoustics B110 – derecelendirilmiş ve bilgisayarla eşleştirilmiş
Tweeter: 19mm Falcon Acoustics T27 – derecelendirilmiş ve bilgisayarla eşleştirilmiş
Crossover: Falcon Acoustics FL6/23 (BBC tasarımı) derecelendirilmiş ve çift eşleştirilmiş bileşenler
Crossover frekansı: 3kHz
Kabin: Seçilmiş sınıf Baltık huş kontrplak, kayın çıtalar, içten sönümlenmiş
Doğal ahşap kaplama seçenekleri: kiraz, ceviz, gül ağacı, kök ceviz, porsuk
Boyutlar YxGxD: 305 x 190 x 165mm
Ağırlık 5,35kg
