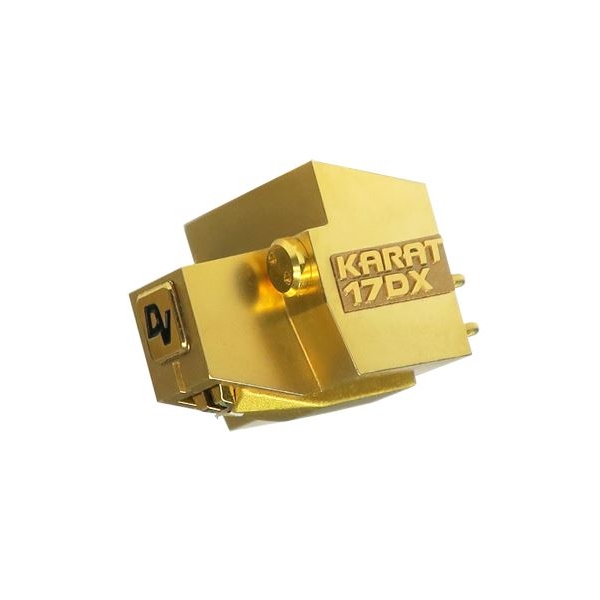

Dynavector DV KARAT 17DX MC Cartridge
Dynavector DV KARAT 17DX MC Cartridge
Posted On 20.05.2019
Last Update On 14.04.2020 Dynavector DV KARAT 17DX MC Cartridge
Dynavector DV KARAT 17DX MC Cartridge Dynavector DV KARAT 17DX MC Cartridge
Description Original Description is in English, other language texts are translations and can contain errors. EnglishDeutschTurkish

Brand New in open box.


The rationale for the new KARAT 17DX was to significantly improve upon the now legendary original KARAT series. After exhaustive listening and technical research, the decision was made to incorporate a body machined from solid brass, Samarium-cobalt magnets for lower magnetic resistance, unmatched coil winding techniques, the incredible 1.7mm long cantilever with Micro Ridge stylus all combining in a brand-new KARAT 17DX that will delight the listener, providing clear and articulate reproduction of analog recordings without a hint of harshness in the high frequency range.


Specifications

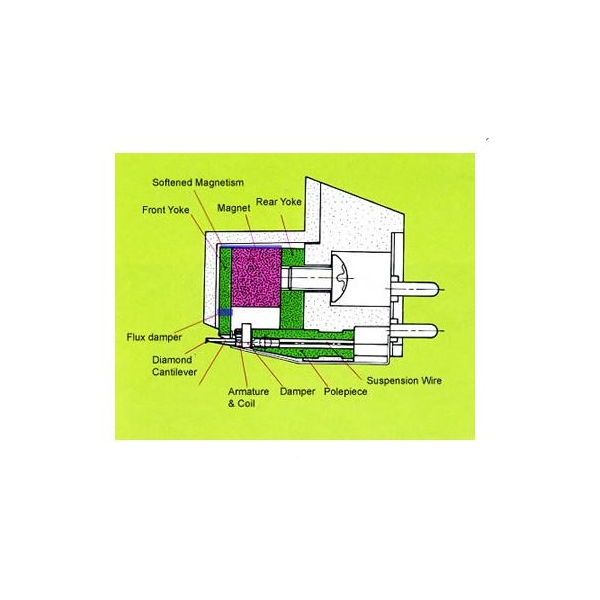

Type: Low output moving coil cartridge with flux damper and softened magnetism

Output Voltage: 0.3mV (at 1KHz, 5cm/sec.)

Channel Separation: 25 dB (at 1KHz)

Channel balance: 1.0 dB (at 1KHz)

Frequency response: 20 – 20,000Hz (± 1dB)

Compliance: 15 mm/N

Tracking force: 1.8 – 2.0 g

Impedance: 32 ohms

Recommended load impedance: > 100 ohms

Cantilever: 1.7mm length solid diamond

Stylus tip: Micro-Ridge

Weight: 11.0 g
