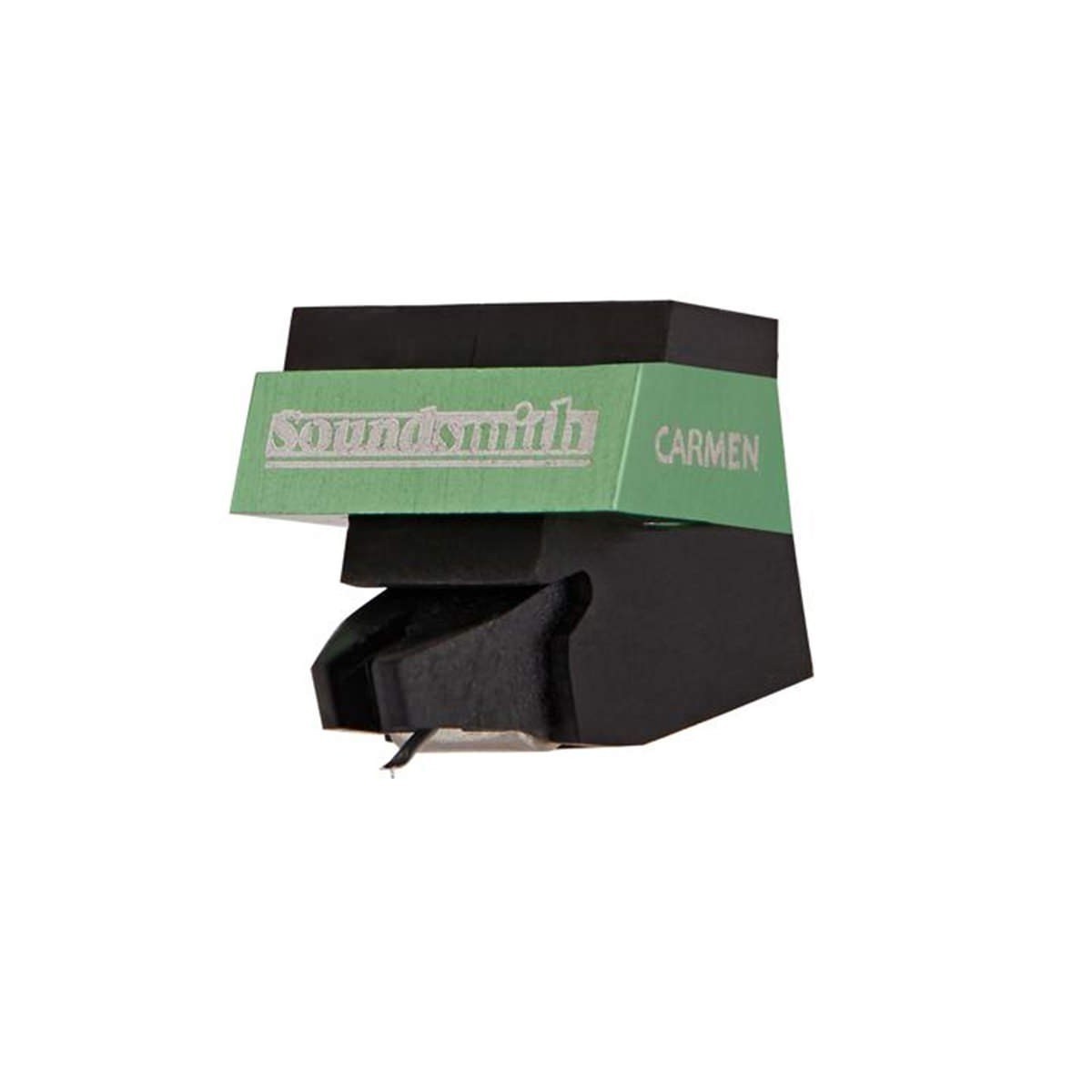

Sound Smith Carmen Kafa - Dual Coil MONO
Liste fiyatı : 1200 Usd / İndirimli Fiyatı 600 Usd
Her yere gönderilebilir, Alıcı Öder.
Banka Havalesi

Ürün Video Linki : https://vimeo.com/272524324

MK II Dizayn True dual Coil Mono

Carmen dizaynıyla yüksek performansı uygun fiyatla sunuyor. Çok derin ve geniş bir sahne ve ultra izleme yeteneği.

Carmen dinlemesi çok keyifli bir kafadır ve sizi uzun dinleme seansları sunarak baştan çıkarır.

Tek parça abanoz ( Ebony ) gövdesi ve aluminyum cantileverı ile kendinden 2 kat daha palaı Mc kafaların sunduğu performanstan fazlasını sunar.

Teknik Özellikler :

Stylus: Nude Elliptical, 0.120mm SQ

Radius of curvature: 6 x 17 μm

Cantilever: Aluminum Alloy

Recommended tracking force: 12mN / 1.2 gm (high), 14mN / 1.4 gm (medium)

Effective tip mass: 0.35 mg

Compliance: 28 μm/mN (high), 22 μm/mN (medium)

Frequency response: 20-20,000 Hz ± 2.5 dB

Channel separation (stereo only): 1000 Hz >26 dB, 50-15,000 >20 dB

Channel difference: <1.6 dB (Stereo), <1.0 dB (Mono)

Output voltage: 2.12 mV

Cartridge weight: 6.8 grams

Loading: ≥ 47 kΩ

English

List Price : 1200 Usd / Asking Price 600 Usd

A free flowing design, Carmen is highly resolving, with an unparalleled purity of tone and an ultra-smooth presentation. Just slightly lush, with a well developed midrange, Carmen ultimately seduces you into long, late listening sessions. As dawn approaches and the lead-out groove begins its rumble, you will find yourself desperately fumbling for another record, just to keep the magic alive for one more side.

A Girl's Best Friend
Carmen is a very special cartridge and her stylus is a large part of what makes her special. Starting with a very high-purity stone, Carmen's diamond is a 50x occlusion free diamond. A true elliptical design, Soundsmith grinds the entire diamond not just the front and rear, giving Carmen a huge resolution advantage over other elliptical designs and a smoothness of tone that is unique in this price range.

Carmen is a medium weight cartridge at 6.8Gms making it compatible with a broad variety of tonearms and thanks to its 2.2mV output, Carmen works well with most MM phono preamps. All Soundsmith cartridges are Made in the USA.

Moving Iron Design
A Moving Iron cartridge design has both the magnets and the coils fixed in place. A very low-mass and extremely precisely wound iron cross is affixed to the cantilever/stylus assembly and placed between the magnets and coils; as the iron cross moves in the magnetic field it generates signal voltage. Since only the iron cross moves, more coil windings (higher output) and heavier magnets (more powerful) may be used without penalty. Other advantages to the MI design are very low moving mass (greater resolution) and superior channel separation (better imaging).

Moving Iron History
Also called Moving Micro Cross, the Moving Iron concept was first introduced by Bang & Olufsen in 1978 and granted a patent shortly thereafter. The ultra-high compliance of MI designs made them a great match with B&O’s lightweight tonearms and, unfortunately, virtually unusable with modern (and heavier) tonearm designs. Thus, MI cartridges have never really entered the consciousness of audiophiles in the way that Moving Coil and Moving Magnet cartridges have, until now.

Made in the USA
Soundsmith is a specialty audio manufacturer located about an hour north of New York City. Founded in 1972, Soundsmith has achieved an enviable reputation in the audiophile world for outstanding sonic quality and extremely high-value products. Perhaps best known now for their work restoring cartridges and for their own line of Moving Iron cartridges, every Soundsmith product is hand-crafted in Soundsmith’s Peekskill, NY factory by a carefully selected team of artisans and engineers.

Technical Data

Stylus: Nude Elliptical, 0.120mm SQ

Radius of curvature: 6 x 17 μm

Cantilever: Aluminum Alloy

Recommended tracking force: 12mN / 1.2 gm (high), 14mN / 1.4 gm (medium)

Effective tip mass: 0.35 mg

Compliance: 28 μm/mN (high), 22 μm/mN (medium)

Frequency response: 20-20,000 Hz ± 2.5 dB

Channel separation (stereo only): 1000 Hz >26 dB, 50-15,000 >20 dB

Channel difference: <1.6 dB (Stereo), <1.0 dB (Mono)

Output voltage: 2.12 mV

Cartridge weight: 6.8 grams

Loading: ≥ 47 kΩ

Türk

Sound Smith Carmen Kafa - Dual Coil MONO
Liste fiyat' : 1200 Usd / 'ndirimli Fiyat' 600 Usd
Her yere gönderilebilir, Al'cé Öder.
Banka Havalesi

Ürün Video Linki : 'a href="https://vimeo.com/272524324">https://vimeo.com/272524324

MK II Dizayn True dual Coil Mono

Carmen dizayn'yla yüksek performans' uygun fiyatla sunuyor. éok derin ve genié bir sahne ve ultra izleme yetene.

Carmen dinlemesi éok keyifli bir kafadér ve sizi uzun dinleme seanslara sunarak ba'tan 'kar'r.

Tek par'a abanoz ( Ebony ) gövdesi ve aluminyum cantilever' ile kendinden 2 kat daha palaé Mc kafalar'n sundu'u performanstan fazlas'n' sunar.

Teknik Özellikler :

Stylus: Nackt elliptisch, 0,120 mm SQ

Krümmer der Krümmung: 6 x 17 m

Cantilever: Aluminiumlegierung

Empfohlene Verfolgungskraft: 12mN / 1,2 g (hoch), 14mN / 1,4 g (mittel)

Wirksame Spitzenmasse: 0,35 mg

Compliance: 28 m/mN (hoch), 22 m/mN (mittel)

Frequenz-Antwort: 20-20.000 Hz bei 2,5 dB

Kanaltrennung (nur Stereo): 1000 Hz >26 dB, 50-15.000 >20 dB

Kanaldifferenz: <1,6 dB (Stereo), <1,0 dB (Mono)

Ausgangsspannung: 2,12 mV

Patronengewicht: 6,8 Gramm

Loading: 47 k

Englisch

Listenpreis: 1200 Usd / Asking Price 600 Usd

Ein frei fließendes Design, Carmen ist sehr lösungsstark, mit einer unvergleichlichen Reinheit des Tons und einer ultra-glatten Präsentation. Nur leicht üppig, mit einem gut entwickelten Mittelton, verführt Carmen Sie schließlich zu langen, späten Hörsitzungen. Als sich die Morgendämmerung nähert und der Lead-Out-Groove zu rumpeln beginnt, wirst du verzweifelt nach einer anderen Platte fummeln, nur um die Magie für eine weitere Seite am Leben zu erhalten.
