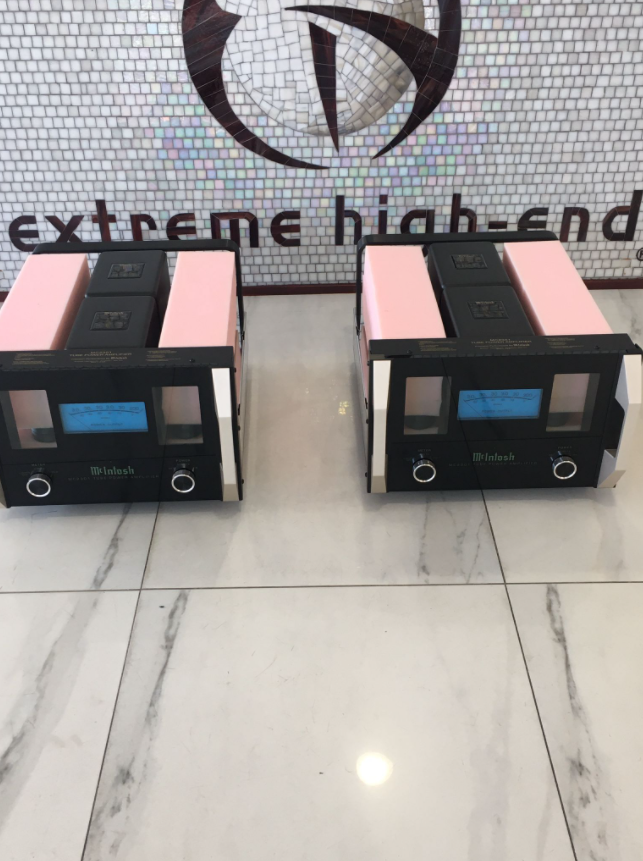

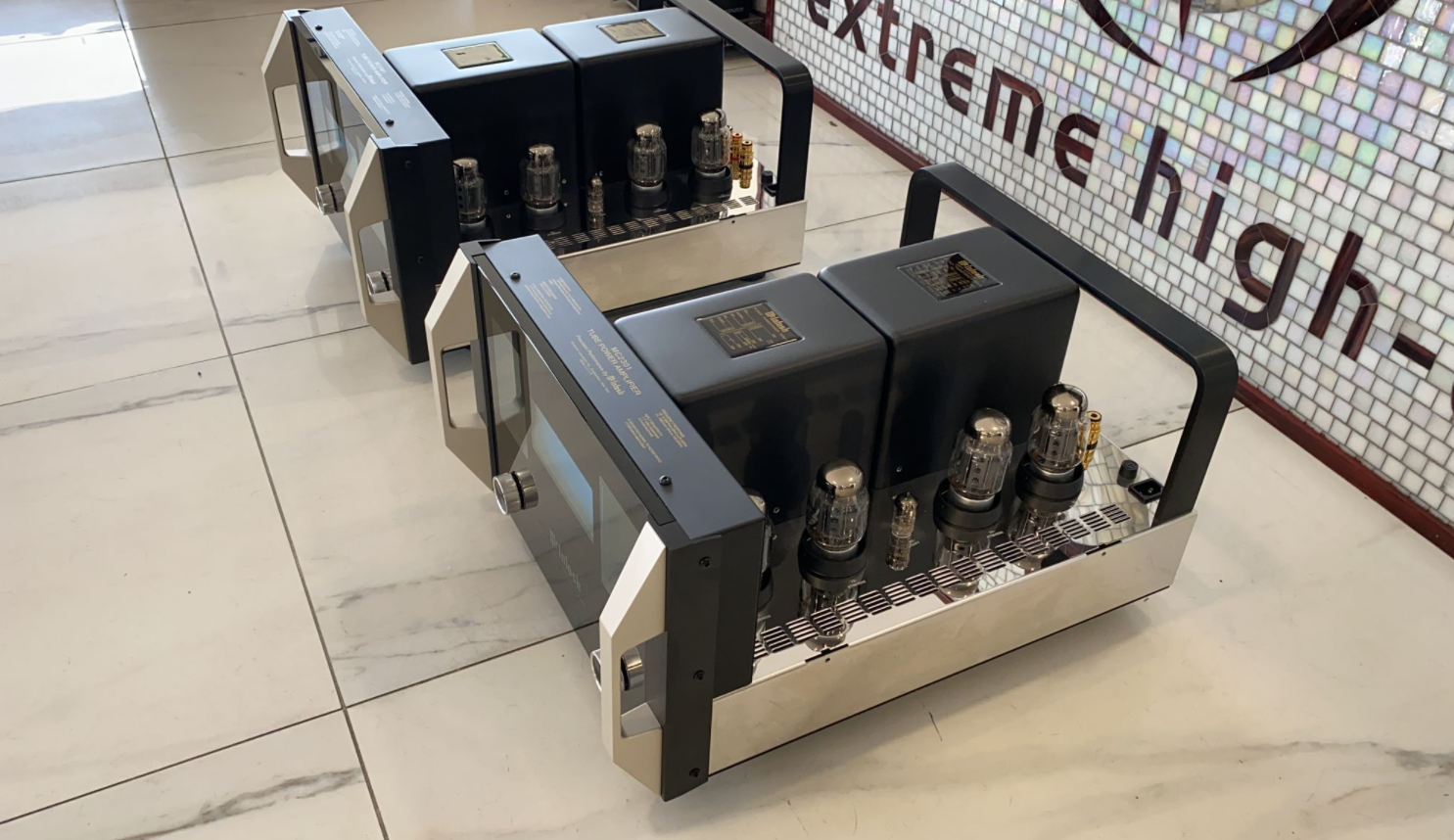

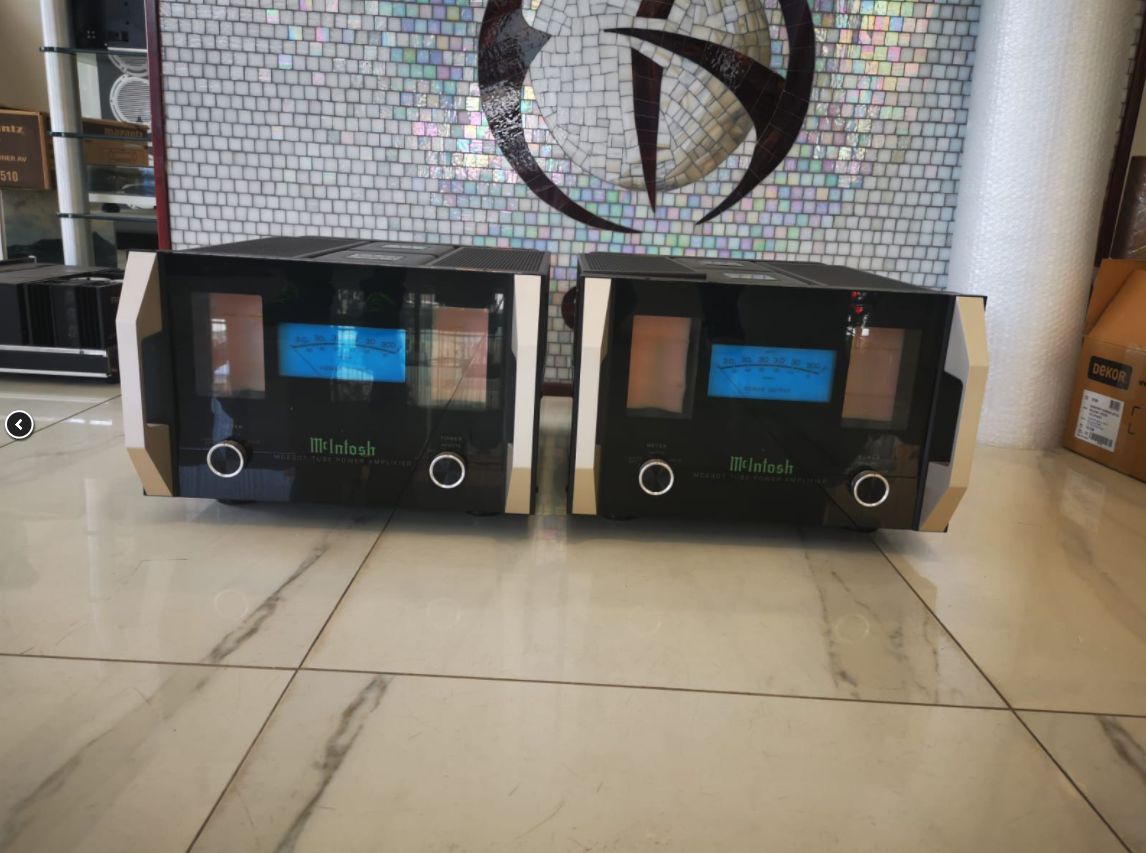

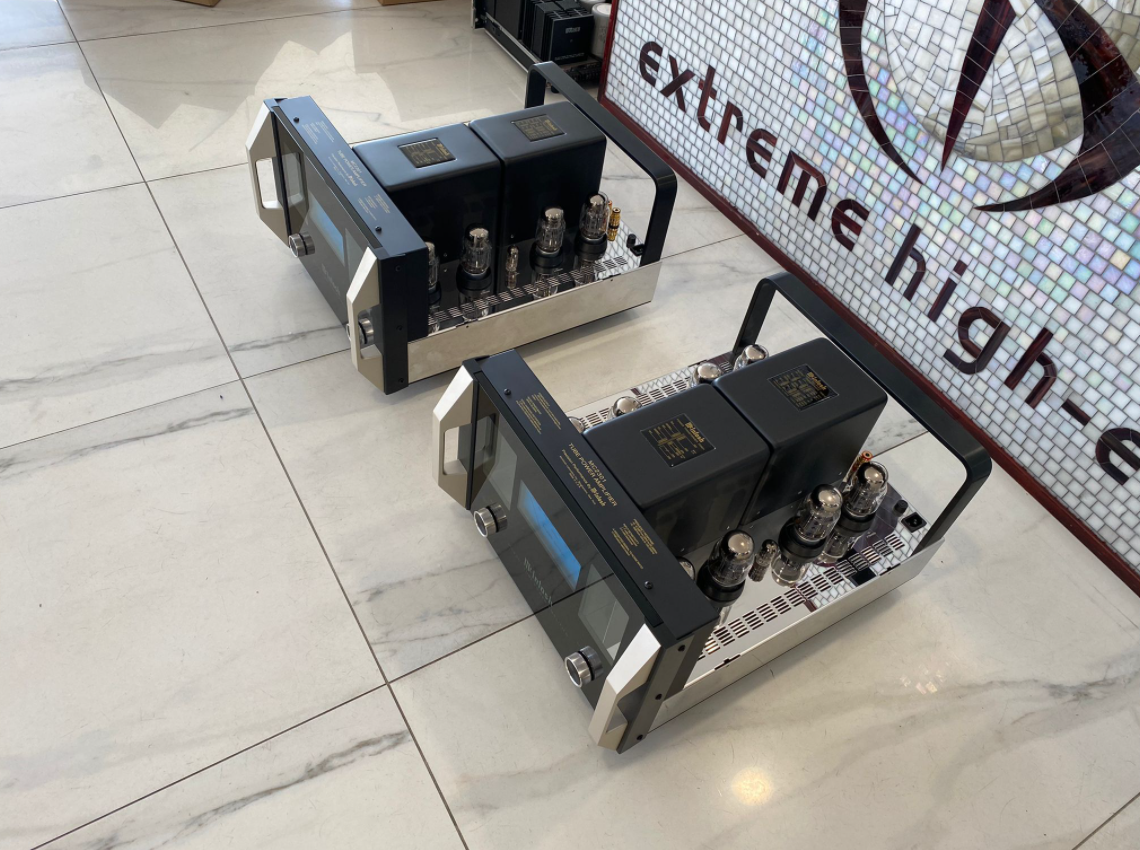

MCINTOSH MC2301 (ÇiFT)
McIntosh MC2301 (ÇiFT)
Posted On
27.05.2021Last Update On
27.05.2021
Description
Original Description is in
English, other language texts are translations and can contain errors.
EnglishDeutschTurkish
The MC2301 delivers the most realistic and dynamic performance ever heard of compared to any other McIntosh product, the MC2301 with an output of 300 watts delivers high enough power to drive even the most demanding loudspeaker.
Thanks to the AutoFormer, it can be used for full 300 watt 2, 4 or 8 ohm speakers.
The MC2301 is the first McIntosh vacuum tube amplifier to use a Quad Balanced design. This design cancels virtually all noise and distortion in the audio signal. The fuse short circuit protects the Sentry Monitor current for safe operation and then automatically resets when operating conditions return to normal. Inputs for balanced and unbalanced cables can be used to provide flexibility in connecting the rest of the audio system.
TECHNICIAL SPECIFICATIONS
POWER OUTPUT PER CHANNEL: 300W @ 2, 4 or 8 Ohms
NUMBER OF CHANNELS: 1
TOTAL HARMONIC DISTORTION: 0.5%
S / N BELOW RATED OUTPUT: 117dB
DYNAMIC HEADROOM: 1.2dB
DAMPING FACTOR:> 15 Wideband
RATED POWER BAND: 20Hz to 20kHz
FREQUENCY RESPONSE: +0, -0.5dB from 20Hz to 20,000Hz; +0, -3.0dB from 10Hz to 100,000Hz
CIRCUIT CONFIGURATION: Quad Balanced, Unity Coupled
CIRCUIT DESIGN: Vacuum Tube
MONO BRIDGE: No
MONO PARALLEL: No
AUTOFORMER: Transformer
METERS: Yes
METER LIGHT SWITCH: Yes
BALANCED INPUT: Yes
FRONT PANEL: 1/2 "Glass with handles
ILLUMINATION: LED Fiber Optic
CHASSIS STYLE: Open Stainless Steel
GOLD PLATED BINDING POSTS: Yes, 200 amp, 3-way
DIMENSIONS (W X H X D): 17-3 / 4 "(45.09cm) x 12-5 / 16" (31.27cm) (including feet) x 23 "(58.42cm) (including front panel and cables)
WEIGHT: 116 lbs (52.6 kg)
Der MC2301 bietet die realistischste und dynamischste Leistung, die jemals von einem anderen McIntosh-Produkt gehört wurde. Der MC2301 mit einer Leistung von 300 Watt liefert eine Leistung, die hoch genug ist, um selbst den anspruchsvollsten Lautsprecher anzutreiben.
Dank des AutoFormer kann er für volle 300 Watt 2, 4 oder 8 Ohm Lautsprecher verwendet werden.
Der MC2301 ist der erste McIntosh-Vakuumröhrenverstärker, der ein Quad-Balanced-Design verwendet. Dieses Design unterdrückt praktisch alle Störungen und Verzerrungen im Audiosignal. Der Sicherungskurzschluss schützt den Sentry Monitor-Strom für einen sicheren Betrieb und wird dann automatisch zurückgesetzt, wenn sich die Betriebsbedingungen wieder normalisieren. Eingänge für symmetrische und unsymmetrische Kabel können verwendet werden, um den Rest des Audiosystems flexibel anzuschließen.
TECHNISCHE DATEN
STROMAUSGANG PRO KANAL: 300 W bei 2, 4 oder 8 Ohm
ANZAHL DER KANÄLE: 1
GESAMT-HARMONISCHE VERZERRUNG: 0,5%
S / N UNTEN BEWERTETER AUSGANG: 117 dB
DYNAMISCHER HEADROOM: 1.2dB
DÄMPFUNGSFAKTOR:> 15 Breitband
Nennstromstärke: 20 Hz bis 20 kHz
FREQUENZANTWORT: +0, -0,5 dB von 20 Hz bis 20.000 Hz; +0, -3,0 dB von 10 Hz bis 100.000 Hz
SCHALTKONFIGURATION: Quad-Balanced, Unity Coupled
CIRCUIT DESIGN: Vakuumröhre
MONO BRIDGE: Nein
MONO PARALLEL: Nein
AUTOFORMER: Transformator
METER: Ja
METER LIGHT SWITCH: Ja
BALANCED INPUT: Ja
VORDERE VERKLEIDUNG: 1/2 "Glas mit Griffen
BELEUCHTUNG: LED-Glasfaser
FAHRGESTELLSTIL: Offener Edelstahl
VERGOLDETE BINDUNGSPOSTEN: Ja, 200 Ampere, 3-Wege
ABMESSUNGEN (B x H x T): 45,09 cm (17-3 / 4 ") x 31,27 cm (einschließlich Füße) x 58,42 cm (einschließlich Frontplatte und Kabel)
GEWICHT: 52,6 kg
MC2301 diğer McIntosh ürünlerine göre duyulan en olağanüstü gerçekçi ve dinamik bir performans sunmaktadır.MC2301 300 watt bir çıkış ile, hatta en zorlu hoparlörü sürmek için yeterince yüksek güç sağlar.
AutoFormer sayesinde, tam 300 watt 2, 4 veya 8 ohm hoparlörler için kullanılabilir.
MC2301 Quad Balanced tasarım kullanan ilk McIntosh vakum tüp amplifikatörüdür. Bu tasarım neredeyse ses sinyalinde bütün gürültü ve distorsiyonu iptal eder. Sigorta, kısa devre koruması Sentry Monitor akımını güvenli çalışması için korur ve sonra çalışma koşulları normale döndüğünde otomatik olarak sıfırlanır. Dengeli ve dengesiz kablolar için girişler ses sisteminin geri kalanını bağlayan esneklik sağlamak için kullanılabilir.
TEKNİK ÖZELLİKLER
POWER OUTPUT PER CHANNEL: 300W @ 2, 4 or 8 Ohms
NUMBER OF CHANNELS: 1
TOTAL HARMONIC DISTORTION: 0.5%
S/N BELOW RATED OUTPUT: 117dB
DYNAMIC HEADROOM: 1.2dB
DAMPING FACTOR: >15 Wideband
RATED POWER BAND: 20Hz to 20kHz
FREQUENCY RESPONSE: +0, -0.5dB from 20Hz to 20,000Hz; +0, -3.0dB from 10Hz to 100,000Hz
CIRCUIT CONFIGURATION: Quad Balanced, Unity Coupled
CIRCUIT DESIGN: Vacuum Tube
MONO BRIDGE: No
MONO PARALLEL: No
AUTOFORMER: Transformer
METERS: Yes
METER LIGHT SWITCH: Yes
BALANCED INPUT: Yes
FRONT PANEL: 1/2" Glass with handles
ILLUMINATION: LED Fiber Optic
CHASSIS STYLE: Open Stainless Steel
GOLD PLATED BINDING POSTS: Yes, 200 amp, 3-way
DIMENSIONS (W X H X D): 17-3/4" (45.09cm) x 12-5/16" (31.27cm) (including feet) x 23" (58.42cm) (including front panel and cables)
WEIGHT: 116 lbs (52.6 kg)
