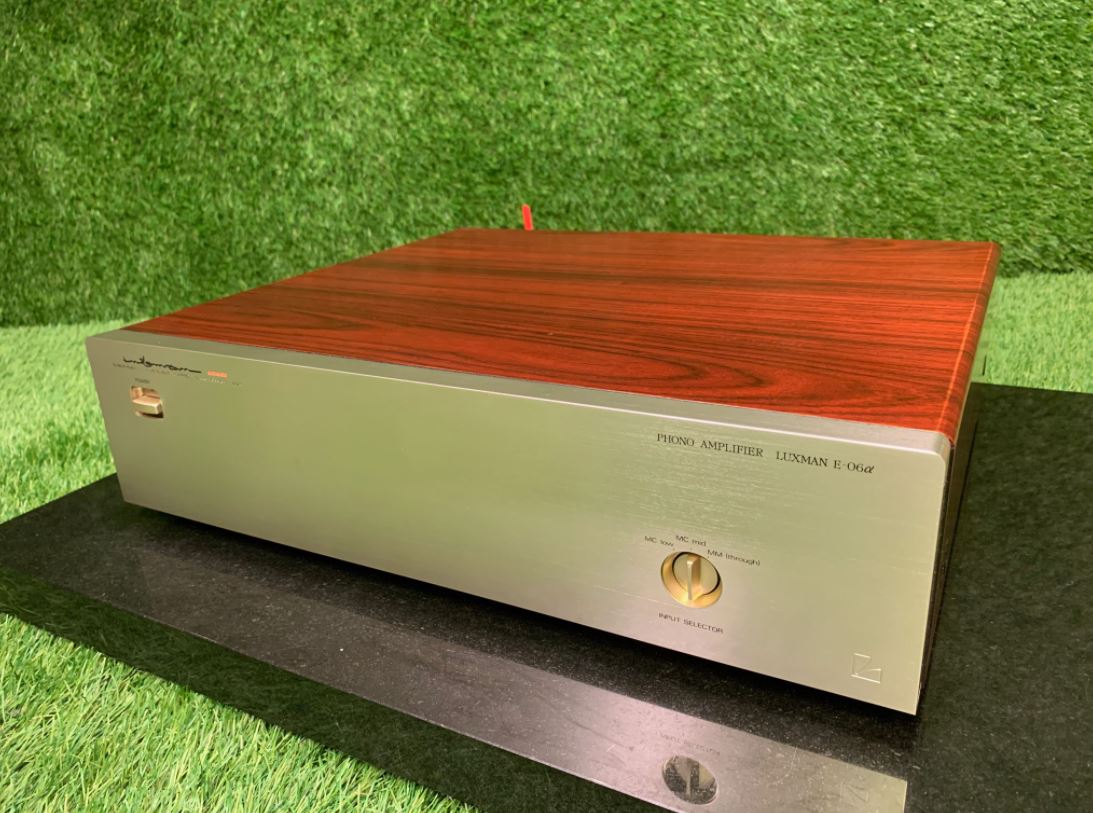

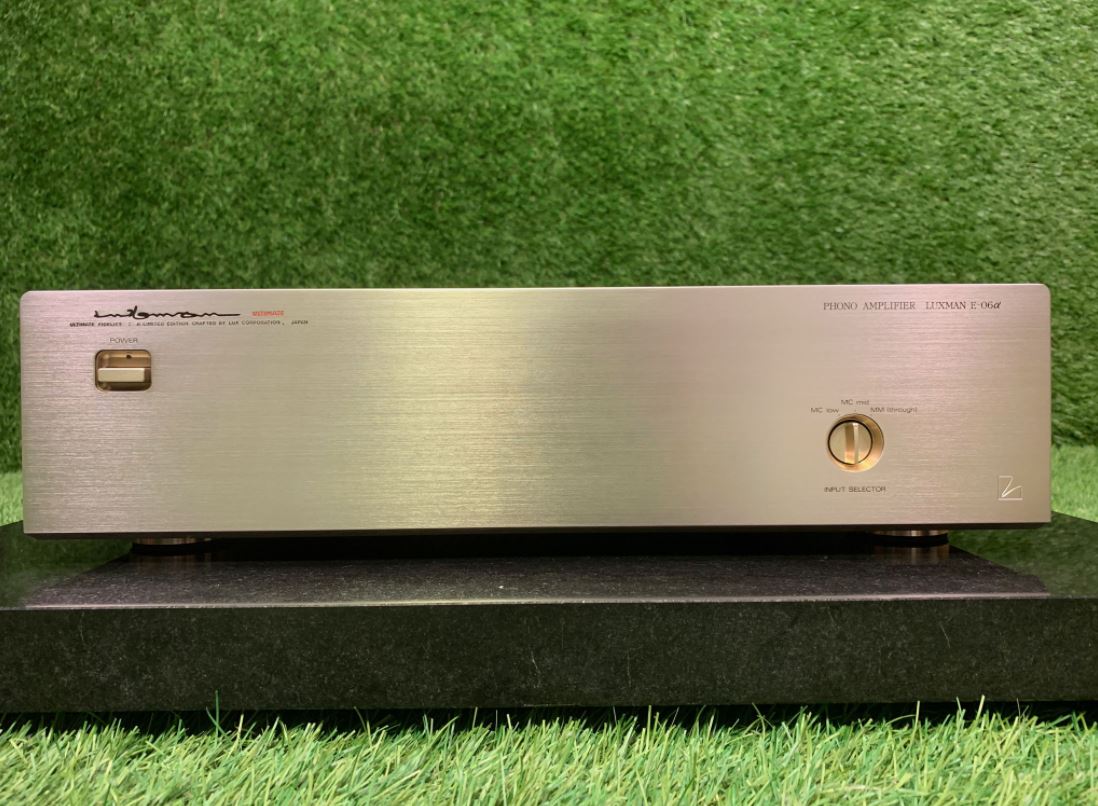

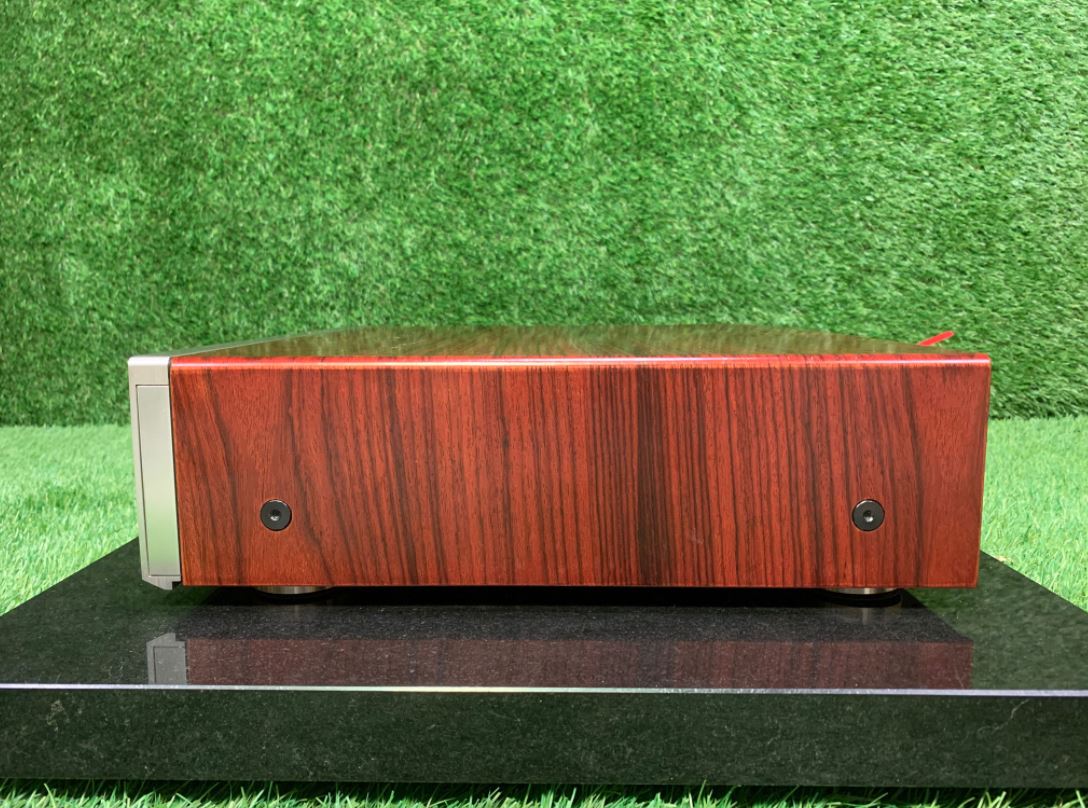

Luxman E-06α Phono
Luxman E-06α Phono
Posted On
18.08.2021Last Update On
06.10.2021
Description
Original Description is in
English, other language texts are translations and can contain errors.
EnglishDeutschTurkish
One of the finest phono preamps Luxman has ever built. The Luxman E-06 Alpha was only available for the Asian market, so it is only available as a 100V device! A really rare device with extraordinary sound properties and "that certain something" in the sound.
Type: step-up transformer and CR phono equalizer
Frequency response: 20Hz ... 20Khz within 0.2dB
Inputs: 70µV / 35 Ohm (for 2 ... 10 Ohm load, 1Khz, MC low)
200µV / 300 Ohm (for 10 ... 100 Ohm load, 1Khz, MC mid)
2.5mV / 47kOhm (1Khz, MM)
Gain: 73dB (MC low)
64dB (MC mid)
42dB (MM, through)
Output: 10kOhm 32-steps fixed-resistor array (one per channel)
Output level: 300mV / 20 Ohm (1Khz, fixed & variable)
10V (maximum, 1Khz)
THD: <0.005% (MM, 1Khz)
<0.007% (MC, 1Khz)
S / N ratio: 76dB (MC low, IHF-A)
78dB (MC mid, IHF-A)
80dB (MM, IHF-A)
Channel separation: 90dB (10Khz)
PC: 40W
Dimensions: 46 x 12 x 40.8cm
Weight: 10kg.
