AMR CD77 Valve CD Player/DAC with Case AMR CD77 Valve CD Player/DAC with Case Listed On 22.10.2021
Last Update On 22.10.2021 AMR CD77 Valve CD Player/DAC with Case
AMR CD77 Valve CD Player/DAC with Case AMR CD77 Valve CD Player/DAC with Case AMR CD77 Valve CD Player/DAC with Case AMR CD77 Valve CD Player/DAC with Case AMR CD77 Valve CD Player/DAC with Case AMR CD77 Valve CD Player/DAC with Case AMR CD77 Valve CD Player/DAC with Case AMR CD77 Valve CD Player/DAC with Case
Description Original Description is in English, other language texts are translations and can contain errors. EnglishDeutschTurkish

UPC:

AMR AM77 Integrated Amplifier

Weight:

50.00 KGS

Minimum Purchase:

1 unit

Maximum Purchase:

1 unit

Shipping:

Calculated at Checkout

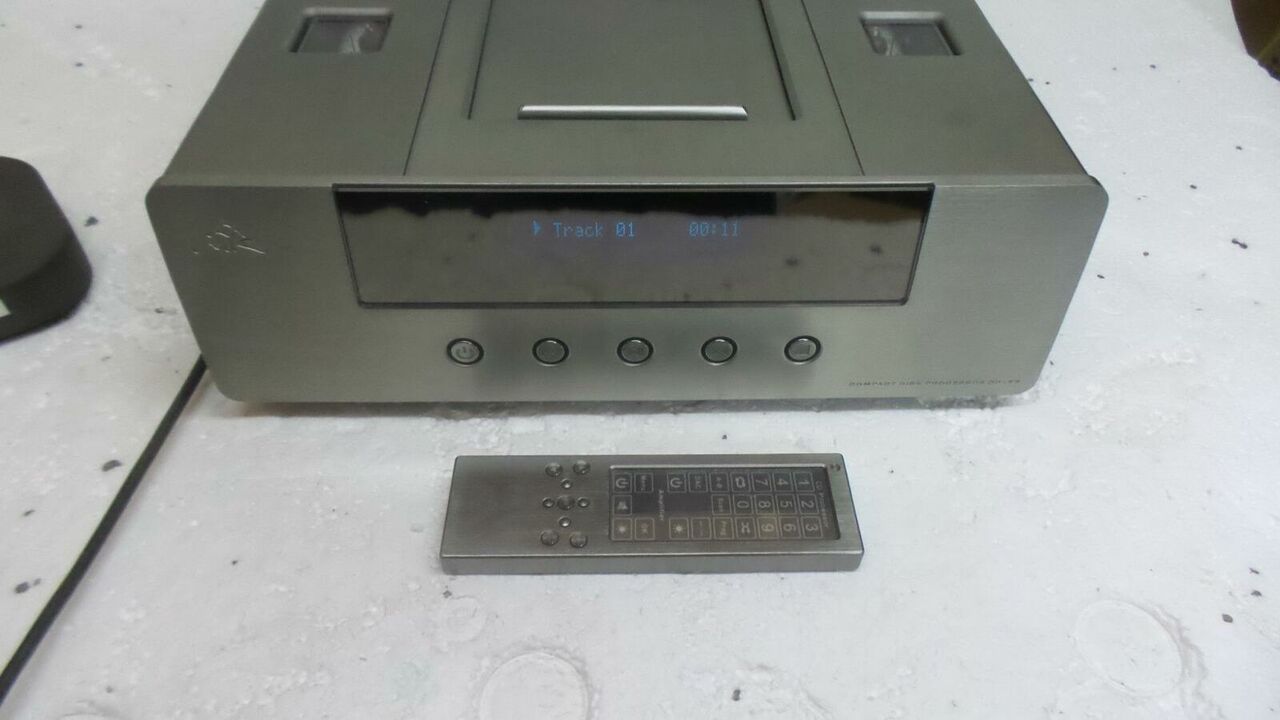

Very good with remote and flight case.


The CD-77 has its own in-built DAC containing the ‘King of the Multibit’ Phillips TDA1541A chipset, which forms the very heart of the 77’s unique digital engine, and combined with dual-mode analogue stages that include:

Audiophile grade chokes

Co-Core Transformers

Specifications

Operation modes Direct Master I; no digital or analogue filter

Direct Master II; no digital filter, anti-sin(x)/(x) analogue filter

Oversampling 2X

Oversampling 4X

Upsampling 96KHz

Upsampling 192KHz

Compact Disk Drive Custom, Toploading

Digital Audio Inputs 1 x USB interface, 1 X S/P-DIF Interface (optional)

Analog Outputs 1 x RCA; 1 x XLR per channel

Digital Outputs 1 X S/P-DIF Interface (optional)

Output voltage ( Digital Full Scale) >2V

Output Impedance < 100ohm

Frequency Response 20Hz to 20 kHz +0.0, -0.5dB

Signal-to-noise ratio ‘A’ Weighted > 100 dB

Total Harmonic Dist. + Noise ( THD +N ) <0.3%

Dynamic range >90 dB

Channel separation >100 dB

Thermionic Electron Valves ECC81/12AT7 (NOS) amplification stage

5687/6900 (NOS) output buffer stage

EZ80/6CA4 (NOS) rectifier stage

Rated voltage Mains voltage USA/Canada 120 V~, 60 Hz

Mains voltage Europe/U.K./Australia 230 V~, 50 Hz

Mains voltage Japan 100 V~, 50 – 60 Hz

Mains voltage General export model 100/120/230 V~, 50 – 60 Hz

Dimensions 17.9in W by 6.2in H by 18.3in D

46cm W by 16cm H by 47cm D

Weight CD Processor 62lbs / 28kg

Shipped 108lbs / 49kg
