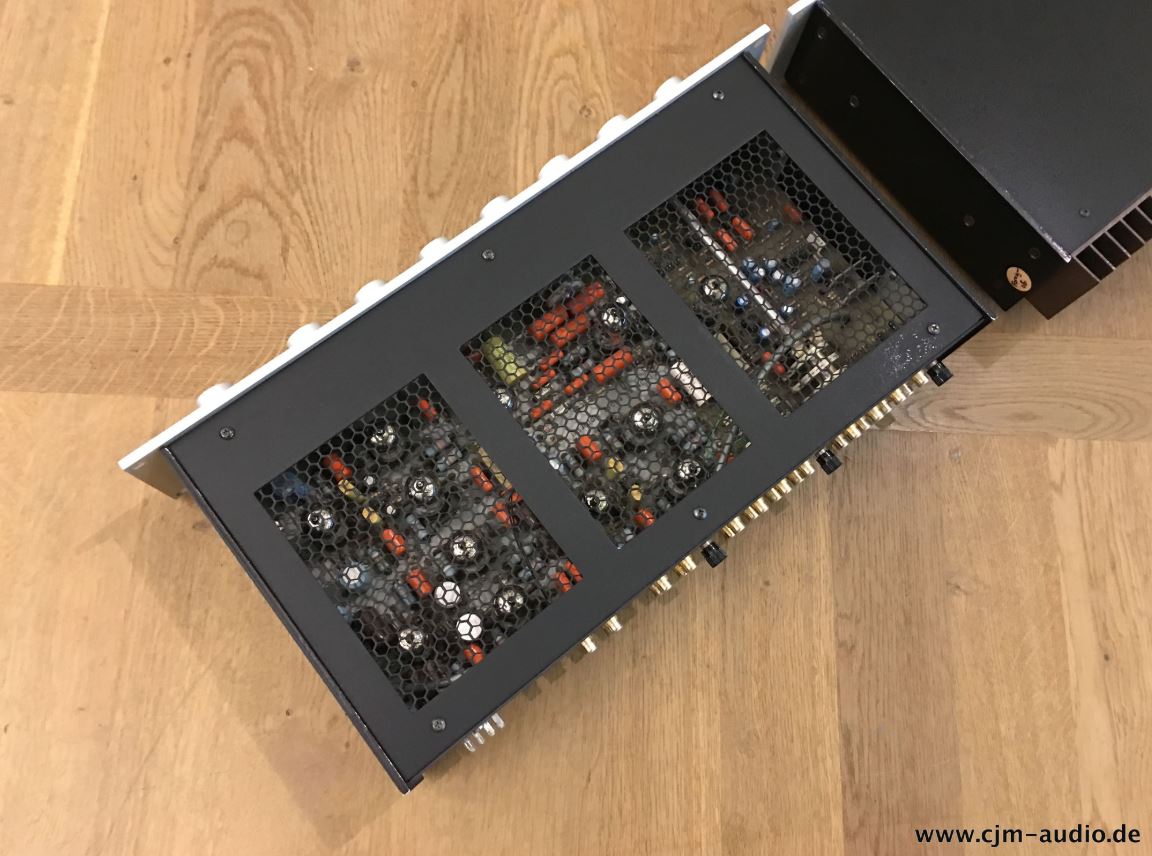

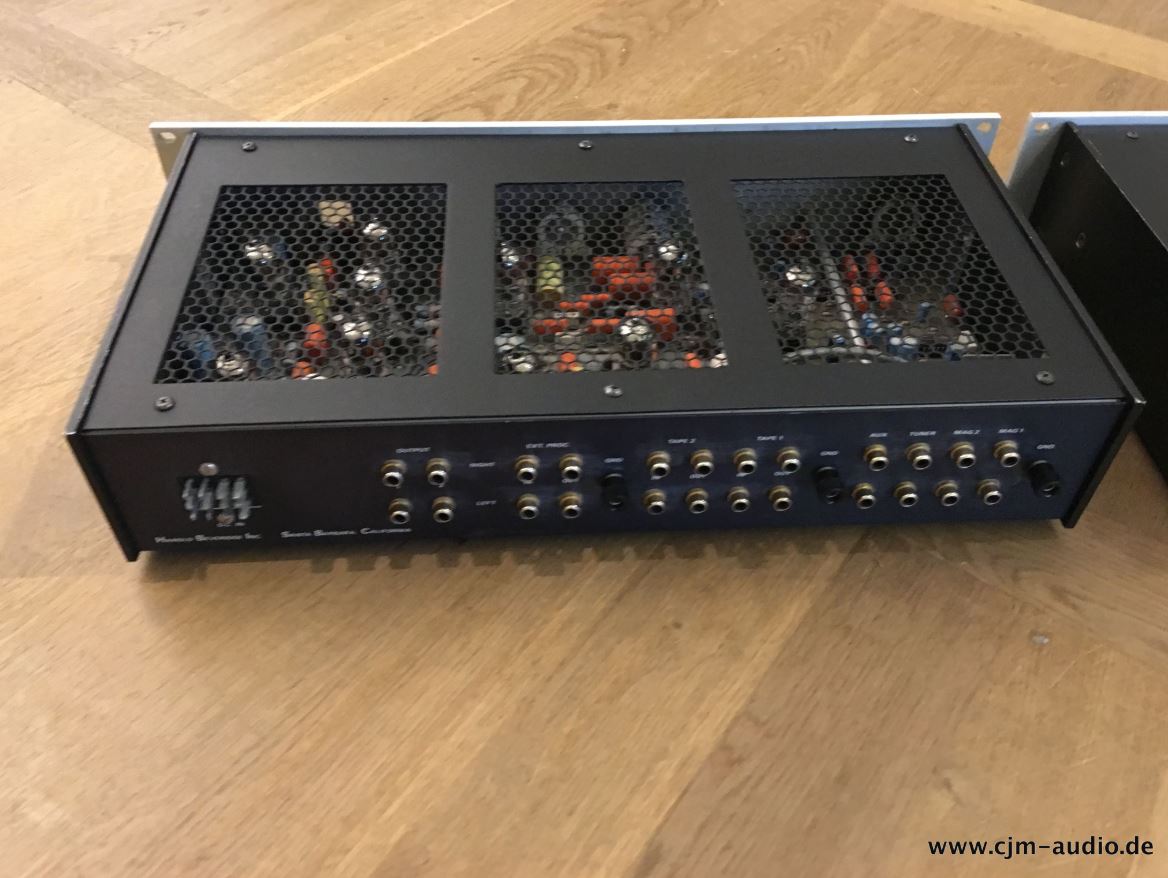

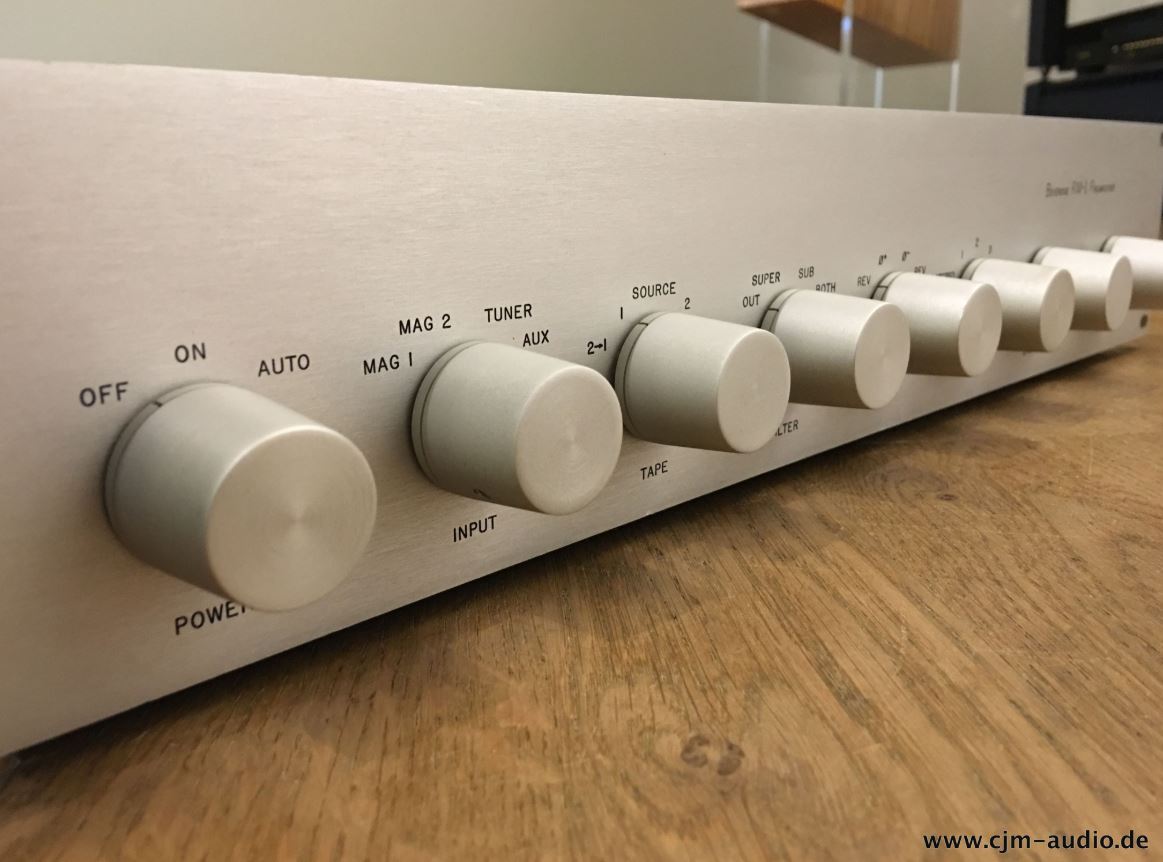

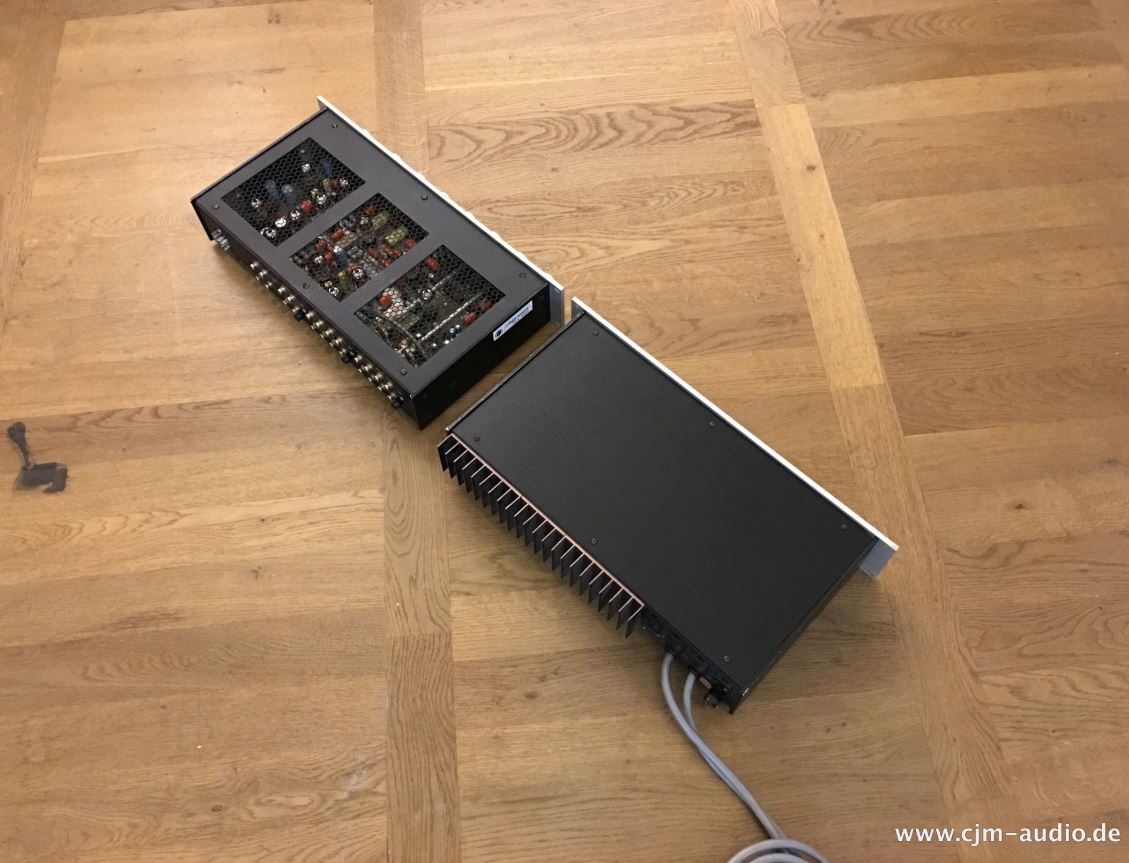

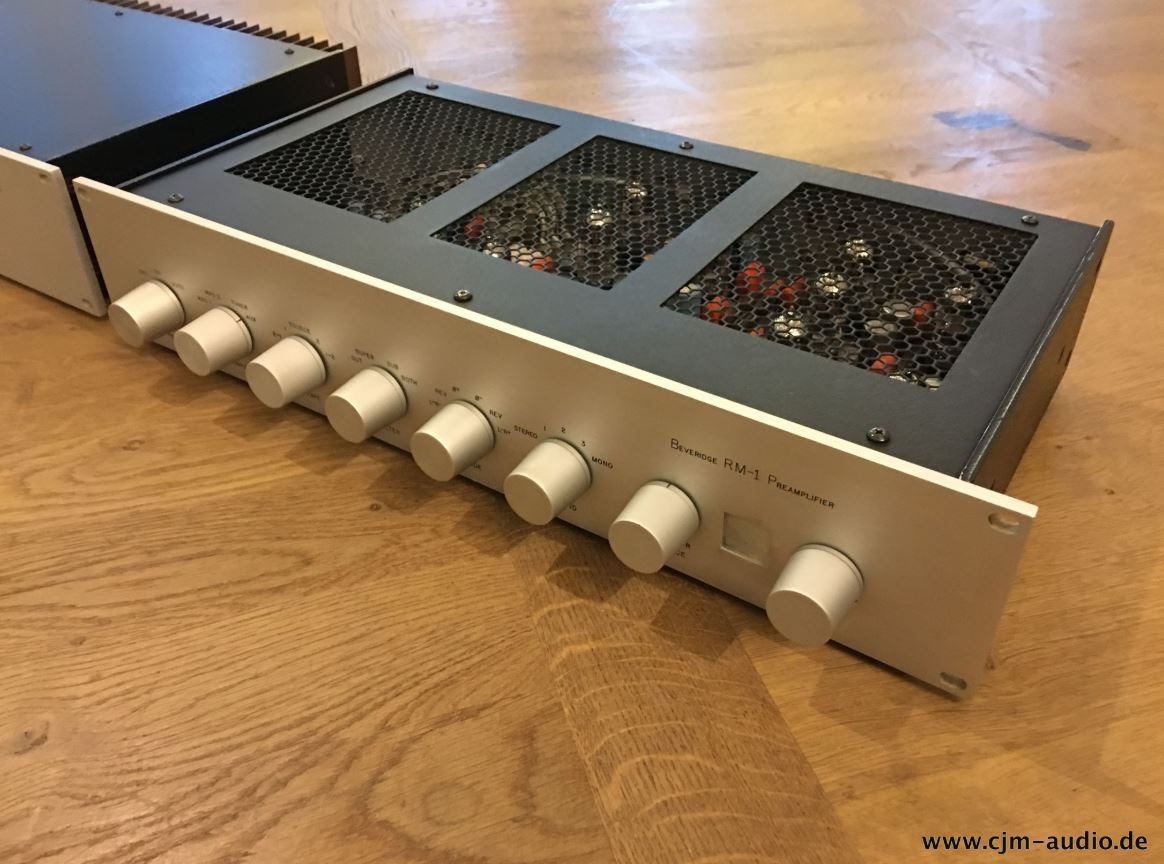

Toll preserved tubes preamplifier by Roger Modjeski from 1978 / USA.

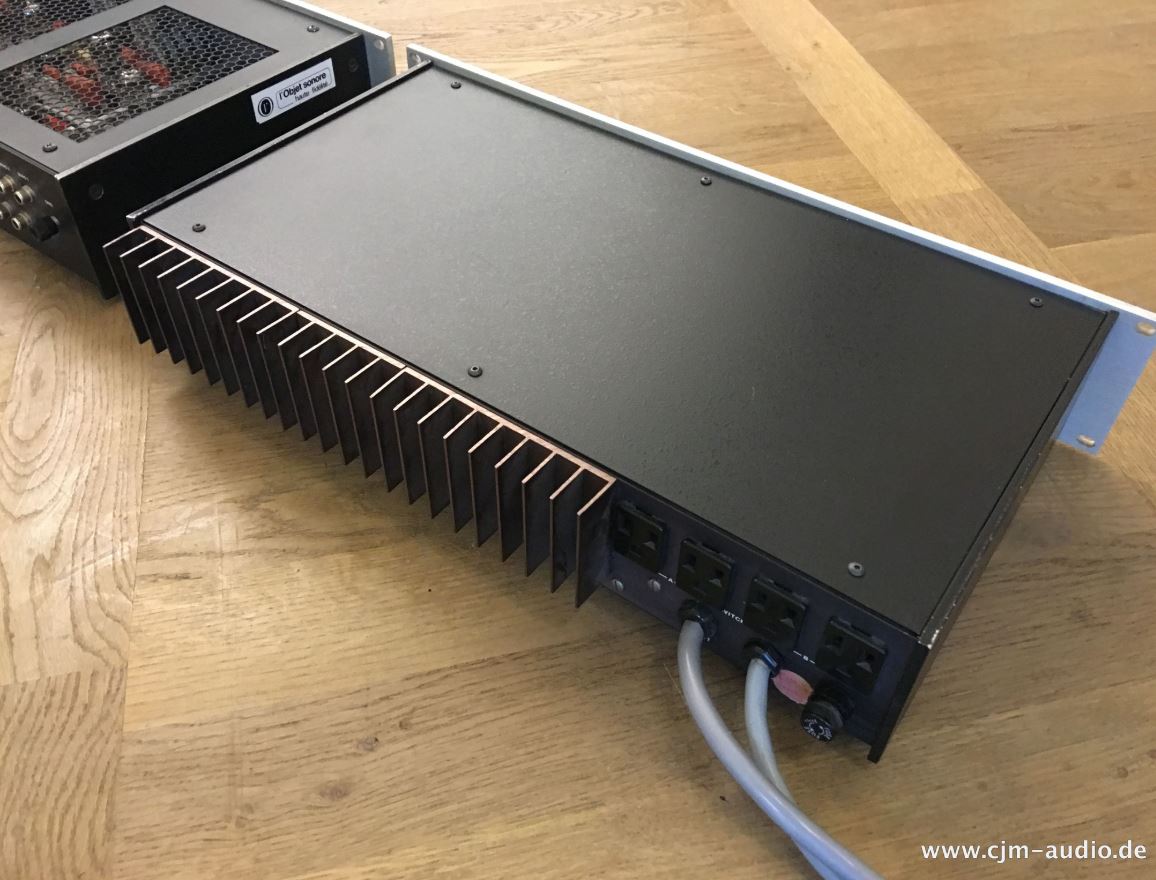

power supply as well as preamplifiers were completely overtaken by a special list for a lot of money and play again like on the first day! A real collector's item with outstanding sound characteristics and incredible musicality.

Technical Data:

Gain Phono: 40dB-6dB

Gain Line: 20dB

Phone maximum permissible input: 1000mV (gain 34dB), 500mV (gain 40dB), 250mV (gain 46dB)

Noise: 0.5 microvolt (a 10mV input, S/N86dB) input of conversion

Frequency Response Phono: 1Hz-100kHz-0.05dB, 0.15Hz-600kHz three dB

                               Line: 1Hz-100kHz-0.05dB, 0.015Hz-600kHz three dB

THD and IMD 0.02% or less (output 10 V:00)

Slew Rate: 100v/microsec.

Blend Control: Stereo/1/2/3/Mono

Dimensions: 19"W x 11"D x 7.5"H. Weight: 37 lbs.

Form Control amplifier

Gain Phono: 40dB-6dB

Line:20dB

Phone maximum permissible input 1000mV (gain 34dB)

500mV (gain 40dB)

250mV (gain 46dB)

Noise 0.5 microvolt (a 10mV input, S/N86dB) of input conversion

Frequency response Phono: 1Hz-100kHz-0.05dB

0.15Hz - -600kHz three dB

Line: 1Hz-100kHz-0.05dB

0.015Hz - -600kHz three dB

THD and IMD 0.02% or less (output 10 V:00)

Slew rate 100v/microsec.

Blend control stereo/1/2/3/mono

Power source AC100V, 50Hz/60Hz

Power consumption 130W

Dimensions RM-1: Width 483x height 89x depth of 230mm

RM-2: Width 483x height 89x depth of 230mm

Weight RM-1: About 6kg

RM-2: About 10kg

Toll erhaltener Röhren Vorverstärker von Roger Modjeski aus 1978 / USA.

Netzteil wie auch Vorverstärker wurden komplett von einem Speziallisten für viel Geld überholt und spielen wieder wie am ersten Tag! Ein echtes Sammlerstück mit herausragenden Klangeigenschaften und unglaublicher Musikalität.

Technische Daten:

Gain Phono: 40dB±6dB

Gain Line: 20dB

Phone maximum permissible input: 1000mV (gain 34dB), 500mV (gain 40dB), 250mV (gain 46dB)

Noise: 0.5 microvolt (a 10mV input, S/N86dB) of input conversion

Frequency Response Phono: 1Hz-100kHz±0.05dB, 0.15Hz-600kHz three dB

                             Line: 1Hz-100kHz±0.05dB, 0.015Hz-600kHz three dB

THD and IMD: 0.02% or less (output 10 V:00)

Slew Rate: 100v/microsec.

Blend Control: Stereo/1/2/3/Mono

Dimensions: 19"W x 11"D x 7.5"H. Weight: 37 lbs.

Form Control amplifier

Gain Phono: 40dB±6dB

Line:20dB

Phone maximum permissible input 1000mV (gain 34dB)

500mV (gain 40dB)

250mV (gain 46dB)

Noise 0.5 microvolt (a 10mV input, S/N86dB) of input conversion

Frequency response Phono: 1Hz-100kHz±0.05dB

0.15Hz - -600kHz three dB

Line: 1Hz-100kHz±0.05dB

0.015Hz - -600kHz three dB

THD and IMD 0.02% or less (output 10 V:00)

Slew rate 100v/microsec.

Blend control stereo/1/2/3/mono

Power source AC100V, 50Hz/60Hz

Power consumption 130W

Dimensions RM-1: Width 483x height 89x depth of 230mm

RM-2: Width 483x height 89x depth of 230mm

Weight RM-1: About 6kg

RM-2: About 10kg

Toll tarafından Roger Modjeski tarafından korunmuş tüpler preamplifikatör 1978/USA.

güç kaynağı yanı sıra ön amplifikatörler tamamen para için özel bir liste tarafından çekilmiş ve tekrar ilk gün gibi oynamak oldu! Olağanüstü ses özellikleri ve inanılmaz müzikalite ile gerçek bir koleksiyoncu öğesi.

Teknik veriler:

Gain Phono: 40dB-6dB

kazanç hattı: 20dB

Telefon maksimum izin verilen giriş: 1000mV (kazanç 34dB), 500mV (kazanç 40dB), 250mV (kazanç 46dB)

noise: 0,5 microvolt (a 10mV giriş, S/N86dB) dönüşüm girişi

Frekans tepkisi Phono: 1Hz-100kHz-0.05 dB, 0.15 Hz-600kHz üç dB

                                satır: 1Hz-100kHz-0.05 dB, 0.015 Hz-600kHz üç dB

THD ve ıMD 0,02% veya daha az (çıkış 10 V:00)

çıkışw oranı: 100V/microsec.

karışım kontrolü: stereo/1/2/3/mono

Boyutlar: 19 "W x 11" D x 7.5 "H. Ağırlık: 37 lbs.

form kontrol amplifikatörü

Gain Phono: 40dB-6dB

hattı: 20dB

Telefon maksimum izin verilen giriş 1000mV (kazanç 34dB)

500mV (kazanç 40dB)

250mV (kazanç 46dB)

noise 0,5 Mikrovolt (10mV giriş, S/N86dB) giriş dönüşümü

Frekans tepkisi Phono: 1Hz-100kHz-0.05 dB

0.15 Hz--600kHz üç dB

hattı: 1Hz-100kHz-0.05 dB

0.015 Hz--600kHz üç dB

THD ve ıMD 0,02% veya daha az (çıkış 10 V:00)

yatk oranı 100V/microsec.

karışım kontrolü stereo/1/2/3/mono

güç kaynağı AC100V, 50Hz/60Hz

Güç tüketimi 130W

Boyutlar RM-1: genişliği 483x yüksekliği 89X 230MM derinliği

RM-2:230mm genişlik 483x yüksekliği 89X derinliği

Ağırlık RM-1: yaklaşık 6Kg

RM-2: yaklaşık 10kg
