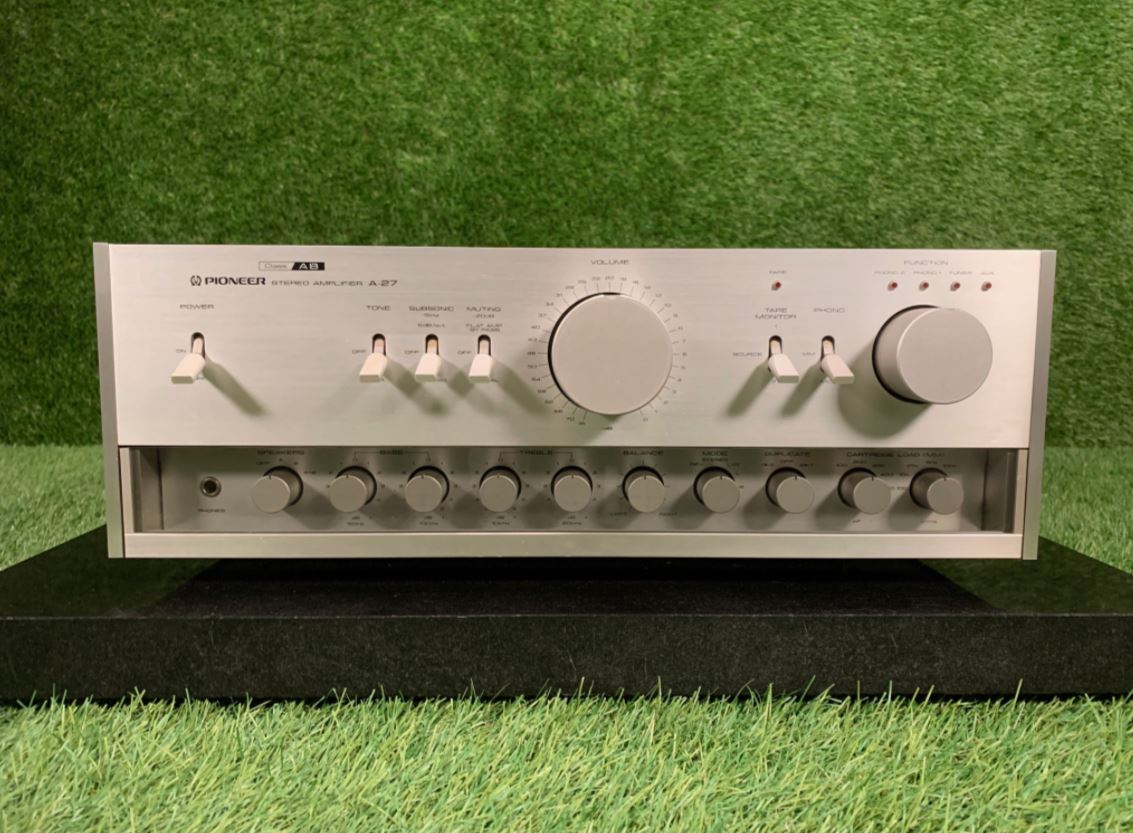

The Pioneer A27 is one of the highest quality integrated amplifiers Pioneer has brought to the market!
Up to 30W, the A 27 works in pure Class A mode.
The Pioneer A-27 is exceptionally well preserved, almost in collector's condition.
The device was meticulously overhauled 5 months ago for €750 and sounds like it did when it was first launched 40 years ago.
Additional information:
General
Manufacturer: Pioneer
Model: A-27
Model series: Series 20
Type: Class AB integrated amplifier
Years of construction: 1978 - 1981
Manufactured in: Japan
Color: metal silver / black
Power Consumption: 980W
Dimensions: 454 x 167 x 468 mm (WxHxD)
Weight: 24.7kg
New price approx.: 3,200 DM

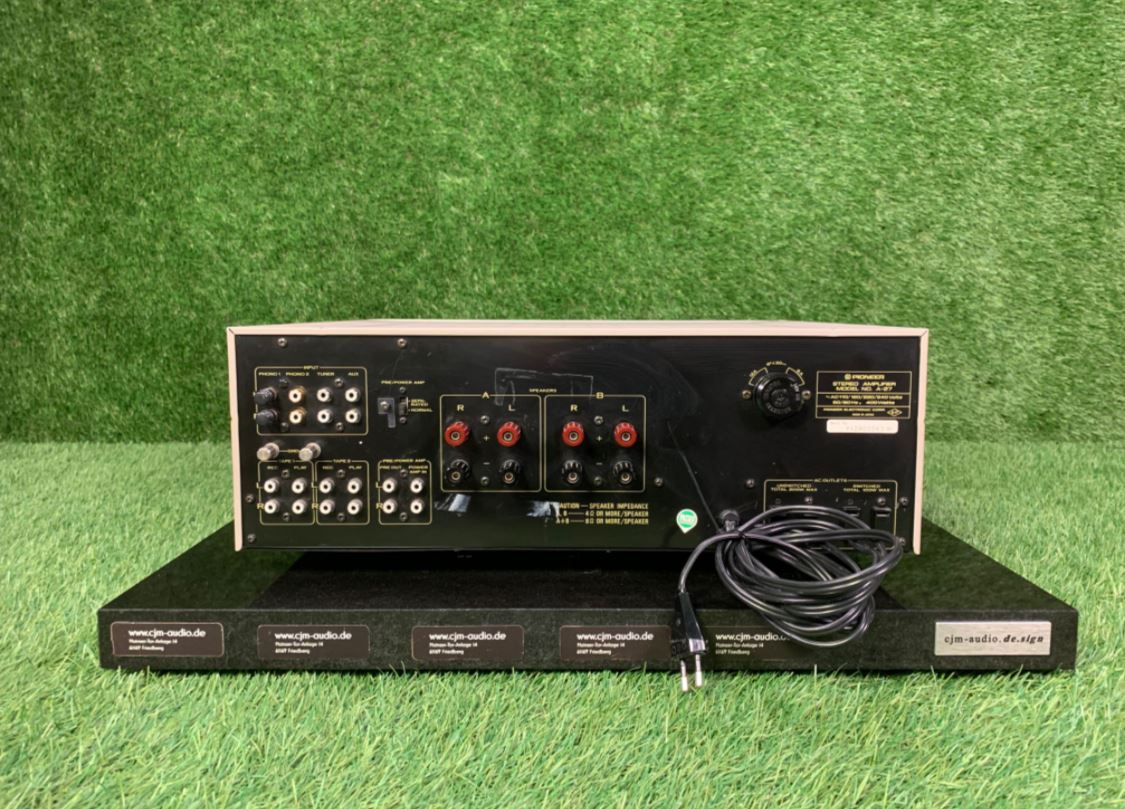

connections
Number of inputs:
Phono 1MM: 2.5mV/100ohm, 10kohm, 25kohm, 50kohm, 100kohm (selectable 100pF, 200pF, 300pF, 400pF, 500pF), max 300mV
Phono 2 MC: 0.250mV/100 ohms, max. 30mV
Tuner, AUX: 150mV / 50kOhm
Tape Play 1, 2: 150mV / 50k ohms
Main In:
Number of exits:
Tape Rec 1, 2: 150mV / 1k ohms
Pre Out:
THD (5Hz - 30kHz) 0.005% at 1V
THD (5Hz - 30kHz) 0.01% at 15V)
2 pairs of speakers
headphones
Technical specifications
Continuous power Class AB (Class A operation up to 30W)
8 ohms: 2 x 120W (5Hz - 30kHz, THD 0.01%)
4 ohms: 2 x 120W (5Hz - 20kHz, THD 0.02%)
dynamic performance
8 ohms:
4 ohms:
Total Harmonic Distortion: 0.01%
THD : < 0.01% (10Hz...30kHz, 8 Ohm, rated power)
< 0.01% (10Hz...30kHz, 8 ohms, 60W)
< 0.007% (10Hz...30kHz, 8 ohms, 1W)
Damping factor: 70 (5Hz - 30kHz, 8ohm)
Frequency response: 5 Hz - 200 kHz, +0 -1dB (at 1W)
Power bandwidth: 5 Hz - 100 kHz (THD 0.05%)
Signal-to-Noise Ratio: 120dB
Channel Separation:
1kHz: 105dB
100kHz: 70dB
signal-to-noise ratio:
> 91dB (phono MM)
> 80dB (phono MC)
> 100dB (tuner, tape, aux)
Tone control:
Bass 50Hz: ±4dB
Bass 100Hz: ±5dB
High frequency 10kHz: ± 5dB
High frequency 20kHz: ± 4dB
Low Filter: 15Hz, 6dB/octave, 12dB/octave
Muting: 0dB, -20dB
Special equipment
Pioneer A-27 Class AB integrated amplifier: For many, the first real high-end amplifier
Pre and power amp separable
