Aesthetix Atlas Stereo Power Eclipse & Janus Pre Eclipse Set
Aesthetix Aesthetix Atlas Stereo Eclipse & Janus Eclipse
Posted On 28.06.2022
Last Update On
28.06.2022
Description
Original Description is in
English, other language texts are translations and can contain errors.
EnglishDeutschTurkish

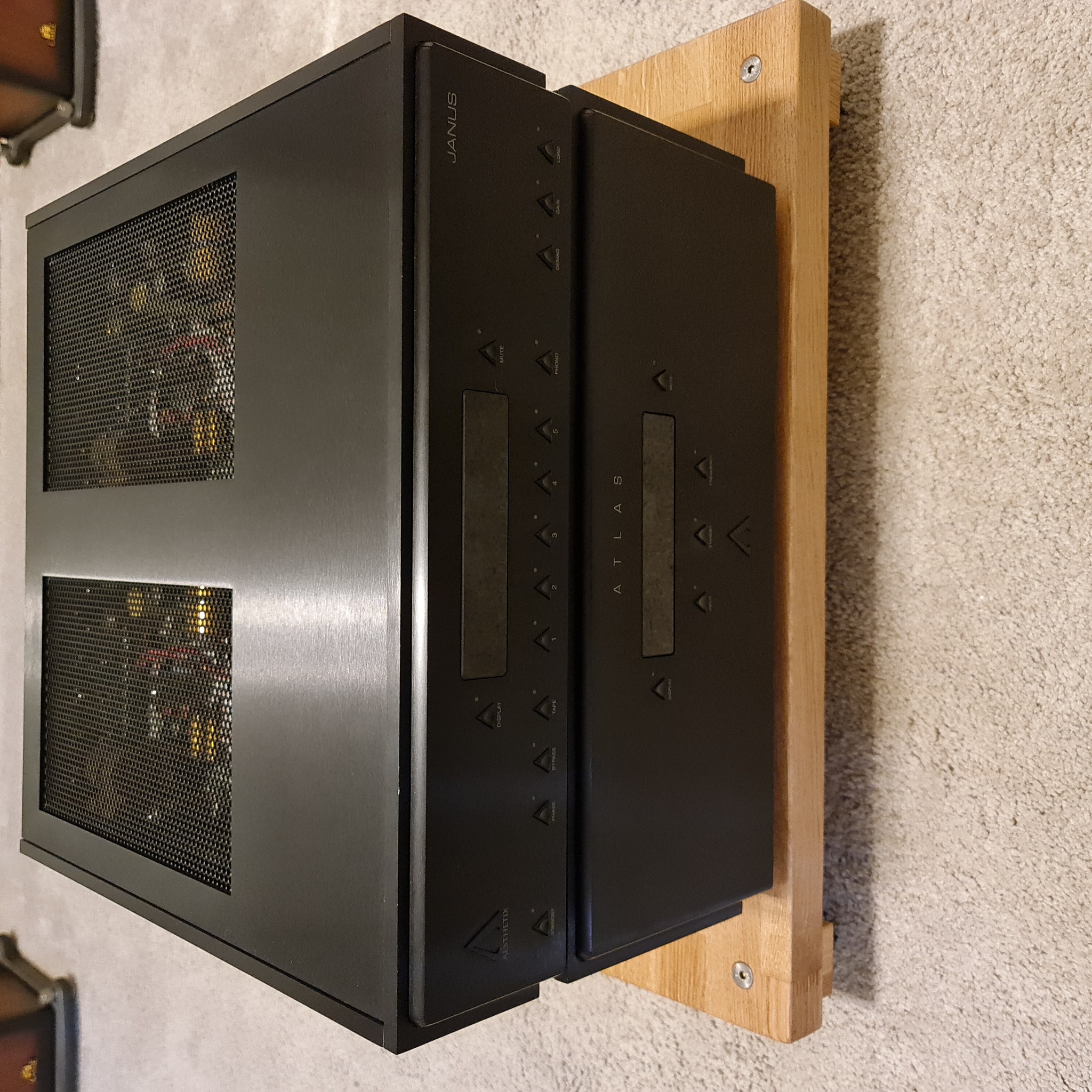

Aesthetix Atlas Stereo Eclipse & Janus Eclipse Set
From first owner, in very good condition. Few small scratches can be found.
New tubes on the Atlas and has spares tubes for Atlas.
We can measure Janus tubes.
Please check the manufacturer site for awards, full specs and decriptions.
Specs :

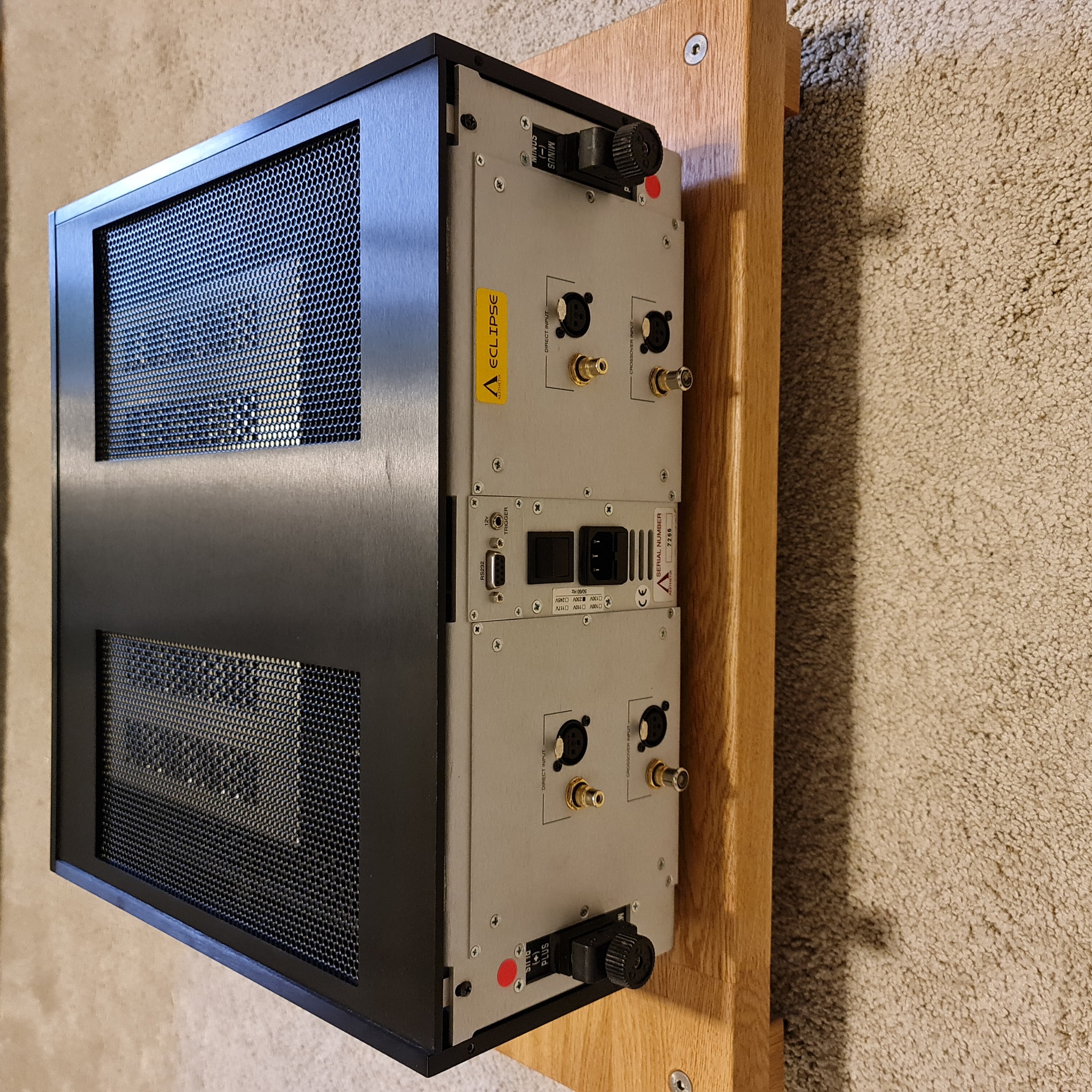

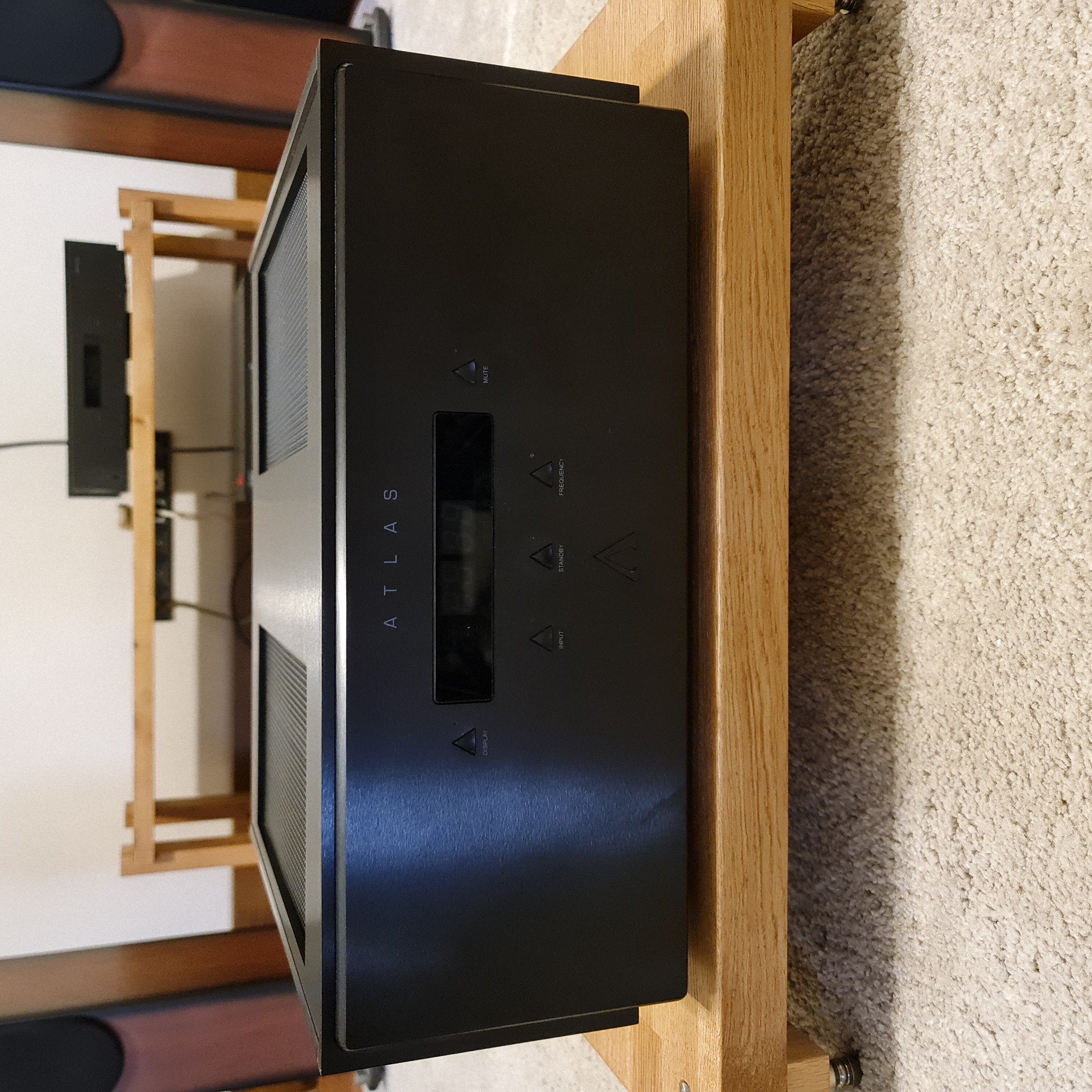

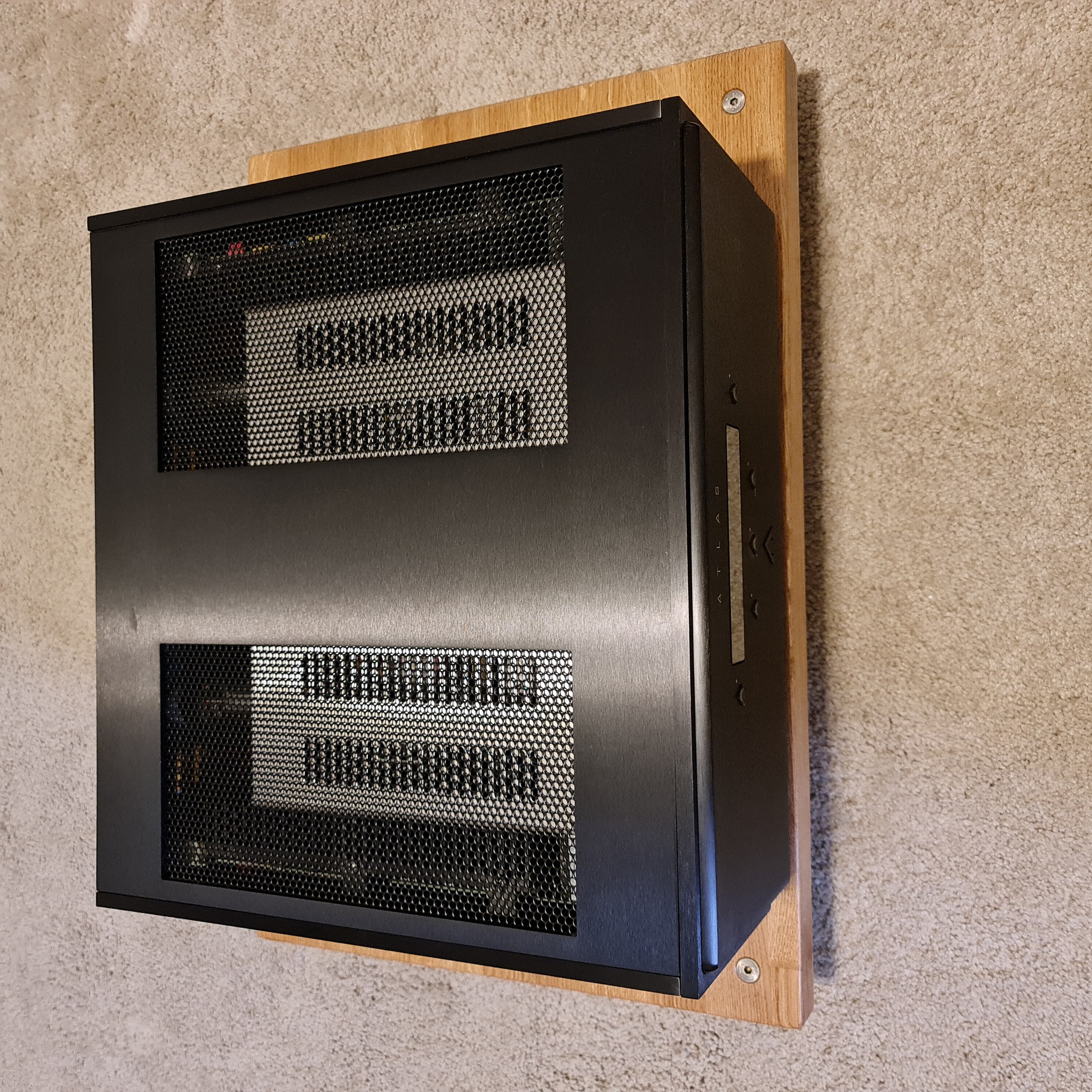

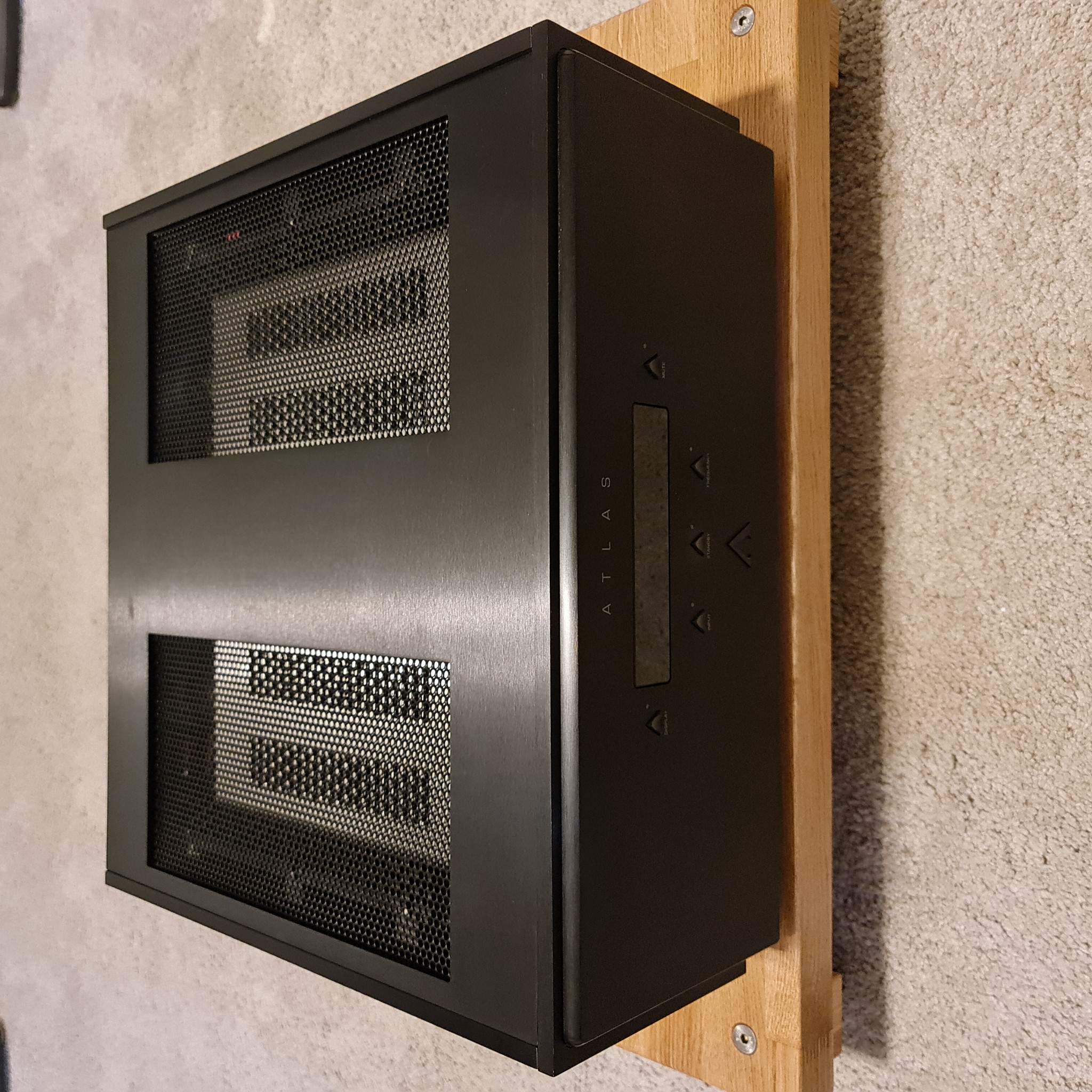

Atlas Stereo Power Eclipse
Output: 200wpc channel into 8, 400wpc into 4
Input Sensitivity: 60mV (1 watt), 2.3V (full power)
Input Impedance: 470K
Output Impedance: .25 at 1kHz
Signal to noise: 120dB
Bandwidth at full power: 4 - 150kHz
Rated THD at full power: <1%
Power consumption: 100 watts at idle
Dimensions : 21 x 46 x 48 cm
Weight: 32 Kg

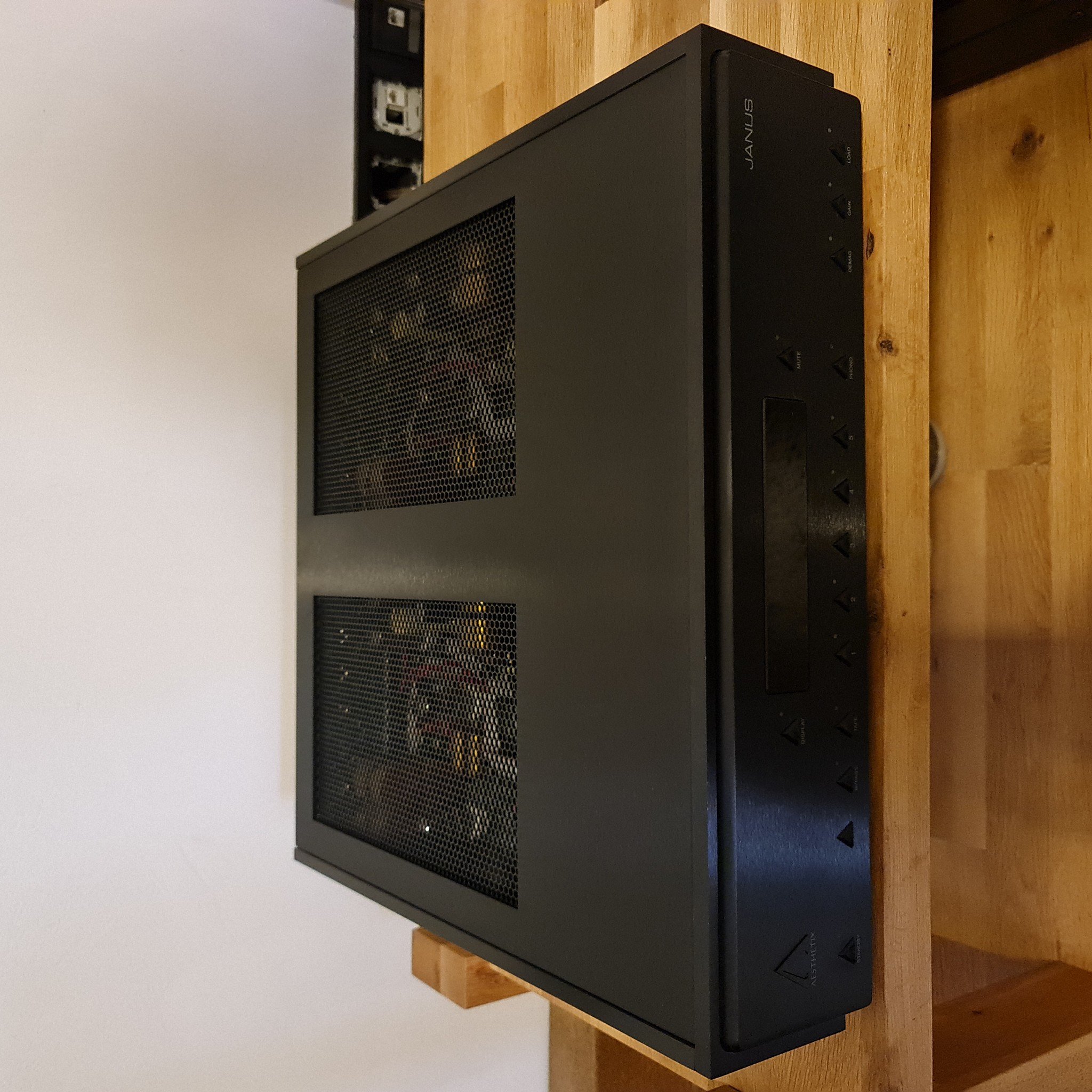

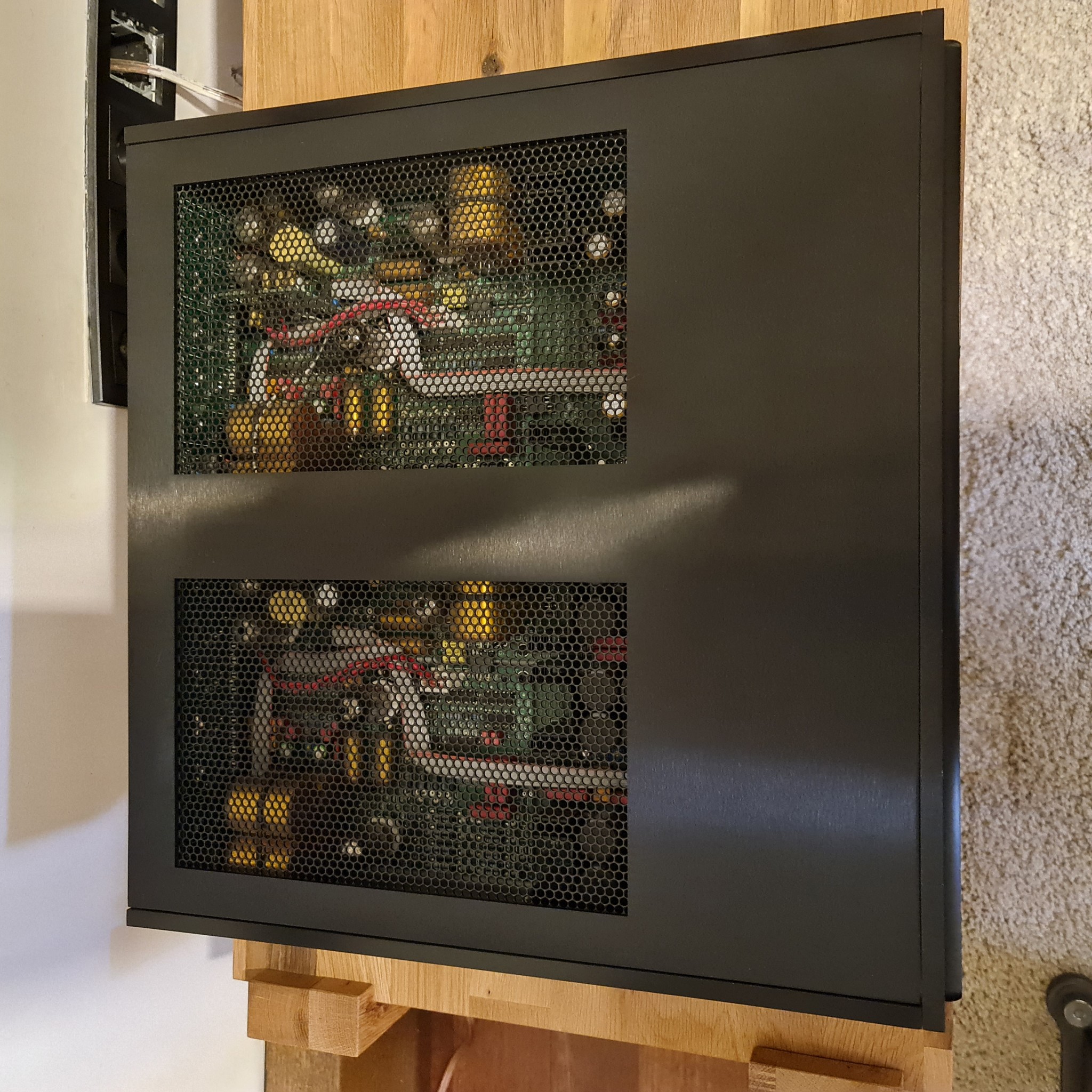

Janus Pre Amp with Phono Eclipse version
Inputs: 1 phono RCA (SE), 5 line RCA or XLR (balanced), plus 1 tape, RCA or XLR
Outputs: 2 RCA (SE) and XLR (balanced), 1 tape RCA
Phono gain settings: 8 total; 75, 68, 62, 56, 50, 44, 38 dB, and off
Phono load settings: 9 total; 47 K ohms, 10K, 5K, 2.5K, 1K, 500 ohms, 250, 125, and 75 ohms
Line level gain: 23 dB single ended (SE), in/out, and 29 dB balanced/out
Volume control: switched resistor network volume control with 88 1 dB steps
Front panel controls: main input, tape input select, volume, balance, phase, mute, display, bypass and standby
Remote controls: main input, tape input select, volume, balance, phase, mute, display, phono gain and loading, demagnetizer, bypass and standby
Frequency response: +- 0.25 dB, 20 Hz - 20 Khz
Signal to noise: measured at 70 dB minimum A-weighted (ref 1 mv input, 75 dB gain setting)
Line input impedence: 40 k ohms SE, 80 k ohms balanced
Maximum line input: 3.5 volts SE, 7.0 volts RMS balanced
Output impedence: 1K ohms SE, 600 ohms balanced
Recommended load: 10K ohms or greater (SE), 20K ohms or greater (Balanced)
Tubes, each channel: phono section: V1 & V2 (12AX7-factory graded low noise), V3 (12AX7), V4 (6922/6DJ8); line section: V1 (12AX7 or equivalent), V2 (6922/6DJ8)
Power consumption: 20 watts standby, 120 watts active
Physical dimensions: 11 x 46 x 46 cm
Weight: 18 Kg
Aesthetix Atlas Stereo Eclipse & Janus Eclipse Set
Aus Erstbesitz, in sehr gutem Zustand. Wenige kleine Kratzer sind zu finden.
Neue Röhren auf dem Atlas und hat Ersatzröhren für Atlas.
Wir können Janus-Röhren vermessen.
Bitte überprüfen Sie die Herstellerseite für Auszeichnungen, vollständige Spezifikationen und Beschreibungen.
Spezifikationen:
Atlas Stereo Power Eclipse
Ausgang: 200 WPC-Kanal in 8, 400 WPC in 4
Eingangsempfindlichkeit: 60 mV (1 Watt), 2,3 V (volle Leistung)
Eingangsimpedanz: 470K
Ausgangsimpedanz: 0,25 bei 1 kHz
Signal zu Rauschen: 120dB
Bandbreite bei voller Leistung: 4 - 150 kHz
Nennklirrfaktor bei voller Leistung: <1 %
Stromverbrauch: 100 Watt im Leerlauf
Abmessungen: 21 x 46 x 48 cm
Gewicht: 32 kg
Janus Pre Amp mit Phono Eclipse-Version
Eingänge: 1 Phono-Cinch (SE), 5 Line-Cinch oder XLR (symmetrisch), plus 1 Tape, Cinch oder XLR
Ausgänge: 2 Cinch (SE) und XLR (symmetrisch), 1 Tape-Cinch
Phono-Gain-Einstellungen: 8 insgesamt; 75, 68, 62, 56, 50, 44, 38 dB und aus
Phono-Ladeeinstellungen: 9 insgesamt; 47 K Ohm, 10 K, 5 K, 2,5 K, 1 K, 500 Ohm, 250, 125 und 75 Ohm
Line-Pegel-Verstärkung: 23 dB unsymmetrisch (SE), ein/aus und 29 dB symmetrisch/aus
Lautstärkeregler: geschalteter Widerstandsnetzwerk-Lautstärkeregler mit 88 1-dB-Schritten
Bedienelemente auf der Vorderseite: Main Input, Tape Input Select, Volume, Balance, Phase, Mute, Display, Bypass und Standby
Fernbedienungen: Main Input, Tape Input Select, Volume, Balance, Phase, Mute, Display, Phono Gain und Loading, Demagnetizer, Bypass und Standby
Frequenzgang: +- 0,25 dB, 20 Hz - 20 kHz
Signal-Rausch-Verhältnis: gemessen bei mindestens 70 dB A-gewichtet (bei 1 mV Eingang, 75 dB Verstärkungseinstellung)
Line-Eingangsimpedanz: 40 kOhm SE, 80 kOhm symmetrisch
Maximaler Line-Eingang: 3,5 Volt SE, 7,0 Volt RMS symmetrisch
Ausgangsimpedanz: 1K Ohm SE, 600 Ohm symmetrisch
Empfohlene Last: 10K Ohm oder mehr (SE), 20K Ohm oder mehr (symmetrisch)
Röhren, jeder Kanal: Phono-Sektion: V1 & V2 (12AX7-werkseitig abgestuft rauscharm), V3 (12AX7), V4 (6922/6DJ8); Linienabschnitt: V1 (12AX7 oder gleichwertig), V2 (6922/6DJ8)
Stromverbrauch: 20 Watt Standby, 120 Watt aktiv
Abmessungen: 11 x 46 x 46 cm
Gewicht: 18 kg
Aesthetix Atlas Stereo Eclipse & Janus Eclipse Seti
İlk sahibinden, çok iyi durumda. Birkaç küçük çizik bulunabilir.
Atlas'ta yeni tüpler ve Atlas için yedek tüpler var.
Janus tüplerini ölçebiliriz.
Ödüller, tüm özellikler ve açıklamalar için lütfen üretici sitesini kontrol edin.
Özellikler:
Atlas Stereo Güç Tutulması
Çıktı: 200wpc kanal 8'e, 400wpc 4'e
Giriş Hassasiyeti: 60mV (1 watt), 2.3V (tam güç)
Giriş Empedansı: 470K
Çıkış Empedansı: 1kHz'de .25
Gürültüye sinyal: 120dB
Tam güçte bant genişliği: 4 - 150kHz
Tam güçte anma THD: <%1
Güç tüketimi: Boştayken 100 watt
Boyutlar : 21x46x48 cm
Ağırlık: 32 Kg
Phono Eclipse versiyonu ile Janus Pre Amp
Girişler: 1 fono RCA (SE), 5 satır RCA veya XLR (dengeli), artı 1 bant, RCA veya XLR
Çıkışlar: 2 RCA (SE) ve XLR (dengeli), 1 bant RCA
Fono kazanç ayarları: toplam 8; 75, 68, 62, 56, 50, 44, 38 dB ve kapalı
Fono yükleme ayarları: toplam 9; 47 K ohm, 10K, 5K, 2.5K, 1K, 500 ohm, 250, 125 ve 75 ohm
Hat seviyesi kazancı: 23 dB tek uçlu (SE), giriş/çıkış ve 29 dB dengeli/çıkış
Ses kontrolü: 88 1 dB adımlarla anahtarlamalı direnç ağı ses kontrolü
Ön panel kontrolleri: ana giriş, bant girişi seçimi, ses seviyesi, denge, faz, sessiz, ekran, baypas ve bekleme
Uzaktan kumandalar: ana giriş, bant girişi seçimi, ses seviyesi, denge, faz, sessiz, ekran, fono kazancı ve yükleme, demagnetizer, baypas ve bekleme
Frekans yanıtı: +- 0.25 dB, 20 Hz - 20 Khz
Sinyalden gürültüye: minimum 70 dB'de ölçülmüştür A-ağırlıklı (ref 1 mv giriş, 75 dB kazanç ayarı)
Hat giriş empedansı: 40 k ohm SE, 80 k ohm dengeli
Maksimum hat girişi: 3,5 volt SE, 7,0 volt RMS dengeli
Çıkış empedansı: 1K ohm SE, 600 ohm dengeli
Önerilen yük: 10K ohm veya üzeri (SE), 20K ohm veya üzeri (Dengeli)
Tüpler, her kanal: fono bölümü: V1 & V2 (12AX7-fabrika dereceli düşük gürültü), V3 (12AX7), V4 (6922/6DJ8); hat bölümü: V1 (12AX7 veya eşdeğeri), V2 (6922/6DJ8)
Güç tüketimi: 20 watt bekleme, 120 watt aktif
Fiziksel boyutlar: 11 x 46 x 46 cm
Ağırlık: 18 Kg
