Tannoy Kingdom Royal Speakers Carbon Black Edition Tannoy Kingdom Royal Speakers Carbon Black Edition Listed On 04.07.2022
Last Update On 04.07.2022
Tannoy Kingdom Royal Speakers Carbon Black Edition Tannoy Kingdom Royal Speakers Carbon Black Edition Tannoy Kingdom Royal Speakers Carbon Black Edition Tannoy Kingdom Royal Speakers Carbon Black Edition Tannoy Kingdom Royal Speakers Carbon Black Edition Tannoy Kingdom Royal Speakers Carbon Black Edition
Description Original Description is in English, other language texts are translations and can contain errors. EnglishDeutschTurkish

UPC:

Tannoy Kingdom Royal Speakers

Condition:

Used

Weight:

280.00 KGS

Minimum Purchase:

1 unit

Maximum Purchase:

1 unit

Shipping:

Calculated at Checkout


Excellent with original packaging.


These weigh 265 lbs each!

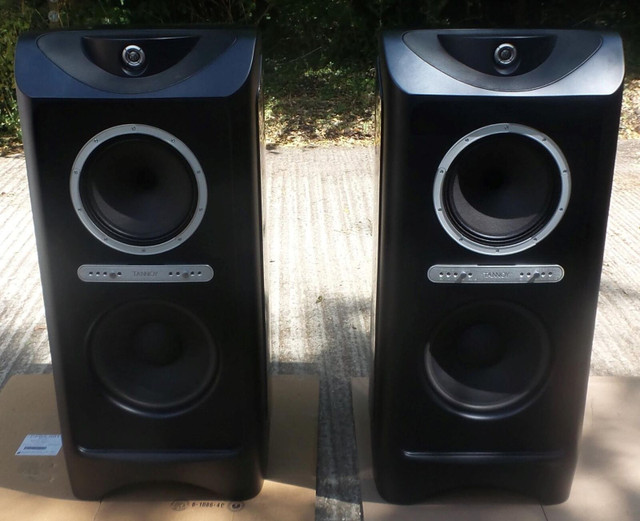

This four-way floorstanding loudspeaker for large rooms features a 12" Dual Concentric driver, providing class-leading coherence and point-source imaging.


A supplementary long-throw 15" paper cone bass driver gives exceptionally deep and dynamic bass performance. The 25 mm SuperTweeter with magnesium alloy dome and neodymium magnet system extends response to 61 kHz to accurately reproduce the leading edge of notes.


The Dual Concentric features a 75 mm aluminum-alloy diaphragm and Mylar surround compression driver to deliver exceptional clarity and articulation in the mid to high-frequency range. A very low (700 Hz) crossover point from the Dual Concentric midrange to compression driver greatly enhances vocal quality.


A highly efficient 96 dB/W sensitivity and 1,200 W peak-power handling deliver breathtaking dynamics and realism. Cryogenically treated crossovers featuring ICW ClarityCap* capacitors, low loss laminated core inductors, and thick film resistors, and the crossovers are decoupled from cabinet vibrations by a three-point suspension system to deliver a more natural and cohesive sound.


Neotech PC-OCC* internal wiring with 99.99% high purity solid silver wiring on the SuperTweeter gives excellent signal transparency.

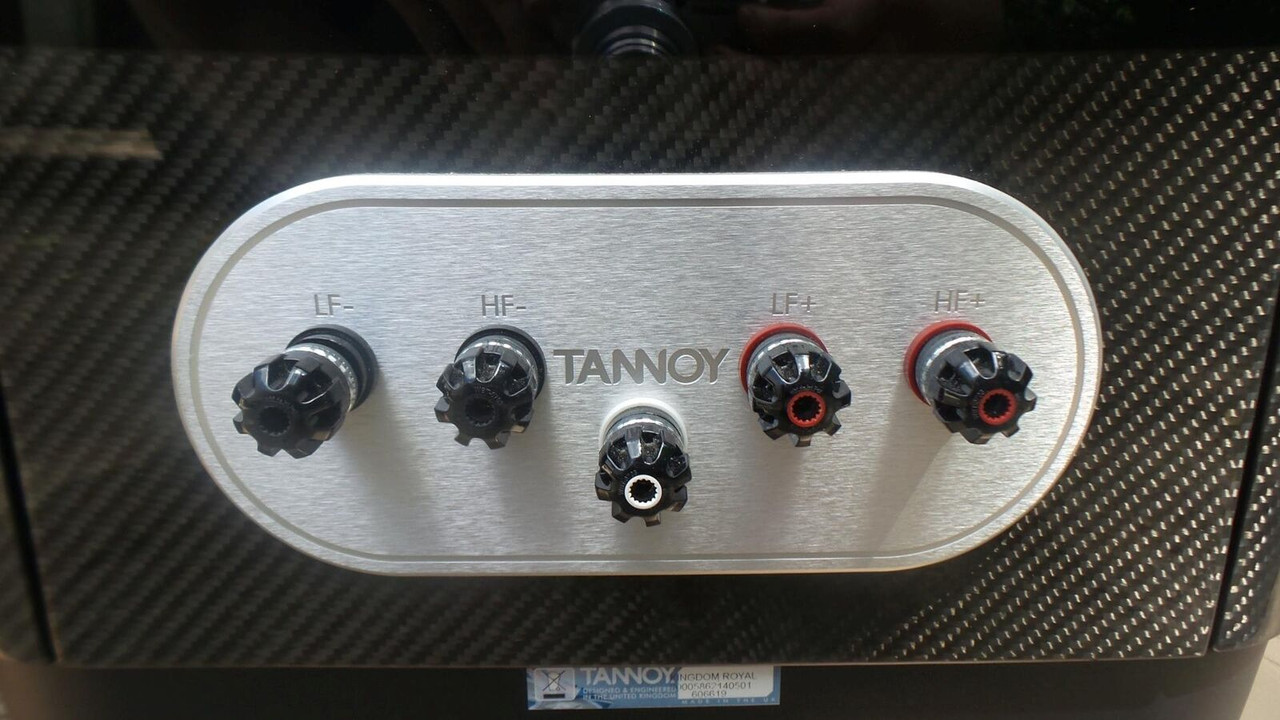

Heavy-duty electro-plated brass NextGen WBT* bi-wireable binding posts improve signal transmission and integrity. A fifth binding post provides grounding to reduce radio frequency interference and improve midrange clarity.

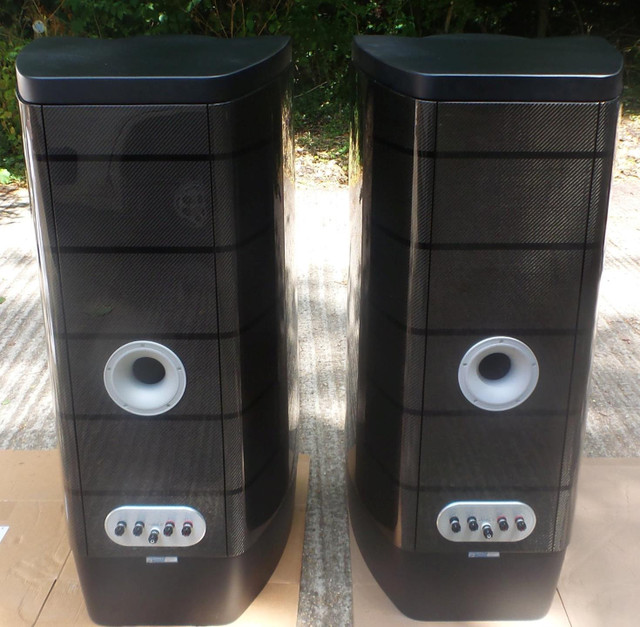

The metallic speckled satin paint finish cabinet with genuine carbon fiber side cheeks provide a unique and timeless piece of furniture. The high-density birch ply and laminated particleboard cabinet provides extreme rigidity to control low-frequency performance. A large diameter rear port provides very low-frequency tuning with minimal turbulence for accurate bass reproduction. Extensive bracing incorporates DMT (Differential Materials Technology) to couple drivers to cabinets. Precision cast and machined silver anodized aluminum metal trims complement the aesthetic of the real wood cabinet


Tannoy is backed by 90 years of British sound heritage and innovation, and a 10-Year Warranty Program. Designed and engineered in the U.K.


Specifications


Sensitivity: 96 dB for 2.83 V at 1 m

Nominal impedance: 8 ohm

Frequency response: 24 Hz - 61 kHz (-6 dB)


Recommended amplifier power: 20 to 600 W RMS per channel

Power rating: 300 W RMS, 1,200 W peak

Maximum SPL: 120 dB at 1 m for 300 W RMS. 126 dB at 1 m for 1,200 W peak

Total harmonic distortion: Less than 1% at 300 W RMS (50 Hz to 20 kHz)

Dispersion: 90 degree conical


Crossover frequencies


120 Hz bass to Dual Concentric™ midrange

700 Hz Dual Concentric™ midrange to compression tweeter

17 kHz Dual Concentric™ tweeter to SuperTweeterTM


Crossover adjustments

Dual Concentric™ energy /- 3.0 dB in 5 steps, 700 Hz- 17 kHz

SuperTweeter™ energy /- 3.0 dB in 5 steps, 17 kHz- 61 kHz


Crossover type


Bi-wired, hard-wired passive, low loss. All connections silver soldered. 99.9999% purity PCOCCTM wiring, except for SuperTweeter™ 99.997% purity single strand custom silver cable. Complete assembly deep cryogenically treated. Free floating isolation system. All crossover slopes 2nd order, except for SuperTweeter™ 1st order high pass


Low-frequency driver

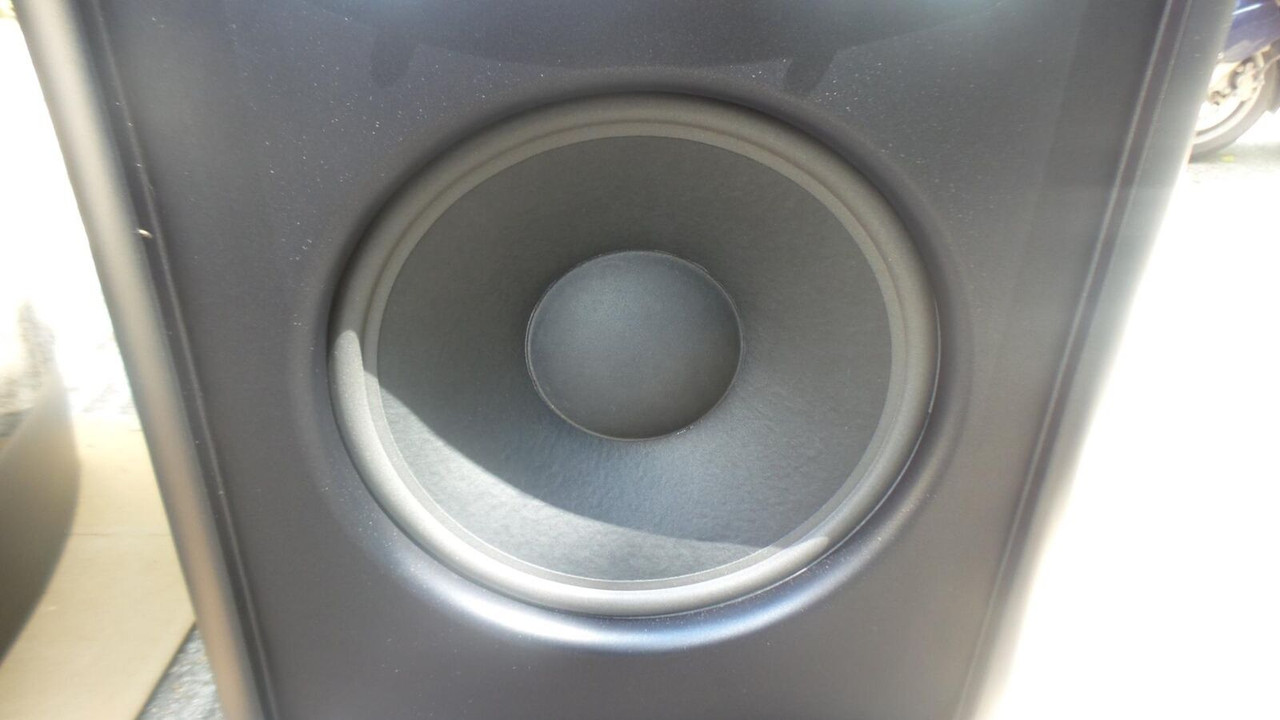

15" (380 mm) nominal diameter with treated paper cone.

3" (75 mm) diameter voice coil


Dual Concentric

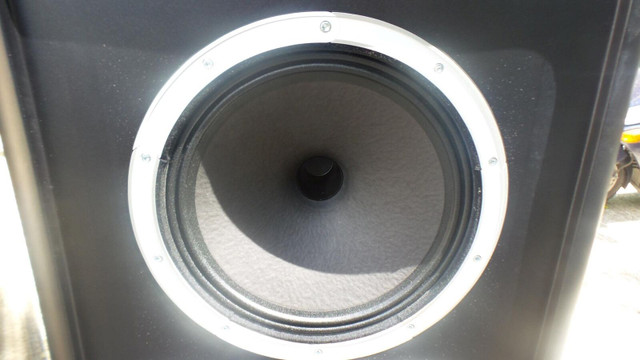

12" (300 mm) nominal diameter Dual Concentric™, with 2" (52 mm) midrange voice coil and treated paper cone.

High-frequency 3" (75 mm) diameter aluminum alloy dome, deep cryogenically treated


Supertweeter

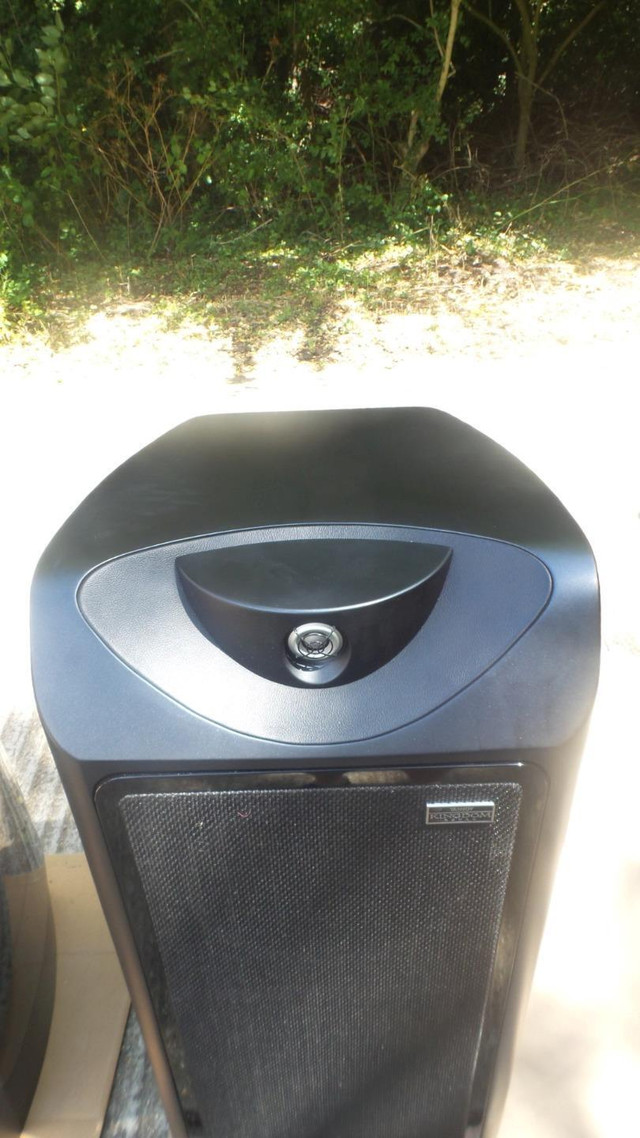

1" (25 mm) diameter 64 micron magnesium alloy dome, ceramic coated. Neodymium magnet system. Plasma bonded voice coil.


Cabinet construction: Birch ply and high-density fiberboard. Extensive internal bracing

Cabinet dimensions (HWD): 50.2" x 23" x 23.6”

Enclosure volume: 5.65 cu.ft. (160 litre)

Enclosure type: Reflex for bass driver, closed box for Dual Concentric™


Weight: 265 lb (120 kg)
