PARADIGM-MONITOR 11 V.7 Kule Hoparlör,İlk sahibinden
Paradigm MONITOR 11 V.7
Posted On
29.09.2022Last Update On
29.09.2022
Description
Original Description is in
Turkish, other language texts are translations and can contain errors.
EnglishDeutschTurkish

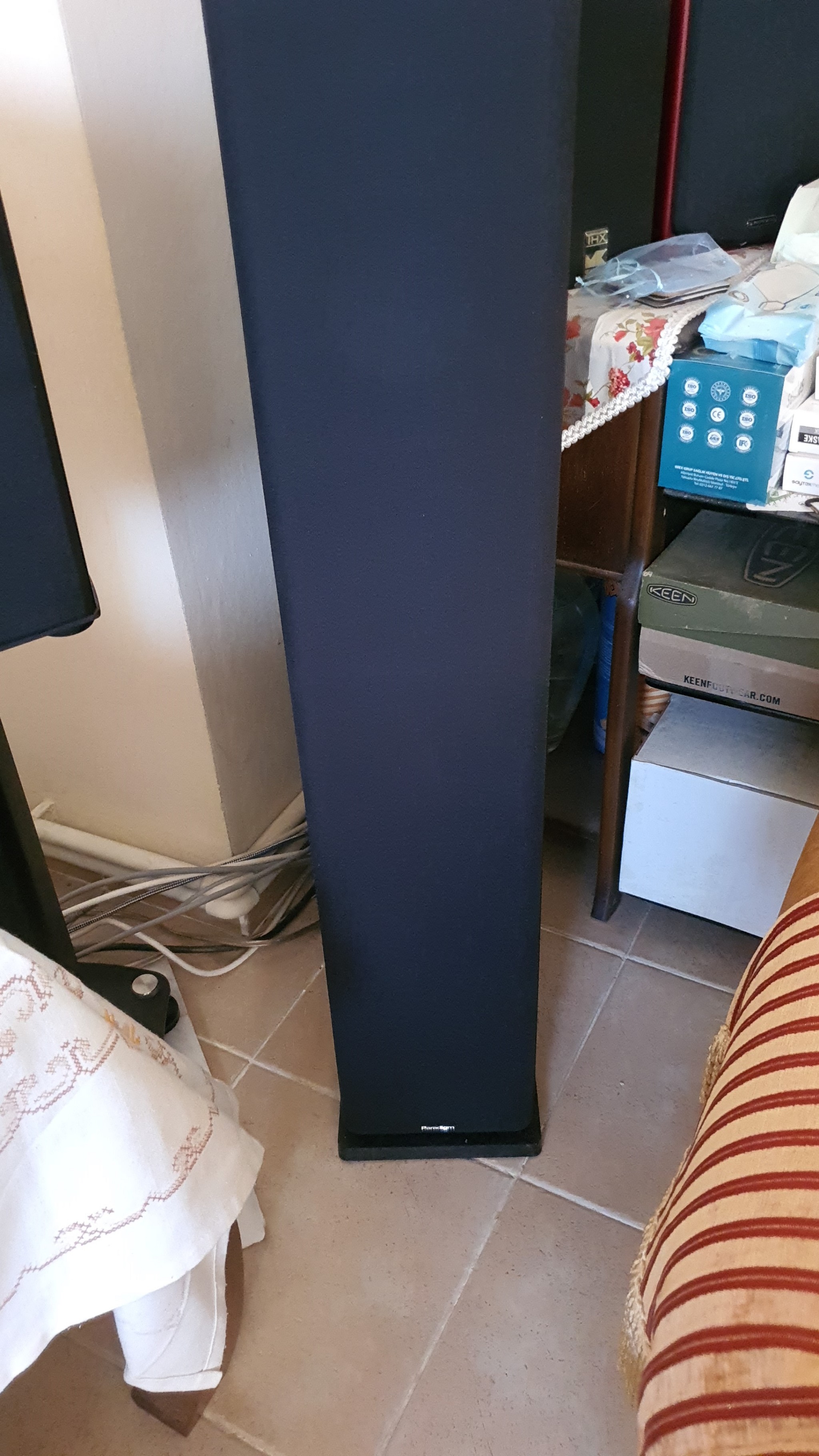

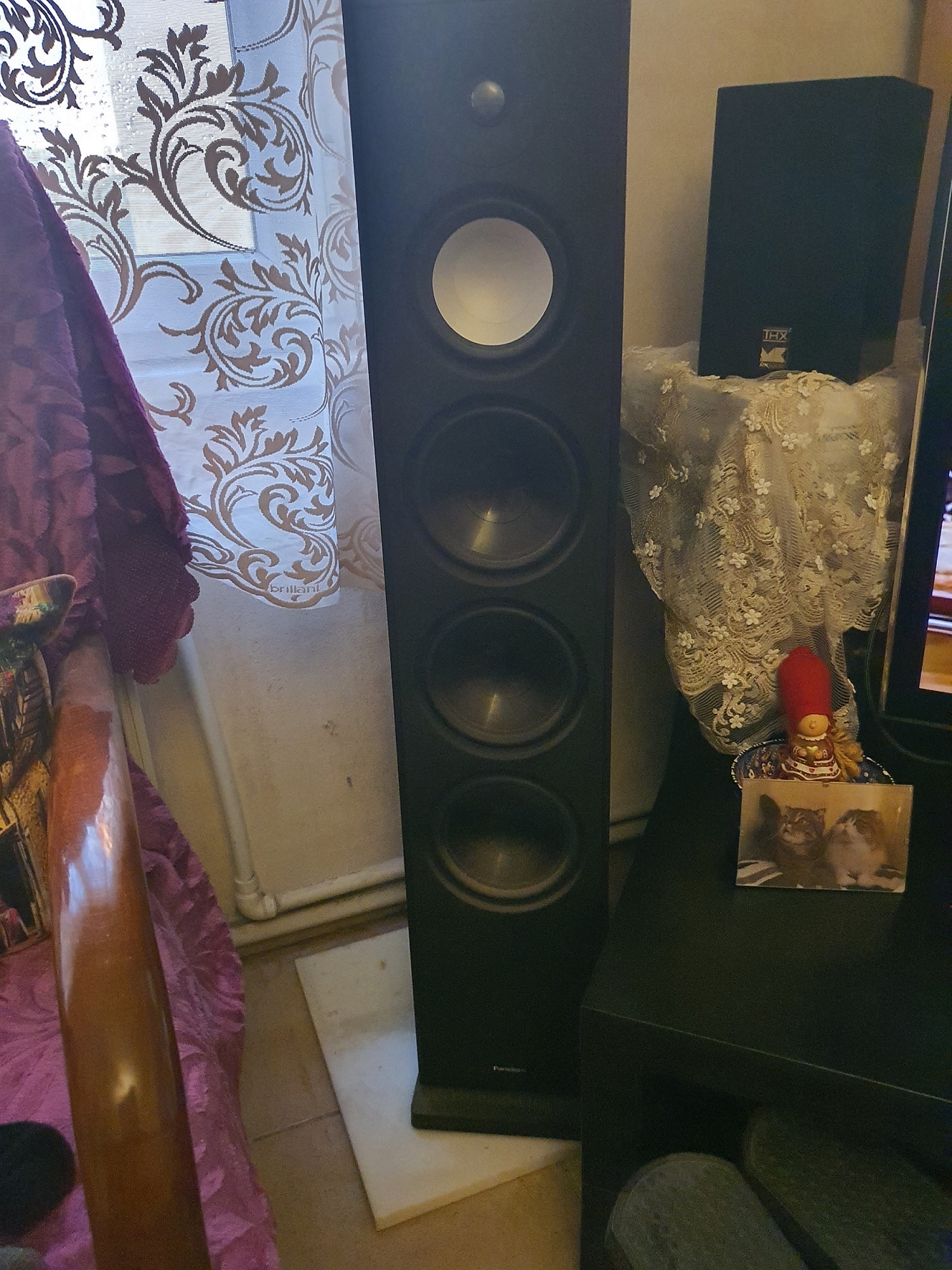

PARADIGM-MONITOR 11 V.7 Kule Hoparlör,ilk sahibiyim, sıfır ayarında hatasız 2 adet kule hoparlör, siyah, kutuları mevcut..
SPECIFICATIONS
DESIGN5-driver, 3-way bass reflex, quasi-3rd-order resistive port, floorstanding model
CROSSOVER3rd-order electro-acoustic at 2.2 kHz, 2nd-order electro-acoustic at 700 Hz (lower bass drivers)
FREQUENCY RESPONSE ON-AXIS±2dB from 42 Hz - 22 kHz
HIGH FREQUENCY DRIVER25-mm (1 in) S-PAL™ dome tweeter, ferro-fluid cooled and damped
MIDRANGE FREQUENCY DRIVER140-mm (5-1/2 in) S-PAL™ cone, 25-mm (1 in) voice-coil, oversize ceramic / ferrite magnets, GRIP™ chassis, separate sealed driver chamber
LOW FREQUENCY EXTENSION30 Hz (DIN)
LOW FREQUENCY DRIVERThree 165-mm (6-1/2 in) carbon-infused polypropylene cones, 25-mm (1 in) voice-coils, oversize ceramic / ferrite magnets, GRIP™ chassis
SENSITIVITY ROOM / ANECHOIC93 dB / 90 dB
FREQUENCY RESPONSE 30° OFF-AXIS±2dB from 42 Hz - 18 kHz
SUITABLE AMPLIFIER POWER RANGE15 - 250 watts
MAXIMUM INPUT POWER180 watts
IMPEDANCE Compatible with 8 ohms
DIMENSIONS HXWXD41.5" × 7.875" × 13.5" (105.4cm × 20.0cm × 34.3cm)
WEIGHT55.3 lbs. (25.1kg)
FINISHESBlack Ash, Heritage Cherry
PARADIGM-MONITOR 11 V.7 Kule Hoparlör,ilk sahibiyim, sıfır ayarında hatasız 2 adet kule hoparlör, siyah, kutuları mevcut..
SPEZIFIKATIONEN
DESIGN5-Treiber, 3-Wege-Bassreflex, Quasi-Widerstandsöffnung 3. Ordnung, Standmodell
CROSSOVER Elektroakustisch 3. Ordnung bei 2,2 kHz, Elektroakustisch 2. Ordnung bei 700 Hz (Tiefbasstreiber)
FREQUENZGANG ON-AXIS±2dB von 42 Hz - 22 kHz
HOCHFREQUENZ-TREIBER25-mm-S-PAL™-Kalottenhochtöner, ferrofluidgekühlt und gedämpft
MITTLERER FREQUENZTREIBER 140-mm-S-PAL™-Konus, 25-mm-Schwingspule, übergroße Keramik-/Ferritmagnete, GRIP™-Chassis, separate abgedichtete Treiberkammer
TIEFFREQUENZ ERWEITERUNG30 Hz (DIN)
NIEDRIGQUENZTREIBER Drei 165 mm (6-1/2 Zoll) kohlenstoffverstärkte Polypropylen-Membranen, 25 mm (1 Zoll) Schwingspulen, übergroße Keramik-/Ferrit-Magnete, GRIP™-Chassis
EMPFINDLICHKEITSRAUM / NECHOISCH93 dB / 90 dB
FREQUENZGANG 30° OFF-AXIS±2dB von 42 Hz - 18 kHz
GEEIGNETER VERSTÄRKER-LEISTUNGSBEREICH 15 - 250 Watt
MAXIMALE EINGANGSLEISTUNG 180 Watt
IMPEDANZ Kompatibel mit 8 Ohm
ABMESSUNGEN H X B X T41,5" × 7,875" × 13,5" (105,4 cm × 20,0 cm × 34,3 cm)
GEWICHT55,3 lbs. (25,1 kg)
AUSFÜHRUNGEN Schwarze Esche, Heritage Cherry
PARADIGM-MONITOR 11 V.7 Kule,ilk sahibiyim, telefon hoparlörü sesiz 2 adet kule, siyah, ön mevcut..
SPECIFICATIONS
DESIGN5-driver, 3-way bass reflex, quasi-3rd-order resistive port, floorstanding model
CROSSOVER3rd-order electro-acoustic at 2.2 kHz, 2nd-order electro-acoustic at 700 Hz (lower bass drivers)
FREQUENCY RESPONSE ON-AXIS±2dB from 42 Hz - 22 kHz
HIGH FREQUENCY DRIVER25-mm (1 in) S-PAL™ dome tweeter, ferro-fluid cooled and damped
MIDRANGE FREQUENCY DRIVER140-mm (5-1/2 in) S-PAL™ cone, 25-mm (1 in) voice-coil, oversize ceramic / ferrite magnets, GRIP™ chassis, separate sealed driver chamber
LOW FREQUENCY EXTENSION30 Hz (DIN)
LOW FREQUENCY DRIVERThree 165-mm (6-1/2 in) carbon-infused polypropylene cones, 25-mm (1 in) voice-coils, oversize ceramic / ferrite magnets, GRIP™ chassis
SENSITIVITY ROOM / ANECHOIC93 dB / 90 dB
FREQUENCY RESPONSE 30° OFF-AXIS±2dB from 42 Hz - 18 kHz
SUITABLE AMPLIFIER POWER RANGE15 - 250 watts
MAXIMUM INPUT POWER180 watts
IMPEDANCE Compatible with 8 ohms
DIMENSIONS HXWXD41.5" × 7.875" × 13.5" (105.4cm × 20.0cm × 34.3cm)
WEIGHT55.3 lbs. (25.1kg)
FINISHESBlack Ash, Heritage Cherry
