New Audio Frontiers Legend MK 2 KT66 Remote Contorl Valve Amp
New Audio Frontiers Legend MK 2 KT66 Remote Contorl Valve Amp
Posted On
22.11.2022Last Update On
22.11.2022
Description
Original Description is in
English, other language texts are translations and can contain errors.
EnglishDeutschTurkish
Condition:
used
Weight:
45.00 KGS
Minimum Purchase:
1 unit
Maximum Purchase:
1 unit
Shipping:

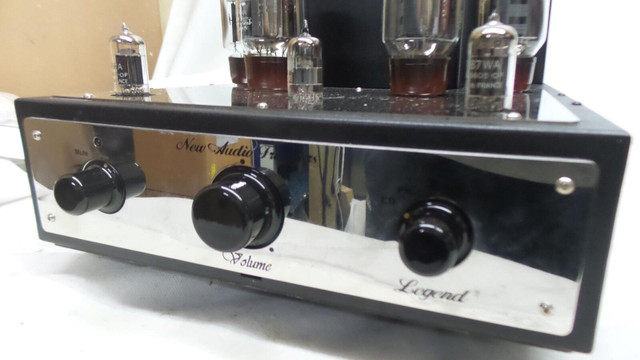

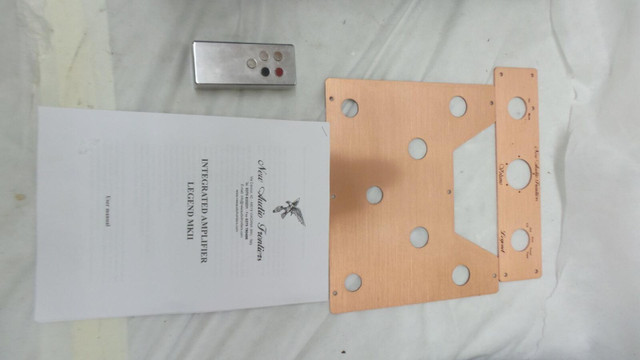

Excellent, with optional chrome or copper front panel/top plate and upgraded Mundorf oil caps.
240V Operation
Description:

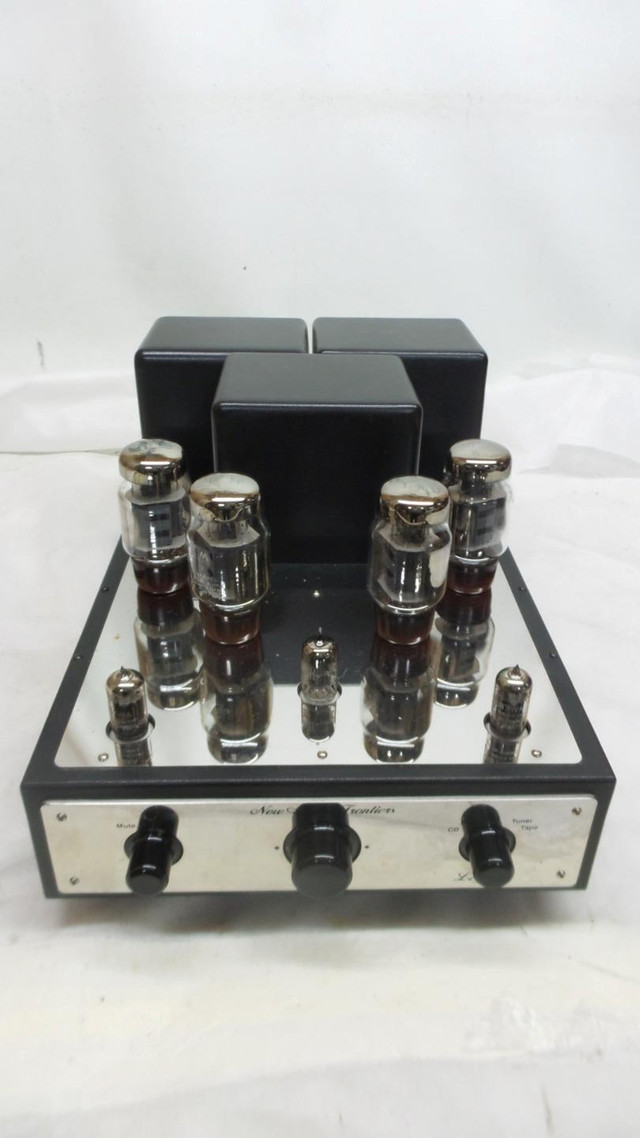

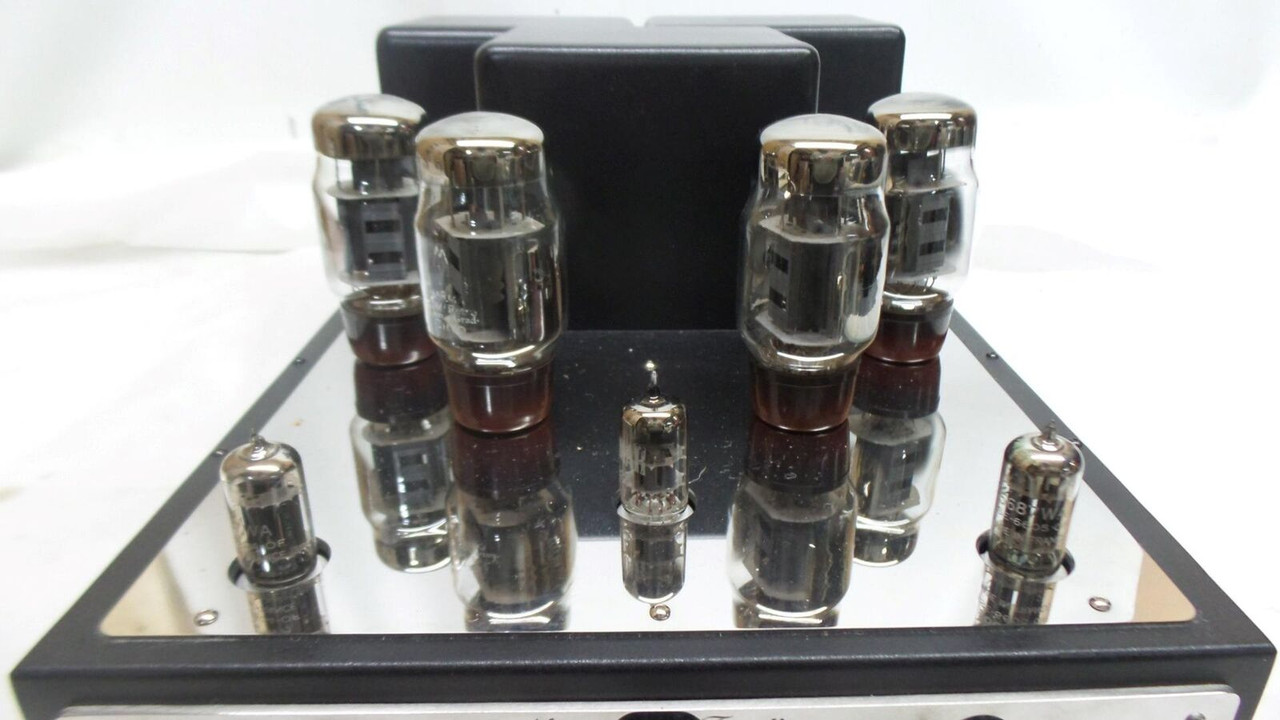

The new Audio Frontiers Legend MK II was dedicated to the legendary Tetrode KT 66, hence the name "Legend". The Tetrode KT 66 has already been used in legendary amplifiers of Quad, Leak and Radford. In the original original circuits the KT 66 was used as Tetrode or in Ultralinear push-pull configuration. New Audio Frontiers goes new ways and uses the KT 66 as a triode in push pull in pure Class A and without feedback. The result of this switching mode is an amplifier that unleashes a dynamic with 18 watt output per channel, which immediately fascinates you. The Legend offers a perfectly three-dimensional stage with a high live character. The sound is very spacious with a trace of "sweetness" with crystal clear transparency and fascinating dynamics. A double triode of the type E 88 CC is used as input tube, followed by two 5687, which drive the KT 66 perfectly. Legend has autobias for all tubes. The output transformers are hand-wound strand conductors made of pure copper. Experience the Legend as an introduction to the sound world of New Audio Frontiers and rediscover your music collection.
Technical specifications:
Model: Legend MK II
Type: Full amplifier
Continuous power: 2 x 18 watts at 8 ohms / THD 5%

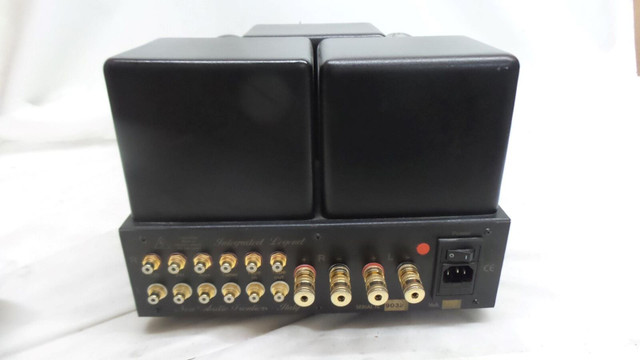

Inputs: 5 RCA
Input sensitivity: 800 mV / 100 K ohms
Power requirement: 300 watts max.
Measurements: 31 x 24 x 48 cm
Net weight: 40 kg
