Sonus Faber Musica Vollverstärker
Sonus Faber Musica Vollverstärker
Posted On 24.11.2022
Last Update On
24.11.2022
Description
Original Description is in
German, other language texts are translations and can contain errors.
EnglishDeutschTurkish
As usual from Sonus Faber from Italy, the Musica integrated amplifier, limited to 1000 pieces, is beautifully finished and a feast for the eyes. None other than the grandmaster Ken Ishiwata was involved in this Sonus Faber project - the well-known German manufacturer Audionet is said to have had a hand in it, but without guarantee.

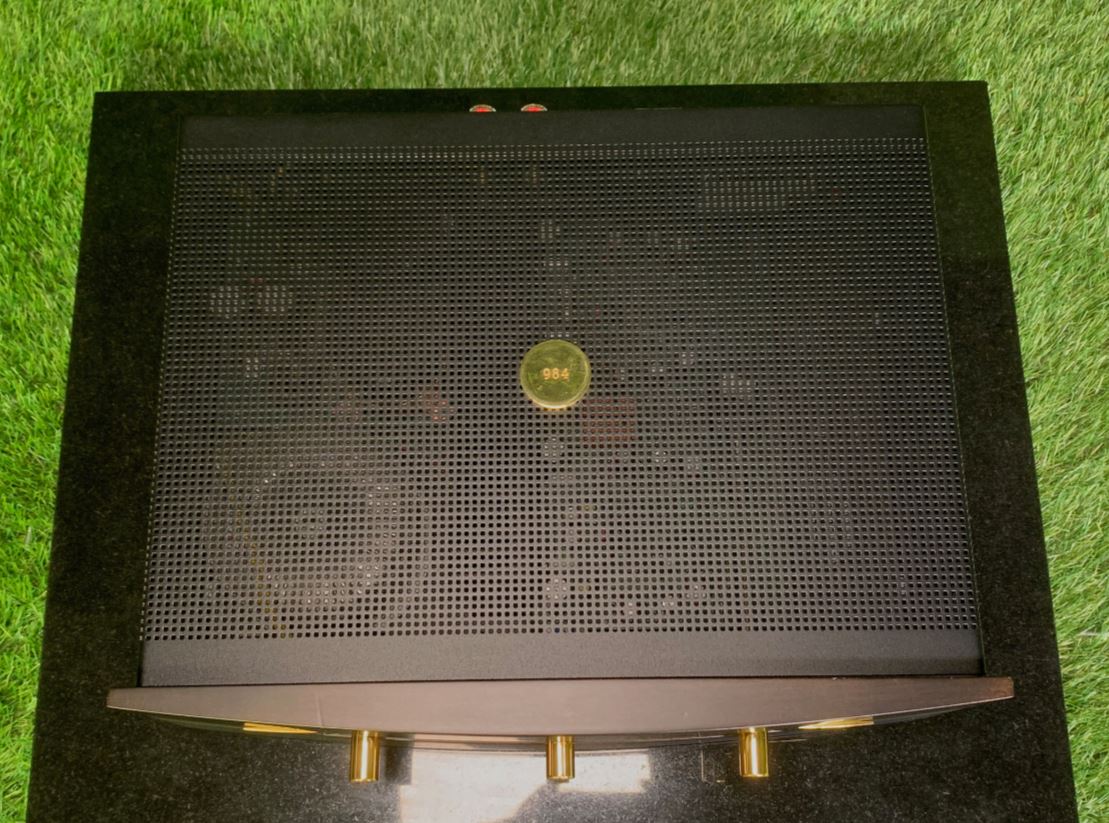

This Musica offered here has the number 984 / 1000, so it is one of the last copies of this limited series in the most mature stage of development!
The Sonus Faber Musica offers a stable power supply down to the low-impedance range and delivers a very stable 100W at 4 ohms.
Additional information:
Musica is a pure and precise amplifier, designed and
Manufactured with state of the art technology.
Musica is the perfect expression of the Sonus faber philosophy, embodying simplicity while representing the quest for the finest sound reproduction possible, above and beyond that which fashion dictates.This pure and simple design, while state-of-the-art in terms of technology , contrasts with the sophisticated technical considerations applied in its conception and construction, the interior accommodates the ample power supply and ultra high-speed circuitry.
In creating this precision instrument, Sonus faber did not regard absolute power as a design objective. Instead, we concentrated on musical quality, for the kind of reproduction which involves the listener's heart. Musica has been designed not just by us but for us. And for music lovers everywhere.
Power Output: 100 watts x 2.4 ohms / 50 watts x 2.8 ohms
Amplifier Features: Left / Right Channel symmetrical PCB design
Surface Mounted Device (SMD) technology for shortest signal
path 28dB total gain
Dual JFET differential input with double bootstrapping
Error corrected MOSFET output stage
Low impedance dynamic drive capability
DC short circuit and thermal protection circuit
Six line inputs
Buffered record output
Custom made plastic conductive volume control
No tone controls for signal purity
Mechanical input selector with switched ground line
WBT gold-plated speaker terminals
Power Supply Features: Toroidal type transformer
Custom twin 1500mF low multiplication factor main capacitors
Independent power supply for input gain stage and output stage
Ultra high speed schottky diode rectifier in double bridge
configuration for input and output stage
Discrete voltage regulators for input gain stage
Finish: Front panel in solid black lacquer finish.
Controls and spikes in gold-plated copper
Dimensions: 17 x 15 x 6 inches (WDH);
432 x 381 x 153 mm (WDH)
Weight: 35.2lbs / 16kg
Wie nicht anders von Sonus Faber aus Italien gewohnt, ist der auf 1000 Stk. limitierte Musica Vollverstärker wunderschön verarbeitet und eine Augenweide. Niemand anderes als der Großmeister Ken Ishiwata wirkte bei diesem Sonus Faber Projekt mit - angeblich hatte auch der renommierte deutsche Hersteller Audionet seine Finger mit im Spiel, dies aber ohne Gewähr.
Dieser hier angebotene Musica hat die Nummer 984 / 1000, demnach also eines der letzten Exemplare dieser limitierten Serie in der ausgereiftesten Ausbaustufe!
Der Sonus Faber Musica bietet bis in den niederohmigen Bereich eine stabile Stromversorgung und leistet an 4 Ohm sehr stabil laufende 100W.
Weiterführende Informationen:
Musica is a pure and precise amplifier, designed and
manufactured with state of the art of technology.
Musica is the perfect expression of the Sonus faber philosophy, embodying simplicity while representing the quest for the finest sound reproduction possible, above and beyond that which fashion dictates.This pure and simple design, while state-of-the-art in terms of technology, contrasts with the sophisticated technical considerations applied in its conception and construction, the interior accomodates the ample power supply and ultra high-speed circuitry.
In creating this precision instrument, Sonus faber did not regard absolute power as a design objective. Instead, we concentrated on musical quality,for the kind of reproduction which involves the listener's heart. Musica has been designed not just by us but for us. And for music lovers everywhere.
Power Output: 100 watts x 2, 4 ohms / 50 watts x 2, 8 ohms
Amplifier Features: Left / Right Channel symmetrical PCB design
Surface Mounted Device (SMD) technology for shortest signal
path 28 dB total gain
Dual JFET differential input with double bootstrapping
Error corrected MOSFET output stage
Low impedance dynamic drive capability
DC short circuit and thermal protection circuit
Six line inputs
Buffered record output
Custom made plastic conductive volume control
No tone controls for signal purity
Mechanical input selector with switched ground line
WBT gold-plated speaker terminals
Power Supply Feautures: Torodial type transformer
Custom twin 1500 mF low multiplication factor main capacitors
Independent power supply for input gain stage and output stage
Ultra high speed schottky diode rectifier in double bridge
configuration for input and output stage
Discrete voltage regulators for input gain stage
Finish: Front panel in solid black lacquer finish.
Controls and spikes in gold plated copper
Dimensions: 17 x 15 x 6 inches (WDH);
432 x 381 x 153 mm (WDH)
Weight: 35.2 lbs / 16kg
İtalya'dan Sonus Faber'den her zaman olduğu gibi, 1000 parça ile sınırlı Musica entegre amplifikatör güzel bir şekilde tamamlandı ve gözler için bir şölen. Bu Sonus Faber projesinde büyük usta Ken Ishiwata'dan başkası yer almadı - ünlü Alman üretici Audionet'in bu işte parmağı olduğu söyleniyor, ancak garantisi yok.
Burada sunulan bu Musica, 984 / 1000 numarasına sahiptir, yani bu sınırlı serinin genişlemenin en olgun aşamasındaki son kopyalarından biridir!
Sonus Faber Musica, düşük empedans aralığına kadar kararlı bir güç kaynağı sunar ve 4 ohm'da çok kararlı bir 100W sağlar.
Ek Bilgiler:
Musica, saf ve hassas bir amplifikatördür, tasarlanmış ve
En son teknoloji ile üretilmiştir.
Musica, modanın dikte ettiğinin ötesinde mümkün olan en iyi ses reprodüksiyonu arayışını temsil ederken sadeliği somutlaştıran Sonus faber felsefesinin mükemmel ifadesidir. Bu saf ve basit tasarım, aynı zamanda teknoloji açısından son teknoloji , tasarımında ve yapımında uygulanan sofistike teknik hususlarla tezat oluşturan iç kısım, bol miktarda güç kaynağını ve ultra yüksek hızlı devre sistemini barındırır.
Sonus faber, bu hassas aleti yaratırken mutlak gücü bir tasarım hedefi olarak görmedi. Bunun yerine, dinleyicinin kalbini ilgilendiren yeniden üretim türü için müzikal kaliteye odaklandık. Musica sadece bizim tarafımızdan değil bizim için tasarlandı. Ve her yerdeki müzik severler için.
Güç Çıkışı: 100 watt x 2,4 ohm / 50 watt x 2,8 ohm
Amplifikatör Özellikleri: Sol / Sağ Kanal simetrik PCB tasarımı
En kısa sinyal için Yüzeye Monte Edilen Cihaz (SMD) teknolojisi
yol 28dB toplam kazanç
Çift önyüklemeli çift JFET diferansiyel girişi
Hata düzeltilmiş MOSFET çıkış aşaması
Düşük empedanslı dinamik sürücü özelliği
DC kısa devre ve termik koruma devresi
Altı satır girişi
Ara belleğe alınmış kayıt çıktısı
Özel yapım plastik iletken ses kontrolü
Sinyal saflığı için ton kontrolü yok
Anahtarlamalı zemin hattına sahip mekanik giriş seçici
WBT altın kaplama hoparlör terminalleri
Güç Kaynağı Özellikleri: Toroidal tip trafo
Özel ikiz 1500mF düşük çarpma faktörlü ana kapasitörler
Giriş kazanç aşaması ve çıkış aşaması için bağımsız güç kaynağı
Çift köprüde ultra yüksek hızlı schottky diyot doğrultucu
giriş ve çıkış aşaması için yapılandırma
Giriş kazanç aşaması için ayrı voltaj regülatörleri
Kaplama: Düz siyah lake kaplamalı ön panel.
Altın kaplama bakırdan kontroller ve sivri uçlar
Boyutlar: 17 x 15 x 6 inç (GDH);
432 x 381 x 153 mm (GDH)
Ağırlık: 35.2lbs / 16kg
