Tannoy Turnberry Prestige GR reference
Tannoy Turnberry Prestige GR reference
Posted On
5.12.2022Last Update On
5.12.2022
Description
Original Description is in
Turkish, other language texts are translations and can contain errors.
EnglishDeutschTurkish
In very good condition, first owner
It is not open to exchange.
It will be sold by money order, please ask for IBAN NO.
Features:
Performance
Compatible Amp: 30-180 Watts
Cont power handling: 110W RMS
Freq response: 34Hz-25kHz (-6dB)
Sensitivity: 93dB (2.83V @1m)
Rated impedance: 8 Ohms
Drive Units
Type: Dual Concentric
HF: 33mm (1.3") aluminum alloy dome
HF Waveguide: Tulip WaveGuide
LF: 250mm (10") treated paper pulp cone
Surround: HE twin roll fabric surround
Voice Coil: 52mm (2") edge wound
Dispersion: 90 degrees conical
crossover
Frequency: 1.3kHz

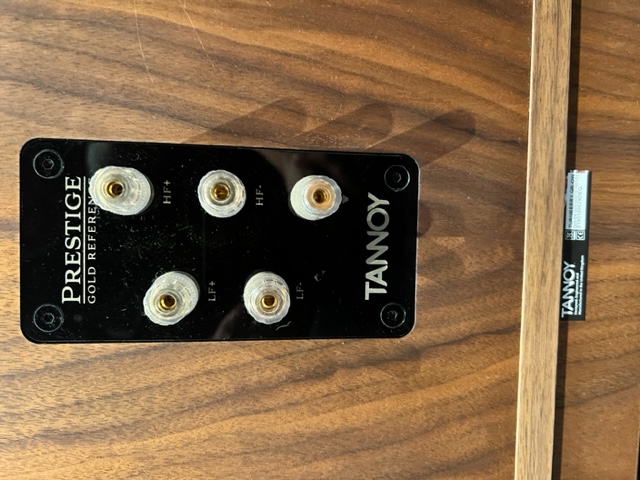

Type: Bi-wired, hard wired passive
LF: low loss compensated 2nd order
HF: 1st order high frequency
Shelving Adj: +/-3dB (1.3kHz-25kHz)
construction
Enclosure: Distributed port
Finish: Walnut veneer
Detail: Solid walnut edging and trim
Volume: 100L (3.5 cubic ft)
Dimensions (HWD): 950 x 456 x 336mm
Weight: 30kg (66 lbs)
In sehr gutem Zustand, Erstbesitzer
Es ist nicht zum Umtausch geöffnet.
Der Verkauf erfolgt per Postanweisung, bitte fragen Sie nach der IBAN-NR.
Merkmale:
Leistung
Kompatibler Verstärker: 30-180 Watt
Dauerleistung: 110 W RMS
Frequenzgang: 34Hz-25kHz (-6dB)
Empfindlichkeit: 93 dB (2,83 V bei 1 m)
Nennimpedanz: 8 Ohm
Antriebseinheiten
Typ: Dual Concentric
HF: 33 mm (1,3") Dome aus Aluminiumlegierung
HF-Waveguide: Tulip WaveGuide
LF: 250 mm (10 Zoll) Konus aus behandeltem Papierbrei
Einfassung: HE-Twin-Roll-Stoffeinfassung
Schwingspule: 52 mm (2") Randwicklung
Abstrahlwinkel: 90 Grad konisch
Überkreuzung
Frequenz: 1,3 kHz
Typ: Bi-wired, fest verdrahtet passiv
NF: verlustarm kompensiert 2. Ordnung
HF: Hochfrequenz 1. Ordnung
Shelving-Anpassung: +/-3dB (1,3kHz-25kHz)
Konstruktion
Gehäuse: Verteilter Port
Ausführung: Nussbaumfurnier
Detail: Kanten und Zierleisten aus massivem Nussbaumholz
Volumen: 100 l (3,5 Kubikfuß)
Abmessungen (HBT): 950 x 456 x 336 mm
Gewicht: 30 kg
Çok temiz durumda ilk sahibinden
Takasa açık değildir.
Havale ile satılacaktır ,lütfen IBAN NO isteyiniz.
Özellikler:
Performance
Compatible Amp: 30-180 Watts
Cont power handling: 110W RMS
Freq response: 34Hz-25kHz (-6dB)
Sensitivity: 93dB (2.83V @1m)
Nominal impedance: 8 Ohms
Drive Units
Type: Dual Concentric
HF: 33mm (1.3") aluminium alloy dome
HF Waveguide: Tulip WaveGuide
LF: 250mm (10") treated paper pulp cone
Surround: HE twin roll fabric surround
Voice Coil: 52mm (2") edge wound
Dispersion: 90 degrees conical
Crossover
Frequency: 1.3kHz
Type: Bi-wired, hard wired passive
LF: low loss compensated 2nd order
HF: 1st order high frequency
Shelving Adj: +/-3dB (1.3kHz-25kHz)
Construction
Enclosure: Distributed port
Finish: Walnut veneer
Detail: Solid walnut edging and trim
Volume: 100L (3.5 cubic ft)
Dimensions (HWD): 950 x 456 x 336mm
Weight: 30kg (66 lbs)
