BRYSTON 3B ST
Bryston 3B ST
Posted On
8.09.2019Last Update On
8.09.2019
Description
Original Description is in
English, other language texts are translations and can contain errors.
EnglishDeutschTurkish

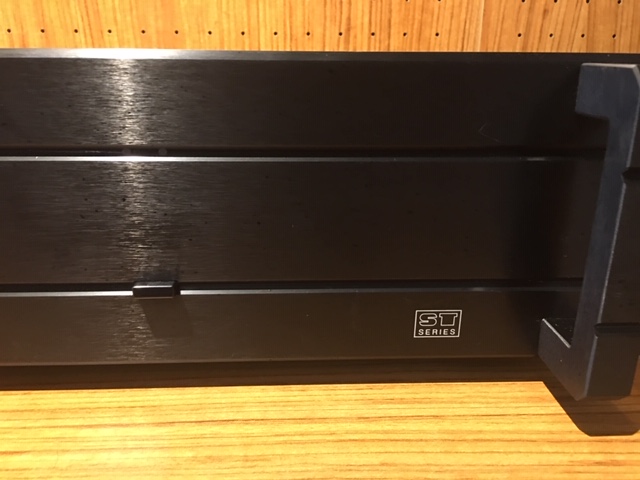

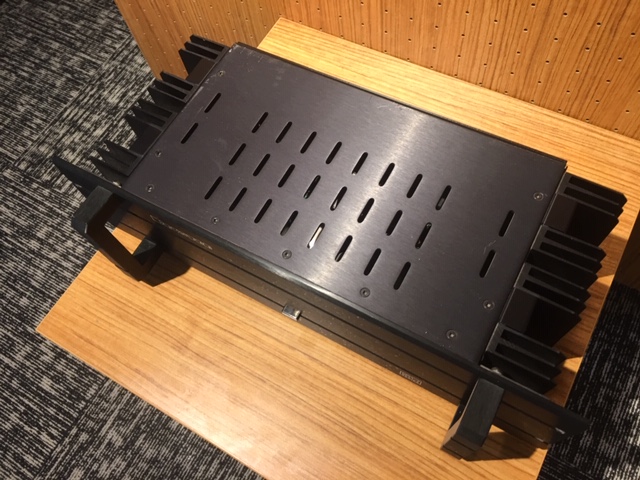

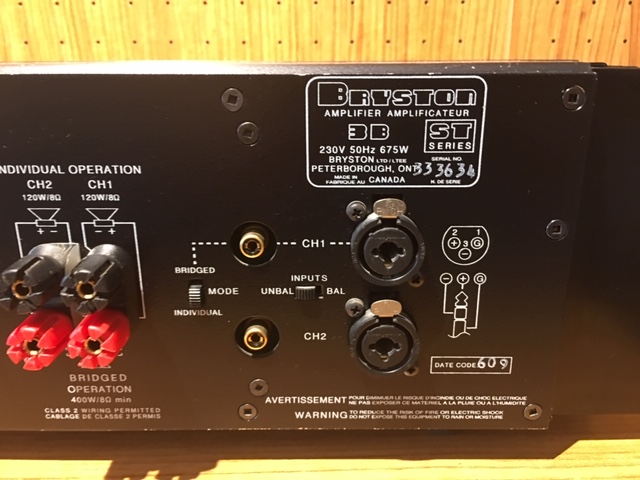

Bryston 3 B ST 2 Channel is in good condition except local scratches in 10/7 condition.
Specifications
Description: Solid-state stereo power amplifier. Output power: 120W continuous into 8 ohms (20.8dBW), 200Wpc continuous into 4 ohms (20dBW); 400W continuous into 8 ohms in bridged mode (26dBW). Distortion: 0.007% at 120W, 20Hz-20kHz, IM (60Hz + 7kHz, 4: 1, SMPTE method) or THD. S / N ratio: 106dB ref. rated output, 90dB IHF. Slew rate:> 60V / µs. Damping factor:> 500 at 20Hz ref. 8 ohms, equivalent to an output impedance of 0.016 ohms. Input sensitivity: 1V for 120Wpc into 8 ohms; 2V for full output, balanced. Input impedance: 50k ohms unbalanced, 20k ohms balanced. Polarity: non-inverting.
Dimensions: 19 "(482.5mm) W by 5.25" (133mm) H by 9 "(228mm) D. Weight: 22 lbs (10kg).
Bryston 3 B ST 2 Kanal ist in gutem Zustand, außer lokalen Kratzern in 10/7 Zustand.
TechnischeDaten
Beschreibung: Solid-State-Stereo-Leistungsverstärker. Ausgangsleistung: 120W kontinuierlich in 8 Ohm (20.8dBW), 200Wpc kontinuierlich in 4 Ohm (20dBW); 400W kontinuierlich in 8 Ohm im Bridged-Modus (26dBW). Verzerrung: 0,007% bei 120W, 20Hz-20kHz, IM (60Hz + 7kHz, 4: 1, SMPTE-Methode) oder THD. S / N Verhältnis: 106dB Ref. Nennleistung, 90dB IHF. Slew Rate:> 60V / s. Dämpfungsfaktor:> 500 bei 20Hz ref. 8 Ohm, entspricht einer Ausgangsimpedanz von 0,016 Ohm. Eingangsempfindlichkeit: 1V für 120Wpc in 8 Ohm; 2V für volle Leistung, symmetrisch. Eingangsimpedanz: 50k Ohm unsymmetrisch, 20k Ohm ausgeglichen. Polarität: nicht invertierend.
Abmessungen: 19 "(482.5mm) W x 5.25" (133mm) H x 9 "(228mm) D. Gewicht: 22 lbs (10kg).
Bryston 3 B ST 2 Kanal 10/7 durumda yerel çizikler dışında iyi durumda.
Teknik özellikler
Açıklama: Katı hal stereo güç amplifikatörü. Çıkış gücü: 120W sürekli içine 8 ohms (20.8dBW), 200Wpc sürekli içine 4 ohms (20dBW); Köprülü modda (26dBW) 8 ohm içine 400W sürekli. Distorsiyon: 120W, 20Hz-20kHz, IM (60Hz + 7kHz, 4: 1, SMPTE yöntemi) veya THD de% 0.007. S / N oranı: 106dB ref. nominal çıktı, 90dB IHF. Slew oranı:> 60V / μs. Sönümleme faktörü:> 500 at 20Hz ref. 8 ohms, 0.016 ohms bir çıkış empedans eşdeğer. Giriş hassasiyeti: 8 ohms içine 120Wpc için 1V; Tam çıkış için 2V, dengeli. Giriş empedansı: 50k ohms dengesiz, 20k ohms dengeli. Polarite: non-inverting.
Boyutlar: 19 "(482,5mm) W x 5.25" (133mm) H x 9 "(228mm) D. Ağırlık: 22 lbs (10kg).
