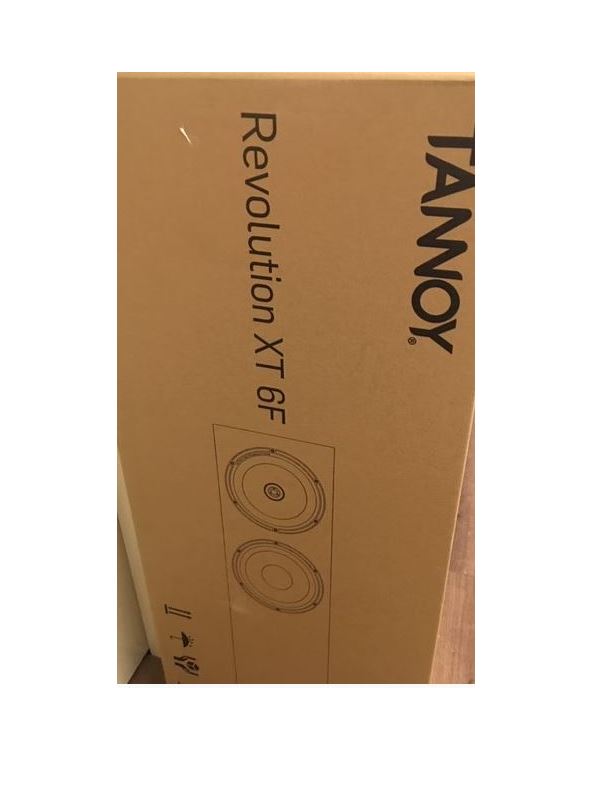

The box and content are exactly the same from the first owner.

PERFORMANCE

Recommended Amplifier Power (Watts RMS) 25 - 150

Continuous Power Handling (Watts Peak RMS) 75

Peak Power Handling (Watts) 300

Sensitivity (2.83 Volts @ 1m) 90 dB

Nominal Impedance (Ohms) 8

Frequency Response (-6dB) 38 Hz - 32 kHz

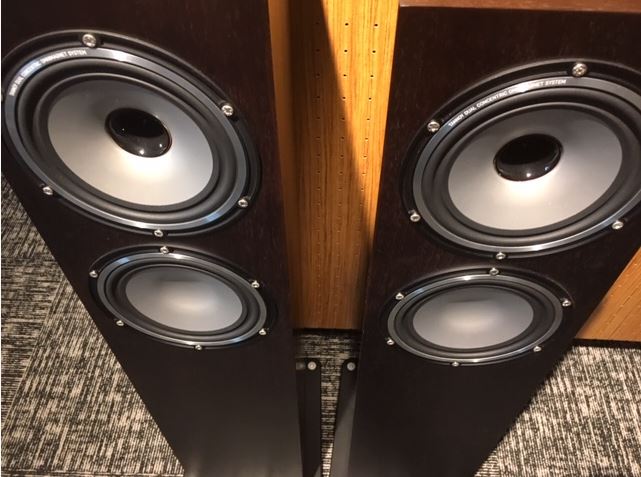

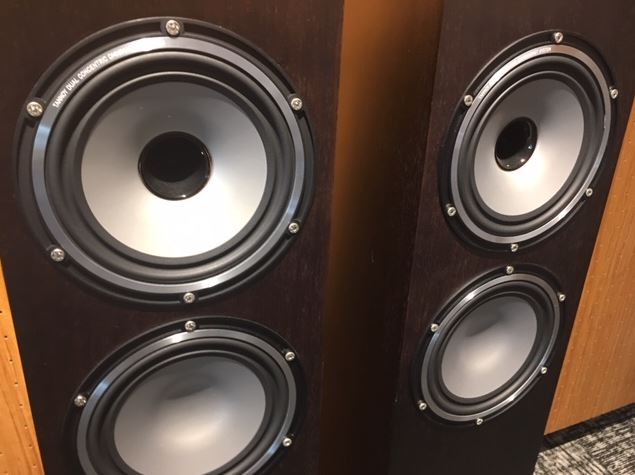

DRIVE UNIT

Dual Concentric High Frequency 25 mm (1) Linear PEI dome with Torus Ogive WaveGuide and Omnimagnet technology

Dual Concentric Low Frequency 150 mm (6) multi-fibre paper 44 mm (1.75) voice coil

Bass Driver 150 mm (6) multi-fibre paper pulp cone with rubber surround. 44 mm (1.75) edge wound voice coil

CROSSOVER

Crossover Frequency 250 Hz & 1.8 kHz

Crossover Type Passive low loss 2nd order low pass, 1st order high pass

CONSTRUCTION

Enclosure Type Downwards ported twin cavity coupled reflex

Volume 30.7 l (1.08 cu. ft.)

Dimensions H x W x D (incl. plinth) 1005 x 269 x 317 mm

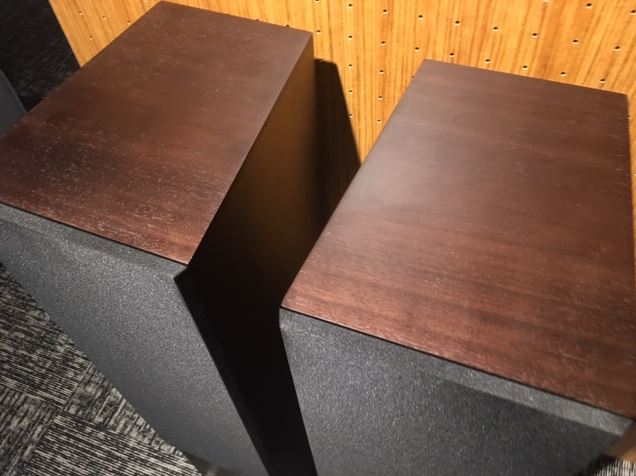

Finish Dark Walnut /

Die Box und der Inhalt sind vom ersten Besitzer genau identisch.

LEISTUNG

Empfohlene Verstärkerleistung (Watt RMS) 25 - 150

Kontinuierliche Leistungsaufnahme (Watts Peak RMS) 75

Peak Power Handling (Watts) 300

Sensitivity (2,83 Volt bei 1m) 90 dB

Nominale Impedanz (Ohm) 8

Frequenzreaktion (-6dB) 38 Hz - 32 kHz

DRIVE UNIT

Dual Concentric High Frequency 25 mm (1) Lineare PEI-Kuppel mit Torus Ogive WaveGuide und Omnimagnet-Technologie

Dual Concentric Low Frequency 150 mm (6) Mehrfaserpapier 44 mm (1,75) Stimmspule

Basstreiber 150 mm (6) Mehrfaser-Papierzellstoffkegel mit Gummiumrandung. 44 mm (1,75) Kantenaufzugspule

CROSSOVER

Crossover Frequency 250 Hz & 1,8 kHz

Crossover Typ Passiver Niedriger Verlust 2. Rang Tiefpass, 1. Ordnung Hochpass

KONSTRUKTION

Gehäusetyp Abwärts portierter Doppelhohlraum gekoppelter Reflex

Volume 30,7 l (1,08 cu. ft.)

Maße H x B x T (inkl. Sockel) 1005 x 269 x 317 mm

Finish Dunkle Walnuss /

Kutu ve içerik ilk sahibinden tamamen aynıdır.

PERFORMANS

Önerilen Amplifikatör Gücü (Watt RMS) 25 - 150

Sürekli Güç Taşıma (Watts Peak RMS) 75

Tepe Güç Taşıma (Watt) 300

Hassasiyet (2,83 Volt @ 1m) 90 dB

Nominal Empedans (Ohms) 8

Frekans Tepkisi (-6dB) 38 Hz - 32 kHz

DRIVE UNIT

Çift Eşmerkezli Yüksek Frekans 25 mm (1) Torus Ogive WaveGuide ve Omnimagnet teknolojisine sahip Lineer PEI kubbe

Çift Eşmerkezli Düşük Frekans 150 mm (6) çok fiber kağıt 44 mm (1.75) ses bobini

Bass Driver 150 mm (6) kauçuk surround ile çok fiber kağıt hamuru konisi. 44 mm (1.75) kenar yara ses bobini

CROSSOVER

Crossover Frekansı 250 Hz & 1.

Crossover Tip Pasif düşük kayıp 2.sıra düşük geçiş, 1.sıra yüksek geçiş

İNŞAAT

Enclosure Tip Aşağı doğru taşınan ikiz kavite ile retoks

Hacim 30.7 l (1.08 cu ft.)

Boyutlar H x W x D (kdv. plinth) 1005 x 269 x 317 mm

Finish Koyu Ceviz /
