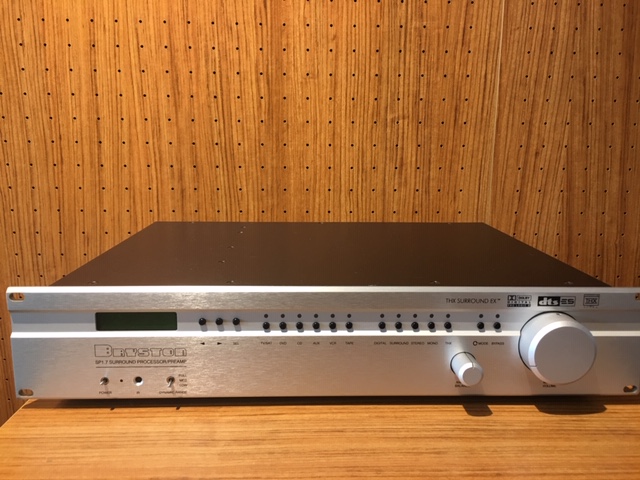

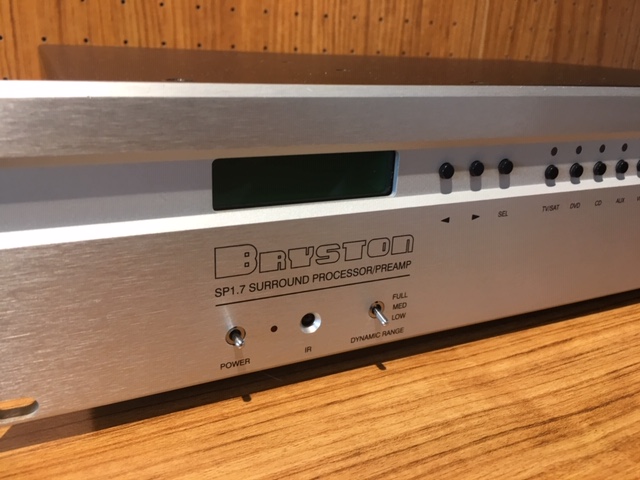

Very clean case from the first owner can be used as 10/8 preamps.

SP1.7 TECHNICALFEATURES

Inputs

Digital: 4 coaxial (RCA) 75 Ohm, 2 Optical (TOSLINK?), S/PD
IF standard

Pro version 1 AES / EBU input (XLR) 110 Ohm

Infrared: 1 mini phone jack

RS-232: D9 connector (d-way)

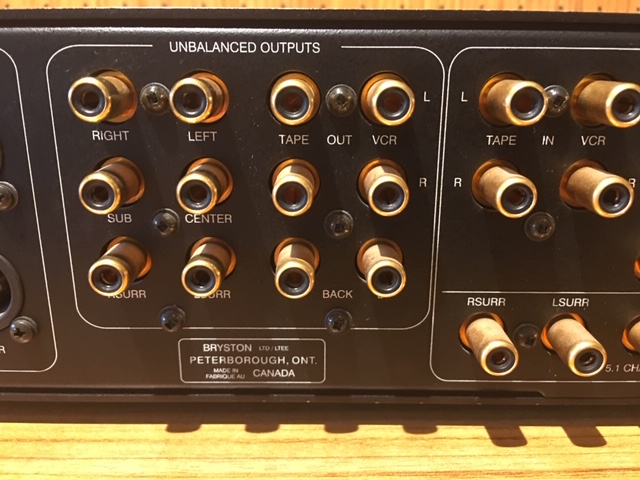

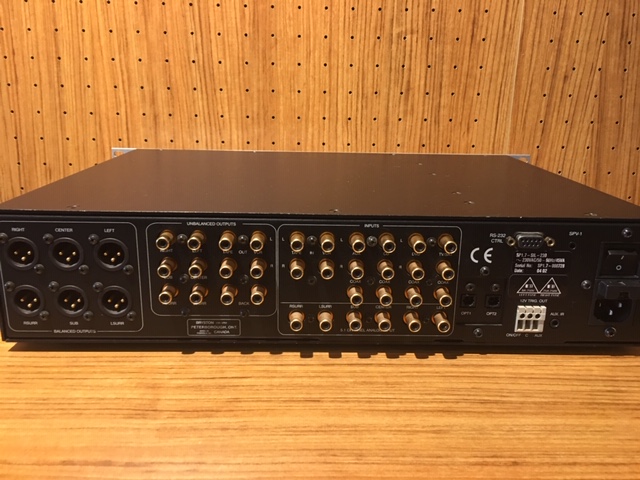

Outputs

Out: 6, Left, Center, Right, Right, Surround Sol Surround and Subwoofer 6 unbalanced

(RCA) and 6 balanced (XLR).

2 stereo (RCA) Recording Pair.

1 double (RCA) Surround Backout

Trigger: One 12 V on/off trigger, one 12 V programmable trigger, total 80 mA source.

Far

30 buttons, Handheld, Infrared remote control unit operates with two AAA batteries (including).

Performance features

A/ D Conversion: 24-Bit, 48kHz Delta-Sigma

D/A Conversion: 24-Bit, 96kHz Delta-Sigma

Reaction: 20Hz - 20kHz +/- 0.25 dB

THD + Noise: Less than 0.006% in DSP modes; At less than 0.0025% in bypass mode, 20Hz -

Maximum output level
20kHz

Signal-Noise Ratio: 105dB in DSP Modes; 110dB in 2ch Bypass Mode; 22kHz bandwidth, Ref. At 1kHz

Maximum output level

Entry Level: 2 Vrms in DSP modes; 4 Vrms

Introduction Impedance: 50kOhms

Output Level: 8 Vrms (16 Vrms Balanced) on DSP M

Sehr sauberes Gehäuse vom ersten Besitzer kann als 10/8 Vorverstärker verwendet werden.

SP1.7 TECHNISCHEFEATURES

Inputs

Digital: 4 koaxial (RCA) 75 Ohm, 2 Optical (TOSLINK?), S/PD
IF Standard

Pro Version 1 AES / EBU eingang (XLR) 110 Ohm

Infrarot: 1 Mini-Telefonbuchse

RS-232: D9-Anschluss (d-weg)

Ausgabes

Out: 6, Left, Center, Right, Surround Sol Surround und Subwoofer 6 unausgeglichen

(RCA) und 6 symmetrisch (XLR).

2 Stereo (RCA) Aufnahmepaar.

1 Double (RCA) Surround Backout

Trigger: Ein 12 V Ein/Aus-Trigger, ein 12 V programmierbarer Trigger, insgesamt 80 mA source.

Far

30 Tasten, Handheld, Infrarot-Fernbedienung arbeitet mit zwei AAA-Batterien (einschließlich).

Leistung s

A/ D Konvertierung: 24-Bit, 48kHz Delta-Sigma

D/A Konvertierung: 24-Bit, 96kHz Delta-Sigma

THD + Rauschen: Weniger als 0.006% in DSP-Modi; Bei weniger als 0,0025% im Bypass-Modus, 20Hz -

Maximaler Ausgangspegel
20kHz

Signal-Noise Ratio: 105dB im DSP-Modus; 110dB im 2-Fach-Bypass-Modus; 22kHz Bandbreite, Ref. Bei 1kHz

maximale Ausgangspegel

Entry Level: 2 Vrms im DSP-Modus; 4 Vrms

Einführungsimpedanz: 50kOhms

Ausgangspegel: 8 Vrms (16 Vrms Balanced) auf DSP M

İlk sahibinden Çok temiz durumda 10/8 preamfi olarak kullanılabilir.

SP1.7 TEKNİK ÖZELLİKLER

Girdiler

Analog Ses: Altı stereo (RCA) çifti, Bir 5.1 kanal (RCA) girişi

Dijital: 4 koaksiyel (RCA) 75 Ohm, 2 Optik (TOSLINK?), S / PDIF standardına uygundur.

Pro sürüm 1 AES / EBU girişi (XLR) 110 Ohm

Kızılötesi: 1 mini telefon jakı

RS-232: D9 konektörü (çift yönlü)

Çıktılar

Analog Çıkışlar: 6, Sol, Orta, Sağ, Sağ Surround, Sol Surround ve Subwoofer'da 6 dengesiz

(RCA) ve 6 dengeli (XLR).

2 stereo (RCA) Kayıt Çifti.

1 çift (RCA) Surround Geri çıkışı

Tetik: Bir adet 12 V açma / kapama tetiği, Bir adet 12 V programlanabilir tetik, toplam 80 mA kaynağa.

Uzak

30 düğme, El Tipi, Kızılötesi uzaktan kumanda ünitesi iki adet AAA pil ile çalışır (dahil).

Performans özellikleri

A / D Dönüşüm: 24-Bit, 48kHz Delta-Sigma

D / A Dönüşüm: 24-Bit, 96kHz Delta-Sigma

DSP Motor: Motorola 56367

Güç Kaynağı: İkili, Doğrusal, Toroidal

Frekans Tepkisi: 20Hz - 20kHz +/- 0.25 dB

THD + Gürültü: DSP modlarında% 0,006'dan az; Baypas modunda% 0.0025'den az 20Hz -

Maksimum çıkış seviyesinde 20kHz.

Sinyal-Gürültü Oranı: DSP Modlarında 105dB; 2ch Bypass Modunda 110dB; 22kHz bant genişliği, Ref. At 1kHz

Maksimum çıktı seviyesi

Giriş Seviyesi: DSP modlarında 2 Vrms; Baypas Modunda 4 Vrms

Giriş Empedansı: 50kOhms

Çıkış Seviyesi: 8 Vrms (16 Vrms Balanced) DSP M'de
