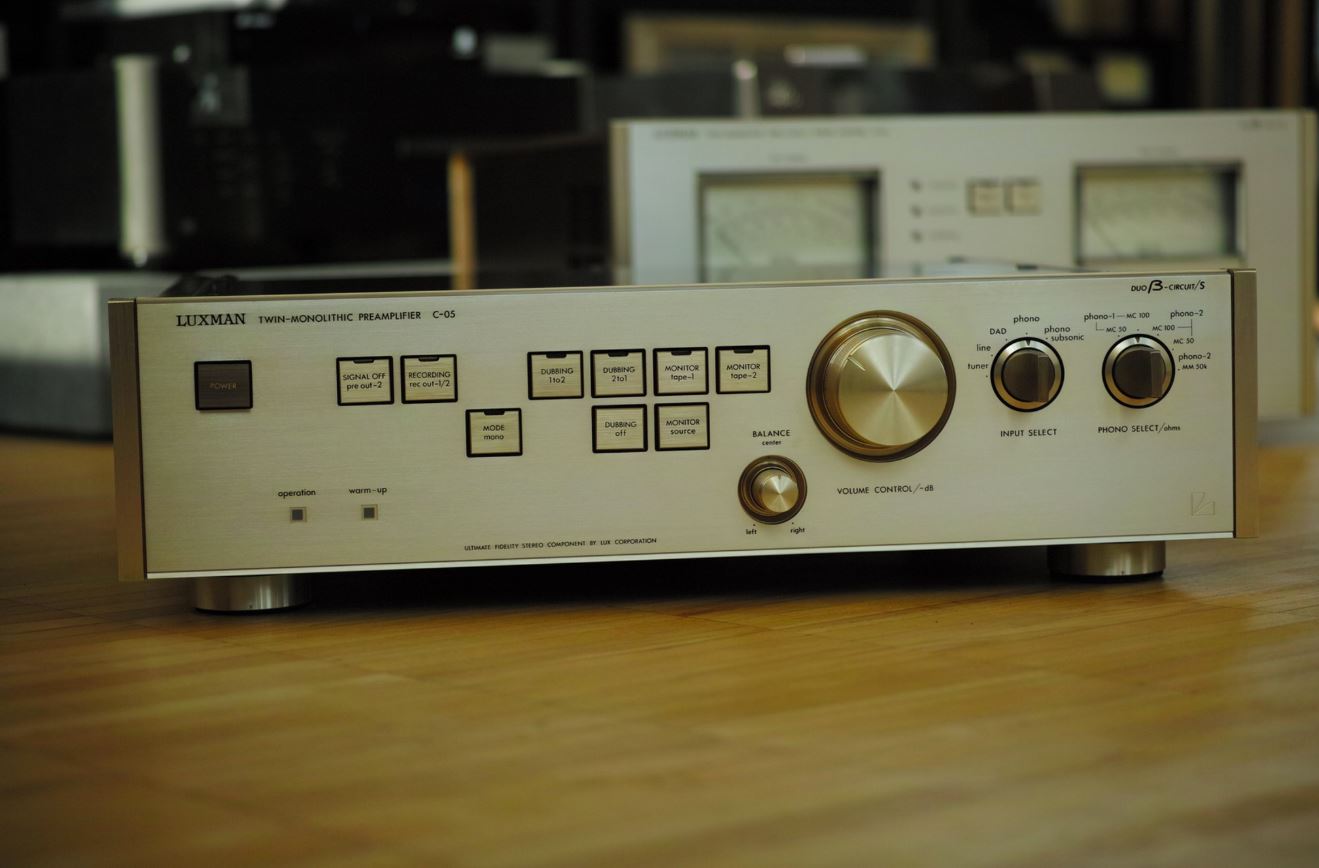

Very nicely preserved C-05 vintage precursor from the good old Luxman era.

Technically tested and fully operational.

Technical data:

ins: Phono MM+MC; Tuner; Tape; CD

Quadro: no

Eing. Sensitivity High Level: 150 mV

Eing. Impedance High Level: 47 k

Frequency response High level: 2-100,000 HZ

noise distance High level: > 110 db

Eing. Sensitivity Phono MM: 2 mV

Eing. Impedance Phono MM: 50 k

frequency response Phono MM: RIAA (-0.5 dB)

Noise distance Phono MM: 90 db

Eing. Sensitivity Phono MC: 0.1 mV

Eing. Impedance Phono MC: 0.1; 0.5 k

noise ratio Phono MC: 80 db

Clirrgrad: 0.005 (Phono MM); 0.01 (Phono MC); 0.002 (Tape/AUX) % at nominal power

output Rec Out: 150 mV

impedance Pre Out: 0.04 k

outputsp. Preverst. Out: 1,500 (max. 1,800) mV

Impedance Recording Out: 0.1 k

2. Physical

Size in inches: 18.1 x 5.1 x 17.4 (W) x (H) x (T)

Size in mm: 460 x 130 x 442 (W) x (H) x (T)

Weight in Pounds: 24.3 lbs

Weight in Kg: 11 Kg

Sehr schön erhaltene C-05 vintage Vorstufe von aus der guten alten Luxman-Zeit.

Technisch geprüft und voll einsatzbereit.

Technische Daten:

Eingänge: Phono MM+MC; Tuner; Tape; CD

Quadro: no

Eing. Empfindlichkeit Hochpegel: 150 mV

Eing. Impedanz Hochpegel: 47 kΩ

Frequenzgang Hochpegel: 2-100,000 (±0.5 dB) HZ

Rauschabstand Hochpegel: > 110 db

Eing. Empfindlichkeit Phono MM: 2 mV

Eing. Impedanz Phono MM: 50 kΩ

Frequenzgang Phono MM: RIAA (±0.5 dB)

Rauschabstand Phono MM: 90 db

Eing. Empfindlichkeit Phono MC: 0.1 mV

Eing. Impedanz Phono MC: 0.1; 0.5 kΩ

Rauschabstand Phono MC: 80 db

Klirrgrad: 0.005 (Phono MM); 0.01 (Phono MC); 0.002 (Tape/AUX) % bei Nennleistung

Ausgangssp. Rec Out: 150 mV

Impedanz Pre Out: 0.04 kΩ

Ausgangssp. Vorverst. Out: 1,500 (max. 1,800) mV

Impedanz Aufnahme Out: 0.1 kΩ

2. Physical

Größe in Zoll: 18.1 x 5.1 x 17.4 (B) x (H) x (T)

Größe in mm: 460 x 130 x 442 (B) x (H) x (T)

Gewicht in Pfund: 24.3 lbs

Gewicht in Kg: 11 Kg

Çok güzel iyi eski Luxman döneminden C-05 vintage öncüsü korunmuş.

Teknik olarak test edilmiş ve tam olarak çalışır durumda.

Teknik veriler:

ins: Phono MM+MC; Tuner; Bant; CD

Quadro: hayır

Eing. Duyarlılık Yüksek Seviye: 150 mV

Eing. Empedans Yüksek Seviye: 47 k

Frekans tepkisi Yüksek seviye: 2-100.000 HZ

gürültü mesafesi Yüksek seviye: > 110 db

Eing. Hassasiyet Phono MM: 2 mV

Eing. Empedans Phono MM: 50 k

frekans yanıtı Phono MM: RIAA (-0.5 dB)

Gürültü mesafesi Phono MM: 90 db

Eing. Hassasiyet Phono MC: 0.1 mV

Eing. Empedans Phono MC: 0.1; 0.5 k

gürültü oranı Phono MC: 80 db

Clirrgrad: 0.005 (Phono MM); 0.01 (Phono MC); 0.002 (Tape/AUX) % nominal güç

çıkış Rec Out: 150 mV

empedan öncesi: 0.04 k

outputsp. Preverst, ne kadar önemli. Çıkan: 1.500 (maks. 1.800) mV

Impedance Recording Out: 0.1 k

2. Fiziksel

Boyut inç: 18.1 x 5.1 x 17.4 (W) x (H) x (T)mm

Boyut: 460 x 130 x 442 (W) x (H) x (T) x (T)

Ağırlık: 24.3 lbs

Ağırlık: 11 Kg
