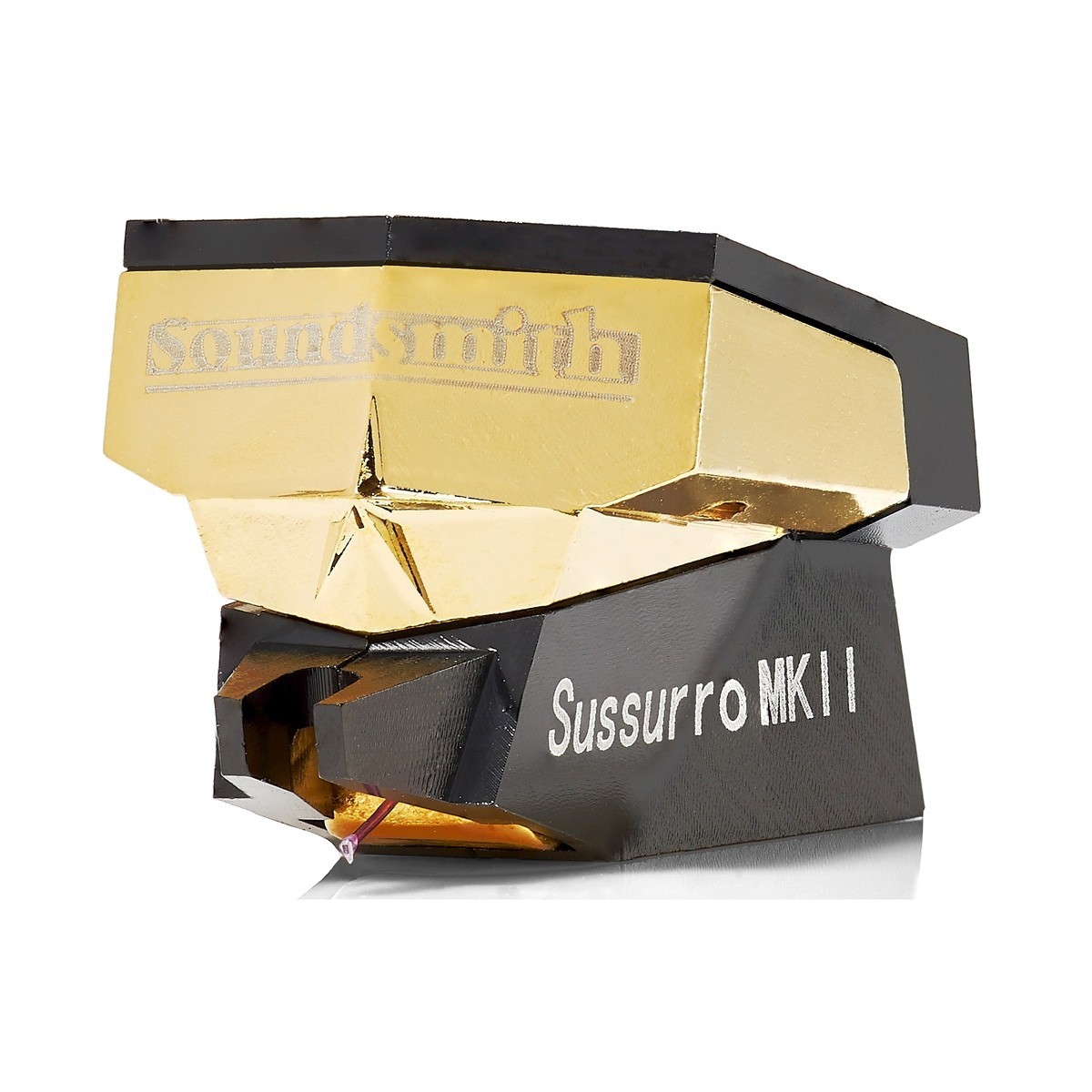

Sound Smith Sussuro MKII ES
Soundsmith Sussuro MKII ES Stoklarda
Posted On
30.09.2019Last Update On
30.09.2019
Description
Original Description is in
Turkish, other language texts are translations and can contain errors.
EnglishDeutschTurkish
Sound Smith Sussuro MKII ES - You can contact us for information and price.
American-produced Sussuro MKII offers you a 2-year warranty and a budget as low as USD 650 for the retype.
Sussurro is a head with critical design decisions. The lowest internal mass makes it unbeatable by the best damping, esoteric stylus and cantilever. You need to stay in constant contact with your plaques and the appropriate pickup head has been produced.
Designed by Peter Ledermann and hand-held, Soundsmith's Sussurro deals with the most complex and critical issues of cartridge design with care is a cartridge designed by taking.
The new MKII Sussurro ES is a redesigned moving element to reduce the moving mass by 70%; equipped with extremely low-stored energy and the new MKII dampening system. An innovative energy distribution path has been designed to effectively transfer mechanical energy through the cartridge body from the tip of the needle.
Lower Jitter (navigation), Jitter ? You probably thought it was a term reserved for digital systems. It's not really like that. Stylus jitter is the main cause of the loss of detail and loss in the sound of many cartridges. Sussurro remains in constant contact with the marks on the plaque surface. If you're not constantly in touch, you won't be able to hear the ones that have already been recorded.

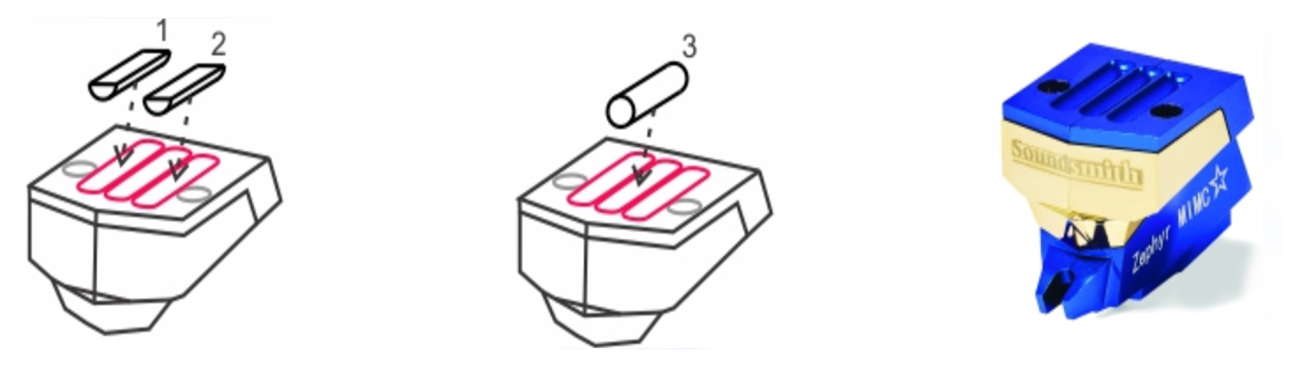

New ES Series DEMS design
We will also explain the details of the innovative DEMS design, but briefly with this innovative design, The possibility of azimuth adjustment, ground loop, even if your arm does not allow it, has been specially designed for solving ground loop problems, special structure and a structure that dampens the energy accumulated on the needle called analog jitter.
Type: | • Fixed Coil / Moving Iron |
Mount: | • Standard ½” |
Stylus: | • Contact Line, Nude, 0.10 mm square |
Radius of Curvature: | • Optimized Contour Contact Line SELECTED |
Cantilever: | • Ruby |
Recommended Tracking Force: | • 1.8 - 2.2 g |
Effective Tip Mass: | • 0.30 mg |
Compliance: | • 10 µm/mN |
Frequence Response: | • 20 - 20,000 Hz ± 1.0 dB |
Channel Separation @ 1000 Hz: | • > 34 dB • N/A (Mono version) |
Channel Separation @ 50 - 15,000 Hz: | • > 25 dB • N/A (Mono version) |
Channel Difference: | • < 0.5 dB • < 1.0 dB (Mono version) |
Output Voltage @ 5cm/sec: | • > 0.40 mV (LOW) |
DC Resistance (DCR): | • 10Ω |
Coil Inductance per channel: | • 2.75 mH |
Suggested Preamp Gain: | • 58 - 64 dB |
Cartridge Weight: | • 12.2 g (ES series) |
Recommended Load Resistance: | • ≥ 470Ω |
Sound Smith Sussuro MKII ES - Sie können uns für Informationen und Preis kontaktieren. Die us-amerikanische Sussuro MKII bietet Ihnen eine 2-Jahres-Garantie und ein Budget ab 650 US-Dollar für die Retype.Sussurro ist ein Kopf mit kritischen Designentscheidungen. Die niedrigste innere Masse macht es unschlagbar durch die beste Dämpfung, esoterischen Stift und Ausleger. Sie müssen in ständigem Kontakt mit Ihren Plaques bleiben und der entsprechende Abholkopf wurde hergestellt. Die von Peter Ledermann entworfene und handgehaltene Soundsmith es Sussurro behandelt die komplexesten und kritischsten Fragen des Patronendesigns mit Sorgfalt. ist eine Patrone, die von taking. Der neue MKII Sussurro ES ist ein neu gestaltetes bewegliches Element, um die bewegliche Masse um 70% zu reduzieren; ausgestattet mit extrem speicherarmer Energie und dem neuen MKII-Dämpfungssystem. Ein innovativer Energieverteilungspfad wurde entwickelt, um mechanische Energie effektiv von der Nadelspitze durch den Kartuschenkörper zu übertragen.Lower Jitter (Navigation), Jitter ? Sie dachten wahrscheinlich, es sei ein Begriff, der digitalen Systemen vorbehalten ist. Es ist nicht wirklich so. Stylus Jitter ist die Hauptursache für den Verlust von Details und Verlust im Klang vieler Patronen. Sussurro bleibt in ständigem Kontakt mit den Markierungen auf der Plaqueoberfläche. Wenn Sie nicht ständig in Kontakt sind, werden Sie nicht in der Lage sein, die bereits aufgezeichneten zu hören.Neues DEMS-Design der ES-SerieWir werden auch die Details des innovativen DEMS-Designs erläutern, aber kurz mit diesem innovativen Design, Die Möglichkeit der Azimutverstellung, Erdungsschleife, auch wenn Ihr Arm es nicht zulässt, wurde speziell für die Lösung von Bodenschleifenproblemen, spezielle Struktur und eine Struktur entwickelt, die die auf der Nadel angesammelte Energie dämpft, die als analoger Jitter bezeichnet wird. Type: | • Fixed Coil / Moving Iron |
Mount: | • Standard ½” |
Stylus: | • Contact Line, Nude, 0.10 mm square |
Radius of Curvature: | • Optimized Contour Contact Line SELECTED |
Cantilever: | • Ruby |
Recommended Tracking Force: | • 1.8 - 2.2 g |
Effective Tip Mass: | • 0.30 mg |
Compliance: | • 10 µm/mN |
Frequence Response: | • 20 - 20,000 Hz ± 1.0 dB |
Channel Separation @ 1000 Hz: | • > 34 dB • N/A (Mono version) |
Channel Separation @ 50 - 15,000 Hz: | • > 25 dB • N/A (Mono version) |
Channel Difference: | • < 0.5 dB • < 1.0 dB (Mono version) |
Output Voltage @ 5cm/sec: | • > 0.40 mV (LOW) |
DC Resistance (DCR): | • 10Ω |
Coil Inductance per channel: | • 2.75 mH |
Suggested Preamp Gain: | • 58 - 64 dB |
Cartridge Weight: | • 12.2 g (ES series) |
Recommended Load Resistance: | • ≥ 470Ω |
Sound Smith Sussuro MKII ES - Bilgi ve fiyat için bize ulaşabilirsiniz.
Amerikan üretimi olan Sussuro MKII size 2 sene garanti ve retip için 650 usd gibi düşük bir bütçeyle yenileme imkanı sunuyor.
Sussurro kritik tasarım kararları üretilmiş bir kafadır. En düşük iç kütle en iyi sönümleme, esoterik stylus ve cantilever onu rakipsiz kılar. Plaklarınızla sabit temas halinde kalmanız gerekiyor ve buna uygun pikap kafası üretildi.
Frank Schröder'den esinlenen ve Peter Ledermann tarafından tasarlanan ve tek tek elde yapılan Soundsmith'in Sussurro, kartuş tasarımının en karmaşık ve kritik meselelerini özenle ele alarak tasarlanmış bir kartuştur.
Yeni MKII Sussurro ES, hareketli kütlesi % 70 oranında azaltmak için yeniden tasarlanmış hareketli elemanı; son derece düşük depolanmış enerji ve yeni MKII sönümleme sistemi ile donatılmıştır. İğne ucundan kartuş gövdesi boyunca mekanik enerjiyi etkili bir şekilde aktarmak için yenilikçi bir enerji dağıtım yolu dizayn edilmiştir.
Daha düşük Jitter ( seyirme ), Jitter ? Muhtemelen bunun dijital sistemler için ayrılmış bir terim olduğunu düşünüyordunuz. Aslında öyle değildir. Stylus jitter, ayrıntıların kaybolmasından ve birçok kartuşun sesinde duyulan kayıplı sesin ana nedenidir. Sussurro plak yüzeyindeki izlerle sürekli temas halinde kalır. Sürekli olarak iletişim halinde değilseniz, zaten gerçekten kaydedilmiş olanları duyamazsınız.
Yeni ES Serisi DEMS tasarımı
Yenilikçi DEMS tasarımı detaylarını ayrıca anlatacağız ancak kısaca bu yenilikçi tasarım ile, kolunuz izin vermese bile azimut ayarı imkanı, topraklama ( ground loop ) sorunlarını çözmek için özel yapı ve analog jitter denen iğne üstünde biriken enerjiyi sönümleyen bir yapıda özel olarak dizayn edilmiştir.
Type: | • Fixed Coil / Moving Iron |
Mount: | • Standard ½” |
Stylus: | • Contact Line, Nude, 0.10 mm square |
Radius of Curvature: | • Optimized Contour Contact Line SELECTED |
Cantilever: | • Ruby |
Recommended Tracking Force: | • 1.8 - 2.2 g |
Effective Tip Mass: | • 0.30 mg |
Compliance: | • 10 µm/mN |
Frequence Response: | • 20 - 20,000 Hz ± 1.0 dB |
Channel Separation @ 1000 Hz: | • > 34 dB • N/A (Mono version) |
Channel Separation @ 50 - 15,000 Hz: | • > 25 dB • N/A (Mono version) |
Channel Difference: | • < 0.5 dB • < 1.0 dB (Mono version) |
Output Voltage @ 5cm/sec: | • > 0.40 mV (LOW) |
DC Resistance (DCR): | • 10Ω |
Coil Inductance per channel: | • 2.75 mH |
Suggested Preamp Gain: | • 58 - 64 dB |
Cartridge Weight: | • 12.2 g (ES series) |
Recommended Load Resistance: | • ≥ 470Ω |
