ARTESANIA AUDIO RACK
Artesania RACK
Posted On
4.11.2019Last Update On
4.11.2019
Description
Original Description is in
English, other language texts are translations and can contain errors.
EnglishDeutschTurkish
ARTESANIA EXOTERYC RACK
PLATFORM

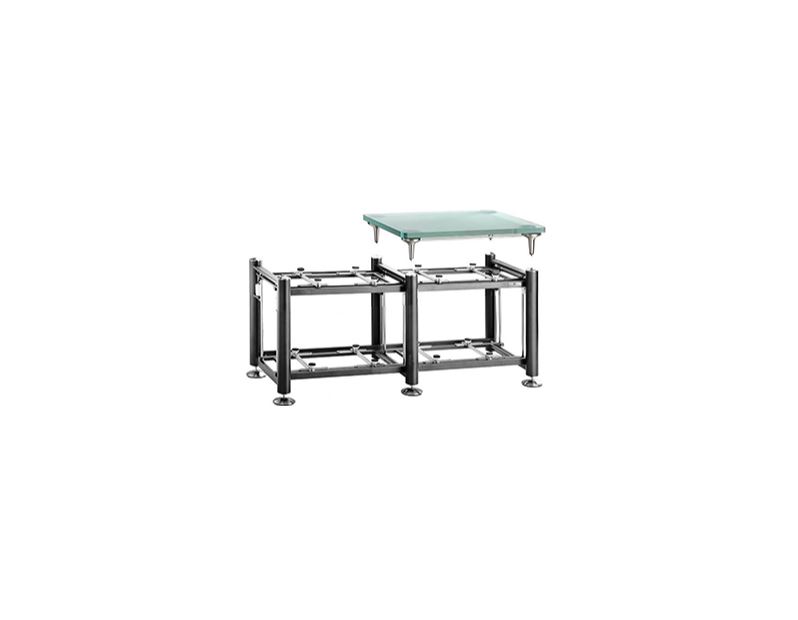

A stainless steel, anti-magnetic structure supports a specially treated base to set up a turntable or other components. Different versions and materials are available. Check accessories brochure.
STAINLESS STEEL TOP ATTACHMENTS ON RACK UPRIGHTS
Each top is made with conical recess to support the spikes of the turntable platform.
EXTERNAL STRUCTURE
It ́s made of metal filled with special particles and elastomers. The uprights have a diameter of 60 mm. These factors create a rack heavy, resistant and stable. The resonance coefficient of the structure is significantly lowered. The paint used is textured for diffusion purposes.
INTERNAL SUSPENDED STRUCTURE
Isolated from external structure. Eliminates vibrations that are transmitted from solid and acoustic sources through the creation of decouples;
steel needles supported on isolating discs. These provide extra tiers of anti- resonant protection. This suspended audio rack has a triple decoupling.

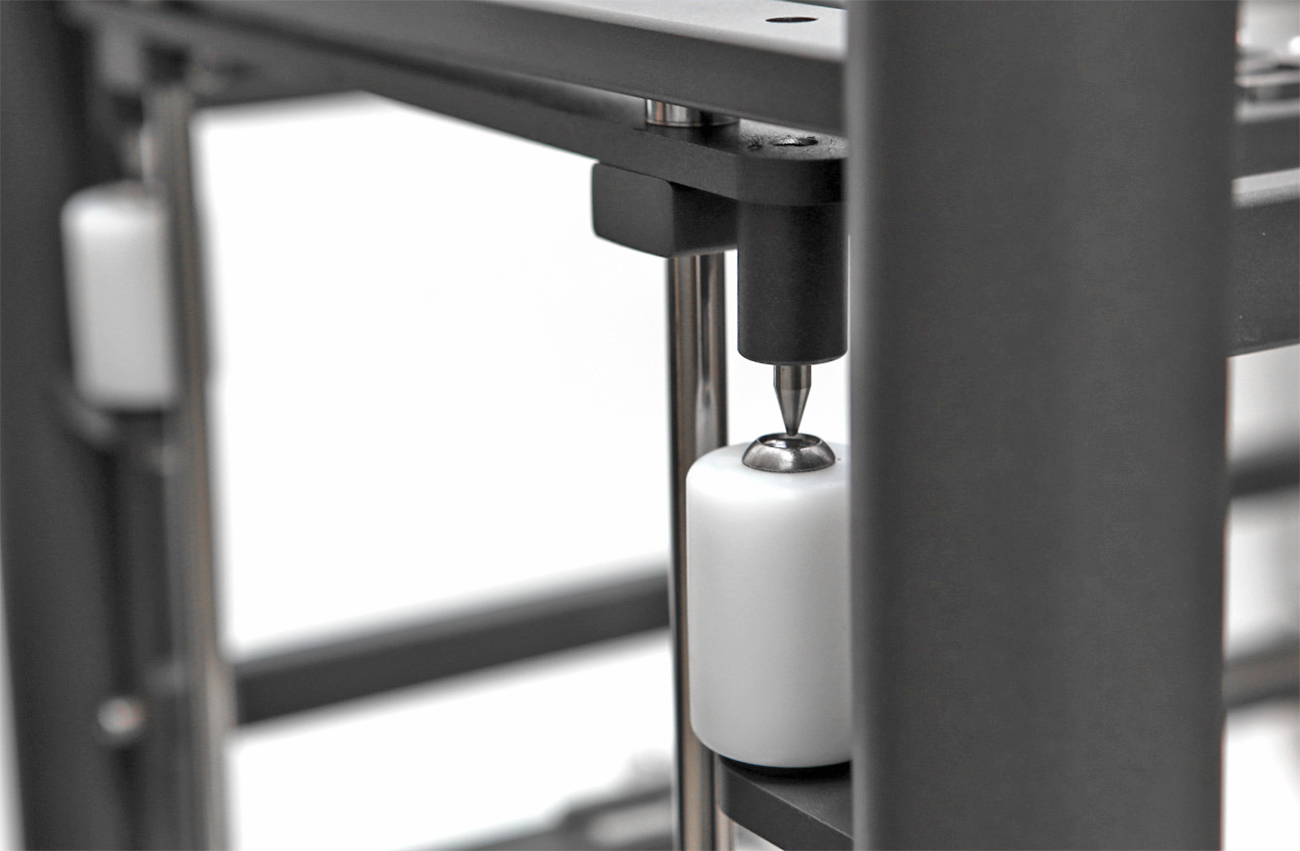

TEFLON CILINDERS
Support the internal structure and isolates from the external structure. (Diameter 38 mm)

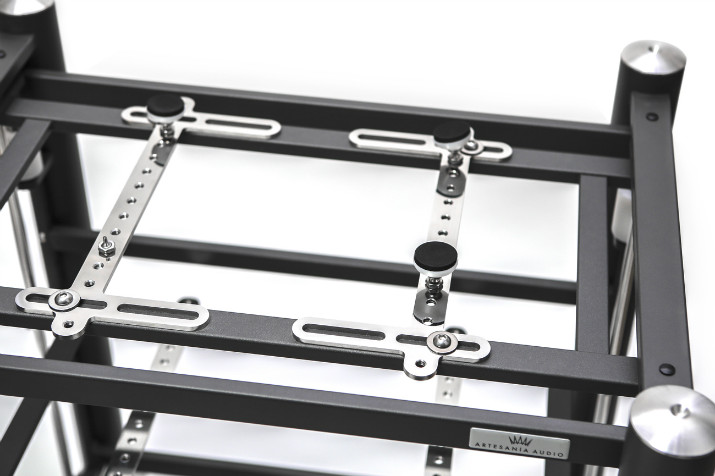

LINEAR ARMS
Arms made from anti-magnetic stainless steel. The arms hold adjustable spikes (can be located in different positions) also support isolating discs and damping pads. Total flexibility in different positions and easy to change. This system allows to set up the best support position to place electronic components.

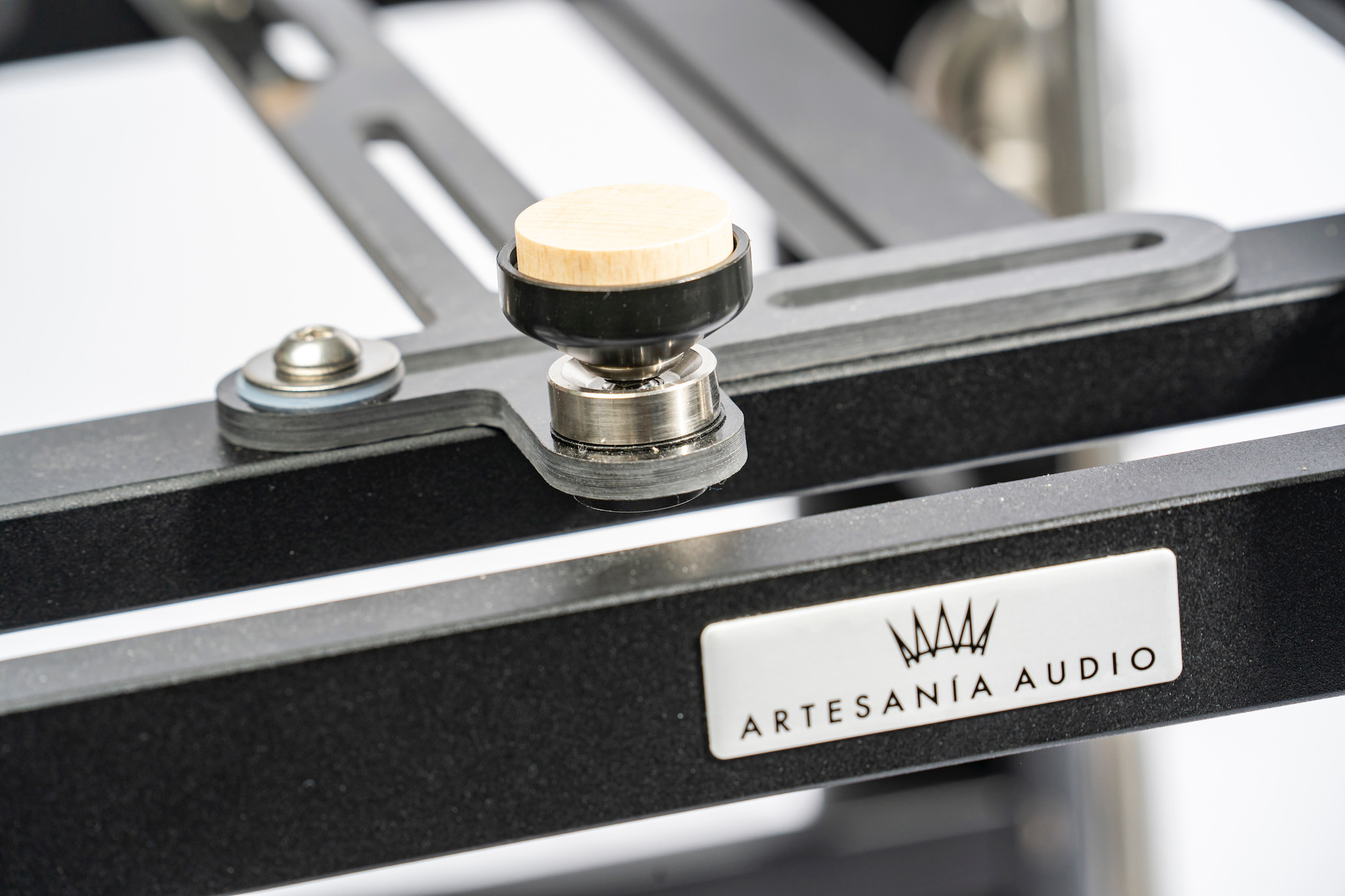

ISOLATION DISCS
Support each of the electronic components (without any need for shelves). Easy installation facilitated by an elastic insert which provides stability to place electronic components on the adjustable spikes.
Finish
Gunmetal is the standard color. For black or silver, there is a 10% up charge.
TECHNICAL SPECIFICATIONS:
Rack Weight - 62Kg
Internal Structure Weight Supported - 200 KG
Total height - 98 cm / 38,58”
Internal distance between legs - 55 cm / 21,65”
External distance between legs - 67 cm / 26,3"
Total depth - 52,5 cm / 20,66“
Net space between tiers - 63 cm / 24,80”
Platform Weight Supported - Treated Glass 150KG
Support Stand (including 3 mass Dampers)
ARTESANIA EXOTERYC RACK
PLATFORM
Eine antimagnetische Struktur aus Edelstahl unterstützt eine speziell behandelte Basis, um einen Plattenspieler oder andere Komponenten aufzustellen. Verschiedene Versionen und Materialien sind verfügbar. Broschüre für Zubehör prüfen.
STAINLESS STEEL TOP ATTACHMENTS ON RACK UPRIGHTS
Jedes Oberteil ist mit konischer Aussparung zur Unterstützung der Spitzen der Plattenspielerplattform.
EXTERNAL STRUCTURE
Es besteht aus Metall, gefüllt mit speziellen Partikeln und Elastomeren. Die Aufrechte haben einen Durchmesser von 60 mm. Diese Faktoren erzeugen ein Rack schwer, widerstandsfähig und stabil. Der Resonanzkoeffizient der Struktur wird deutlich abgesenkt. Die verwendete Farbe ist für Diffusionszwecke strukturiert.
INTERNAL SUSPENDED STRUCTURE
Isoliert von der äußeren Struktur. Eliminiert Schwingungen, die durch die Bildung von Entkoppeln von festen und akustischen Quellen übertragen werden;
Stahlnadeln, die auf Isolierscheiben unterstützt werden. Diese bieten zusätzliche Stufen des Anti-Resonanz-Schutzes. Dieser aufgehängte Audio-Rack hat eine dreifache Entkopplung.
TEFLON CILINDERS
Unterstützen Sie die interne Struktur und isoliert sich von der externen Struktur. (Durchmesser 38 mm)
LINEAR ARMS
Arme aus antimagnetischem Edelstahl. Die Arme halten verstellbare Spikes (kann in verschiedenen Positionen positioniert werden) unterstützen auch Isolierscheiben und Dämpfungspads. Totale Flexibilität in verschiedenen Positionen und leicht zu wechseln. Dieses System ermöglicht es, die beste Stützposition für die Platzierung elektronischer Komponenten einzurichten.
ISOLATION DISCS
Unterstützen Sie jede der elektronischen Komponenten (ohne Regale). Einfache Montage durch einen elastischen Einsatz, der Stabilität bietet, um elektronische Komponenten auf den verstellbaren Spikes zu platzieren.
Finish
Gunmetal ist die Standardfarbe. Für Schwarz oder Silber gibt es eine 10% mehr Gebühr.
TECHNISCHE SPEZIFIKATIONEN:
Rack Gewicht - 62kg
Interne StrukturGewicht unterstützt - 200 KG
Gesamthöhe - 98 cm / 38,58"
Innenabstand zwischen den Beinen - 55 cm / 21,65"
Außenabstand zwischen den Beinen - 67 cm / 26,3"
Gesamttiefe - 52,5 cm / 20,66"
Netzraum zwischen den Stufen - 63 cm / 24,80"
Platform Weight Supported - Behandeltes Glas150KG
SupportStand (einschließlich 3 Massendämpfer)
ARTESANIA EXOTERYC RACK
PLATFORM
Paslanmaz çelik, anti-manyetik yapı, bir pikap veya diğer bileşenler kurmak için özel olarak işlenmiş bir tabanı destekler. Farklı versiyonları ve malzemeleri mevcuttur. Aksesuar broşürlerini kontrol edin.
PASLANMAZ ÇELİk ÜST EKLİKLERI RACK UPRIGHTS
Her üst, pikap platformunun ani artışlarını desteklemek için konik teneffüsle yapılır.
EXTERNAL STRUCTURE
Özel parçacıklar ve elastomerlerle dolu metalden yapılmıştır. Dik liklerin çapı 60 mm'dir. Bu faktörler ağır, dayanıklı ve kararlı bir raf oluşturur. Yapının rezonans katsayısı önemli ölçüde düşürülrılır. Kullanılan boya difüzyon amaçlı dokuludur.
İç ASKıda YAPI
Dış yapıdan izole edilmiştir. Katı ve akustik kaynaklardan aktarılan titreşimleri decouples'in oluşturulması yoluyla ortadan kaldırır
diskleri izole etmede desteklenen çelik iğneler. Bunlar ekstra anti-rezonans koruması katmanları sağlar. Bu askıda ses rafı üçlü ayrışma vardır.
TEFLON CILINDERS
İç yapıyı destekleyin ve dış yapıdan izole eder. (Çap 38 mm)
LINEAR ARMS
Antimanyetik paslanmaz çelikten yapılmış kollar. Kollar ayarlanabilir sivri tutun (farklı konumlarda bulunabilir) ayrıca diskleri ve sönümleme pedleri izole destekler. Farklı pozisyonlarda toplam esneklik ve değiştirilmesi kolay. Bu sistem, elektronik bileşenleri yerleştirmek için en iyi destek konumunu ayarlamanızı sağlar.
ISOLATION DISCS
Elektronik bileşenlerin her birini (raflara gerek kalmadan) destekleyin. Elektronik bileşenlerin ayarlanabilir çivilere yerleştirilmesi için stabilite sağlayan elastik bir kesici uç tarafından kolaylaştırılmış kolay kurulum.
Finish
Gunmetal standart renktir. Siyah veya gümüş için %10'luk bir şarj vardır.
TEKNİk ÖZELLİkLER:
Raf Ağırlığı - 62Kg
İç Yapı Ağırlığı Destekli - 200 KG
Toplam yükseklik - 98 cm / 38,58"
Bacaklar arası iç mesafe - 55 cm / 21,65"
Bacaklar arasındaki dış mesafe - 67 cm / 26,3"
Toplam derinlik - 52,5 cm / 20,66"
Tiers arasında Net boşluk - 63 cm / 24,80"
Platform Ağırlık Destekli - Tedavi Cam 150KG
Destek Standı (3 kütle Amortisör dahil)
