Çok temiz durumda 2 yıl önce alındı. kutuları ve kullanma kılavuzu mevcut.

SPDIF inputs 2 x Toslink, RCA & XLR inputs

Resolution up to 24 bit, sampling rate up to 192 kHz

2 x SC947-02LF input transformer

WM8805 demodulator

USB input USB 2.0 High Speed, Class 2 compatible, asynchronous

PCM resolution up to 32 bit

sampling rate up to 384 kHz

DSD 2.8MHz, 5.6MHz

On-board two low-jitter oscillators

Internal power

Ethernet input (optional) UPnPTM AV 2.0 / DLNA

Plays and decode common audio formats from HTTP streams

Resolution up to 24 bit, sampling rate up to 192 kHz

Support for DSD audio 2.8 MHz, 5.6 MHz

Bit-perfect data transmission

2-channel asynchronous endpoint for jitter-free stereo playback

Support for gapless playback

Supported Audio File Formats:

Compressed Audio: MP3, AAC

Lossless formats in PCM: FLAC, ALAC, WAV, AIFF

Lossless formats in DSD: DSF, DIFF

On-board low-jitter oscillators

SPDIF output RCA

Resolution up to 24 bit, sampling rate up to 192 kHz

Feed

60,000 µF chemical capacitor

Polypropylene capacitor

3 x 220µF 250V

(if ethernet option 4 x 220 µF 250 V)

Converter

Reference DAC AKM4495

Digital filter Standard and Short Delay

Reply filter Sharp and Slow Roll Off

32-bit resolution filter

PCM converter Resolution 32 bits, sampling rate up to 384 kHz

DSD converter 2.8 MHz , 5.6 MHz Native

Master clock 0.3 ps

Analog stage

Analog outputs RCA unbalanced 2.8 Vrms

XLR balanced 5.6 Vrms

Passive Analog Filter ''LRC''

Discrete components

Feed

405,000 μF chemical capacitor

4000µF Organic Capacitor

Polypropylene capacitor 2 x 220 µF 250 V

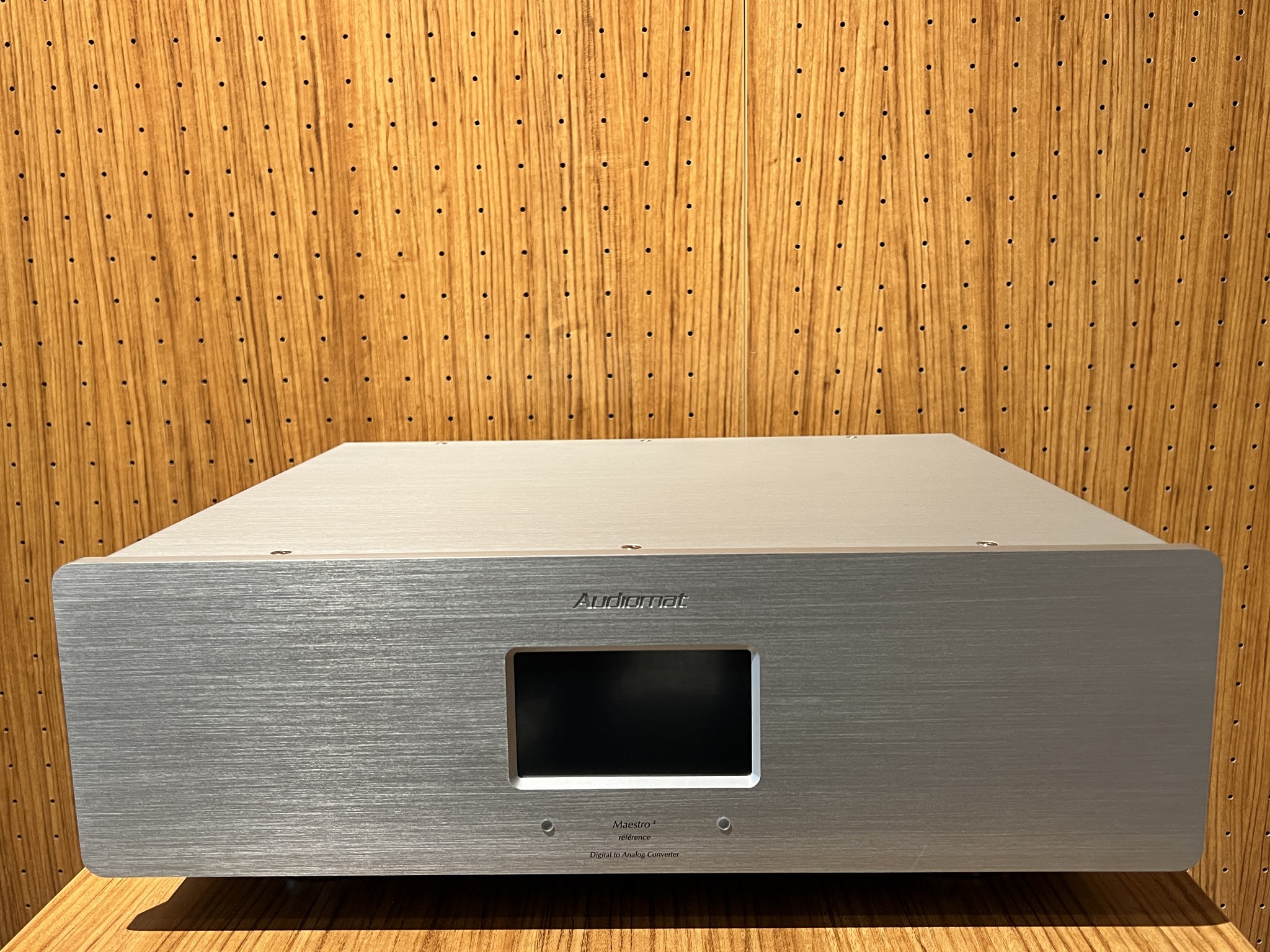

Converter box

Type Aluminum (thickness 3mm)

Dimensions (in mm) 445 x 345 x 130

Weight 11kg

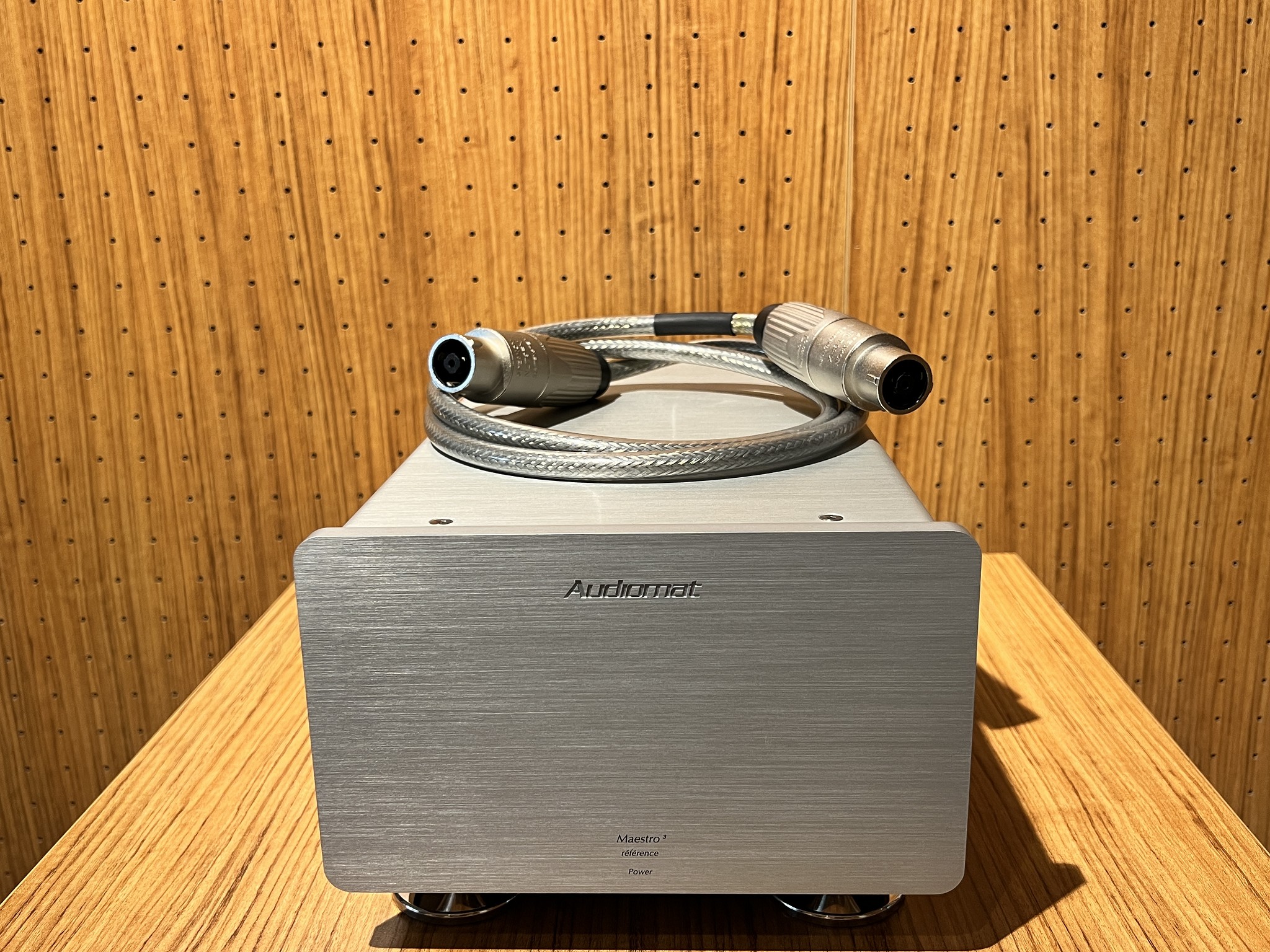

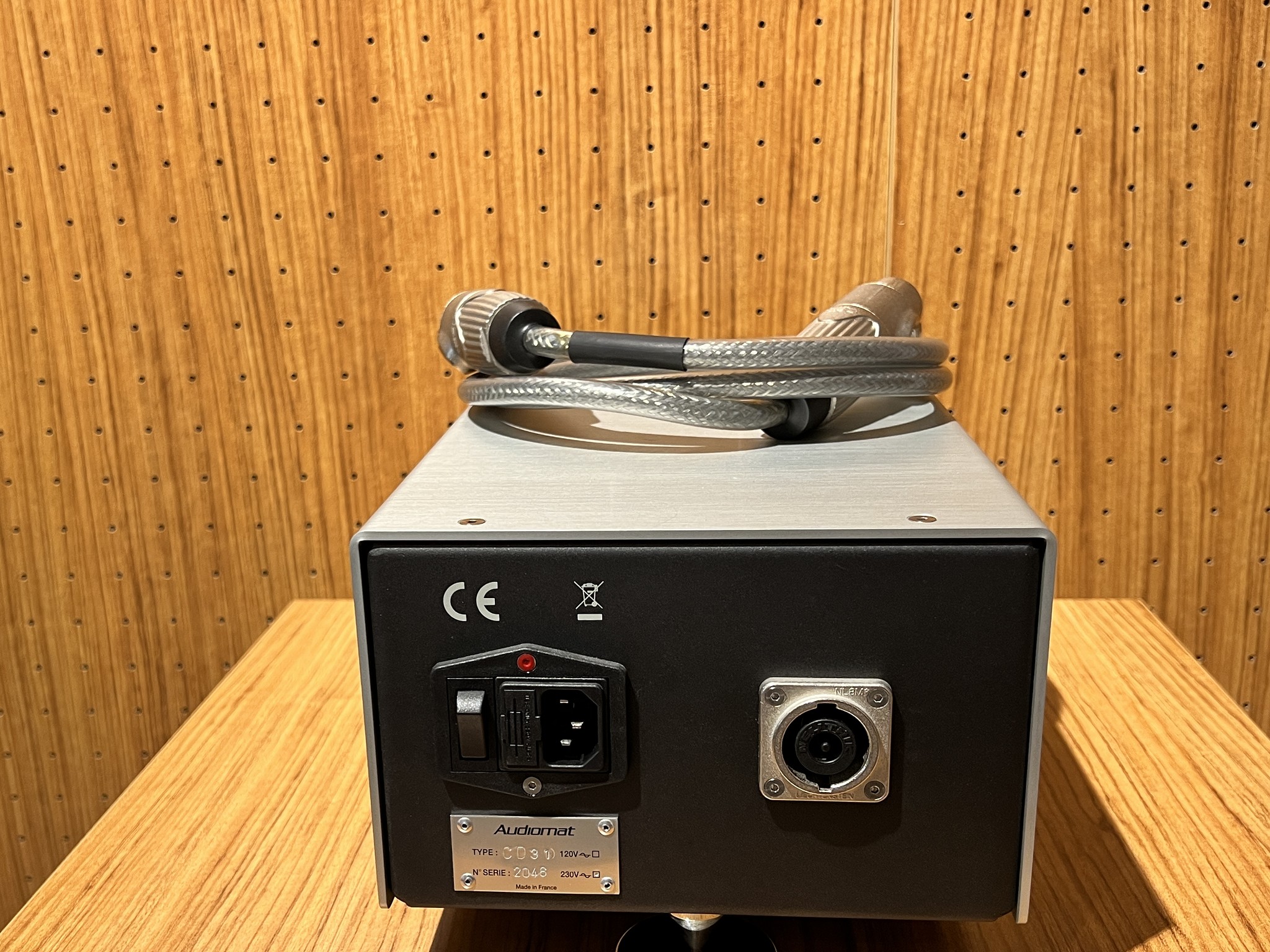

Separate power box

Dimensions (in mm) 150 x 220 x 360

Inter-box cable 8 x 2.5 mm² shielded

Low induction transformers 2x 350 VA

Power supply weight 11 kg
