Aesthetix Calypso Eclipse
Aesthetix Calypso Eclipse
Posted On
26.11.2019Last Update On
26.11.2019
Description
Original Description is in
English, other language texts are translations and can contain errors.
EnglishDeutschTurkish

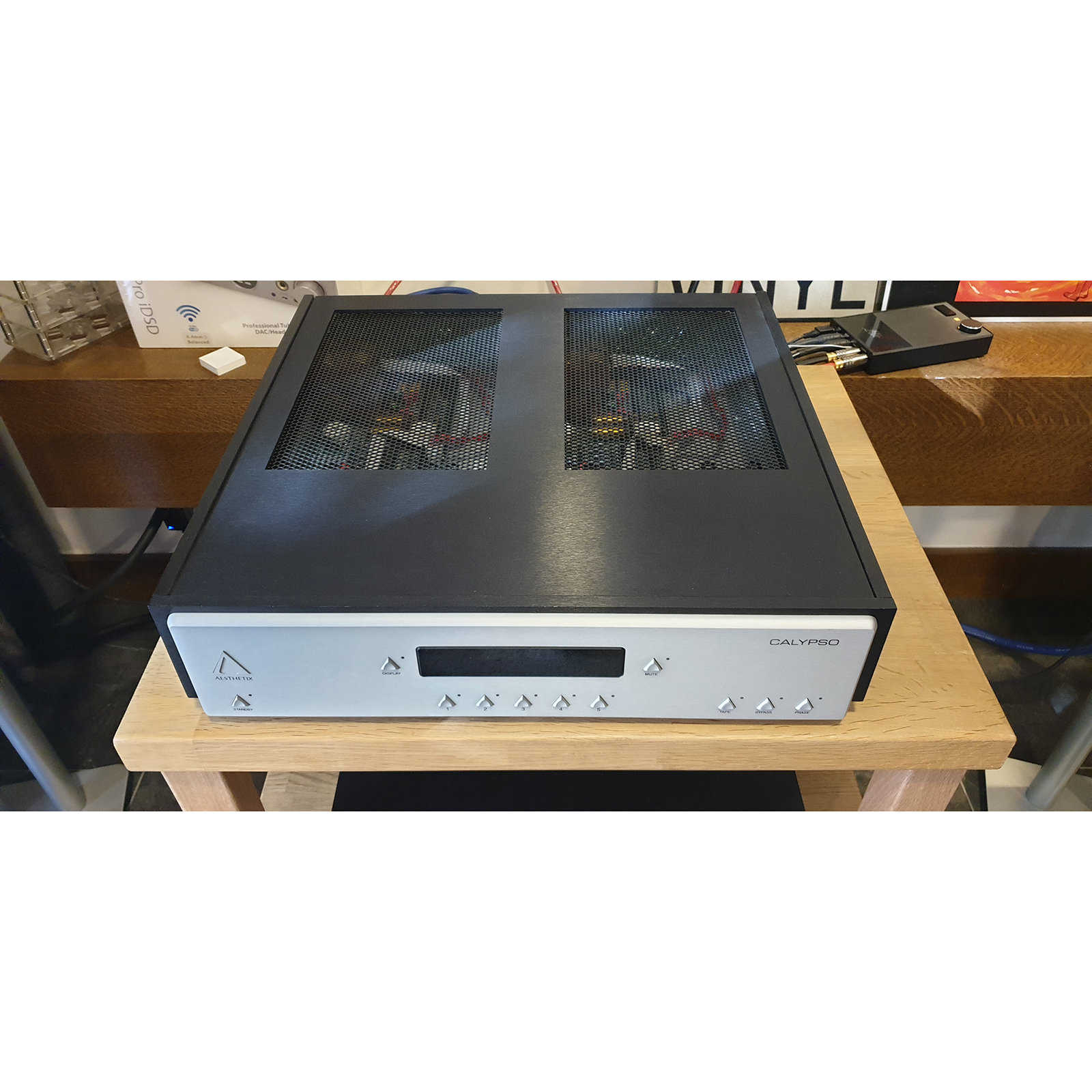

Aesthetix Calypso Eclipse - Distributor Demo 1,5 Years OldBrand New Tubes Spare Tubes
List Price 13.000 Euro
NEW CALYPSO ECLIPSE

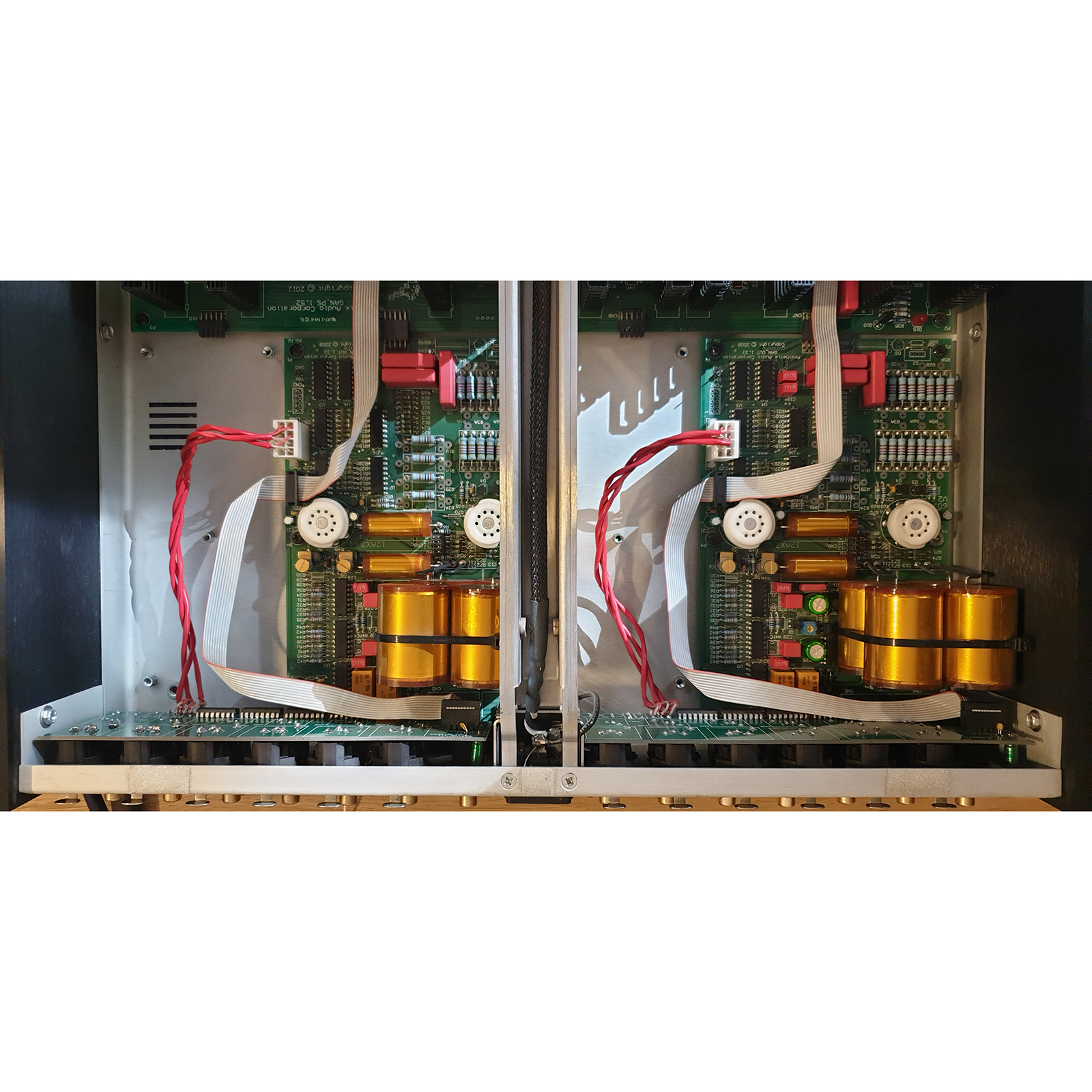

First phase: Internal changes to the Calypso start with .22uF / 600v Stealth coupling capacitors used between the gain stage and output stage. Four total of these exotic capacitors are used.
There are four 2uF / 400v coupling capacitors used in each channel of the output stage of the Calypso. In the Eclipse version, these are replaced with Stealth copper foil 4uF/400v, improving low frequency response.
Second phase: High frequency tuning capacitors are installed and hand-adjusted to tailor the frequency response to a tight .1dB standard (as also found on our Signature version).
Third phase: The high voltage transformer, heater transformer and high voltage choke are all re-installed on isolation mounts. Harmonic Resolutions Systems' Nimbus Couplers specially made for Aesthetix replace the four rubber feet of standard units (as also found on our Signature version). The new power supply is installed with enhanced ventilation. Additional damping material is added to key chassis points.

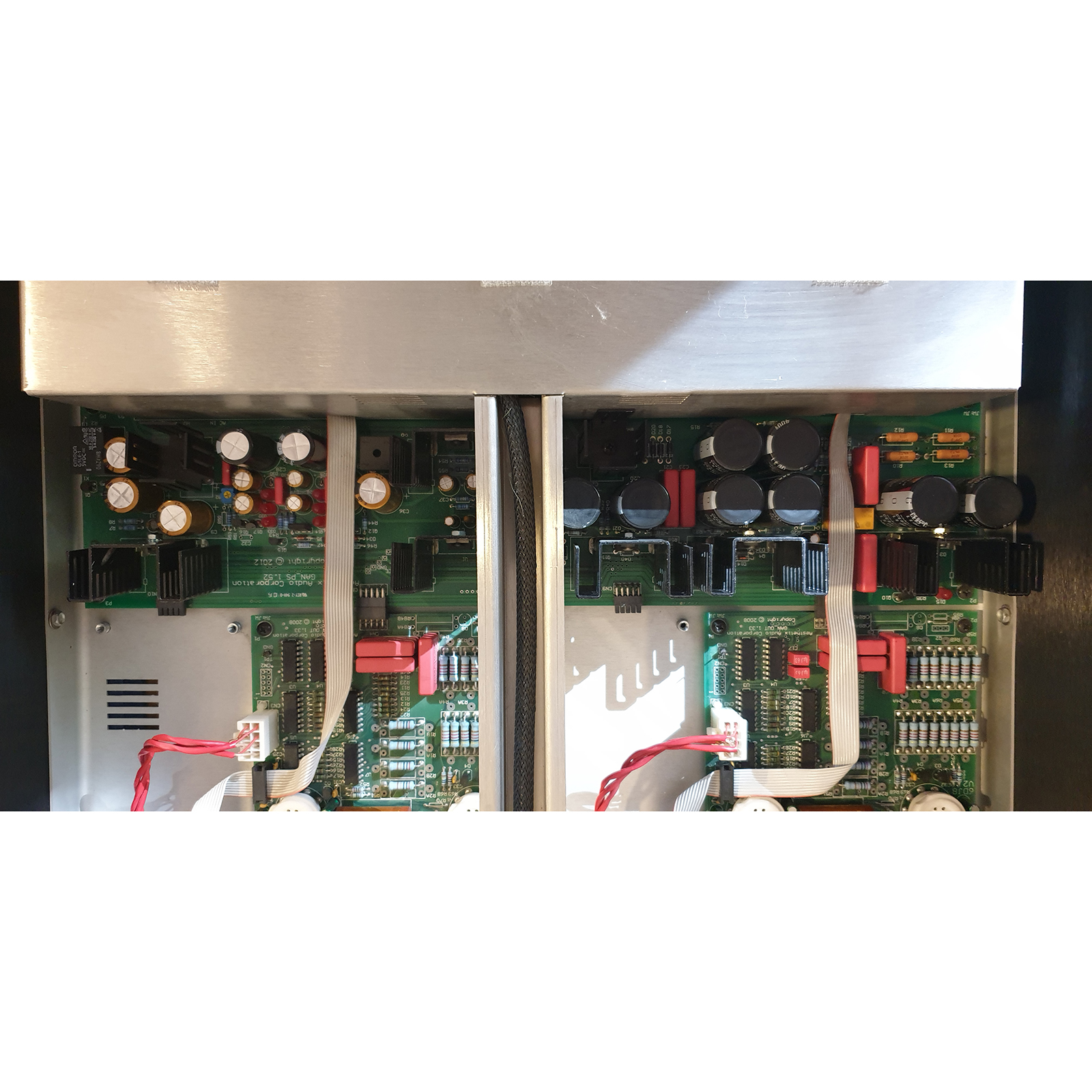

Fourth phase: A single point ground system is used to ground the transformer cases as they are no longer electrically grounded to the chassis via physical contact due to their isolation mounts. All Eclipse Rhea, Calypso and Janus units receive a new power supply, which has been refined by improved trace routing to further reduce extraneous noise.
CALYPSO SPECIFICATIONS

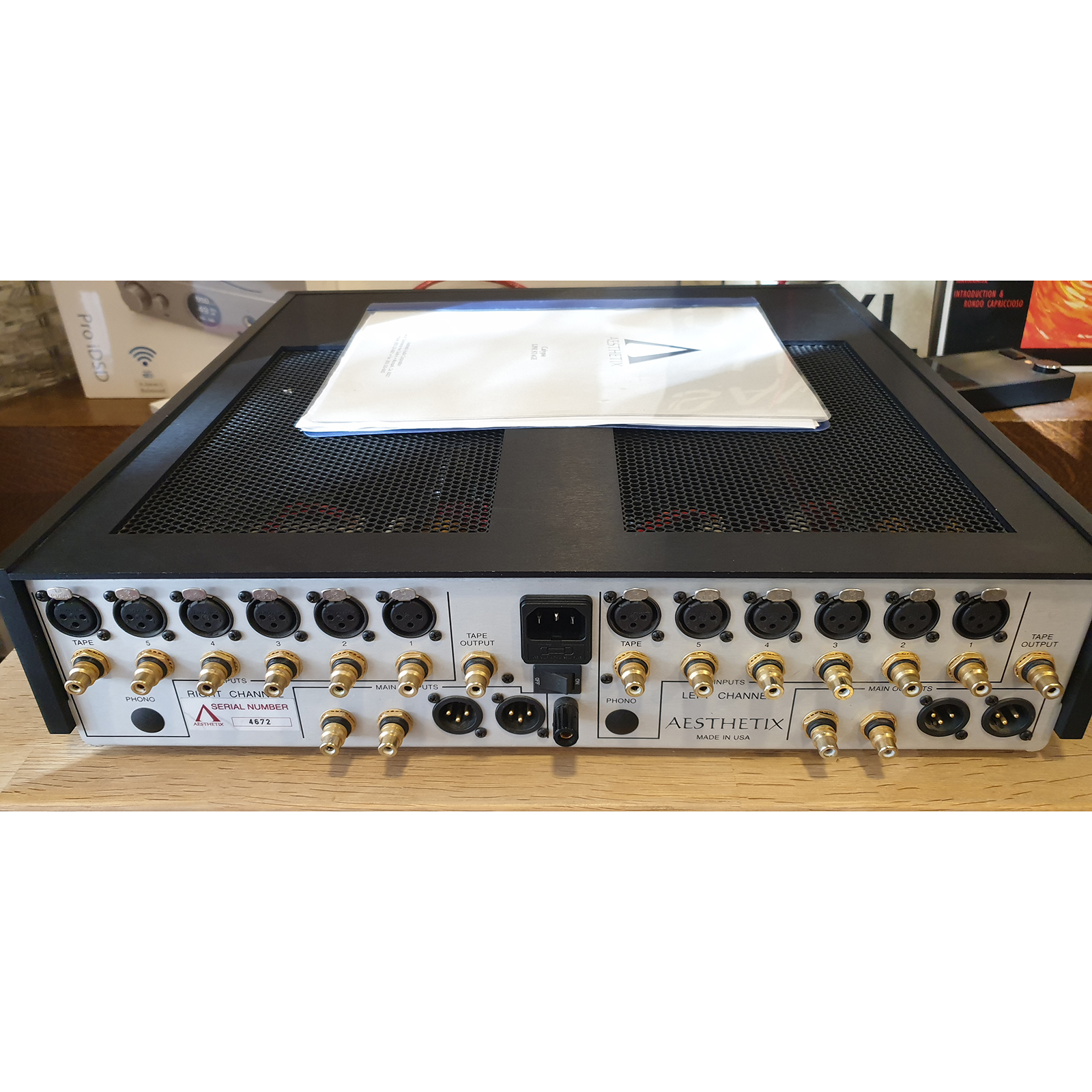

Inputs: 5 line RCA or XLR (balanced), plus 1 tape, RCA or XLR
Outputs: 2 RCA (SE) and XLR (balanced), 1 tape RCA
Line level gain: 23 dB single ended (SE), in/out, and 29 dB balanced/out
Volume control: switched resistor network volume control with 88 1 dB steps
Front panel controls: main input, tape input select, volume, balance, phase, mute, display, and bypass
Remote controls: main input, tape input select, volume, balance, phase, mute, display, bypass and standby
Frequency response: +- 0.25 dB, 20 Hz - 20 Khz
Signal to noise: measured at 70 dB minimum, A-weighted (ref 1 mv input, 75 dB gain setting)
Line input impedance: 40 k ohms SE, 80 k ohms balanced
Maximum line input: 3.5 volts SE, 7.0 volts RMS balanced
Output impedance: 1K ohms SE, 600 ohms balanced
Recommended amplifier load: 10K ohms or greater (SE), 20K ohms or greater (Balanced)
Tubes, each channel: (line section) V1 (12AX7 or equivalent), V2 (6922/6DJ8)
Power consumption: 20 watts standby, 60 watts active
Physical dimensions: 4 3/8" high, 17 7/8" wide, 18" deep including jacks
Shipping weight: 40 lbs.
Aesthetix Calypso Eclipse - Distributor Demo 1,5 Jahre AltBrand New Tubes Spare Tubes
Listenpreis 13.000 Euro
NEW CALYPSO ECLIPSE
Erste Phase: Interne Änderungen am Calypso beginnen mit .22uF / 600v Stealth-Kupplungskondensatoren, die zwischen Dergain- und Output-Stufe verwendet werden. Insgesamt kommen vier dieser exotischen Kondensatoren zum Einsatz.
In jedem Kanal der Ausgangsstufe des Calypso werden vier 2uF / 400V Kupplungskondensatoren verwendet. In der Eclipse-Version werden diese durch Stealth-Kupferfolie 4uF/400v ersetzt, wodurch der Niederfrequenzgang verbessert wird.
Zweite Phase: Hochfrequenz-Tuning-Kondensatoren werden installiert und von Hand angepasst, um den Frequenzgang auf einen engen .1dB-Standard zuzuschneiden (wie auch in unserer Signature-Version zu finden).
Dritte Phase: Der Hochspannungstransformator, der Heiztransformator und die Hochspannungsdrossel werden alle auf Isolationshalterungen neu installiert. Die speziell für Aesthetix hergestellten Nimbus Couplers von Harmonic Resolutions Systems ersetzen die vier Gummifüße von Standardgeräten (wie auch in unserer Signature-Version zu finden). Das neue Netzteil wird mit verbesserter Belüftung installiert. Zusätzliches Dämpfungsmaterial wird zu wichtigen Fahrwerkspunkten hinzugefügt.
Vierte Phase: Ein Einpunkt-Bodensystem wird verwendet, um die Transformatorgehäuse zu erden, da sie aufgrund ihrer Isolationshalterungen nicht mehr elektrisch auf das Chassis geerdet sind. Alle Eclipse Rhea-, Calypso- und Janus-Einheiten erhalten eine neue Stromversorgung, die durch eine verbesserte Ablaufverfolgung verfeinert wurde, um Fremdgeräusche weiter zu reduzieren.
CALYPSO SPECIFICATIONS
Eingänge: 5 Zeilen RCA oder XLR (symmetrisch), plus 1 Band, Cinch oder XLR
Ausgänge: 2 RCA (SE) und XLR (symmetrisch), 1 Band-RCA
Line-Pegelverstärkung: 23 dB Single-Ended (SE), In/Out, und 29 dB symmetrisch/aus
Volume-Steuerung: Geschalteter Widerstand Netzwerk-Lautstärkeregelung mit 88 1 dB Schritten
Front-Panel-Steuerung: Haupteingang, Bandeingang auswählen, Lautstärke, Balance, Phase, Stummschaltung, Anzeige und Bypass
Remote-Steuerung: Haupteingang, Bandeingang auswählen, Volume, Balance, Phase, Stummschaltung, Anzeige, Bypass und Standby
Frequenzantwort: +- 0,25 dB, 20 Hz - 20 Khz
Signal zum Rauschen: gemessen bei 70 dB Minimum, A-gewichtung (Ref 1 mv Eingang, 75 dB Verstärkungseinstellung)
Line-Eingangsimpedanz: 40 k Ohm SE, 80 k Ohm symmetrisch
Maximaler Leitungseingang: 3,5 Volt SE, 7,0 Volt RMS symmetrisch
Ausgangsimpedanz: 1K Ohm SE, 600 Ohm symmetrisch
empfohlene Verstärkerlast: 10K Ohm oder höher (SE), 20K Ohm oder höher (Balanced)
Tubes, each channel: (line section) V1 (12AX7 oder Äquivalent), V2 (6922/6DJ8)
Leistungsverbrauch: 20 Watt Standby, 60 Watt aktiv
Physikalische Abmessungen: 4 3/8" hoch, 17 7/8" breit, 18" tief einschließlich Buchsen
Schiffsgewicht: 40 lbs.
Aesthetix Calypso Eclipse - Distribütör Demo 1,5 YaşındaMarka Yeni Tüpler Yedek Tüpler
Liste Fiyatı 13.000 Euro
NEW CALYPSO ECLIPSE
İlk aşama: Calypso başlangıç iç değişiklikler .22uF / 600v Stealth kapasitörler kazanç aşaması ve çıkış aşaması arasında kullanılan. Bu egzotik kapasitörlerin toplam dört
Calypso çıkış aşamasının her kanalında kullanılan dört 2uF / 400v kapasitörler vardır. Eclipse sürümünde, bu Stealth bakır folyo 4uF/400v ile değiştirilir, düşük frekanslı yanıt iyileştirilmesi.
İkinci aşama: Frekans yanıtını sıkı bir .1dB standardına uyarlamak için yüksek frekanslı ayar kapasitörleri takılır ve elle ayarlanır (İmza sürümümüzde de bulunduğu gibi).
Üçüncü faz: Yüksek gerilim trafosu, ısıtıcı transformatörü ve yüksek voltaj lı boğma, izolasyon yuvalarına yeniden monte edilir. Harmonik Çözünürlük Sistemleri Nimbus Couplers özel Aesthetix için yapılan standart birimlerin dört kauçuk ayak yerine (aynı zamanda İmza sürümünde bulunan). Yeni güç kaynağı gelişmiş havalandırma ile yüklenir. Önemli şasi noktalarına ek sönümleme malzemesi eklenir.
Dördüncü faz: Transformatör kılıflarını, izolasyon bağları nedeniyle fiziksel temas yoluyla şasiye elektriksel olarak topraklanmadıkları için tek noktalı zemin sistemi topraklamak için kullanılır. Tüm Eclipse Rhea, Calypso ve Janus birimleri daha da yabancı gürültüyü azaltmak için geliştirilmiş iz yönlendirme tarafından rafine edilmiştir yeni bir güç kaynağı, alırsınız.
CALYPSO ÖZELLİkLerİ
Girişler: 5 satır RCA veya XLR (dengeli), artı 1 bant, RCA veya XLR
Çıktılar: 2 RCA (SE) ve XLR (dengeli), 1 bant RCA
Line seviye kazancı: 23 dB tek uçlu (SE), giriş/çıkış, ve 29 dB dengeli/çıkış
Hacim kontrolü: 88 1 dB adımlı anahtarlı rezistans ağ ses kontrolü
Ön panel kontrolleri: ana giriş, bant girişi seç, ses, denge, faz, sessiz, ekran ve bypass
Uzaktan kontroller: ana giriş, bant girişi, ses, denge, faz, sessiz, ekran, baypas ve bekleme
Frekans yanıtı: +- 0.25 dB, 20 Hz - 20 Khz
Sinyal: 70 dB minimum ölçülür, A ağırlıklı (ref 1 mv giriş, 75 dB kazanç ayarı)
Line giriş empedansı: 40 kohms SE, 80 k ohms dengeli
Maksimum hat girişi: 3.5 volt SE, 7.0 volt RMS dengeli
Çıkış empedans: 1K ohms SE, 600 ohms dengeli
Önerilen amplifikatör yükü: 10K ohms veya daha büyük (SE), 20K ohms veya daha büyük (Dengeli)
Tüpler, her kanal: (hat bölümü) V1 (12AX7 veya 12AX7 veya 12AX7 veya 12AX7 veya 12AX7 veya eşdeğer), V2 (6922/6DJ8)
Güç tüketimi: 20 watt bekleme, 60 watt aktif
Fiziksel boyutlar: 4 3 /8 " yüksek, 17 7 /8 " geniş, 18 " jacks dahil derin
Nakliye ağırlığı: 40 lbs.
