SPECIFICATIONS:

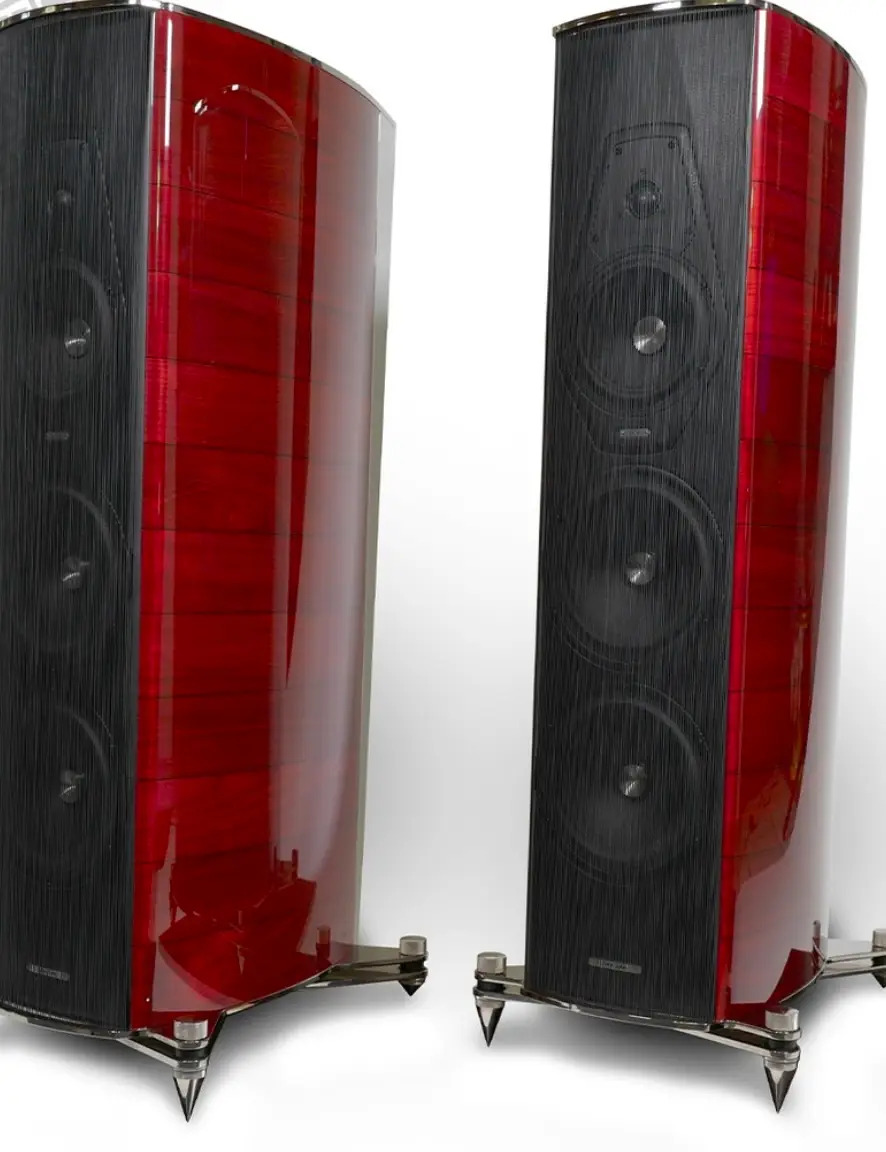

Three-and-a-half-way, reflex-loaded, floorstanding loudspeaker.

Drive-units: 1.1″ (29mm)

soft-dome tweeter, 7″ (179mm)

cellulose-fiber midrange cone, two 8.75″ (220mm) aluminum-magnesium–alloy cone woofers.

Crossover frequencies: 80Hz, 220Hz, 3.3kHz.

Frequency range: 25Hz–30kHz.

Sensitivity: 90dB/2.83V/m.

Nominal impedance: 4 ohms.

Rated input power: ss 30–300W without clipping.

Dimensions: 45.7″ (1160mm) H by 16″ (405mm) W by 25″ (635mm) D. Weight: 122 lbs (55.5kg) net each; 319 lbs (145kg)/pair shipping.

TECHNISCHE SPEZIFIKATIONEN:

Dreieinhalb Richtungen, reflexgeladener, bodenstehender Lautsprecher.

Antriebseinheiten: 1,1" (29 mm)

Softdome-Hochtöner, 7" (179 mm)

Zellulosefaser-Mitteltonleiter, zwei 8,75" (220 mm) Aluminium-Magnesium-Legierungs-Woofer mit Kegel.

Frequenzweichen: 80 Hz, 220 Hz, 3,3 kHz.

Frequenzbereich: 25Hz–30kHz.

Empfindlichkeit: 90 dB/2,83 V/m.

Nominale Impedanz: 4 Ohm.

Nennleistung: ss 30–300W ohne Clipping.

Abmessungen: 45,7" (1160 mm) H mal 16" (405 mm) B mal 25" (635 mm) D. Gewicht: 122 lbs (55,5 kg) netto pro Stück Versand; 319 lbs (145 kg) pro Paar Versand.

ESPECIFICACIONES:

suelo con carga reflex de tres y medio.

blanda de 1,1" (29 mm

de celulosa de 7" (179 mm

), dos woofers cono de aleación de aluminio y magnesio de 8,75" (220 mm).

Frecuencias de cruce: 80Hz, 220Hz, 3,3kHz.

Rango de frecuencia: 25Hz–30kHz.

Sensibilidad: 90dB/2,83V/m.

Impedancia nominal: 4 ohmios.

Potencia nominal de entrada: ss 30–300W sin recortes.

Dimensiones: 45,7" (1160 mm) de alto por 16" (405 mm) de ancho por 25" (635 mm) de diámetro. Peso: 122 lbs (55,5 kg) neto de cada uno; 319 lbs (145 kg)/par de envío.

ÖZELLIKLER:

Üç buçuk yol, refleks donanımlı, yerde duran hoparlör.

Sürücü üniteleri: 1.1" (29mm)

yumuşak kubbe tweeter, 7" (179mm)

selüloz lifli orta frekans konisi, iki adet 8.75" (220mm) alüminyum-magnezyûm-alaşımlı koni woofer.

Çapraz frekanslar: 80Hz, 220Hz, 3.3kHz.

Frekans aralığı: 25Hz–30kHz.

Hassasiyet: 90dB/2.83V/m.

Nominal empedans: 4 ohm.

Nominal giriş gücü: ss 30–300W kramp olmadan.

Boyutlar: 45.7" (1160mm) H x 16" (405mm) B x 25" (635mm) D. Ağırlık: Ağüstü 122 lbs (55.5kg) net; 319 lbs (145kg)/çift nakliye ağırlığı.
