UPC:

Halcro DM38 Stereo Power Amp

Weight:

95.00 KGS

Minimum Purchase:

1 unit

Maximum Purchase:

1 unit

Shipping:

Calculated at Checkout

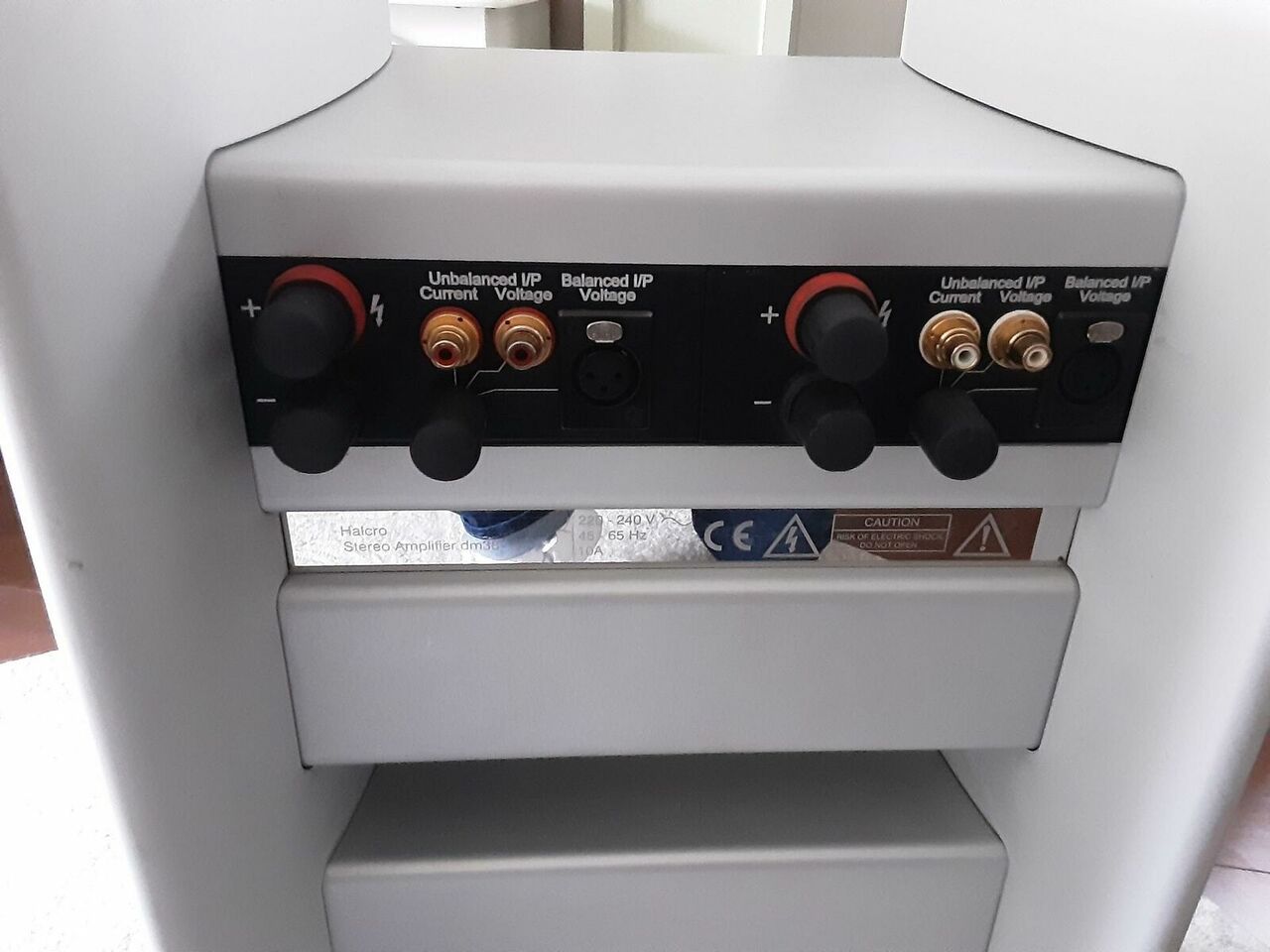

Description: Solid-state stereo power amplifier with balanced (XLR) and single-ended voltage-mode and current-mode (RCA) inputs, and power-factor-corrected, switch-mode power supply. Rated output power: >180W into 8 ohms (22.6dBW), >350W into 4 ohms (22.4dBW). THD: <-110dB (<3000 parts per billion) up to 20kHz (100kHz measurement bandwidth) at full power, 350W into 4 ohms; THD at 1kHz <-130dB (300 parts per billion). IMD: <-110dB each intermodulation product resulting from a combined 19kHz+20kHz signal, each at 100W into ohms, equivalent to 350W peak power into 4 ohms. Noise: 5nV/root-Hz, voltage-mode inputs; 6pA/root-Hz, current-mode input. Slew rate: 100V/µs. Input impedance: 10k ohms, unbalanced voltage mode; 20k ohms, balanced voltage mode; 60 ohms, unbalanced current mode. Voltage gain: 30V/V (29.5dB), voltage mode; 5V/mA, current mode. Frequency response: not specified.

Dimensions: 31" (790mm) H by 16" (400mm) W by 16" (400mm) D. Weight: 120 lbs (55kg). Shipping weight: 187 lbs (85kg).

UPC:

Halcro DM38 Stereo-Endstufe

Gewicht:

95,00 KGS

Mindestabnahme:

1 Einheit

Maximaler Kauf:

1 Einheit

Versand:

An der Kasse berechnet

Beschreibung: Solid-State-Stereo-Endstufe mit symmetrischen (XLR) und Single-Ended-Eingängen im Spannungsmodus und Strommodus (RCA) und leistungsfaktorkorrigiertem Schaltnetzteil. Nennausgangsleistung: >180W an 8 Ohm (22,6dBW), >350W an 4 Ohm (22,4dBW). Klirrfaktor: <-110dB (<3000 Teile pro Milliarde) bis zu 20kHz (100kHz Messbandbreite) bei voller Leistung, 350W an 4 Ohm; THD bei 1kHz <-130dB (300 Teile pro Milliarde). IMD: <-110dB jedes Intermodulationsprodukt, das sich aus einem kombinierten 19kHz+20kHz Signal ergibt, jedes bei 100W in Ohm, äquivalent zu 350W Spitzenleistung an 4 Ohm. Rauschen: 5 nV/Wurzel-Hz, Eingänge im Spannungsmodus; 6pA/Wurzel-Hz, Strommodus-Eingang. Anstiegsgeschwindigkeit: 100V/µs. Eingangsimpedanz: 10k Ohm, unsymmetrischer Spannungsmodus; 20k Ohm, symmetrischer Spannungsmodus; 60 Ohm, unsymmetrischer Strommodus. Spannungsverstärkung: 30V/V (29,5dB), Spannungsmodus; 5V/mA, Strommodus. Frequenzgang: keine Angabe.

Abmessungen: 31" (790 mm) H x 16" (400 mm) B x 16" (400 mm) T. Gewicht: 120 lbs (55 kg). Versandgewicht: 187 lbs (85 kg).

UPC:

Halcro DM38 Stereo Güç Amplifikatörü

Ağırlık:

95.00 KG

Minimum Satın Alma:

1 ünite

Maksimum Satın Alma:

1 ünite

Nakliye:

Ödeme sırasında hesaplanır

Açıklama: Dengeli (XLR) ve tek uçlu voltaj modu ve akım modu (RCA) girişleri ve güç faktörü düzeltmeli, anahtar modlu güç kaynağına sahip katı hal stereo güç amplifikatörü. Nominal çıkış gücü: >180W ila 8 ohm (22.6dBW), >350W ila 4 ohm (22.4dBW). THD: <-110dB (milyarda <3000 parça) tam güçte 20kHz'e kadar (100kHz ölçüm bant genişliği), 350W ila 4 ohm; 1kHz <-130dB'de THD (milyarda 300 parça). IMD: <-110dB, her biri 100W'da ohm'da, 4 ohm'da 350W tepe gücüne eşdeğer, birleşik 19kHz+20kHz sinyalden kaynaklanan her intermodülasyon ürünü. Gürültü: 5nV/kök-Hz, voltaj modu girişleri; 6pA/kök-Hz, akım modu girişi. Dönüş hızı: 100V/µs. Giriş empedansı: 10k ohm, dengesiz voltaj modu; 20k ohm, dengeli voltaj modu; 60 ohm, dengesiz akım modu. Voltaj kazancı: 30V/V (29.5dB), voltaj modu; 5V/mA, akım modu. Frekans yanıtı: belirtilmemiş.

Boyutlar: 31" (790 mm) Y x 16" (400 mm) G x 16" (400 mm) D. Ağırlık: 120 lb (55 kg). Nakliye ağırlığı: 187 lb (85 kg).
